REXING V5 Dash Cam User Manual

Introduction

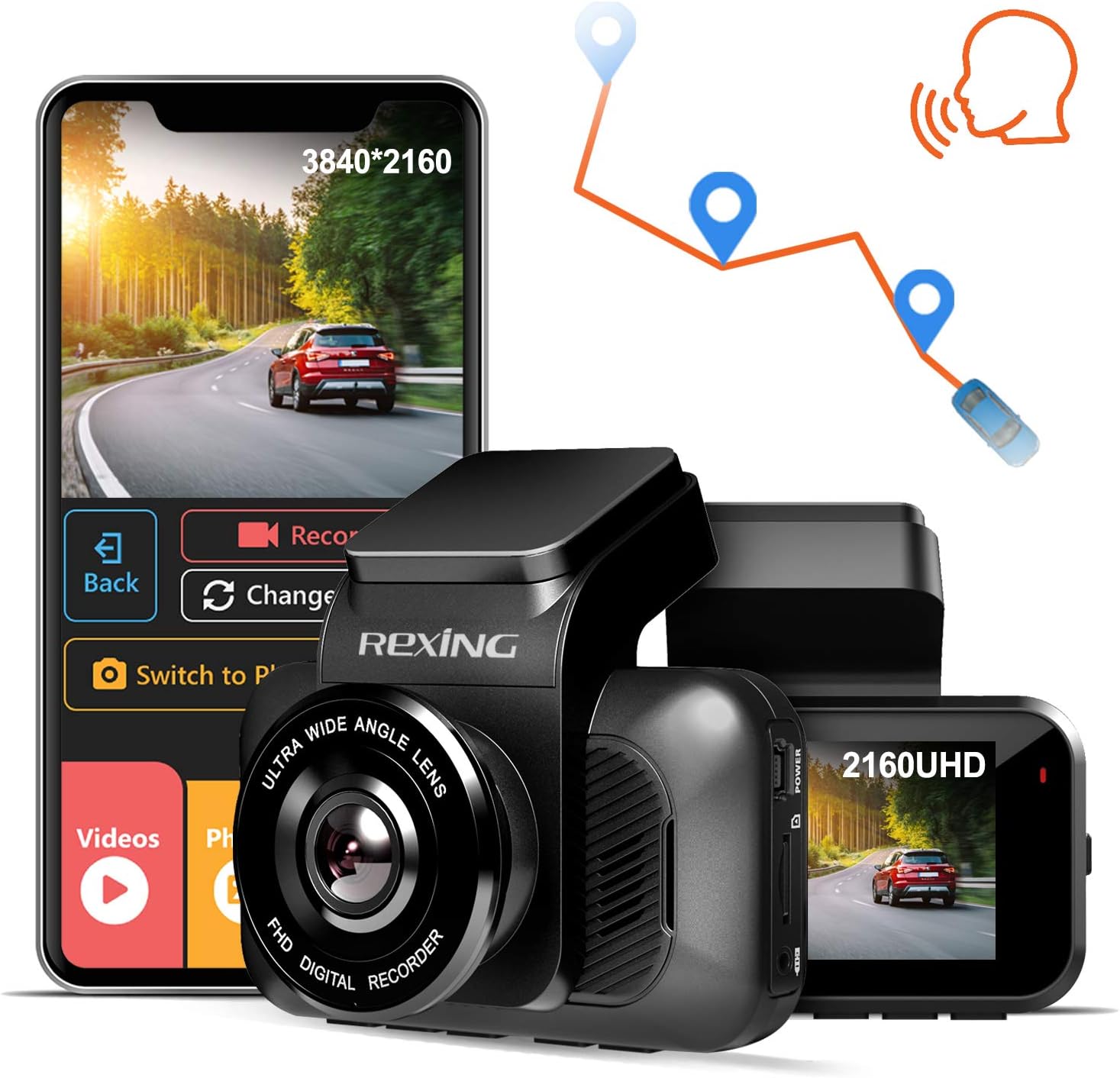

The REXING V5 Dash Cam is a state-of-the-art 4K Ultra HD car camera system designed to provide comprehensive recording of your driving experience. Featuring modular capabilities, built-in GPS, Wi-Fi connectivity, voice control, and advanced safety features like G-Sensor and Parking Monitor, the V5 ensures reliable and high-quality video evidence for your peace of mind. This manual will guide you through the setup, operation, and maintenance of your new dash cam.

Setup Guide

1. Package Contents

Before you begin, ensure all items are present in your package:

• REXING V5 Dash Cam Unit
• Car Power Cable
• 3M Adhesive Mounts
• Cable Management Tool
• Memory Card (Included)
• Quick Start Guide & Safety Guide

Figure 1: REXING V5 Package Contents. Includes the dash cam, power cable, mounting accessories, and user guides.

2. Mounting the Dash Cam

Mount the main camera unit to the windshield, ideally behind the rearview mirror, to ensure a clear view of the road without obstructing your driving vision. Use the provided 3M adhesive mounts for secure attachment.

Figure 2: REXING V5 Dash Cam mounted on the windshield, capturing a wide-angle view of the road.

For optimal recording, ensure the lens is clean and free from obstructions. The 170-degree ultra-wide-angle lens captures broad views of surroundings, reducing blind spots.

3. Connecting Power and Optional Modules

Connect the car power cable to the dash cam and route it discreetly along the windshield and dashboard to your vehicle's 12V power outlet. The V5 supports modular camera attachments for expanded viewing areas, including cabin view and rear view (sold separately).

Figure 3: Modular Capabilities of the REXING V5. Additional cameras can be connected for multi-channel recording.

If using optional cabin or rear cameras, connect them to the main unit as per their respective instructions. The rear camera can be mounted inside or outside the vehicle, depending on the model.

Operating Instructions

1. Powering On and Recording

The REXING V5 Dash Cam automatically powers on and begins recording when connected to your vehicle's power source and the ignition is turned on. Videos are recorded in 1, 2, or 3-minute intervals. When the memory card storage limit is reached, loop recording automatically overwrites the oldest unlocked recordings.

Figure 4: The V5 records in stunning 4K Ultra HD, providing clear footage even in low-light conditions thanks to its SONY IMX335 sensor and Wide Dynamic Range technology.

2. Mobile App and Voice Control

Utilize the REXING mobile app (available for iOS and Android) to view and manage dash cam recordings instantly. You can download recorded 4K videos directly to your smartphone and easily share them. The built-in GPS accurately records your driving location and speed, viewable via the Rexing GPS Player.

Figure 5: Seamless connectivity with the REXING mobile app for easy video management and sharing.

The V5 also supports voice control, allowing for hands-free operation to initiate photo/video recording and other tasks.

3. G-Sensor and Parking Monitor

The G-Sensor detects sudden impacts or collisions while driving and automatically locks the current video segment to prevent it from being overwritten. The Parking Monitor feature ensures 24/7 surveillance: the dash camera will automatically turn on and record a 20-second video if it detects vibration, even when the car is parked and turned off.

Figure 6: Key safety features including G-Sensor for impact detection, continuous loop recording, and 24-hour parking monitoring.

Maintenance

To ensure the longevity and optimal performance of your REXING V5 Dash Cam, regular maintenance is recommended:

• Memory Card Management: Periodically format your memory card (at least once a month) to prevent data corruption and ensure smooth loop recording. Use a high-quality, high-speed microSD card (up to 256GB recommended).
• Lens Cleaning: Gently clean the camera lens with a soft, lint-free cloth to ensure clear video quality. Avoid abrasive materials that could scratch the lens.
• Firmware Updates: Check the REXING website regularly for firmware updates. Keeping your dash cam's firmware up-to-date can improve performance, add new features, and fix bugs.
• Temperature Considerations: While the V5 is built with a supercapacitor for enhanced temperature resistance, avoid prolonged exposure to extreme temperatures when possible to prolong its lifespan.

Troubleshooting

If you encounter issues with your REXING V5 Dash Cam, try the following common troubleshooting steps:

• Camera Not Powering On: Ensure the power cable is securely connected to both the dash cam and the vehicle's 12V outlet. Check the vehicle's fuse for the power outlet.
• Recording Issues: Format the microSD card. Ensure the card is not full or corrupted. Try a different high-speed microSD card.
• GPS Not Working: Ensure the GPS module (if external) is properly connected and has a clear view of the sky. Allow several minutes for the GPS signal to acquire.
• Wi-Fi Connectivity Problems: Ensure the REXING app is updated to the latest version. Restart both the dash cam and your mobile device.
• Voice Control Not Responding: Speak clearly and ensure there is minimal background noise. Check the dash cam's settings to ensure voice control is enabled.

For more detailed troubleshooting or persistent issues, please refer to the official REXING support resources.

Specifications

Warranty and Support

REXING stands behind its products with a 18 Month Warranty. For any inquiries, technical assistance, or warranty claims, please contact REXING's personal LIVE CUSTOMER SUPPORT via email or phone. You can also visit the official REXING website for FAQs, troubleshooting guides, and to register your product for warranty extension.

For more information, visit: www.rexingusa.com
