QUECHUA Inflatable Camping Mattress 8561149

1. Important Safety Information

Please read and understand all safety warnings before using your QUECHUA Inflatable Camping Mattress.

• Do not over-inflate: Over-inflation can damage the mattress and reduce its lifespan.
• Avoid sharp objects: Keep the mattress away from sharp objects, stones, or rough surfaces to prevent punctures.
• Keep away from heat sources: Do not expose the mattress to direct flames, hot surfaces, or excessive heat, as this can cause material damage or melting.
• Use in dry conditions: Do not use the mattress in wet or damp conditions unless specifically designed for such use, as moisture can affect material integrity and user comfort.
• Maximum weight capacity: The mattress is designed for a maximum user weight of 220 kg (485 lbs). Do not exceed this limit.

2. Product Overview

The QUECHUA Inflatable Camping Mattress (Model 8561149) is designed for comfortable sleeping during camping trips. It features a soft, velour-like surface and an anti-return valve for easy inflation and deflation. A repair patch is included for minor damages.

Image: Side view of the inflated QUECHUA camping mattress, showcasing its height and structure.

Image: Close-up view of the QUECHUA brand logo printed on the mattress surface.

3. Setup and Inflation

Follow these steps to properly inflate your camping mattress:

1. Unroll the mattress: Lay the mattress flat on a clean, smooth surface, free from sharp objects.
2. Locate the valve: Find the inflation valve, typically located on the side or end of the mattress.
3. Open the valve: Open the valve cap. The mattress features an anti-return valve, which prevents air from escaping immediately after inflation.
4. Inflate: Use a compatible camping pump (foot pump, hand pump, or electric pump) to inflate the mattress. Insert the pump nozzle firmly into the valve.
5. Inflate to desired firmness: Inflate until the mattress reaches your desired firmness. Avoid over-inflating.
6. Close the valve: Once inflated, quickly close the valve cap securely to prevent air leakage.

Image: Visual guide illustrating the steps for inflating and deflating the mattress, including valve operation.

For a video demonstration, visit: http://airbed.video/basic_qrcode

4. Deflation and Storage

To deflate and store your mattress:

1. Open the valve: Open the valve cap completely to allow air to escape.
2. Roll or press: Begin rolling the mattress tightly from the end opposite the valve, or press down to expel air.
3. Expel all air: Ensure all air is expelled for compact storage.
4. Close the valve: Close the valve cap once deflated.
5. Store: Fold or roll the mattress and place it in its storage bag (if included). Store in a cool, dry place, away from direct sunlight and extreme temperatures.

5. Maintenance and Repair

Cleaning

Clean the mattress with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Ensure the mattress is completely dry before storing.

Repairing a Puncture

Your mattress comes with a repair patch. Follow these steps for minor punctures:

1. Locate the puncture: Inflate the mattress and listen for escaping air, or apply soapy water to the surface to find bubbles.
2. Clean and dry: Ensure the area around the puncture is clean and completely dry.
3. Apply the patch: Peel off the backing from the repair patch and firmly press it over the puncture. Hold for several minutes to ensure adhesion.
4. Allow to cure: Wait a few hours before re-inflating the mattress to allow the adhesive to fully cure.

Image: Close-up view of the included repair patch and the mattress valve.

6. Troubleshooting

Mattress deflates quickly:

• Check the valve: Ensure the valve cap is securely closed.
• Inspect for punctures: Carefully check the mattress surface for any small holes or tears. Use the repair patch if a puncture is found.
• Temperature changes: Air pressure can decrease in colder temperatures, making the mattress feel softer. Re-inflate slightly if needed.

Difficulty inflating:

• Ensure valve is fully open: Make sure the valve is completely open for air intake.
• Check pump connection: Ensure the pump nozzle is firmly inserted into the valve.

7. Specifications

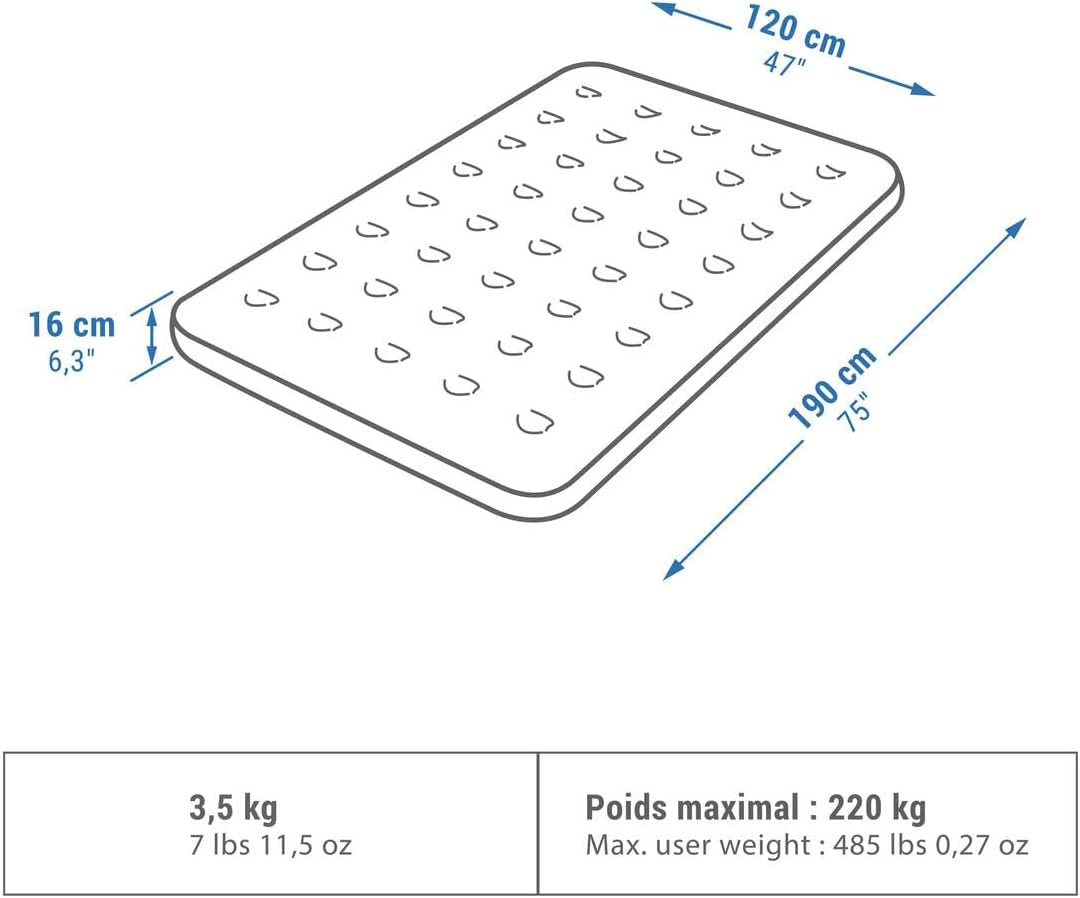

Image: Diagram detailing the mattress dimensions (190 cm x 120 cm x 16 cm), weight (3.5 kg), and maximum user weight (220 kg).

8. Warranty and Support

For information regarding warranty coverage, returns, or additional product support, please refer to the retailer's policy or contact QUECHUA customer service directly. Keep your proof of purchase for any warranty claims.
