1. Introduction
Thank you for choosing the CUCKOO CMC-QAB549S Multicooker. This appliance is designed to simplify your cooking experience with its versatile functions and pre-programmed modes. To ensure safe and optimal performance, please read this manual thoroughly before initial use and retain it for future reference.
Important Safety Instructions
- Always place the multicooker on a stable, level, and heat-resistant surface.
- Do not immerse the main unit, cord, or plug in water or other liquids.
- Keep hands and face away from the steam vent during operation to avoid burns.
- Ensure the inner pot is properly seated before closing the lid and starting any cooking program.
- Unplug the appliance from the outlet when not in use and before cleaning.
- Do not operate the multicooker if the power cord or plug is damaged, or if the appliance malfunctions.
2. Product Overview
Familiarize yourself with the components of your CUCKOO CMC-QAB549S Multicooker.
Figure 2.1: Front View of the Multicooker. This image shows the front of the CUCKOO CMC-QAB549S Multicooker, highlighting the digital display and control panel with various function buttons.

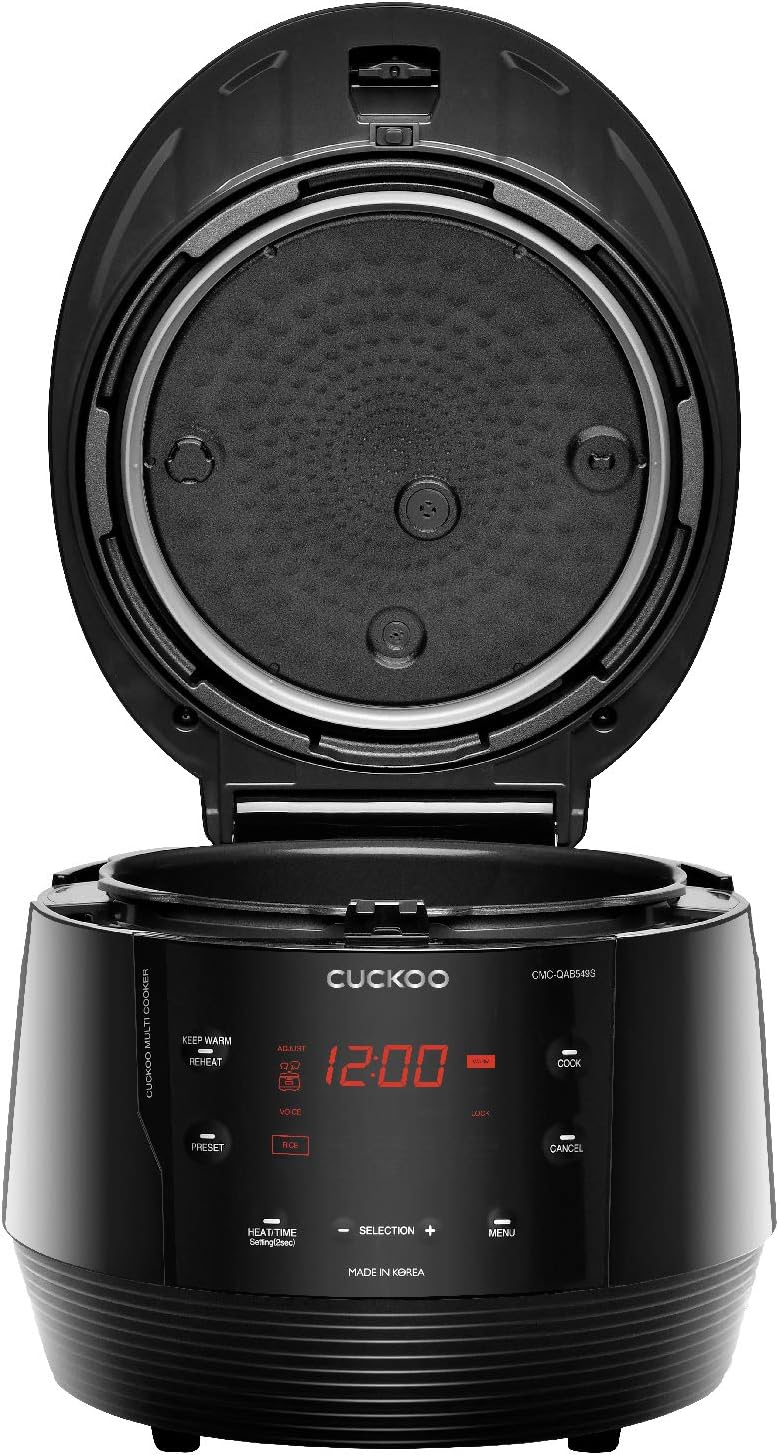

Figure 2.2: Open View of the Multicooker. This image displays the multicooker with its lid open, revealing the removable inner pot and the lid's interior components, including the inner lid and gasket.

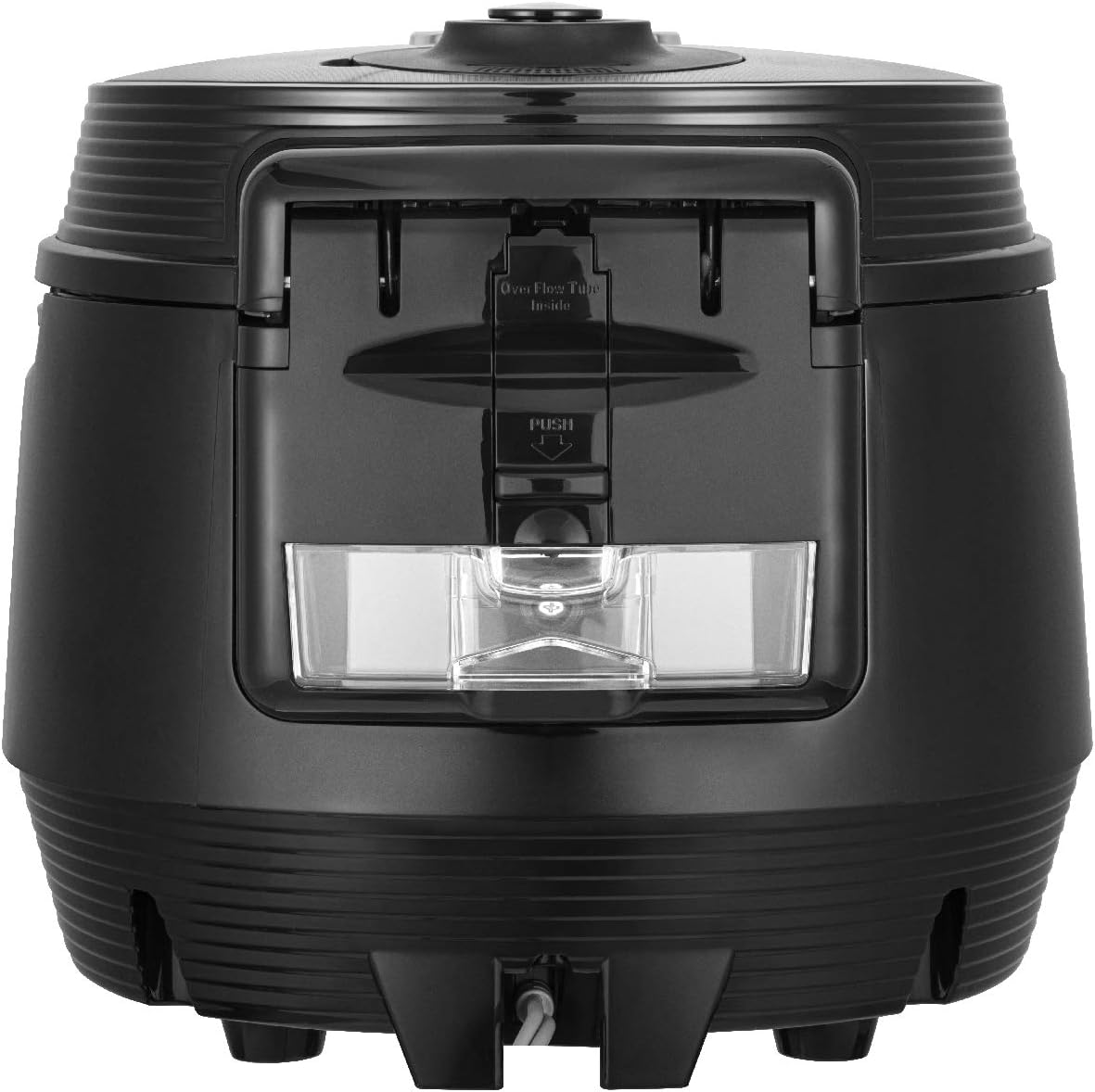

Figure 2.3: Rear View of the Multicooker. This image shows the back of the multicooker, featuring the water collector which gathers condensation during cooking.

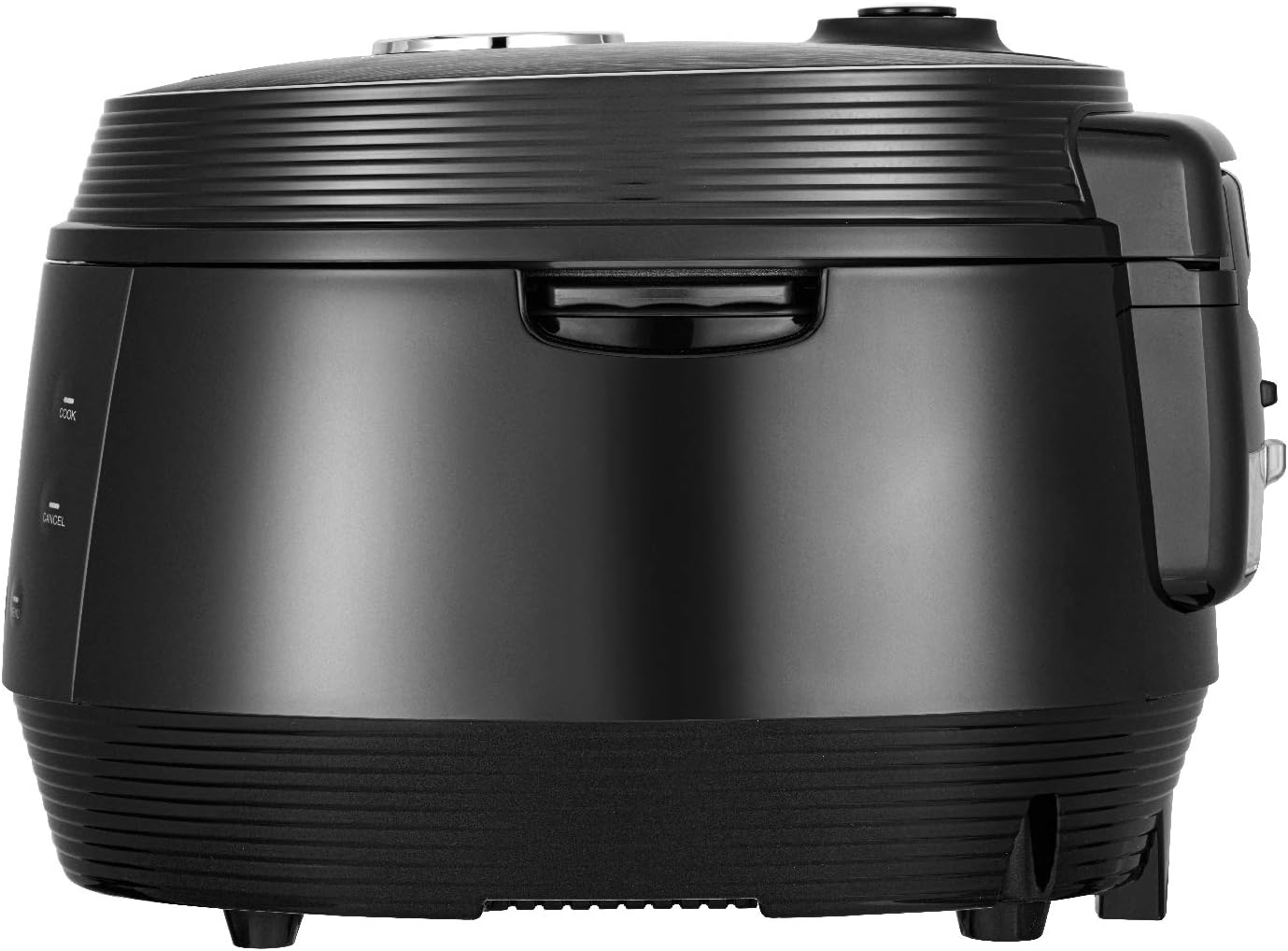

Figure 2.4: Side View of the Multicooker. This image presents a side profile of the CUCKOO CMC-QAB549S Multicooker, illustrating its compact design.
Key Components:
- Main Unit: The primary body of the multicooker.
- Inner Pot: Removable non-stick pot for cooking.
- Lid: Top cover with sealing gasket and steam vent.
- Control Panel: Digital display and buttons for program selection and settings.
- Steam Vent: Releases excess steam during cooking.
- Water Collector: Gathers condensation from the lid.
- Measuring Cup & Rice Paddle: Included accessories for convenience.
3. Setup
3.1 Unpacking
- Carefully remove the multicooker and all accessories from the packaging.
- Remove any protective films or stickers from the appliance.
- Retain packaging materials for potential future transport or storage.
3.2 Initial Cleaning
- Wash the inner pot, inner lid, measuring cup, and rice paddle with warm, soapy water. Rinse thoroughly and dry completely.
- Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners.
3.3 Placement
- Place the multicooker on a dry, stable, and heat-resistant countertop or table.
- Ensure there is adequate space (at least 10-15 cm) around the appliance for proper ventilation, especially around the steam vent.
- Keep away from direct sunlight, heat sources, and moisture.
4. Operating Instructions
4.1 Powering On/Off
- Plug the power cord into a grounded electrical outlet. The display will illuminate.
- To turn off, unplug the appliance.
4.2 Control Panel Overview
The control panel features a digital display and several buttons for selecting and adjusting cooking programs:
- MENU: Press to cycle through the available cooking modes (e.g., Rice, Steam, Multicook).
- SELECTION (+/-): Use these buttons to adjust cooking time, temperature, or other settings for the selected mode.
- COOK: Press to start the selected cooking program.
- CANCEL: Stops the current cooking program or clears selections.
- KEEP WARM/REHEAT: Activates or deactivates the keep warm function, or reheats food.
- PRESET: Sets a delayed cooking start time.
- HEAT/TIME: Adjusts heating levels or cooking duration in certain modes.
4.3 Basic Rice Cooking
- Measure the desired amount of rice using the provided measuring cup. Rinse the rice thoroughly until the water runs clear.
- Place the rinsed rice into the inner pot. Add water according to the markings on the inner pot, corresponding to the amount of rice. For example, for 2 cups of rice, fill water to the '2 cups' line.
- Close the lid securely until it clicks into place.
- Press the MENU button until 'RICE' or the appropriate rice cooking mode is selected.
- Press the COOK button to start. The display will show the remaining cooking time.
- Once cooking is complete, the multicooker will automatically switch to 'KEEP WARM' mode.
4.4 Steaming Function
- Add the appropriate amount of water to the inner pot (refer to recipe or general guidelines for steaming).
- Place the steaming rack (if included) into the inner pot, then arrange your food on the rack.
- Close the lid securely.
- Press the MENU button to select the 'STEAM' mode.
- Use the SELECTION (+/-) buttons to adjust the steaming time if necessary.
- Press the COOK button to begin steaming.
5. Maintenance and Cleaning
Regular cleaning ensures the longevity and hygienic operation of your multicooker.
5.1 After Each Use
- Unplug the multicooker and allow it to cool completely before cleaning.
- Remove the inner pot and wash it with warm, soapy water using a soft sponge. Avoid abrasive scrubbers to protect the non-stick coating.
- Remove and clean the inner lid and gasket. Ensure no food particles are trapped.
- Empty and clean the water collector.
- Wipe the exterior of the main unit with a damp cloth.
5.2 Regular Cleaning
- Periodically check the steam vent for blockages and clean if necessary.
- Ensure all parts are thoroughly dry before reassembling and storing the multicooker.
6. Troubleshooting
If you encounter issues with your multicooker, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not power on | Not plugged in; power outage; faulty outlet | Check power cord connection; verify power supply; try a different outlet. |
| E01 Error displayed | Internal sensor error; overheating; lid not properly closed | Unplug and plug back in after a few minutes. Ensure lid is securely closed. If error persists, contact customer support. |
| Rice is too dry or burnt at the bottom | Insufficient water; incorrect rice-to-water ratio; prolonged 'KEEP WARM' | Ensure correct water levels according to markings. Reduce 'KEEP WARM' time if not consuming immediately. |
| Rice is too watery or mushy | Too much water; lid not sealed properly | Reduce water slightly for next batch. Ensure lid is fully closed and gasket is clean. |
| Steam leaking from lid | Lid not closed properly; gasket dirty or damaged | Ensure lid is securely closed. Clean or replace the gasket if worn. |
7. Specifications
Technical details for the CUCKOO CMC-QAB549S Multicooker:
- Brand: CUCKOO
- Model Number: CMC-QAB549S
- Color: Black
- Product Dimensions (L x W x H): 30.4 x 39.5 x 28.2 cm
- Capacity: 5 Liters
- Power: 1100 Watts
- Voltage: 230 Volts
- Material: Plastic
- Special Feature: Multicooker
- Item Weight: 6.7 Kilograms
- Control Method: Application (Note: This may refer to smart features or a companion app, if available)
- Country of Origin: Germany
8. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact CUCKOO customer service directly. Keep your purchase receipt as proof of purchase.
