Introduction
This manual provides essential instructions for the safe assembly, operation, and maintenance of your HOMCOM 4-Wheel Foldable Rollator Walker, Model 712-035. Please read this manual thoroughly before use and retain it for future reference. This rollator is designed to provide mobility assistance and stability for adults, featuring a comfortable padded seat, backrest, and convenient storage.
Safety Information
- Always ensure all parts are securely assembled before each use.
- Check the brakes regularly to ensure they are functioning correctly.
- Do not exceed the maximum weight capacity of 136 kg (300 lbs).
- Use the rollator on flat, stable surfaces. Avoid uneven terrain, stairs, or escalators.
- Engage the parking brakes before sitting on the seat.
- Do not use the rollator as a wheelchair for extended transport without assistance. The footrest is for temporary resting.
- Keep hands and fingers clear of moving parts, especially during folding and unfolding.
- Consult a healthcare professional to determine if this device is appropriate for your specific mobility needs.
Package Contents
Verify that all components are present and undamaged upon opening the package:
- Rollator frame with 4 wheels
- Padded seat and backrest
- Ergonomic handles with hand brakes
- Storage basket
- Footrest
- Assembly hardware (if applicable)
- Instruction Manual
Assembly and Setup
Follow these steps to assemble your rollator:
- Unfolding the Frame: Carefully remove the rollator from its packaging. Place it on a flat surface. Gently pull the sides of the frame apart until it locks into its open position. Ensure all locking mechanisms are engaged.

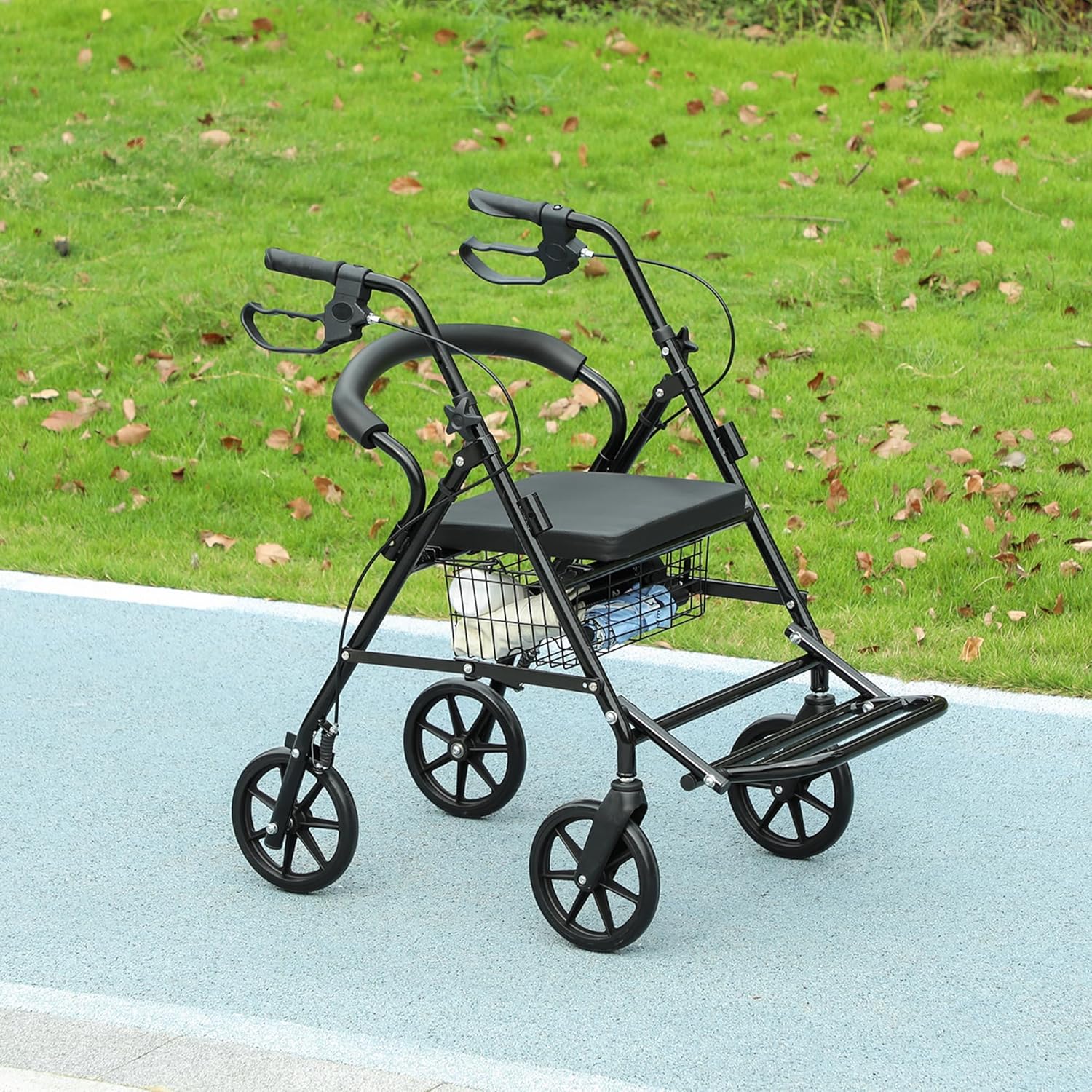

Image: The HOMCOM 4-wheel rollator positioned outdoors, ready for use.
- Attaching the Storage Basket: Position the storage basket under the seat. Secure it to the frame according to the design (it may hook onto the frame or slide into designated slots).
- Adjusting Handle Height: The ergonomic handles are height-adjustable from 90 cm to 100 cm. Locate the adjustment pins or levers on the handle tubes. Press or release them and slide the handles up or down to your desired height. Ensure both handles are at the same height and securely locked in place before use.

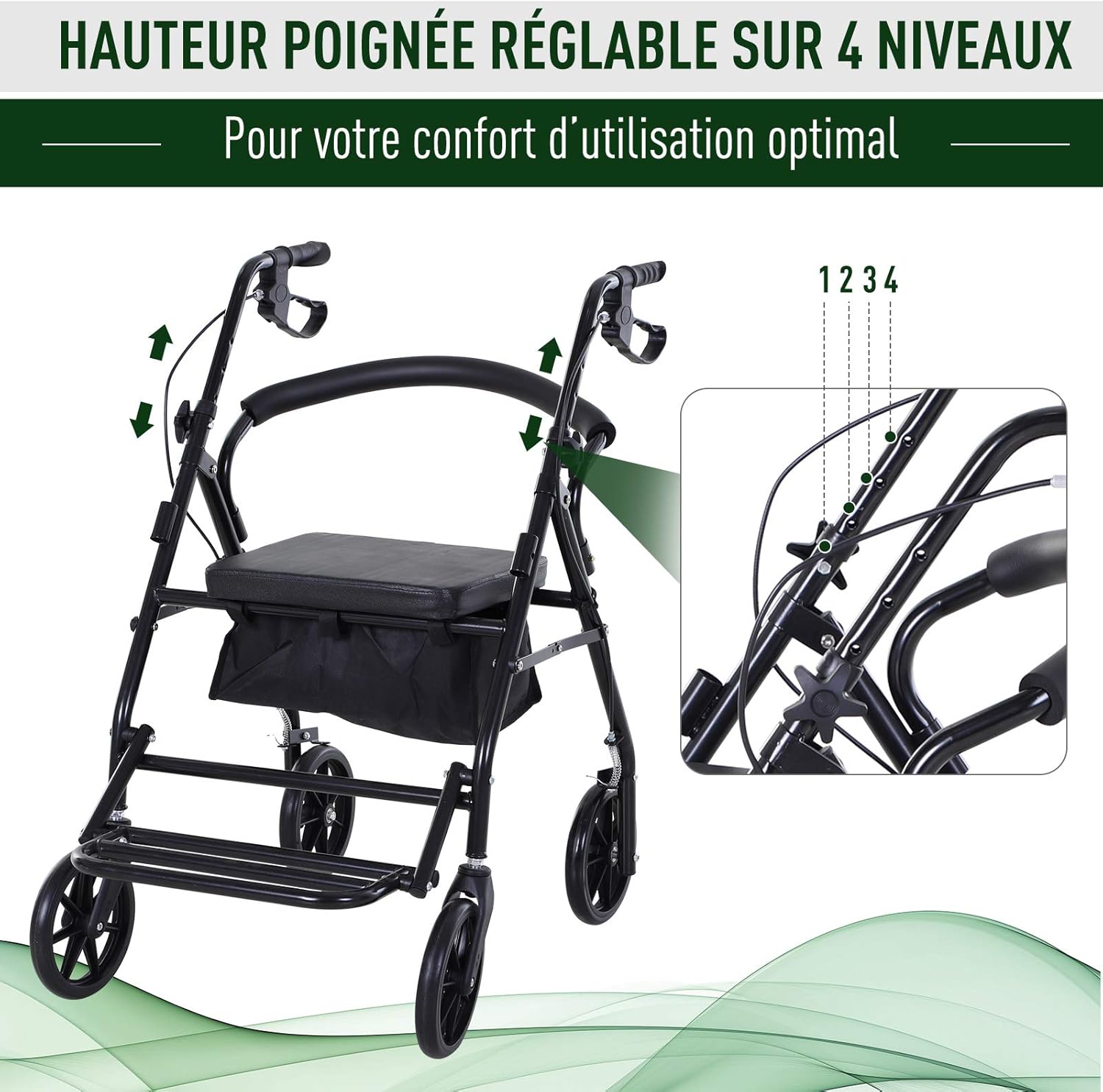

Image: Illustration showing the 4-level adjustable handle height feature of the rollator.
- Checking Brakes: Before first use, test the hand brakes. Squeeze the brake levers to slow down or stop the rollator. Push the levers down to engage the parking brake, which locks the wheels. Ensure both brakes function smoothly and effectively.
Image: Detailed close-up of one of the rollator's wheels and the integrated hand brake mechanism.
Operating Instructions
Using as a Walker:
- Stand behind the rollator with your hands on the ergonomic handles.
- Push the rollator forward a short distance, then step forward with one foot, followed by the other. Maintain a steady pace.
- Use the hand brakes to control your speed, especially when going downhill.
Using the Seat:
- Before sitting, ensure the rollator is on a flat, stable surface.
- Engage both parking brakes by pushing the hand brake levers down until they lock.
- Turn around and slowly sit on the padded seat, using the handles for support.
- The integrated footrest can be used for comfort while seated.
- To stand up, disengage the parking brakes only after you are fully upright and stable.
Image: The rollator demonstrating its dual function for walking and as a temporary transport chair.
Folding for Storage and Transport:
- Ensure the storage basket is empty and removed if it obstructs folding.
- Locate the folding mechanism (usually a strap or lever under the seat).
- Pull the mechanism to release the frame and gently push the sides together until the rollator is folded compactly.
- Secure any locking clips to keep it folded during transport.
Image: The rollator in its open state and folded, demonstrating its compact size for storage in a car trunk.
Maintenance
- Cleaning: Wipe the frame with a damp cloth and mild detergent. Do not use abrasive cleaners. The padded seat and backrest can be cleaned with a damp cloth.
- Inspection: Regularly check all screws, bolts, and fasteners to ensure they are tight. Inspect the wheels for wear and tear. Check brake cables for fraying or damage and ensure they operate smoothly.
- Storage: Store the rollator in a dry place, away from direct sunlight and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Rollator does not roll smoothly. | Wheels are dirty or damaged; loose axle. | Clean wheels. Check for obstructions. Tighten axle bolts if loose. Replace damaged wheels. |
| Brakes are not effective. | Brake cables are loose or worn; brake pads are worn. | Adjust brake cable tension. Consult a professional for brake pad replacement if necessary. |
| Rollator feels unstable. | Frame not fully locked; handles not securely fastened. | Ensure the frame is fully unfolded and locked. Verify handle height adjustment pins are engaged. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 712-035 |
| Brand | HOMCOM |
| Product Dimensions (L x W x H) | 87 x 57 x 90 cm (34.3 x 22.4 x 35.4 inches) |
| Item Weight | 9.5 kg (20.9 lbs) |
| Maximum Weight Capacity | 136 kg (300 lbs) |
| Material | Metal (anti-corrosion epoxy), Padded Seat/Backrest |
| Color | Black |
| Handle Height Adjustment | 90 - 100 cm (35.4 - 39.4 inches) |
| Rollator Type | 4-Wheel Rollator with Seat and Footrest |
| Foldable | Yes |
| Certifications | CE Standard |
Image: Detailed diagram illustrating the dimensions and weight capacity of the rollator.
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact HOMCOM customer service. Keep your purchase receipt as proof of purchase.
