RASTP Transmission Adapter Plate User Manual

1. Introduction and Overview

This manual provides essential information for the RASTP Transmission Adapter Plate, Model RS-EM1017-Black. This high-quality steel adapter plate is designed to facilitate the connection of specific General Motors (GM) transmissions to compatible engines. It ensures a precise fit and reliable operation when installed correctly.

Key features include:

• 100% quality assurance tested for reliability.
• Designed for responsive and efficient operation.
• Perfect match for the original car's specifications.
• Constructed from high-quality steel for durability.

2. Product Specifications

The package includes one Transmission Adapter Plate Kit.

3. Compatibility

This adapter plate is designed for specific automotive applications:

• Adapts for Buick, Pontiac, and Cadillac Turbo 350 (TH350) and Turbo 400 (TH400) automatic transmissions.
• Compatible with 1962-up Chevy engines (or vice versa, meaning Chevy transmissions to BOP engines).
• Also compatible with 1970-1977 Pontiac 455 700R4 applications.

Important Note:

This adapter plate will not work on smaller bellhousings supplied on 2.5, 2.8, and 3.1 liter engines. Please verify your engine and transmission specifications before installation.

4. Installation and Setup

The RASTP Transmission Adapter Plate is designed for automotive enthusiasts and professionals. Due to the complexity and critical nature of transmission and engine components, professional installation is highly recommended.

While specific step-by-step instructions are beyond the scope of this general manual, the installation typically involves:

1. Ensuring the vehicle is safely secured and appropriate safety measures are in place.
2. Removing the existing transmission or bellhousing as required.
3. Aligning the adapter plate with the engine block and transmission bellhousing bolt patterns.
4. Securing the adapter plate using the provided hardware and appropriate torque specifications (refer to vehicle-specific service manuals for torque values).
5. Reassembling all components and verifying proper fitment and clearances.

Always consult a certified mechanic or refer to a detailed vehicle service manual for precise installation procedures and torque specifications relevant to your specific vehicle and transmission combination.

Figure 1: RASTP Transmission Adapter Plate and included hardware.

Figure 2: Detailed view of the bolts and nuts provided for installation.

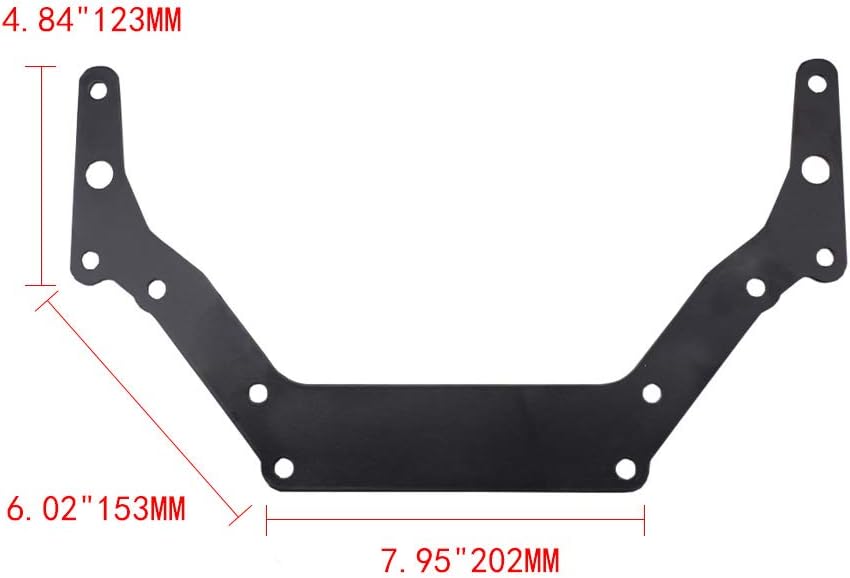

Figure 3: Dimensions of the RASTP Transmission Adapter Plate for reference.

5. Usage and Application

Once properly installed, the RASTP Transmission Adapter Plate allows for the seamless integration of compatible GM transmissions with specified Chevy engines. Its primary function is to bridge the mechanical connection, ensuring correct alignment and secure mounting of the transmission to the engine block.

This adapter plate is a critical component for engine and transmission swaps or upgrades where the original bolt patterns do not match. It is designed to maintain the structural integrity and alignment necessary for the proper functioning of the drivetrain.

6. Maintenance

The RASTP Transmission Adapter Plate is a durable component designed for long-term use. Minimal maintenance is required once installed correctly. However, periodic inspection is recommended as part of routine vehicle maintenance:

• Visual Inspection: During any under-vehicle inspection, visually check the adapter plate for signs of damage, corrosion, or deformation.
• Fastener Check: Ensure all bolts securing the adapter plate to the engine and transmission remain tight. Over time, vibrations can cause fasteners to loosen. Re-torque to manufacturer specifications if necessary.
• Cleanliness: Keep the area around the adapter plate free from excessive dirt, grease, or debris, which can obscure potential issues.

If any issues are observed, consult a qualified automotive technician.

7. Troubleshooting

Given that the adapter plate is a static mechanical component, direct "troubleshooting" typically relates to installation issues or compatibility problems rather than operational failures of the plate itself. If you encounter issues after installation, consider the following:

• Incorrect Fitment: Double-check the compatibility section (Section 3) to ensure your engine and transmission combination is supported. Verify that the adapter plate matches the bolt patterns precisely.
• Loose Fasteners: If there are unusual noises or vibrations from the transmission area, re-check all mounting bolts for proper torque. Loose fasteners can lead to misalignment and damage.
• Clearance Issues: Ensure there are no obstructions or contact points between the adapter plate and other vehicle components. This can indicate incorrect installation or an incompatible setup.
• Fluid Leaks: While the adapter plate itself does not contain fluids, improper installation can affect seals or gaskets of adjacent components (e.g., bellhousing, transmission input shaft seal). Inspect for leaks and address them promptly.

For complex issues, it is strongly advised to seek assistance from a professional automotive mechanic.

8. Official Product Videos

There are no official product videos available for this RASTP Transmission Adapter Plate at this time.

9. Warranty and Support

Information regarding specific warranty terms for the RASTP Transmission Adapter Plate is not provided in the product details. For warranty inquiries or technical support, please contact RASTP directly through their official channels or the retailer from whom the product was purchased.

You may visit the RASTP Store on Amazon for more information: RASTP Store
