Introduction
This manual provides essential information for the safe and efficient use of your Toomax Florida 145-gallon Weatherproof Lockable Deck Storage Box Bench, model Z155RD97. Please read these instructions carefully before assembly and operation, and retain them for future reference.
Image: The Toomax Florida Deck Storage Box Bench in a closed position on a patio, demonstrating its aesthetic integration into an outdoor living space.
Safety Information
Observe the following safety precautions to prevent injury or damage to the product:
- Do not allow children to play inside the storage box.
- Ensure the lid is properly closed when not in use to prevent water ingress and secure contents.
- Do not exceed the maximum weight capacity of 793 pounds for seating or storage.
- Avoid placing heavy or sharp objects on the lid that could cause damage.
- Keep hands clear of hinges and lid mechanism during opening and closing to prevent pinching.
- Place the storage box on a flat, stable surface to ensure stability and proper lid function.
Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer support.
- Side Panels (2)
- Front Panel (1)
- Back Panel (1)
- Bottom Panel (1)
- Lid (1)
- Assisted Lid Mechanism Components (Gas Struts, Brackets, Screws)
- Assembly Hardware (Screws, Nuts, etc.)
- Instruction Manual (this document)
Setup and Assembly
Assembly typically requires two people. Follow the steps below for proper construction.
- Prepare the Area: Choose a flat, level surface for assembly and placement of the storage box.
- Assemble Base: Connect the front, back, and side panels to the bottom panel according to the included diagrams. Ensure all connections are secure.
- Attach Lid: Carefully align the lid with the assembled base. Attach the lid using the provided hinges and hardware.
- Install Assisted Lid Mechanism: Mount the gas struts and their corresponding brackets to the lid and side panels as shown in the assembly instructions. Test the lid's opening and closing action to ensure smooth operation.
Image: The Toomax Florida Deck Storage Box Bench with its lid fully open, revealing the spacious interior and the assisted lid mechanism.
Operating Instructions
Opening and Closing the Lid
The storage box features an assisted lid mechanism for ease of use and safety.
- To Open: Gently lift the lid. The assisted mechanism will help raise it smoothly and hold it open.
- To Close: Gently pull the lid down. The assisted mechanism will ensure a soft, controlled closure, preventing slamming.

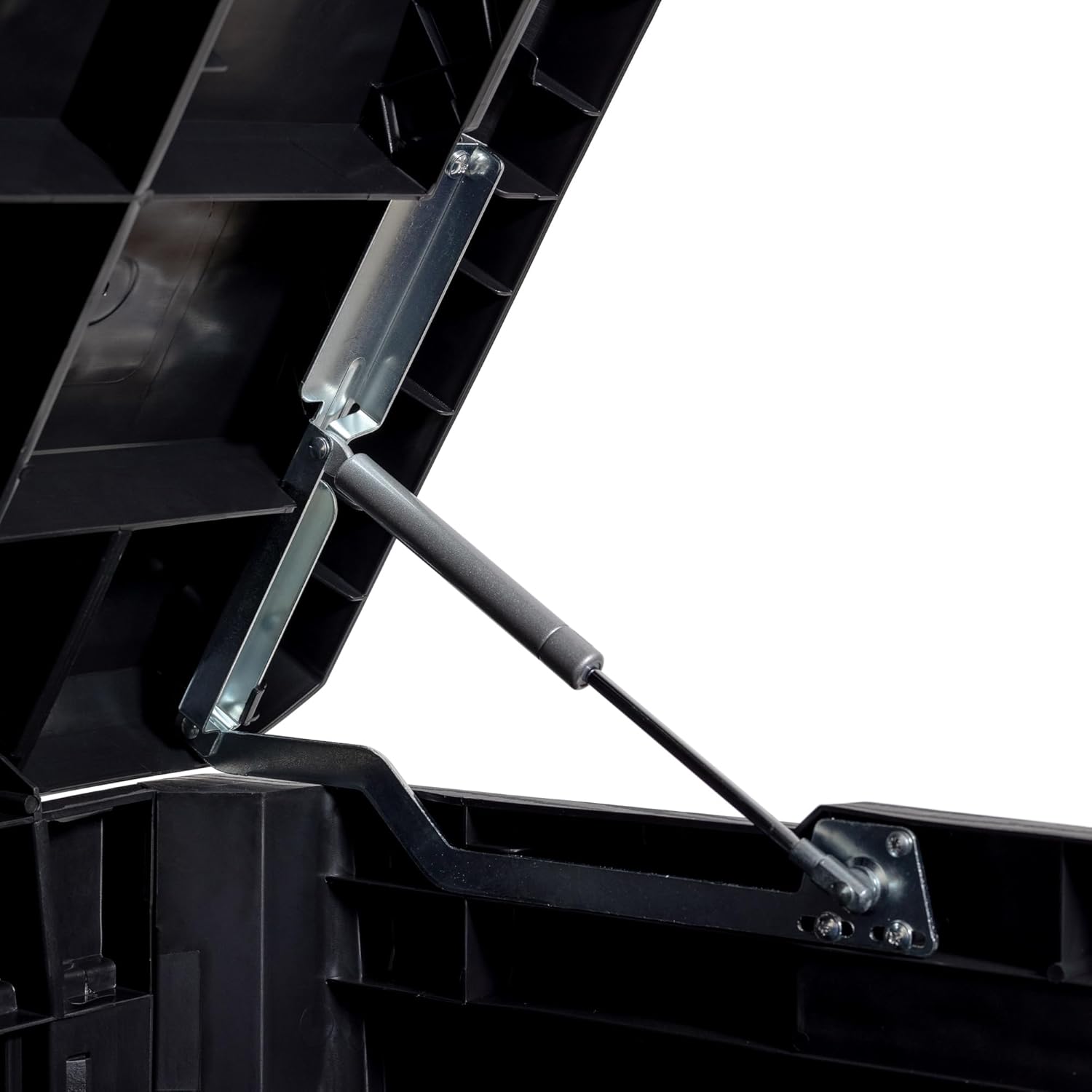

Image: A detailed view of the gas strut mechanism, which provides smooth and controlled opening and closing of the storage box lid.
Locking Mechanism
For added security, the storage box is equipped with a lockable lid. A padlock (not included) can be used.
- To Lock: Align the padlock hole on the lid with the corresponding hole on the front panel. Insert a padlock and secure it.
- To Unlock: Remove the padlock.
Image: A close-up of the integrated latch designed for a padlock, demonstrating the lockable feature of the storage box.
Storage Capacity and Seating
The Toomax Florida Deck Storage Box offers 145 gallons (550 liters) of storage capacity and can also serve as a bench for up to two adults.
- Storage: Ideal for outdoor cushions, garden tools, pool accessories, and other outdoor essentials.
- Seating: The lid is designed to support up to 793 pounds, providing comfortable seating.
Maintenance
Regular maintenance will prolong the life and appearance of your storage box.
- Cleaning: Clean the exterior with a mild soap and water solution. Use a soft cloth or sponge. Avoid abrasive cleaners or harsh chemicals, which can damage the resin material.
- Drying: Wipe dry with a clean cloth to prevent water spots.
- Inspection: Periodically check all screws and connections to ensure they remain tight. Tighten if necessary.
- Winter Storage: While weatherproof, consider storing sensitive items indoors during extreme winter conditions. Ensure the box is empty and dry before prolonged disuse.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lid does not close properly or is warped. | Uneven assembly; box not on a level surface; extreme temperature exposure. | Ensure the box is on a flat, level surface. Recheck assembly steps. Avoid prolonged exposure to direct, intense sunlight if possible. |
| Water inside the box. | Lid not fully closed; seal compromised; extreme weather conditions. | Ensure the lid is securely closed. Inspect the lid and seams for any damage. While weatherproof, heavy rain or standing water can sometimes find a way in; consider placement under an overhang. |
| Lid mechanism (gas strut) not working smoothly. | Improper installation; damaged strut. | Verify the gas strut is installed correctly according to assembly instructions. If damaged, contact customer support for replacement parts. |
| Difficulty during assembly. | Parts misalignment; missing hardware. | Refer to the assembly instructions carefully. Ensure parts are oriented correctly. If parts are missing, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Toomax |
| Model Number | Z155RD97 |
| Material | Heavy-duty polypropylene resin plastic |
| Color | Anthracite |
| Capacity | 145 Gallons (550 Liters) |
| External Dimensions (L x W x H) | 58"L x 28"W x 23"H (148 cm x 72 cm x 60 cm) |
| Internal Dimensions (L x W x H) | 55"L x 25"D x 21"H |
| Item Weight | 18.5 Kilograms |
| Maximum Weight Recommendation (Seating) | 793 Pounds |
| Special Features | Lockable, Weather-resistant, Assisted Lift-Off Lid |
Image: Dimensional diagram illustrating the length, width, and height of the storage box in centimeters.
Warranty Information
Toomax products are manufactured to high-quality standards. For specific warranty details, including coverage duration and terms, please refer to the warranty card included with your purchase or visit the official Toomax website. Keep your proof of purchase for any warranty claims.
Support
If you have any questions, require assistance with assembly, or need replacement parts, please contact Toomax customer support. Contact information can typically be found on the product packaging or the official Toomax website.
When contacting support, please have your product model number (Z155RD97) and purchase date available.
