Introduction
This manual provides instructions for the assembly, operation, and maintenance of your OUKANING 24-Rod Aluminum Fishing Rod Rack. This rack is designed to store up to 24 fishing rods, offering a stable and organized solution for your fishing equipment. Constructed from high-quality aluminum alloy, it is both durable and lightweight, ensuring ease of transport and installation.
Image: The OUKANING 24-Rod Aluminum Fishing Rod Rack displayed in different environments, including garages, rooms, shopping malls, and tackle stores, demonstrating its wide application.
Setup and Assembly
Follow these steps to assemble your fishing rod rack. Assembly is required and can be completed with basic tools.

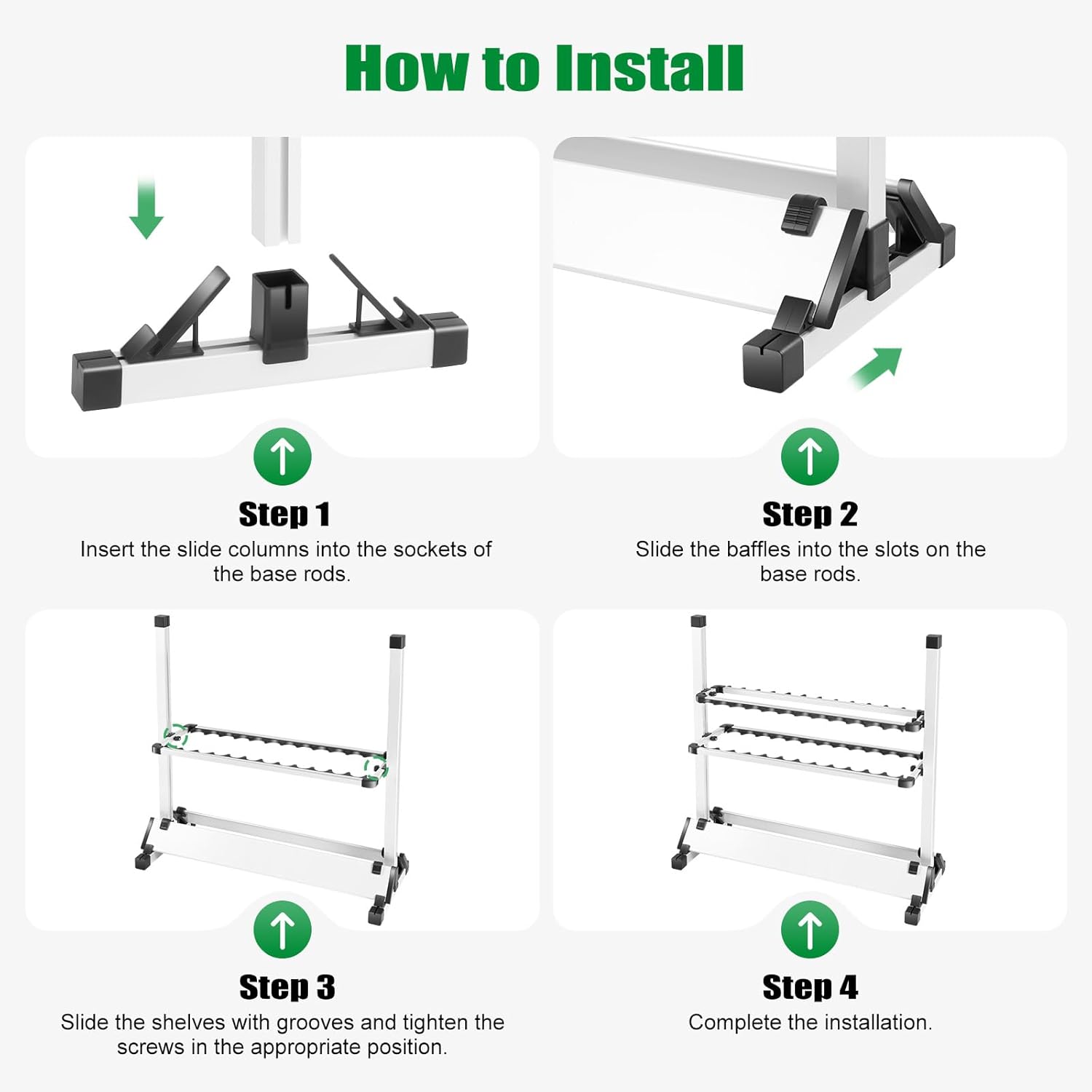

Image: A visual guide illustrating the four steps for assembling the fishing rod rack. Step 1 shows inserting slide columns into base rod sockets. Step 2 depicts sliding baffles onto the base rods. Step 3 details sliding shelves with grooves and tightening screws. Step 4 shows the completed assembly.
- Step 1: Insert the slide columns into the sockets located on the base rods. Ensure they are securely seated.
- Step 2: Slide the baffles into the designated slots on the base rods. These baffles help secure the rods.
- Step 3: Position the shelves with their grooves onto the columns. Tighten the screws in the appropriate positions to secure the shelves.
- Step 4: Once all components are attached and tightened, the installation is complete.
Operating Instructions
The OUKANING fishing rod rack is designed for efficient and organized storage of your fishing rods. It features a high capacity and adjustable height for various rod lengths.
Image: The OUKANING fishing rod rack positioned by a lake, showcasing its large capacity to display 24 fishing rods simultaneously. The image also highlights different types of rods it can hold: Sea Rods, Raft Rods, and Hand Rods. Note: Fishing rods are not included.
Rod Placement
Carefully place your fishing rods into the designated slots on the rack. The rack can accommodate up to 24 rods. Ensure the rods are evenly distributed for optimal stability.
Image: A comparison showing fishing rods in a disorderly placement (Before) versus neatly organized on the OUKANING rack (After), demonstrating how the rack facilitates management and access while reducing clutter. Note: Fishing rods are not included.
Adjustable Height
The rack features an adjustable height mechanism to accommodate fishing rods of different lengths. Locate the ABS adjusting knob and slide it in the groove to raise or lower the shelves as needed.
Image: A detailed view of the adjustable height feature, showing an arrow indicating upward movement and the ABS adjusting knob that slides in a groove to modify the shelf height for fishing rods of different lengths.
Key Features
- 24 Rods Large Capacity: Designed to hold a significant number of fishing rods.
- Display Rods with Different Lengths: Adjustable height allows for versatile storage.
- Easy to Clean and Install: Simple design for straightforward maintenance and setup.
Image: A comparative graphic highlighting the advantages of the OUKANING fishing rod rack ('Ours') over generic alternatives ('Others'). It emphasizes the 24-rod large capacity, ability to display rods of different lengths, and ease of cleaning and installation, contrasting with less rod display, inability to adjust shelf height, and laborious installation of other models. Note: Fishing rods are not included.
Maintenance and Care
Proper maintenance ensures the longevity and appearance of your fishing rod rack.
Cleaning
The aluminum alloy material and design make the rack easy to clean. Use a soft, damp cloth to wipe down the surfaces. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
Component Care
- EVA Grooves: The soft and elastic EVA grooves are designed to prevent scratching your fishing rods. Periodically check these grooves for wear and tear.
- Protective Nylon Cups: The protective nylon cups at the base prevent water or other debris from entering the frame. Ensure these cups are intact and free of blockages.

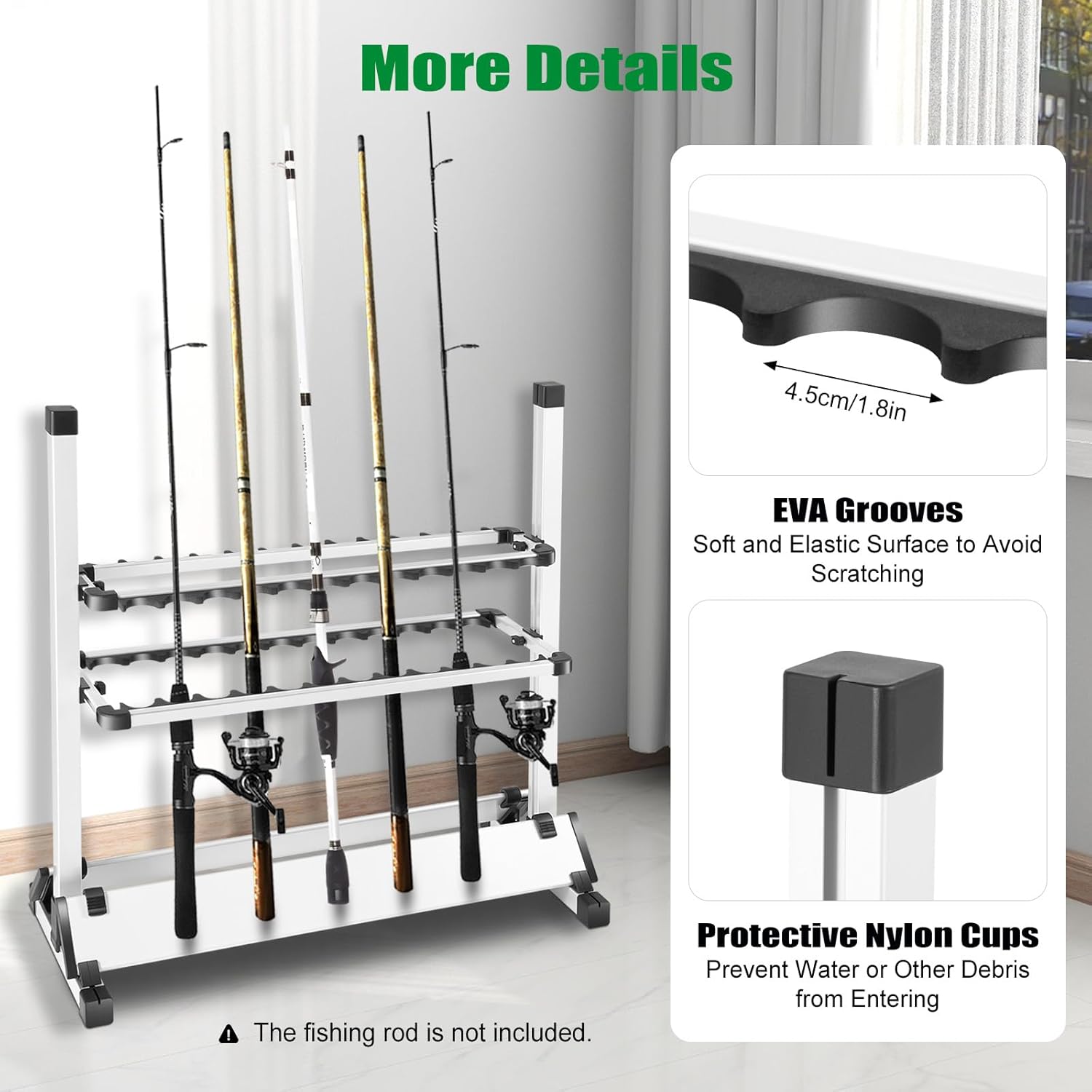

Image: A close-up showing the 'More Details' of the fishing rod rack, specifically highlighting the EVA Grooves (soft and elastic surface to avoid scratching rods) and Protective Nylon Cups (prevent water or other debris from entering). Note: Fishing rods are not included.
Troubleshooting
This section addresses common issues you might encounter with your fishing rod rack.
- Instability: If the rack feels unstable, ensure all screws are tightened securely and the rack is placed on a flat, level surface. Recheck the assembly steps to confirm all components are correctly installed.
- Difficulty Adjusting Height: If the shelves are difficult to adjust, ensure the ABS adjusting knob is fully loosened before attempting to slide the shelves. Check for any debris in the grooves that might impede movement.
- Scratched Rods: If rods are getting scratched, inspect the EVA grooves for damage or displacement. Replace any worn-out EVA material if necessary.
Specifications
| Feature | Detail |
|---|---|
| Model Number | B087CVVLCV |
| Material | Aluminum Alloy |
| Color | White |
| Product Dimensions (L x W x H) | 72 cm x 32.5 cm x 72 cm (28.3 in x 12.8 in x 28.3 in) |
| Weight | 2.6 kg (5.7 lbs) |
| Capacity | 24 Fishing Rods |
| Special Features | Durable, Stable, Portable, Adjustable Height |
| Assembly Required | Yes |

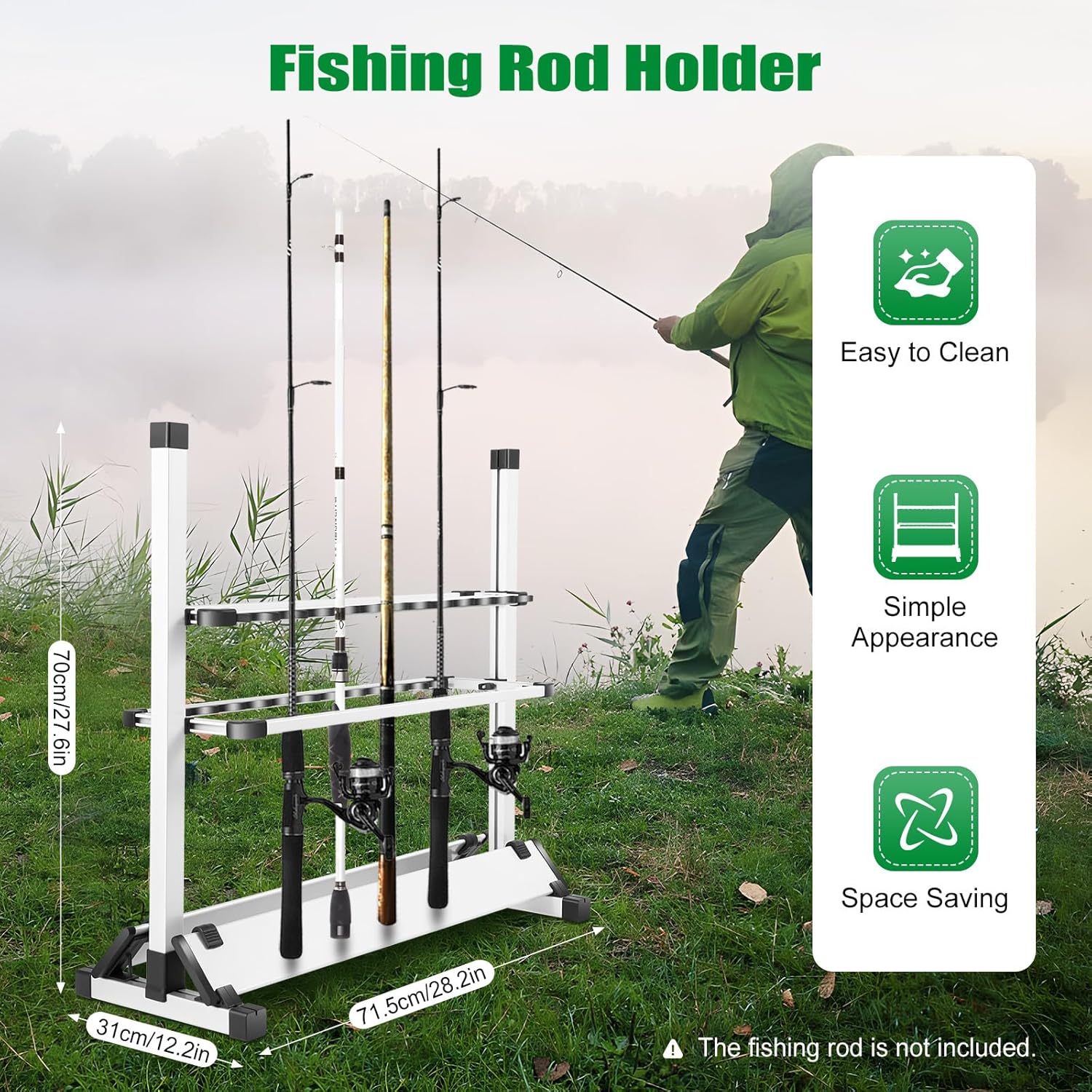

Image: A visual representation of the OUKANING Fishing Rod Holder with key dimensions labeled: 70cm/27.6in height, 31cm/12.2in depth, and 71.5cm/28.2in width. It also highlights features like Easy to Clean, Simple Appearance, and Space Saving. Note: Fishing rods are not included.
Warranty Information
Specific warranty details for the OUKANING 24-Rod Aluminum Fishing Rod Rack are not provided in this manual. For information regarding product warranty, please contact OUKANING customer support directly or refer to the product packaging and purchase documentation.
Customer Support
If you have any questions, require assistance with assembly, or need further information about your OUKANING 24-Rod Aluminum Fishing Rod Rack, please contact OUKANING customer support. Refer to your purchase receipt or the official OUKANING website for contact details.
