Twinkly Music Sound Sensor (Model TMD01USB) Instruction Manual

1. Introduction

The Twinkly Music sound sensor is an accessory designed to enhance your Twinkly LED lighting experience by synchronizing light effects with ambient sound and music. This device connects to your existing Twinkly smart LED lights (sold separately) via Bluetooth and Wi-Fi, allowing for dynamic audio-visual displays controlled through the Twinkly App.

2. What's in the Box

Twinkly Music Sound Sensor (USB device)
Instruction Manual

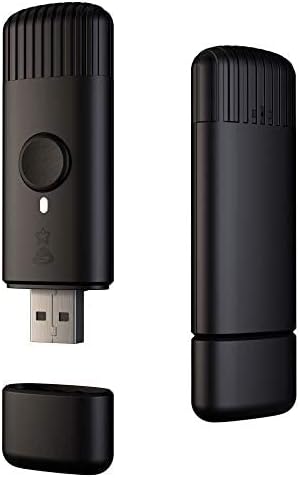

Figure 1: Twinkly Music Sound Sensor device. This image shows the compact black USB device with a central button and a removable cap covering the USB-A connector.

Figure 2: Twinkly Music product packaging. The black box displays the Twinkly Music device and colorful light patterns, indicating its function.

3. Setup

Power On: Plug the Twinkly Music USB device into any standard USB power source. Ensure it is placed close to your desired music source for optimal sound detection.
App Installation: Download the official Twinkly App from the iOS App Store or Google Play Store on your smartphone or tablet.
Device Pairing: Open the Twinkly App and follow the on-screen instructions to pair your Twinkly Music device via Bluetooth and Wi-Fi. Ensure the device is connected to the same network as your Twinkly lights.
Light Grouping (Optional): If you have multiple Twinkly lights, you can group them within the app to synchronize effects across selected devices.

Twinkly Music device plugged into a USB power bank — Figure 3: Twinkly Music device connected to a USB power bank. The image shows the compact black Twinkly Music device plugged into a portable power bank, ready for use.

Twinkly Music setup steps in the app — Figure 4: Twinkly Music setup steps displayed in the app. This image illustrates the three easy steps for setting up the device: place near music source, set up with the Twinkly App, and enjoy synchronized lights.

Setup Video Guide

Video 1: Detailed guide on setting up Twinkly lights and the Twinkly Music device, including app pairing and mapping lights for optimal effects.

4. Operating Instructions

Activate Music Mode: Once connected, the Twinkly Music device will analyze nearby music using its highly sensitive digital microphone and powerful multicore DSP.
Change Effects via Button: Press the physical button on the Twinkly Music USB device to cycle through various pre-programmed music effects.
App Control: Use the Twinkly App to browse and select from a wide array of music-synchronized effects. The app allows for customization of colors, patterns, and intensity.
Real-time Reaction: The device decodes any sound source in real-time, offering a dynamic sensory experience on your Twinkly lights.

Twinkly App interface showing music effects — Figure 5: Twinkly App interface displaying various music effects. The screenshot shows different visualizers and patterns that can be applied to the lights in sync with music.

People enjoying music-synchronized Twinkly lights — Figure 6: People enjoying an audio-visual experience with Twinkly Music. The image captures individuals dancing with colorful, music-synchronized lights in the background.

Music Effects Demonstration

Video 2: A demonstration of various music-synchronized lighting effects available with Twinkly Music, showcasing dynamic patterns and color changes.

5. Features

Musical Lights: Activates Twinkly LED lights based on ambient sound, managed directly from the Twinkly App (iOS and Android). Compatible only with Twinkly smart LED lights.
Unique Experience: Features a highly sensitive digital microphone and powerful multicore DSP to analyze music and apply synchronized light effects.
Simple Installation: Easy setup in seconds via Bluetooth and Wi-Fi through the Twinkly App.
Easy to Use: A single button on the USB device allows for changing effects and music lights.
Compatibility: Designed for optimal use with Twinkly II generation products. Supports light groups and selection of specific devices.

6. Specifications

Attribute	Detail
Model Number	TMD01USB
Brand	Twinkly
Color	Black
Power Source	USB
Control Method	App Control
Connectivity	Bluetooth, Wi-Fi
Item Weight	60 Grams (2.12 ounces)
Range	10m / 32.8in
Indoor/Outdoor Usage	Outdoor

7. Troubleshooting

Device Not Connecting: Ensure the Twinkly Music device is powered on and within range of your Wi-Fi network and Twinkly lights. Verify that your smartphone's Bluetooth is enabled and that the device is connected to the same Wi-Fi network as your lights. Try restarting the device and the app.
Lights Not Syncing with Music: Check that the Twinkly Music device is placed near the sound source. Adjust the microphone sensitivity settings within the Twinkly App if available. Ensure the music mode is activated in the app or via the device button.
App Issues: Ensure your Twinkly App is updated to the latest version. Try force-closing and reopening the app, or reinstalling it if problems persist.
Firmware Updates: Regularly check the Twinkly App for available firmware updates for your Twinkly Music device and lights to ensure optimal performance and compatibility.

8. Maintenance

Cleaning: Use a soft, dry cloth to clean the Twinkly Music device. Avoid using liquid cleaners or abrasive materials.
Storage: When not in use, store the device in a cool, dry place away from direct sunlight and extreme temperatures.
Environmental Conditions: The device is rated for outdoor use, but prolonged exposure to harsh weather conditions may affect its lifespan.

9. Warranty and Support

For warranty information, technical support, or further assistance, please refer to the official Twinkly website or contact Twinkly customer service directly. Details can typically be found in the product packaging or on the manufacturer's website.

Online Resources: Visit the Twinkly Store on Amazon for product information and support.
Manufacturer Website: Consult the official Twinkly website for the most up-to-date support documentation, FAQs, and contact information.
