APPASO APS175ORB Bronze Kitchen Faucet with Pull-Down Sprayer User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your APPASO APS175ORB Bronze Kitchen Faucet. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your faucet.

Image: The APPASO APS175ORB Bronze Kitchen Faucet, showcasing its high arc design and pull-down sprayer in an oil rubbed bronze finish.

Product Components

Before beginning installation, ensure all parts are present and undamaged. The package should include:

• Faucet body with single handle
• Pull-down sprayer head
• Mounting hardware (gasket, nut, screws)
• Hot and cold water supply hoses (3/8" standard pipe connection)
• 1/2" Adapter (if needed)
• Gravity ball weight for pull-down technology

Installation Instructions

The APPASO APS175ORB faucet is designed for single-hole installation. Follow these steps carefully:

1. Prepare the Sink Hole: Ensure your sink has a single mounting hole with a size between 1.4 and 1.5 inches. The maximum thickness of the counter-top should not exceed 2 inches.
2. Insert Hoses: Feed all supply hoses and the sprayer hose through the mounting hole in your sink or countertop.

Image: Step-by-step illustration showing the insertion of the faucet's hoses through the sink mounting hole.

3. Secure the Faucet: From underneath the sink, attach the rubber gasket and metal washer, then thread and tighten the mounting nut to secure the faucet firmly to the sink.

Image: Illustration detailing the process of securing the faucet from below the sink using the gasket and mounting nut.

4. Connect Water Supply: Connect the hot and cold water supply hoses to your water lines. Use the provided 1/2" adapter if your water lines are not 3/8" standard. Ensure connections are tight to prevent leaks.
5. Install Gravity Ball: Attach the gravity ball weight to the pull-down sprayer hose at the designated "weigh here" label. This ensures the sprayer retracts automatically.

Image: Diagram illustrating the installation of the gravity ball weight on the pull-down hose, crucial for the sprayer's retraction mechanism.

6. Test for Leaks: Turn on the water supply and check all connections for leaks.

Operating Instructions

Your APPASO APS175ORB faucet features a single handle for temperature and flow control, and a versatile pull-down sprayer.

Water Flow and Temperature Control

• Flow Control: Lift the single handle to increase water flow. Lower it to decrease flow.
• Temperature Control: Move the handle left for hot water and right for cold water.

Pull-Down Sprayer Functionality

The sprayer head can be pulled down from the faucet spout for extended reach and flexibility. It retracts automatically when released, thanks to the gravity ball weight.

Image: A user demonstrating the pull-down sprayer feature of the APPASO faucet, using it to fill a pitcher in the sink.

Three Spray Modes

The sprayer head offers three distinct spray modes for various tasks:

• Stream Mode: Provides a steady, aerated stream for filling pots and general washing.
• Sweep Mode: A powerful, wide blade of water for sweeping food debris off dishes and sink surfaces.
• Spray Mode: A strong, focused spray for rinsing and stubborn cleaning.

Switch between modes by pressing the button on the sprayer head.

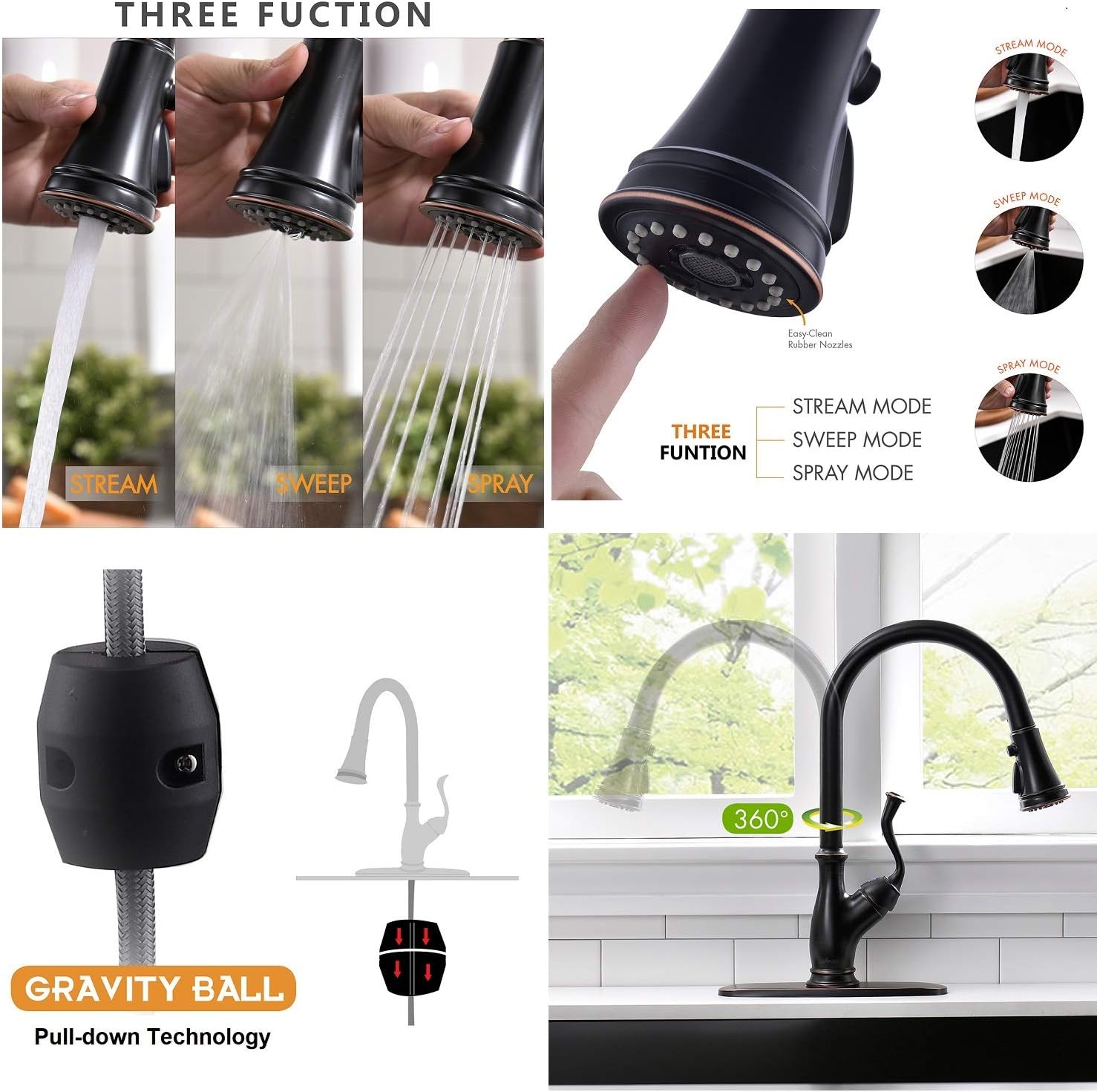

Image: Visual representation of the three distinct spray patterns: Stream, Sweep, and Spray, available from the faucet's pull-down head.

Image: A closer look at the sprayer head, illustrating the button to switch between Stream, Spray, and Sweep modes.

Maintenance

Regular maintenance will help preserve the finish and functionality of your APPASO faucet.

Cleaning the Finish

The oil rubbed bronze finish is designed to be anti-spot and anti-fingerprint. To clean, simply wipe with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.

Image: A visual comparison highlighting the anti-spot and anti-fingerprint properties of the APPASO faucet's finish compared to standard finishes.

Cleaning Sprayer Nozzles

The sprayer nozzles are made of easy-clean rubber. Mineral deposits (limescale, calcium) can be removed by gently rubbing the nozzles with your finger or a soft brush.

Ceramic Cartridge

The faucet is equipped with a high-quality ceramic cartridge for reliable, drip-free performance. No regular maintenance is typically required for the cartridge itself, but if flow issues or leaks occur, it may need inspection or replacement by a qualified plumber.

Image: An exploded view illustrating the internal components of the ceramic cartridge, including the nylon shell, control switch, ABS coupling, ceramic spool, and seal ring.

Troubleshooting

If you encounter issues with your faucet, refer to the following common problems and solutions:

• Low Water Pressure:
  • Check if the water supply valves are fully open.
  • Inspect the sprayer nozzles for mineral buildup and clean them.
  • Ensure supply hoses are not kinked.
• Leaks from Faucet Base:
  • Tighten the mounting nut underneath the sink. Do not overtighten.
  • Ensure the rubber gasket is properly seated.
• Leaks from Sprayer Head:
  • Check the connection between the hose and the sprayer head.
  • Inspect the O-rings inside the sprayer head for damage.
• Sprayer Does Not Retract Fully:
  • Ensure the gravity ball weight is correctly installed on the hose and not obstructed.
  • Check for any obstructions under the sink that might impede the hose movement.

If problems persist, contact APPASO customer support or a qualified plumber.

Specifications

Image: Detailed technical drawing showing the dimensions of the APPASO APS175ORB faucet, including height, reach, and base plate measurements, along with mounting hole requirements.

Warranty and Support

APPASO is committed to providing quality products and thoughtful service. For any questions, concerns, or warranty inquiries regarding your APS175ORB faucet, please contact APPASO customer support directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official APPASO website or contact their customer service department.
