1. Introduction
This manual provides instructions for the proper use and maintenance of your Sightmark Wraith 4K Max 3-24x50 Digital Night Vision Riflescope. Please read this manual thoroughly before operating the device to ensure safe and effective use.
The Sightmark Wraith 4K Max is a digital riflescope designed for both day and night use, featuring an ultra-high definition 4000x3000 digital CMOS sensor, 3-24x digital magnification, and integrated video recording capabilities.
2. Package Contents
Verify that all items are present in your package:
- Sightmark Wraith 4K Max 3-24x50 Digital Night Vision Riflescope
- IR Flashlight
- Daytime Lens Filter
- Objective Lens Cover
- Fixed Picatinny Mount
- USB Cable (Type-C)
- User Manual (this document)
Figure 2.1: Included components of the Sightmark Wraith 4K Max.
3. Setup
3.1. Mounting the Riflescope
- Attach the fixed Picatinny mount to the riflescope using the provided hardware.
- Securely mount the riflescope onto your firearm's Picatinny rail. Ensure proper eye relief and a stable position.
- Tighten all mounting screws to prevent movement during use.
3.2. Battery Installation and Charging
The Wraith 4K Max features an internal rechargeable lithium-ion battery, providing up to 8 hours of operation. The IR flashlight uses 2x CR123 batteries.
- Riflescope: Connect the supplied USB Type-C cable to the riflescope's charging port and to a compatible USB power source. The charging indicator will show status.
- IR Flashlight: Unscrew the tail cap of the IR flashlight and insert 2x CR123 batteries according to polarity markings. Re-attach the tail cap.
Figure 3.1: Riflescope battery and charging port.
4. Operation
4.1. Power On/Off
Press and hold the power button to turn the device on or off.
4.2. Day and Night Modes
The riflescope offers both daytime color mode and night vision mode. Switch between modes as required by ambient light conditions.
Figure 4.1: Digital Night Vision display characteristics.
4.3. Magnification Adjustment
The Wraith 4K Max features 3-24x digital magnification. Use the zoom controls to adjust the magnification level. Note that higher digital magnification may result in some pixelation.
Figure 4.2: Magnification and detection range capabilities.
4.4. Reticle Options
The riflescope offers 10 reticle options and 9 color options for customization. Navigate through the menu to select your preferred reticle and color.
Figure 4.3: Available reticle patterns and color choices.
4.5. Video Recording and Photography
The Wraith 4K Max can record UHD 4K video with audio and capture still images. Refer to the on-screen menu for recording and playback functions.
Figure 4.4: Video recording and picture capture resolutions.
4.6. IR Illuminator
The included 850nm IR illuminator enhances night vision capabilities. Activate and adjust its intensity as needed for optimal visibility in low-light conditions. The IR illuminator provides approximately 90 minutes of operating time on maximum setting.
5. Maintenance
5.1. Cleaning
- Use a soft, lint-free cloth to clean the exterior surfaces of the riflescope.
- For lenses, use a lens cleaning solution and a microfiber cloth specifically designed for optics. Avoid abrasive materials.
- Ensure the USB port cover is closed when not charging to prevent dust and moisture ingress.
5.2. Storage
Store the riflescope in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the internal battery is partially charged (around 50%) and remove CR123 batteries from the IR flashlight.
5.3. Water Resistance
The Wraith 4K Max has an IPX5 water-resistant rating, meaning it is protected against low-pressure water jets from any direction. It is not designed for submersion.

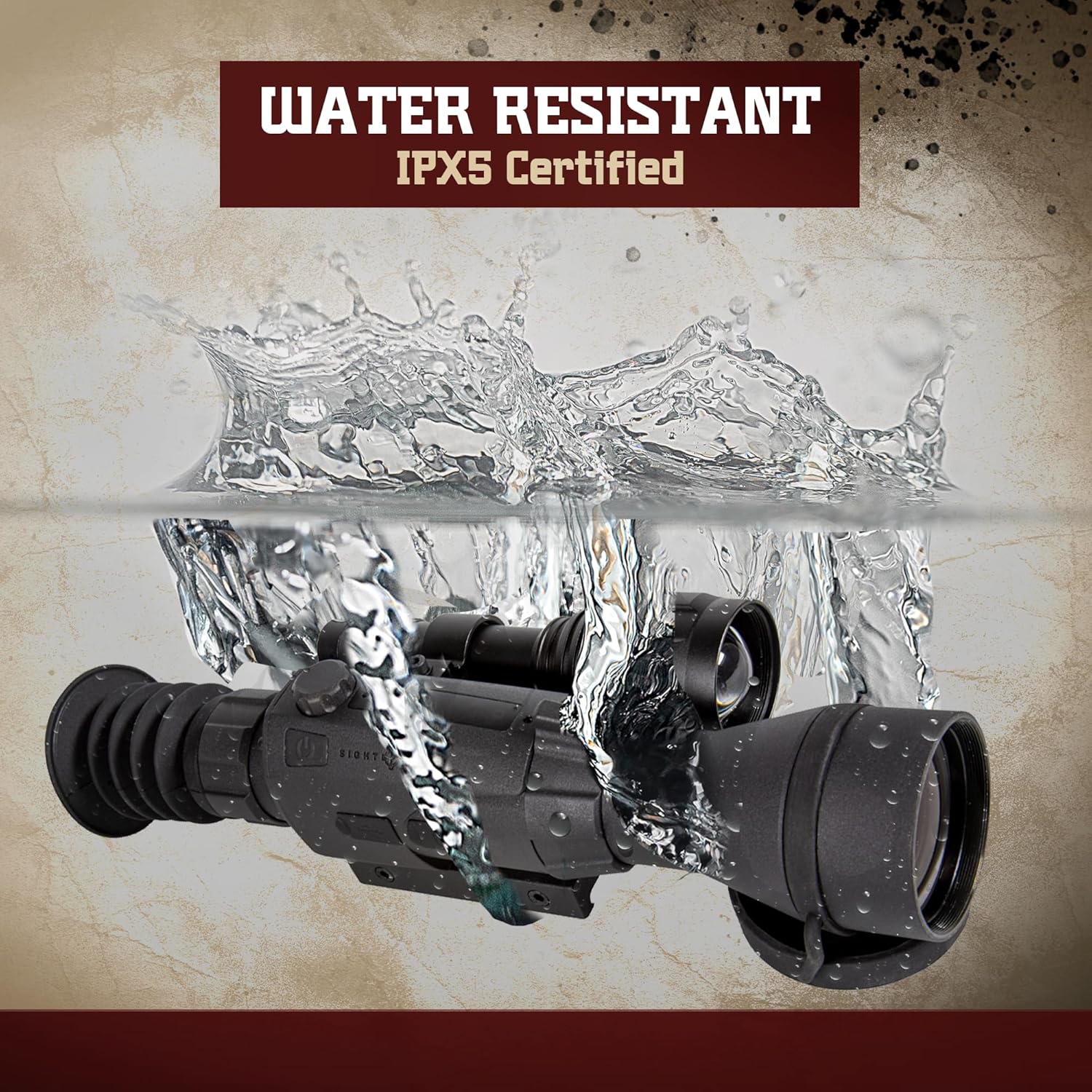

Figure 5.1: IPX5 Water Resistance.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Low or depleted battery. | Charge the internal battery using the USB Type-C cable. |
| Poor image quality in night mode. | IR illuminator off or low battery; insufficient ambient light. | Activate the IR illuminator and adjust its intensity. Replace IR flashlight batteries if needed. |
| Image is blurry or out of focus. | Improper focus adjustment. | Adjust the objective lens focus ring until the image is clear. |
| Device freezes or becomes unresponsive. | Software glitch. | Perform a hard reset by holding the power button for 30 seconds. Ensure firmware is up to date. |
| Riflescope does not hold zero. | Improper mounting; recoil impact; software issue. | Ensure mount is securely tightened. Re-zero the scope. Check for firmware updates. If issues persist, contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Name | Wraith 4K Max |
| Model Number | SM18030 |
| Sensor Type | 4K CMOS (4000x3000) |
| Display Resolution | 1280x720 HD |
| Magnification | 3-24x Digital |
| Objective Lens Diameter | 50 mm |
| IR Wavelength | 850nm |
| Detection Range | Up to 300 yards |
| Video Recording | UHD 4K, 1080p, 720p with audio |
| Still Image Resolution | 1080p, 720p |
| Reticle Options | 10 patterns, 9 colors |
| Battery Type | Internal Rechargeable Lithium-Ion (Riflescope), 2x CR123 (IR Flashlight) |
| Battery Life | Up to 8 hours (Riflescope), 90 minutes on max (IR Flashlight) |
| Housing Material | Aluminum |
| Water Resistance | IPX5 Certified |
| Dimensions (LxWxH) | 12" x 1.8" x 3" |
| Weight | 34.6 Ounces (approx. 0.98 kg) |
| Mounting Type | Picatinny Mount |
8. Warranty & Support
8.1. Warranty Information
The Sightmark Wraith 4K Max 3-24x50 Digital Night Vision Riflescope comes with a 3 Year Limited Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For full warranty terms and conditions, please visit the official Sightmark website or contact customer support.
8.2. Customer Support
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact Sightmark customer support:
- Website: www.sightmark.com
- Contact Information: Refer to the official website for the most current contact details (phone, email, service center).
When contacting support, please have your product model number (SM18030) and purchase date available.
