Einhell TC-TS 254 U Table Saw Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and setup of your Einhell TC-TS 254 U Table Saw. Please read these instructions carefully before using the machine for the first time. Keep this manual in a safe place for future reference.

The Einhell TC-TS 254 U is a powerful table saw designed for precise cutting of wood and similar materials. It features a 2200 W motor, a Ø 254 mm saw blade, and various adjustment options for versatile use.

2. Safety Instructions

WARNING: Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury.

Read the entire manual: Understand all instructions and warnings before operation.
Wear appropriate personal protective equipment (PPE): Always wear safety glasses, hearing protection, and a dust mask. Avoid loose clothing and jewelry.
Ensure a safe working environment: Keep the work area clean, well-lit, and free from obstructions. Do not operate in damp or wet conditions.
Secure the workpiece: Always use clamps or other methods to secure the workpiece to prevent movement during cutting.
Maintain the machine: Keep the saw blade sharp and clean. Regularly check for damaged parts and replace them before use.
Disconnect power: Always unplug the saw before making adjustments, changing blades, or performing maintenance.
Use the dust extraction system: Connect a suitable dust extractor to minimize sawdust accumulation and improve visibility.
Keep hands clear: Never place hands near the rotating blade. Use push sticks or push blocks when cutting small pieces.

3. Product Components

Familiarize yourself with the main parts of your Einhell TC-TS 254 U Table Saw.

Tool storage and power cord management — **Figure 3.2:** Integrated tool storage and power cord management. This view shows the underside of the saw, highlighting the convenient storage for tools and the organized routing of the power cable.

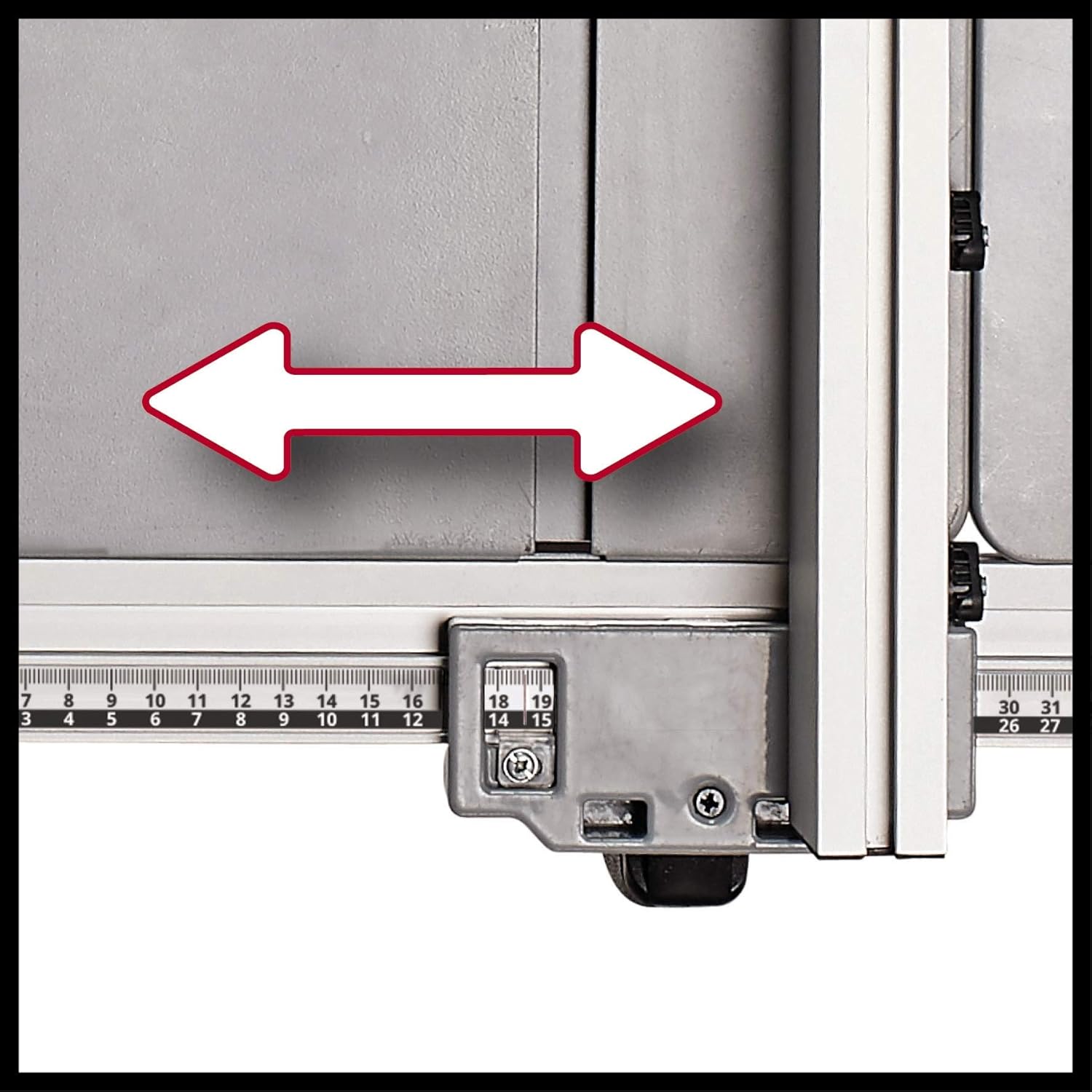

Parallel guide with measurement scale — **Figure 3.3:** Close-up of the parallel guide with integrated measurement scale. This image illustrates the adjustable parallel guide, crucial for making accurate rip cuts, with a clear ruler for precise settings.

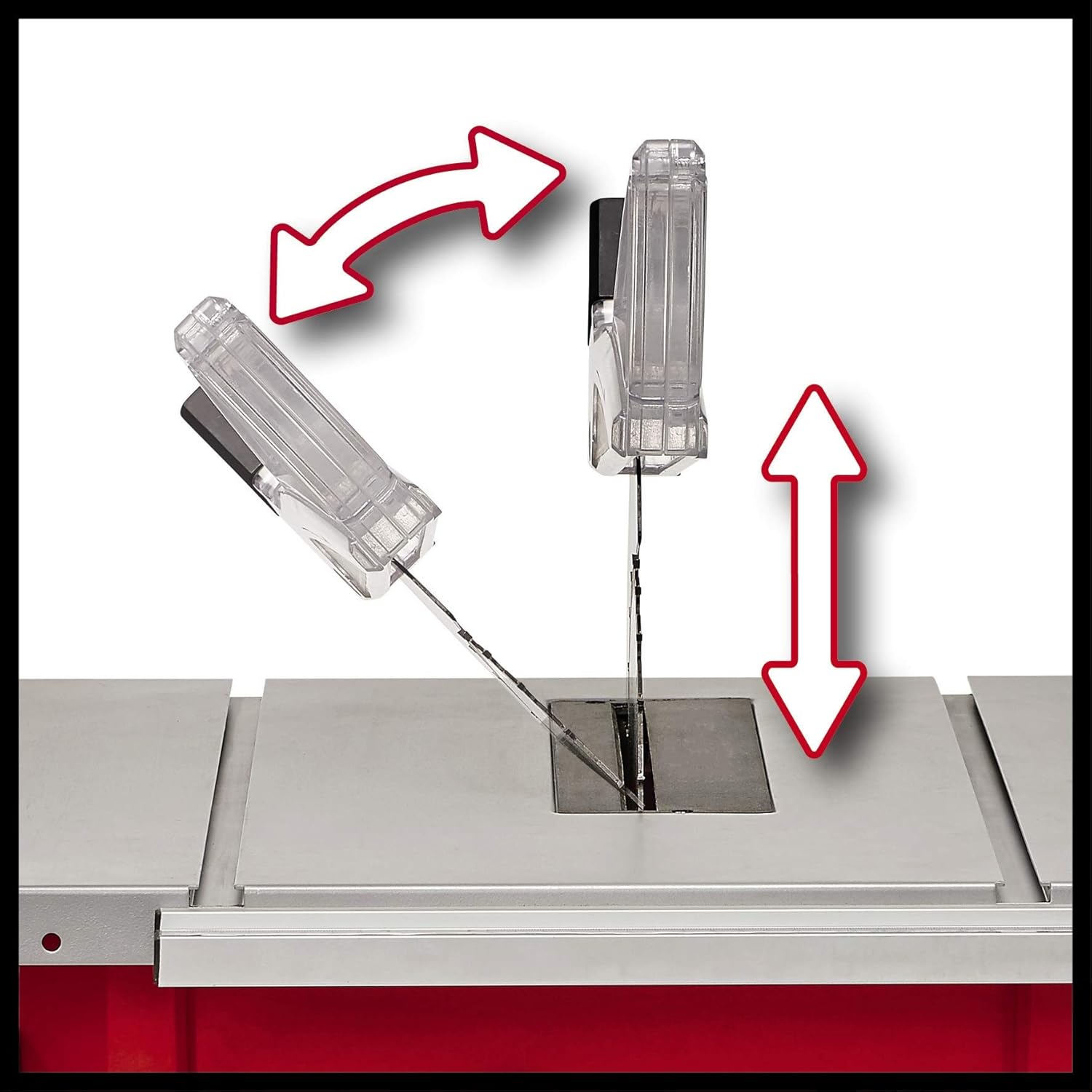

Blade tilt and height adjustment mechanism — **Figure 3.4:** Illustration of blade tilt and height adjustment. This graphic demonstrates the saw blade's ability to be tilted for bevel cuts and adjusted vertically for cutting depth.

Table extension feature — **Figure 3.5:** Table extension for larger workpieces. This image shows the side table extension pulled out, providing additional support for wider materials.

**Figure 3.6:** Dust extraction port. A close-up of the port where a dust extractor hose can be connected to manage sawdust.

4. Setup and Assembly

Before operating the table saw, proper assembly and setup are crucial for safety and performance.

4.1 Unpacking

Carefully remove all components from the packaging.
Check for any damage during transit. Report any damage immediately to your supplier.
Verify that all parts listed in the packing contents are present.

4.2 Assembly of the Stand

Assemble the stand according to the provided diagrams. Ensure all bolts are securely tightened, but avoid over-tightening to prevent damage to plastic components.

4.3 Installing the Saw Blade

Ensure the saw is unplugged.
Remove the blade guard.
Use the provided wrenches to loosen the blade retaining nut.
Carefully remove the old blade (if applicable) and install the new Ø 254 mm blade, ensuring the teeth are oriented correctly for cutting.
Tighten the retaining nut securely and reattach the blade guard.

4.4 Adjusting the Parallel Guide and Table Extension

Attach the parallel guide to the table. Use the measurement scale for precise positioning.
Extend the table extensions as needed for larger workpieces (refer to Figure 3.5).

5. Operating Instructions

Follow these steps for safe and effective operation of your table saw.

5.1 Pre-Operation Checks

Ensure the power cord is in good condition and properly connected to a 240V power outlet.
Verify that the blade guard is correctly installed and functional.
Check that the saw blade is sharp and free from damage.
Clear the work area of any debris or loose items.
Connect a dust extractor to the dust extraction port (Figure 3.6).

5.2 Adjusting Blade Height and Angle

Blade Height: Use the height adjustment mechanism to set the blade height. For through cuts, the blade should extend slightly above the workpiece.
Blade Angle: Use the angle adjustment mechanism to tilt the blade for bevel cuts (refer to Figure 3.4). The saw can cut at angles from 0° to 45°.

5.3 Making Cuts

Rip Cuts (along the grain): Use the parallel guide (Figure 3.3) to set the desired width. Keep the workpiece firmly against the guide and the table. Use a push stick for the final portion of the cut.
Cross Cuts (across the grain): Use the cross-cut fence (if included) or an angular stop. Ensure the workpiece is stable and supported.
Bevel Cuts: Adjust the blade angle as required. Always perform a test cut on scrap material first.

Operator using Einhell table saw for rip cut — **Figure 5.1:** Proper operation of the table saw, demonstrating a user performing a rip cut with safety glasses. Always maintain a safe distance from the blade and use appropriate push devices.

6. Maintenance and Care

Regular maintenance ensures the longevity and safe operation of your table saw.

Cleaning: After each use, disconnect the power and clean the saw of sawdust and debris. Use a brush or vacuum cleaner. Never use water or solvents.
Blade Inspection: Regularly inspect the saw blade for sharpness and damage. A dull or damaged blade can cause kickback and poor cut quality. Replace blades as necessary.
Lubrication: Periodically lubricate moving parts as indicated in the detailed product manual (if applicable).
Power Cord: Check the power cord for any signs of damage or wear.
Storage: Store the table saw in a dry, secure location, out of reach of children.

7. Troubleshooting

This section addresses common issues you might encounter with your table saw.

Problem	Possible Cause	Solution
Saw does not start	No power supply; faulty switch; motor overload protection activated.	Check power connection; inspect switch; allow motor to cool down and reset.
Poor cut quality / Burning wood	Dull or dirty blade; incorrect blade for material; improper feed rate.	Replace or clean blade; use appropriate blade for material; adjust feed rate.
Excessive vibration	Loose blade; damaged blade; unstable stand.	Tighten blade nut; replace blade; ensure stand is properly assembled and stable.
Dust extraction ineffective	Dust port clogged; dust extractor not powerful enough; hose disconnected.	Clear dust port; use a more powerful dust extractor; check hose connection.

If you encounter problems not listed here or if solutions do not resolve the issue, contact Einhell customer support.

8. Technical Specifications

Feature	Specification
Model	TC-TS 254 U
Article Number	4340510
Power Input	2200 W
Voltage	240 V
No-Load Speed	5000 RPM
Saw Blade Diameter	Ø 254 mm
Saw Blade Bore	Ø 30 mm
Max. Cutting Depth at 90°	80 mm
Max. Cutting Depth at 45°	55 mm
Product Dimensions	85.5 x 9.3 x 109 cm
Weight	22 kg
Blade Material	Carbon Steel
Recommended Use	Wood cutting
Certifications	CE, GS

Icon: Saw blade diameter 254 mm — **Figure 8.1:** Saw blade diameter: Ø 254 mm.

Icon: Cutting depth 90 degrees, 0-80 mm — **Figure 8.2:** Max. cutting depth at 90°: 0-80 mm.

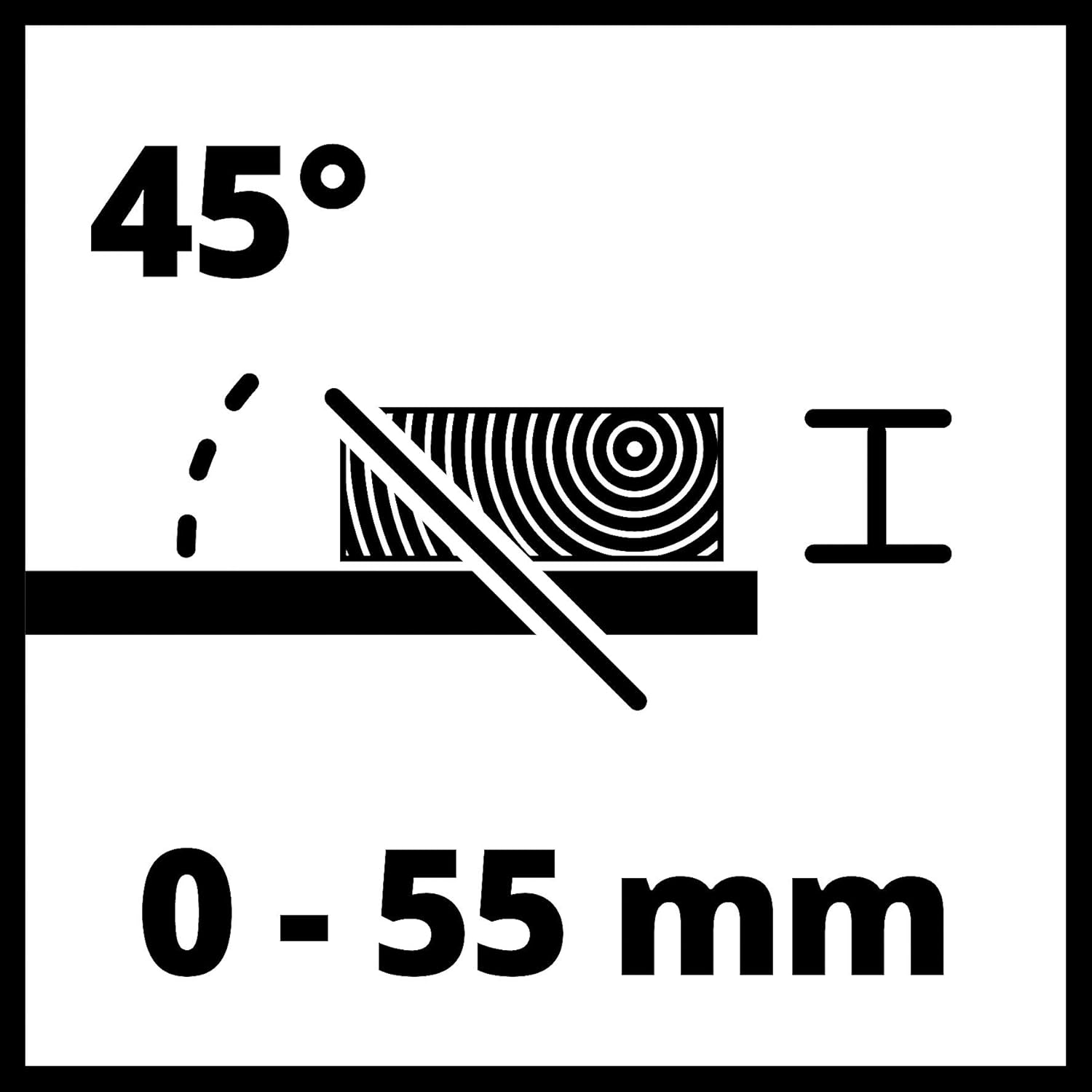

Icon: Cutting depth 45 degrees, 0-55 mm — **Figure 8.3:** Max. cutting depth at 45°: 0-55 mm.

Icon: Individually adjustable features — **Figure 8.4:** Individually adjustable features for versatile use.

9. Warranty and Support

Einhell offers a 3-year warranty on its equipment, including this table saw, provided the product is registered within 30 days of purchase. This extended warranty also applies to Power X-Change batteries.

For warranty claims, technical support, or spare parts, please visit the official Einhell website or contact their customer service department. Keep your proof of purchase for warranty validation.

For more information, visit the Einhell Store.
