Sunco 5/6 Inch Retrofit LED Recessed Downlight Instruction Manual
Model: DL_SMDR56-13W-3K-16PK
Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Sunco 5/6 Inch Retrofit LED Recessed Downlight. Please read this manual thoroughly before installation and retain it for future reference.

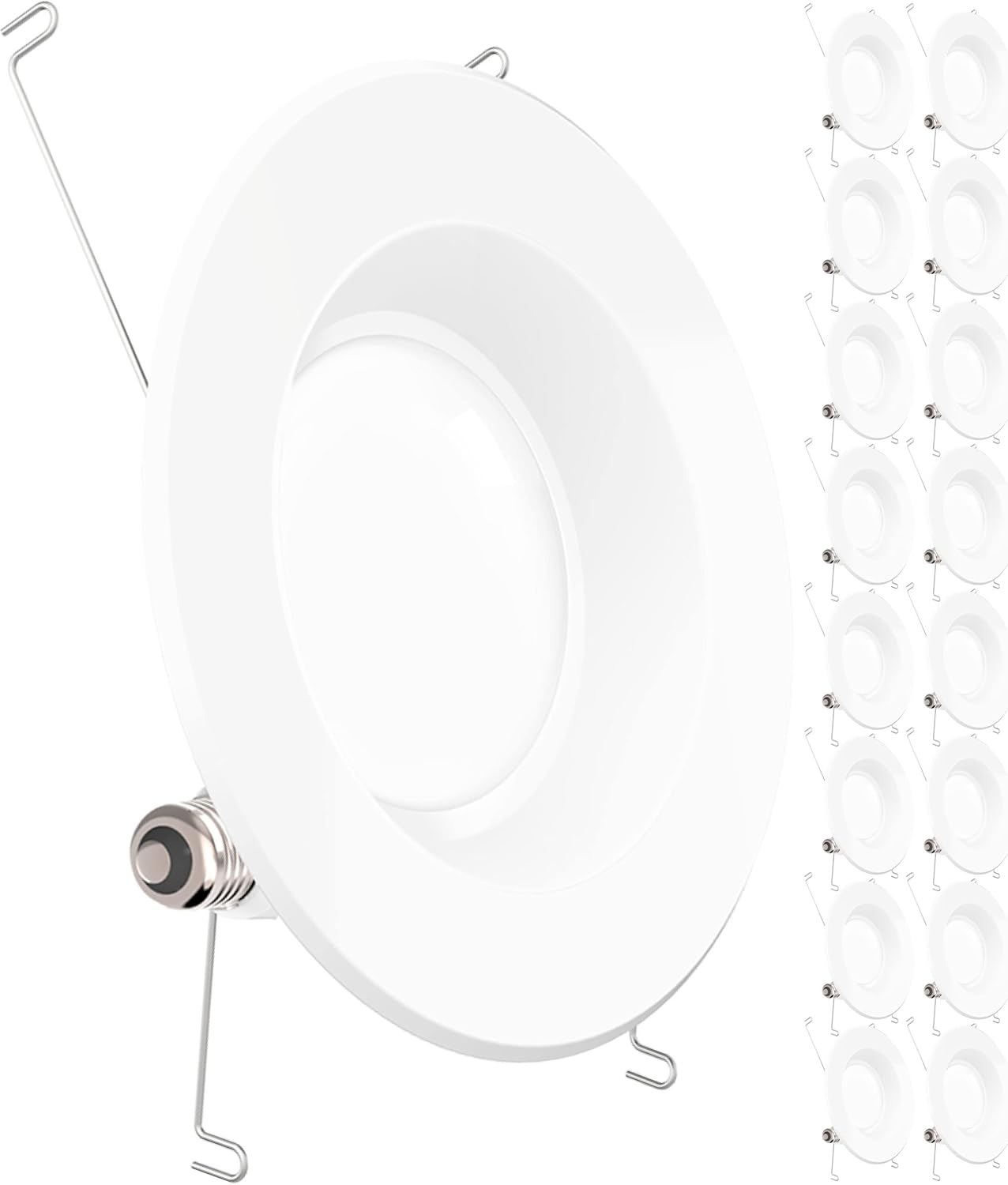

The Sunco Retrofit LED Downlight is designed to replace outdated light bulbs in existing 5-inch or 6-inch recessed can housings. It offers 3000K Warm White light, is dimmable, and features a smooth trim for a modern aesthetic. This product is UL Listed and suitable for damp locations.
Important Safety Information
- Always turn off power at the circuit breaker before installation or servicing.
- Consult a qualified electrician if you are unsure about the installation process.
- Do not install in locations directly exposed to water. This product is damp-rated, not wet-rated.
- Ensure the voltage supply is compatible with the product (120 Volts).
- Do not attempt to modify the product. Any modifications may void the warranty and create safety hazards.
- Handle with care to avoid damage to the LED components.
Package Contents
Each Sunco 5/6 Inch Retrofit LED Recessed Downlight package includes:
- 1x Sunco 5/6 Inch Retrofit LED Recessed Downlight
- 1x E26 Adapter
- 1x TP24 Connector
Note: This product is sold in packs, e.g., 16-pack. The contents listed are per individual downlight unit.
Specifications
| Feature | Detail |
|---|---|
| Brand | Sunco Lighting |
| Model Number | DL_SMDR56-13W-3K-16PK |
| Size | 5/6 Inch |
| Color Temperature | 3000K Warm White |
| Brightness | 965 Lumens |
| Wattage | 13 Watts (120W Equivalent) |
| Voltage | 120 Volts |
| Dimmable | Yes (10%-100%) |
| Material | Plastic |
| Finish Type | Matte White |
| Beam Angle | 90° |
| Damp Rated | Yes |
| Lifespan | Up to 50,000 hours |
| Product Dimensions | 7.5"L x 2.4"W x 7.5"H |
Installation Instructions
- Turn Off Power: Before beginning installation, ensure the power to the fixture is turned off at the circuit breaker to prevent electrical shock.
- Remove Existing Bulb and Trim: Carefully remove the existing light bulb and any old trim from the recessed can housing.
- Connect Power:
- For E26 Base: Screw the provided E26 adapter into the existing socket in the recessed can. Then, connect the E26 adapter to the downlight's TP24 connector.
- For TP24 Connector: If your existing housing has a TP24 connector, simply connect it directly to the downlight's TP24 connector.
Image: Diagram showing how to connect the downlight using either the E26 adapter or a direct TP24 connector. - Secure the Downlight: Gently push the retrofit downlight into the recessed can housing. The spring clips on the sides of the downlight will secure it firmly in place. Ensure the trim is flush with the ceiling.
- Restore Power: Once the downlight is securely installed, restore power at the circuit breaker.
For a visual guide, please refer to the official product overview video:
Operating Instructions
The Sunco 5/6 Inch Retrofit LED Recessed Downlight provides 3000K Warm White light, ideal for creating a comfortable and inviting atmosphere.
Dimming Functionality
This downlight is fully dimmable, allowing you to adjust the light output from 10% to 100% using a compatible LED dimmer switch (sold separately). Ensure your dimmer switch is rated for LED lighting to achieve optimal performance and avoid flickering.
Recommended Use
These downlights are suitable for various indoor spaces including bathrooms, bedrooms, dining rooms, home offices, kitchens, and living rooms. Their damp rating makes them appropriate for areas with moderate moisture, such as bathrooms and covered outdoor areas.
Maintenance
The Sunco LED Recessed Downlight requires minimal maintenance. Follow these guidelines to ensure longevity and optimal performance:
- Cleaning: Ensure power is off before cleaning. Wipe the trim and lens with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or optical components.
- No Bulb Replacement: This is an integrated LED fixture; there are no bulbs to replace.
- Inspection: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, turn off power and contact support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; Loose connection; Faulty fixture. | Check circuit breaker. Ensure all connections are secure. If problem persists, contact customer support. |
| Light flickers or dims inconsistently. | Incompatible dimmer switch; Loose wiring; Voltage fluctuations. | Ensure a compatible LED dimmer is used. Check wiring connections. Consult an electrician for voltage issues. |
| Light output is too low. | Dimmer setting too low; Incorrect installation. | Adjust dimmer to a higher setting. Verify proper installation according to instructions. |
Warranty and Support
Warranty Information
Sunco Lighting provides a 7-Year Protection warranty for this product. We are committed to upholding the highest standards for all our products, ensuring optimal performance and safety. This warranty covers defects in materials and workmanship under normal use.
For specific warranty terms and conditions, please refer to the official Sunco Lighting website or contact customer support.
Customer Support
Sunco Lighting is proudly based in the USA and offers quality products backed by industry-leading warranties and knowledgeable support specialists. If you encounter any issues or have questions regarding your product, please contact our customer support team for assistance.
Contact information can typically be found on the product packaging or the official Sunco Lighting website.
