1. Introduction
This manual provides essential information for the safe and effective use of your Earthtec Replacement Power Lead Cord. This cord is designed to provide reliable power to compatible Kenmore (Sears) sewing machine models, including 385.19153, 385.19157, 385.19365, 385.19110, 385.19001890, 385.19233400, and 385.8080200. Please read this manual thoroughly before installation and use.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage:
- Ensure the power outlet voltage matches the cord's specifications (240 Volts).
- Do not use the cord if it is damaged, frayed, or has exposed wires.
- Always grasp the plug, not the cord, when disconnecting from an outlet.
- Keep the cord away from water, heat sources, and sharp objects.
- Do not overload electrical outlets.
- Unplug the sewing machine when not in use or before performing any maintenance.
3. Product Overview
The Earthtec Replacement Power Lead Cord is a black, male-to-female connector cable designed for specific Kenmore sewing machines. It features a standard Type A male plug for wall outlets and a female connector for the sewing machine's power input.
Figure 3.1: Close-up view of the male plug and female connector of the power cord.
Figure 3.2: The full length of the power cord, indicating it is up to 6 feet long.
Figure 3.3: Detailed view of the female connector, which plugs into the sewing machine.

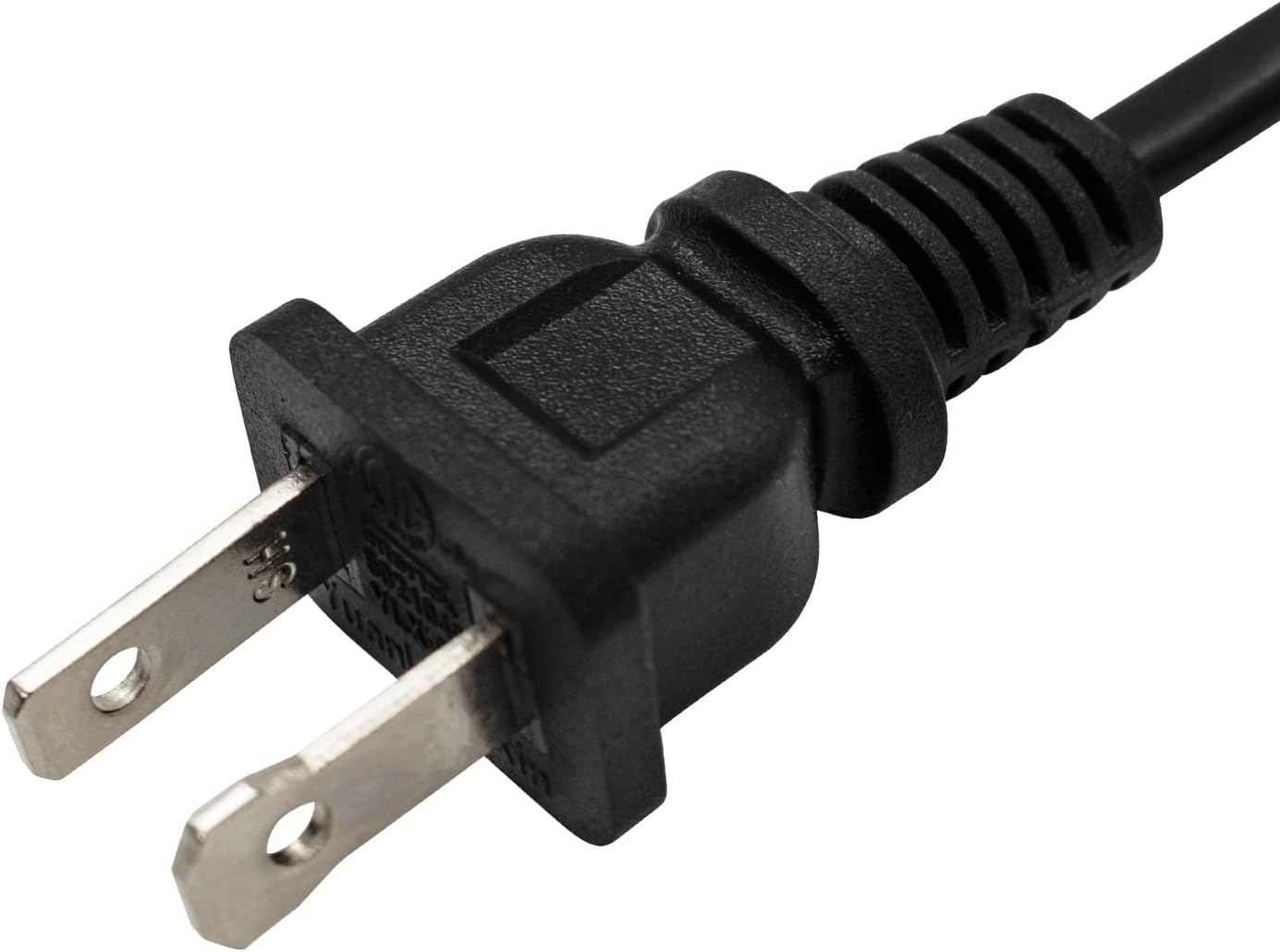

Figure 3.4: Detailed view of the male plug, which connects to a standard wall outlet.
Figure 3.5: Illustration of the cord's connectors and its application with a sewing machine, highlighting its suitability for small appliances.
Figure 3.6: Close-up of the power cable, demonstrating its construction from advanced insulating materials.
Figure 3.7: The power cord shown in context with a sewing machine, illustrating its role in facilitating sewing operations.
4. Setup
To set up your replacement power cord:
- Ensure your Kenmore sewing machine is turned off and disconnected from any power source.
- Locate the power input port on your sewing machine. This is typically a two-pin receptacle.
- Carefully align the female connector of the Earthtec power cord with the sewing machine's power input port.
- Gently push the connector firmly into the port until it is fully seated. Do not force the connection.
- Once connected to the machine, insert the male plug of the power cord into a standard, grounded electrical outlet.
Note: This cord is specifically designed for the listed Kenmore sewing machine models. Using it with incompatible devices may cause damage or malfunction.
5. Operating Instructions
Once the power cord is securely connected to both your sewing machine and a power outlet, your sewing machine is ready for operation. Refer to your sewing machine's original instruction manual for specific operating procedures.
- Ensure the cord is not kinked or pinched by furniture.
- Avoid placing heavy objects on the cord.
- Do not pull the cord to disconnect it from the wall or machine. Always use the plug/connector.
6. Maintenance
Proper maintenance ensures the longevity and safe operation of your power cord:
- Cleaning: Disconnect the cord from all power sources before cleaning. Wipe the cord and connectors with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
- Storage: When not in use, coil the cord loosely and store it in a dry, cool place away from direct sunlight and extreme temperatures. Avoid tight coiling or bending, which can damage the internal wires.
- Inspection: Periodically inspect the cord for any signs of wear, cuts, fraying, or damage to the insulation or connectors. If any damage is observed, discontinue use immediately and replace the cord.
7. Troubleshooting
If your sewing machine is not receiving power after connecting the replacement cord, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Sewing machine does not turn on. | Cord not fully inserted into machine or outlet. | Ensure both ends of the cord are firmly and completely plugged in. |
| No power to the outlet. | Tripped circuit breaker or faulty outlet. | Check your home's circuit breaker. Test the outlet with another working appliance. |
| Cord appears damaged. | Physical damage to the cord. | Do not use a damaged cord. Replace it immediately to prevent electrical hazards. |
| Cord is incompatible. | Incorrect model number or plug type. | Verify your sewing machine's model number against the compatible models listed in this manual. Ensure the plug type (Type A) matches your outlet. |
8. Specifications
- Brand: Earthtec
- Model Number: Z3-JMHO-RVVI
- Compatible Sewing Machine Models: Kenmore (Sears) 385.19153, 385.19157, 385.19365, 385.19110, 385.19001890, 385.19233400, 385.8080200
- Voltage: 240 Volts
- Connector Gender: Male-to-Female
- Plug Type: Type A
- Color: Black
- Approximate Length: Up to 6 feet
- Parcel Dimensions: 18 x 10 x 1.8 cm
- Weight: 80 g
9. Warranty and Support
For any questions regarding the Earthtec Replacement Power Lead Cord, please contact the seller or manufacturer directly. Keep your purchase receipt for any warranty claims. Specific warranty details may vary by retailer or region.
For technical support or further assistance, please refer to the contact information provided at the point of purchase or on the product packaging.
