Important Safety Information
Please read all instructions carefully before assembly and installation. Failure to follow these instructions may result in product damage, property damage, or personal injury. Keep this manual for future reference.
- Always use appropriate safety gear, including safety glasses and gloves, during installation.
- Two or more people are recommended for lifting and moving heavy components like the vanity base and countertop.
- Ensure all plumbing and electrical connections are performed by a qualified professional in accordance with local codes.
- Do not overtighten fasteners, as this may damage the product.
- Verify that the installation surface is level and structurally sound to support the weight of the vanity and its contents.
Package Contents
Carefully unpack all components and inspect for any damage. Ensure all parts listed below are present before beginning assembly.
Included Components:
- Solid wood base cabinet
- Polished predrilled double-sealed countertop (Pure White Quartz)
- Oval porcelain undermount sink
- 4-inch backsplash
- Satin brass hardware (knobs and handles)
- Adjustable soft-close drawer glides
- Hinges
Items Not Included (Sold Separately):
- Faucet
- Drain assembly
- Lights
- Mirror
Figure 1: Overview of vanity dimensions and a list of included and not included components.
Product Overview
The ARIEL Cambridge 37 Inch Bathroom Vanity is crafted from solid wood with a Midnight Blue finish and features a Pure White Quartz countertop. It includes two soft-closing doors and five full-extension dovetail drawers, designed for durability and functionality.

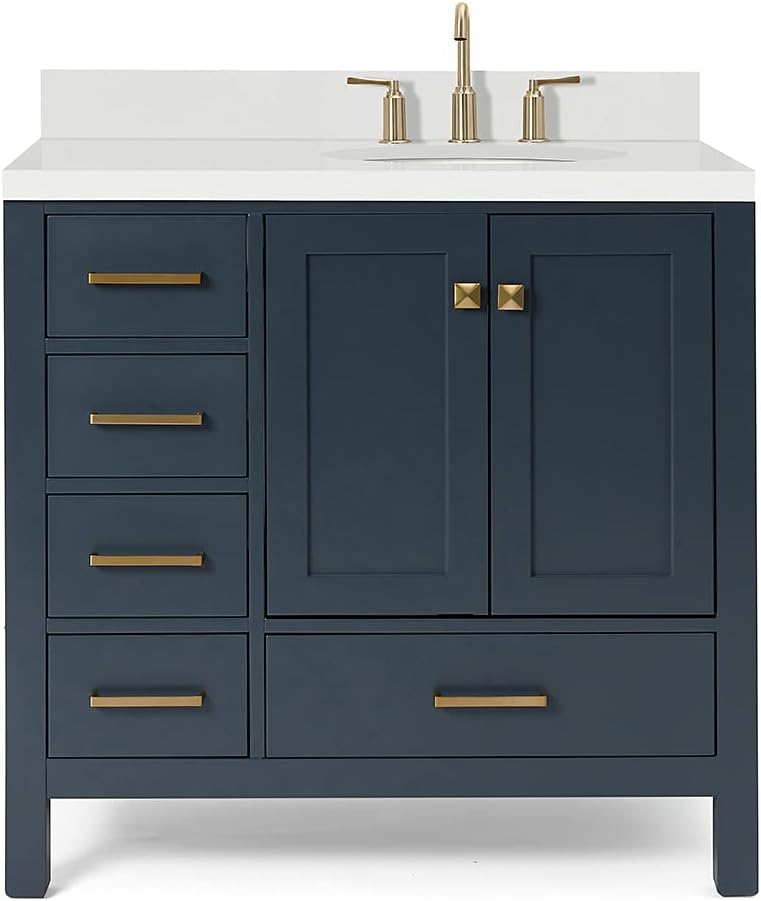

Figure 2: Front view of the assembled ARIEL Cambridge vanity.
Figure 3: Close-up front view highlighting the cabinet doors and drawers.
Setup and Installation
Pre-Installation Checklist:
- Ensure you have the necessary tools: measuring tape, level, screwdriver set, adjustable wrench, silicone sealant, drill, and appropriate fasteners for wall mounting (if desired).
- Confirm the installation area is clean, dry, and has adequate plumbing rough-ins.
Installation Steps:
- Unpacking: Carefully remove all packaging materials. Retain packaging until you are satisfied with the product.
- Positioning the Vanity Base: Place the vanity base cabinet in its desired location. The cabinet features an open back for easy plumbing access. Adjust the hidden leveling feet at the bottom of the cabinet to ensure it is stable and level on uneven surfaces.
- Sink and Countertop Assembly: The countertop and sink are shipped separately. Attach the oval porcelain undermount sink to the underside of the Pure White Quartz countertop using silicone sealant and mounting clips (if provided). Allow adequate drying time as per sealant manufacturer's instructions.
- Securing the Countertop: Carefully place the assembled countertop onto the vanity base. Apply a bead of silicone sealant along the top edges of the vanity base before setting the countertop in place to secure it.
- Faucet Installation: The countertop is predrilled for an 8-inch widespread, 3-hole faucet. Install your chosen faucet according to the manufacturer's instructions.
- Backsplash Installation: Apply silicone sealant to the back and bottom edges of the 4-inch backsplash and firmly press it into place against the wall and countertop.
- Plumbing Connections: Connect the water supply lines and drain assembly to the faucet and sink. Ensure all connections are watertight. It is highly recommended to have a qualified plumber perform these connections.
Figure 4: Key features for easy installation, including pre-drilled holes, pre-assembled cabinet, leveling feet, and open back.
Installation Video:
Video 1: General overview of vanity features and assembly process.
Operation
The ARIEL Cambridge vanity is designed for daily use with smooth and reliable functionality.
Doors and Drawers:
- The vanity features 2 soft-closing doors and 5 full-extension dovetail drawers. These mechanisms ensure quiet operation and prevent slamming, extending the lifespan of the cabinet.
- The full-extension drawers provide complete access to their contents.
- The dovetail joint construction of the drawers signifies superior strength and durability.
Figure 5: Vanity with doors and drawers open, illustrating storage capacity.
Figure 6: Another view of the vanity's interior, showcasing the drawer construction.
Figure 7: Detail of the durable dovetail joint construction on a drawer.
Figure 8: Detail of the soft-close drawer glide system.
Operation Video:
Video 2: Demonstration of the soft-closing doors and full-extension drawers.
Maintenance and Care
Proper care will ensure the longevity and appearance of your ARIEL Cambridge vanity.
Cabinet Finish (Midnight Blue):
- The vanity features a durable Sherwin-Williams polyurethane paint finish.
- Clean the cabinet surfaces with a soft, damp cloth and a mild, non-abrasive cleaner.
- Avoid harsh chemicals, abrasive pads, or ammonia-based cleaners, as these can damage the finish.
- Wipe spills immediately to prevent moisture damage.
Pure White Quartz Countertop:
- The quartz countertop is non-porous, making it highly resistant to stains, scratches, and moisture.
- No sealing is required after installation.
- For daily cleaning, use a soft cloth with warm water and a mild soap.
- For tougher stains, a non-abrasive household cleaner specifically designed for quartz surfaces can be used. Always test in an inconspicuous area first.
- Avoid exposing the countertop to strong chemicals like paint removers, oven cleaners, or highly acidic/alkaline solutions.

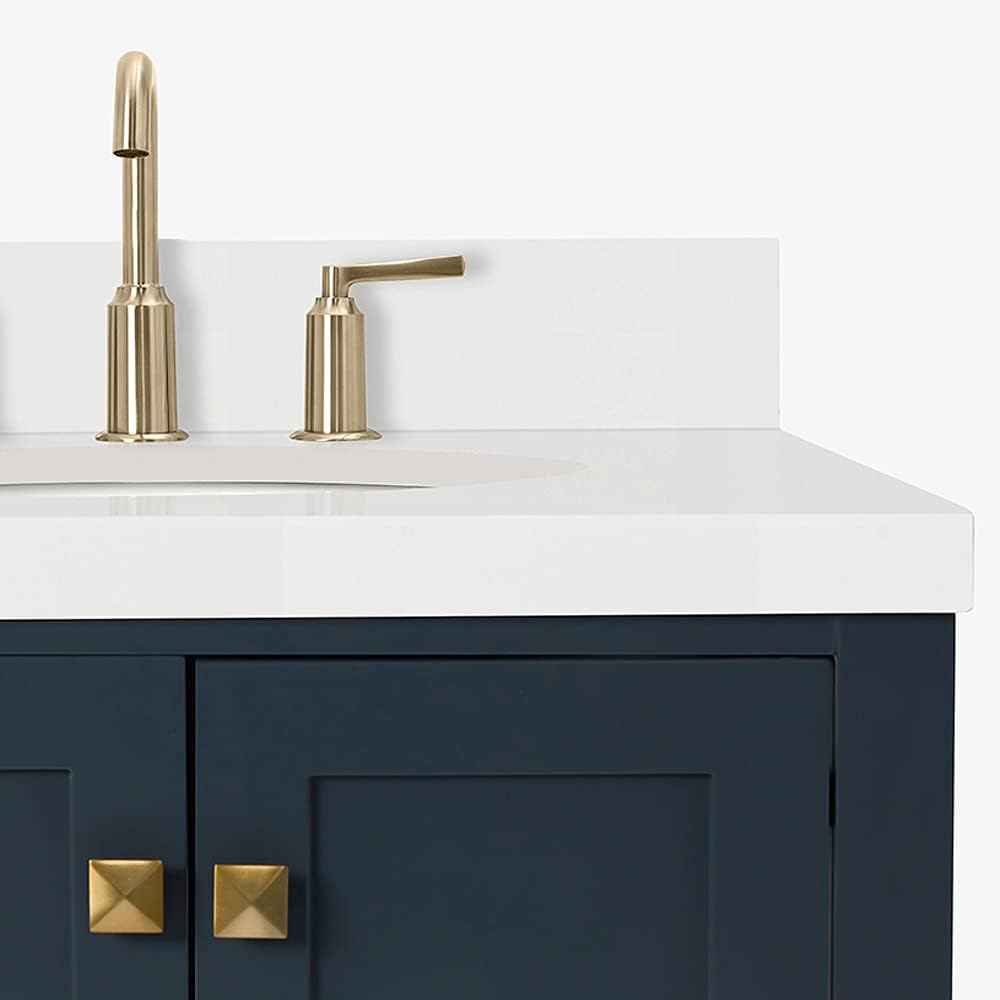

Figure 9: Detail of the Pure White Quartz countertop surface.
Satin Brass Hardware:
- Clean the satin brass knobs and handles with a soft, dry cloth.
- Avoid using abrasive cleaners or polishes, as these can damage the finish.
Figure 10: Detail of the satin brass cabinet knob.
Figure 11: Detail of the satin brass drawer handle.
Troubleshooting
This section addresses common issues you might encounter with your vanity.
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawer does not close softly or is misaligned. | Obstruction in the drawer glide, loose hardware, or uneven installation. | Check for obstructions in the drawer glides. Ensure all drawer hardware is securely tightened. Verify the vanity base is level using the adjustable leveling feet. |
| Water leaks from plumbing connections. | Loose connections, improper sealant, or damaged O-rings/washers. | Ensure all plumbing connections are tightened appropriately. Check for proper application of plumber's tape or sealant. Replace any damaged O-rings or washers. If unsure, consult a qualified plumber. |
| Cabinet doors are misaligned. | Loose hinge screws or uneven installation. | Adjust the hinges using a screwdriver. Most hinges have adjustment screws for horizontal, vertical, and depth alignment. Ensure the vanity base is level. |
Specifications
Detailed specifications for the ARIEL Cambridge 37 Inch Bathroom Vanity.
| Feature | Detail |
|---|---|
| Brand | ARIEL |
| Model Number | ARL-A037SRWQOVOMNB |
| Product Dimensions (D x W x H) | 22" x 37" x 36" (40" H with backsplash) |
| Color | Midnight Blue |
| Cabinet Material | Solid Wood (Hardwood framing, furniture-grade moisture-resistant plywood panels) |
| Countertop Material | Pure White Quartz (1.5-inch mitered edge) |
| Sink Type | Oval Porcelain Undermount |
| Faucet Hole Configuration | Predrilled for 8" widespread, 3-hole faucet |
| Hardware Finish | Satin Brass |
| Door Style | Shaker |
| Number of Doors | 2 (Soft-closing) |
| Number of Drawers | 5 (Full-extension, dovetail construction, soft-closing glides) |
| Mounting Type | Floor Mount (Freestanding) |
| Weight Limit | 147 Pounds |
| Assembly Required | Yes (Countertop and sink attachment) |
Warranty Information
The ARIEL Cambridge 37 Inch Bathroom Vanity is covered by a 3-Year Limited Warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use and service.
For specific details regarding warranty coverage, limitations, and how to file a claim, please refer to the warranty documentation provided with your purchase or contact ARIEL customer support.
Customer Support
If you have any questions, require assistance with installation, or need to report a problem, please contact ARIEL customer support.
- When contacting support, please have your model number (ARL-A037SRWQOVOMNB) and proof of purchase readily available.
- For more information about ARIEL products, visit the official ARIEL store on Amazon: ARIEL Amazon Store
