1. Introduction
This manual provides essential instructions for the safe and efficient operation of your QFX BT-1956 Bluetooth 1956 Pickup Truck Replica Speaker. Please read this manual thoroughly before use and retain it for future reference.
2. Product Overview
The QFX BT-1956 is a portable Bluetooth speaker designed in the style of a 1956 pickup truck. It features integrated LED lights, multiple audio input options, and hands-free calling capabilities.
Key Features:
- Bluetooth Wireless Connectivity
- Dual 3-inch Speakers for clear audio
- Hands-Free Phone Link with Built-in Microphone
- FM Radio Functionality
- USB and TF Card Ports for direct media playback
- Integrated LED Party Lights
- Rechargeable Battery
- True Wireless Stereo (TWS) Pairing for enhanced sound
Component Identification:
Refer to the images below for a visual guide to the speaker's components and controls.
Figure 2.1: Front view of the QFX BT-1956 speaker.
Figure 2.2: Side view of the QFX BT-1956 speaker.
Figure 2.3: Rear panel with controls and ports. This image displays the power button, play/pause, skip track buttons, headphone output, TF card slot, USB port, DC 5V charging port, and line-in port.
3. Setup
3.1 Charging the Speaker:
Before first use, fully charge the speaker. Connect the supplied USB cable to the DC 5V charging port on the rear of the speaker and the other end to a USB power adapter (not included) or a computer USB port. The charging indicator will show the charging status.
3.2 Power On/Off:
Press and hold the POWER button located on the rear panel to turn the speaker on or off. A startup sound will indicate the device is active.
4. Operating Instructions
4.1 Bluetooth Pairing:
- Ensure the speaker is powered on and in Bluetooth mode. The display will show "BLUE" and an audible prompt will confirm Bluetooth mode.
- On your mobile device, enable Bluetooth and search for available devices.
- Select "BT-1956" from the list of devices.
- Once paired, the speaker will confirm with an audible notification.
Figure 4.1: Bluetooth pairing with a smartphone.
4.2 Hands-Free Calling:
When connected via Bluetooth, the built-in microphone allows for hands-free calls. Press the Play/Pause button to answer or end a call.
4.3 FM Radio:
- Press the MODE button (M/S) to switch to FM Radio mode.
- Press and hold the Play/Pause button to automatically scan and save available FM stations.
- Use the Previous/Next Track buttons to navigate between saved stations.
4.4 USB/TF Card Playback:
Insert a USB drive or TF card into the corresponding port on the rear panel. The speaker will automatically detect the storage device and begin playing audio files. Use the Play/Pause and Previous/Next Track buttons to control playback.
4.5 LED Party Lights:
The speaker features integrated LED lights. These lights typically activate automatically with audio playback. Specific controls for light modes may be available via the mode button or a dedicated light button if present (refer to Figure 2.3 for button layout).

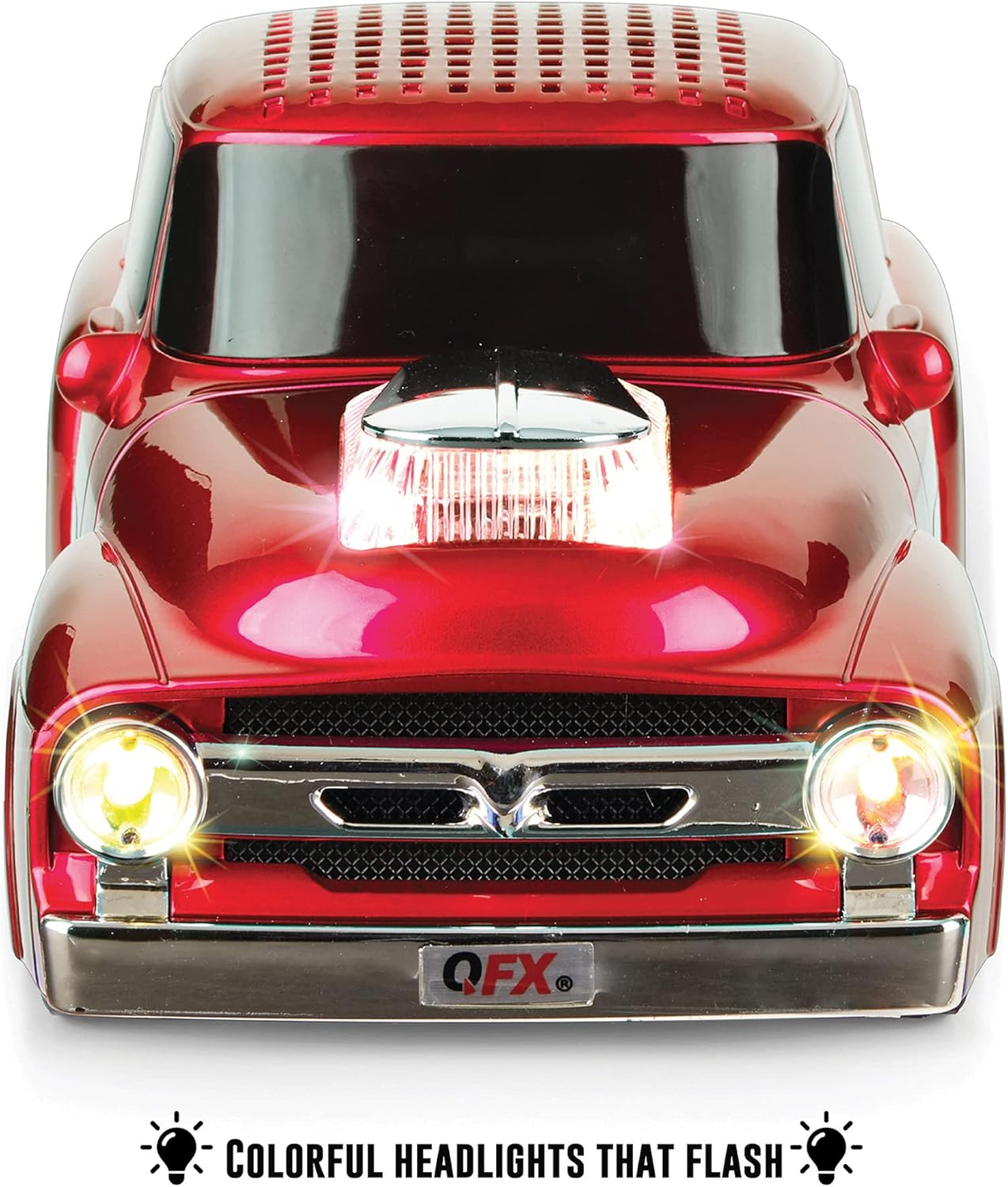

Figure 4.2: Illuminated LED headlights.
4.6 True Wireless Stereo (TWS) Pairing:
To pair two BT-1956 speakers for stereo sound:
- Ensure both speakers are powered on and in Bluetooth mode, but not yet paired to any device.
- On one speaker (this will be the master), press and hold the MODE button (M/S) until you hear a pairing tone.
- The two speakers will connect automatically. Once connected, they will indicate TWS pairing is successful.
- Now, connect your mobile device to the master speaker via Bluetooth as described in section 4.1.
Figure 4.3: TWS pairing for stereo sound.
4.7 Volume Control:
Adjust the volume using the Volume Up (+) and Volume Down (-) buttons on the rear panel, or directly from your connected Bluetooth device.
4.8 Official Product Video:
Video 4.1: This video, provided by QFX USA, demonstrates the features and operation of the QFX BT-1956 Hot Rod Replica Bluetooth Speaker, including its design, sound, and connectivity options.
5. Maintenance
- Keep the speaker away from water, moisture, and extreme temperatures.
- Clean the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Avoid dropping or subjecting the speaker to strong impacts.
- When not in use for extended periods, store the speaker in a cool, dry place and charge it periodically to maintain battery health.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not power on. | Low battery. | Charge the speaker using the provided USB cable. |
| Cannot pair via Bluetooth. | Speaker is not in pairing mode or too far from device. | Ensure speaker is in Bluetooth mode and within 10 meters of your device. Restart both devices and try again. |
| No sound. | Volume too low, or incorrect mode selected. | Increase volume on both speaker and connected device. Ensure correct input mode (Bluetooth, FM, USB, TF) is selected. |
| FM radio reception is poor. | Weak signal. | Move the speaker to a location with better signal reception. |
7. Specifications
Figure 7.1: Product Dimensions.
- Model: BT-1956
- Brand: QFX
- Connectivity Technology: Bluetooth, USB
- Wireless Communication Technology: Bluetooth
- Bluetooth Range: 10 Meters
- Speaker Size: 3 Inches (Woofer/Subwoofer Diameter)
- Speaker Maximum Output Power: 3 Watts
- Audio Output Mode: Stereo
- Power Source: Battery Powered (1 Lithium Ion battery included)
- Battery Capacity: 2200 mAh
- Input Voltage: 5 Volts
- Product Dimensions: 9.45"D x 4.17"W x 3.54"H
- Item Weight: 1.28 ounces
- Material: Metal
- Included Components: Speaker, USB cable, User Manual
8. Warranty and Support
The QFX BT-1956 speaker comes with a limited warranty. For specific details regarding warranty coverage, please refer to the documentation included with your purchase.
For any questions, problems, or issues, please contact QFX directly at support@qfxusa.com.
