cciyu Professional Ceramic Front Brake Pads Set (Model D924) Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your cciyu Professional Ceramic Front Brake Pads Set, Model D924. Please read these instructions carefully before proceeding with installation or use.

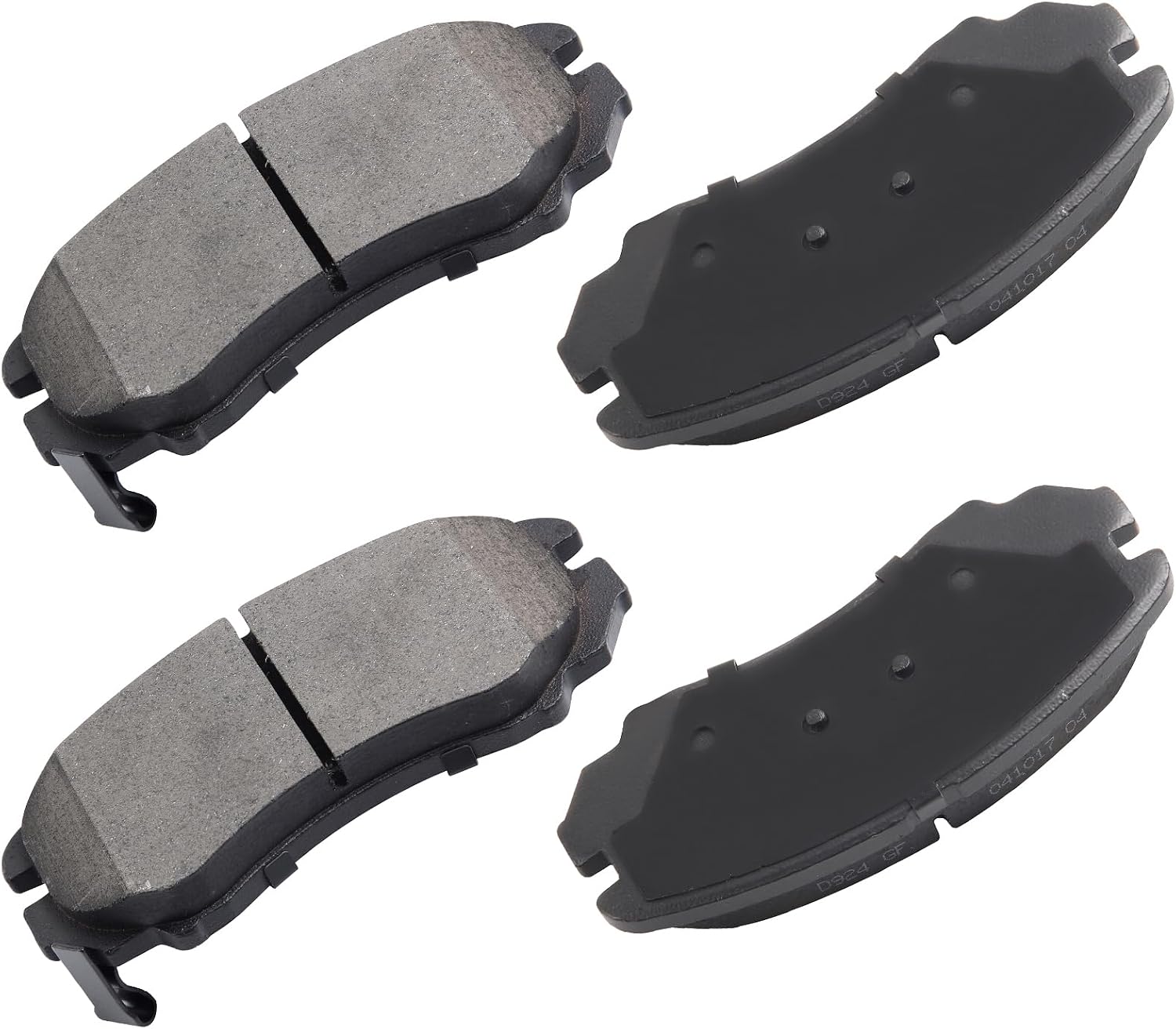

Image 1: The cciyu Professional Ceramic Front Brake Pads Set, showing four individual brake pads.

2. Compatibility

This brake pad set (ATD924C, D924-7825) is designed for the front axle of the following vehicle models:

• Hyundai: Elantra (2007-2010), Sonata (2003-2010), Tiburon (2003-2008), Tucson (2005-2009)
• Kia: Magentis (2002-2010), Optima (2002-2010), Soul (2010-2013), Sportage (2005-2010)

Before purchase and installation, verify compatibility using the Amazon Fitment System and cross-reference with your vehicle's make, model, and trim specifications.

3. Product Features and Structure

The cciyu Professional Ceramic Front Brake Pads are engineered with advanced materials and design for optimal performance.

3.1. Material Composition

• Carbon+Ceramic Formula: Utilizes a carbon fiber infused ceramic formula for enhanced stopping power and extended service life.
• Thermal Scorched Surfaces: Pad surfaces are thermal scorched to facilitate a fast break-in period.

Image 2: Detailed view of the brake pad's internal structure, highlighting the carbon+ceramic formula and thermal scorched surfaces.

3.2. Design Elements

• Chamfered and Slotted Design: Mimics original equipment (OE) specifications to ensure proper fitment with brake rotors, reduce noise, and prevent damage to the disc.
• Power Coated Backing Plate: Extends the life of the brake pad by resisting rust and corrosion.
• Noise Insulating Shims: Premium rubberized shims are included to provide virtually noise-free braking.
• Premium Hardware Kit: Where applicable, a stainless steel hardware kit is included for straightforward installation.
• Hi-Temp Lubricant: Included for proper installation and function.

Image 3: Illustration of the brake pad's design features, including the power-coated backing plate, noise-insulating shims, and the included hardware kit.

4. Installation (Setup)

Installation of brake pads requires mechanical knowledge and appropriate tools. If you are not confident in performing this task, it is recommended to seek professional assistance.

4.1. General Installation Guidelines

1. Ensure the vehicle is safely lifted and supported on jack stands.
2. Remove the wheel and access the brake caliper assembly.
3. Carefully remove the old brake pads and associated hardware.
4. Clean the caliper and caliper bracket thoroughly.
5. Apply the provided hi-temp lubricant to contact points as specified by standard brake service procedures.
6. Install the new cciyu brake pads and hardware kit (if applicable), ensuring proper seating and alignment.
7. Reassemble the caliper and wheel, ensuring all bolts are torqued to manufacturer specifications.
8. Repeat for all applicable wheels.

After installation, perform a break-in procedure as recommended by vehicle manufacturers or brake pad guidelines to ensure optimal performance and longevity.

5. Operation

These ceramic brake pads are designed to provide effective and quiet braking performance. The ceramic organic formula contributes to a higher coefficient of friction compared to standard brake pads, which helps in shortening braking distances.

Image 4: Visual representation of how effective braking shortens stopping distance.

The chamfered design and noise-insulating shims work together to minimize abnormal noise during braking, contributing to a quieter driving experience.

Image 5: A comparison demonstrating reduced brake dust accumulation with cciyu brake pads.

6. Maintenance

Brake pads are consumable components that require regular inspection and timely replacement to ensure vehicle safety and optimal braking performance.

6.1. Periodic Inspection

• Regularly check the thickness of your brake pads.
• Inspect for any signs of abnormal wear, staining with oil, or damage.

6.2. Replacement Guidelines

It is recommended to replace brake pads under the following conditions:

• When the friction material thickness is less than the basic repair standard allowed by the vehicle manufacturer.
• When the friction material thickness is less than 6mm, and must be replaced if less than 3mm.
• When the wear indicator of the brake pad makes contact with the brake rotor, producing a squealing sound.
• When the brake pads are stained with oil or other contaminants.
• When the brake pads show abnormal wear patterns or are physically damaged.

Normal replacement intervals are typically 30,000-50,000 km for front brakes and 50,000-70,000 km for rear brakes, but this can vary based on driving conditions and style.

Image 6: Guidelines for periodic inspection and recommended replacement situations for brake pads.

7. Troubleshooting

If you experience issues after installing your cciyu brake pads, consider the following:

• Abnormal Noise: Ensure the brake pads are correctly seated and the chamfered design is properly aligned with the rotors. Verify that all hardware, including shims, is installed correctly.
• Reduced Braking Performance: Confirm proper break-in procedure was followed. Check for any contamination on the pad surface or rotor. Ensure caliper function is normal.
• Uneven Wear: This may indicate issues with caliper function, rotor condition, or improper installation. Inspect the entire brake system.

For persistent issues, consult a qualified automotive technician.

8. Specifications

9. Warranty and Support

Information regarding specific warranty terms for cciyu products is not provided in this manual. For warranty claims or technical support, please refer to the product packaging or contact cciyu customer service directly.

10. Important Safety Information

Legal Disclaimer: All references to brand names and models are for compatibility purposes only and do not imply any affiliation or endorsement by the original manufacturer. Brake system components are critical for vehicle safety. Improper installation or maintenance can lead to serious injury or death. Always follow vehicle manufacturer's service procedures and safety precautions.
