1. Introduction
Thank you for choosing the Hailo Ecoline Design L Built-in Pull-Out Waste Separation System. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new waste management solution. This system is designed to integrate seamlessly into your kitchen cabinet, offering dual 14-liter bins for convenient waste and recycling separation.
Figure 1: Hailo Ecoline Design L Built-in Pull-Out Waste Separation System. This image displays the Hailo Ecoline Design L waste separation system, fully extended from a cabinet, showcasing its two 14-liter black bins and the smooth pull-out mechanism.
2. Safety Information
- Read all instructions carefully before installation and use.
- Keep children and pets away from the product during installation.
- Ensure the cabinet is stable and capable of supporting the weight of the system and its contents.
- Use appropriate tools for installation and wear protective gear if necessary.
- Do not overload the bins beyond their stated capacity.
- Avoid placing hot ashes or flammable materials in the bins.
3. Package Contents
Verify that all components are present before beginning installation:
- Built-in bin system (frame with pull-out slides)
- 2 x 14 Liter inner bins
- Removable lid with integrated storage trays
- Mounting screws
- Assembly instructions
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Hailo |
| Model Number | 0310-100 |
| Capacity | 2 x 14 Liters (2 x 3.7 Gallons), Total 28 Liters |
| Color | Black |
| Material | Metal / Plastic (bins made from 100% recycled plastic) |
| Opening Mechanism | Full Pull-Out with ball-bearing slides |
| Product Dimensions (L x W x H) | 19.1" x 10.1" x 16.5" (48.6 cm x 25.6 cm x 41.8 cm) |
| Item Weight | 13.64 pounds (6.2 Kilograms) |
| Recommended Cabinet Width | 12 inches or wider |
| Installation Type | Base cabinet mount (left, right, or center) |

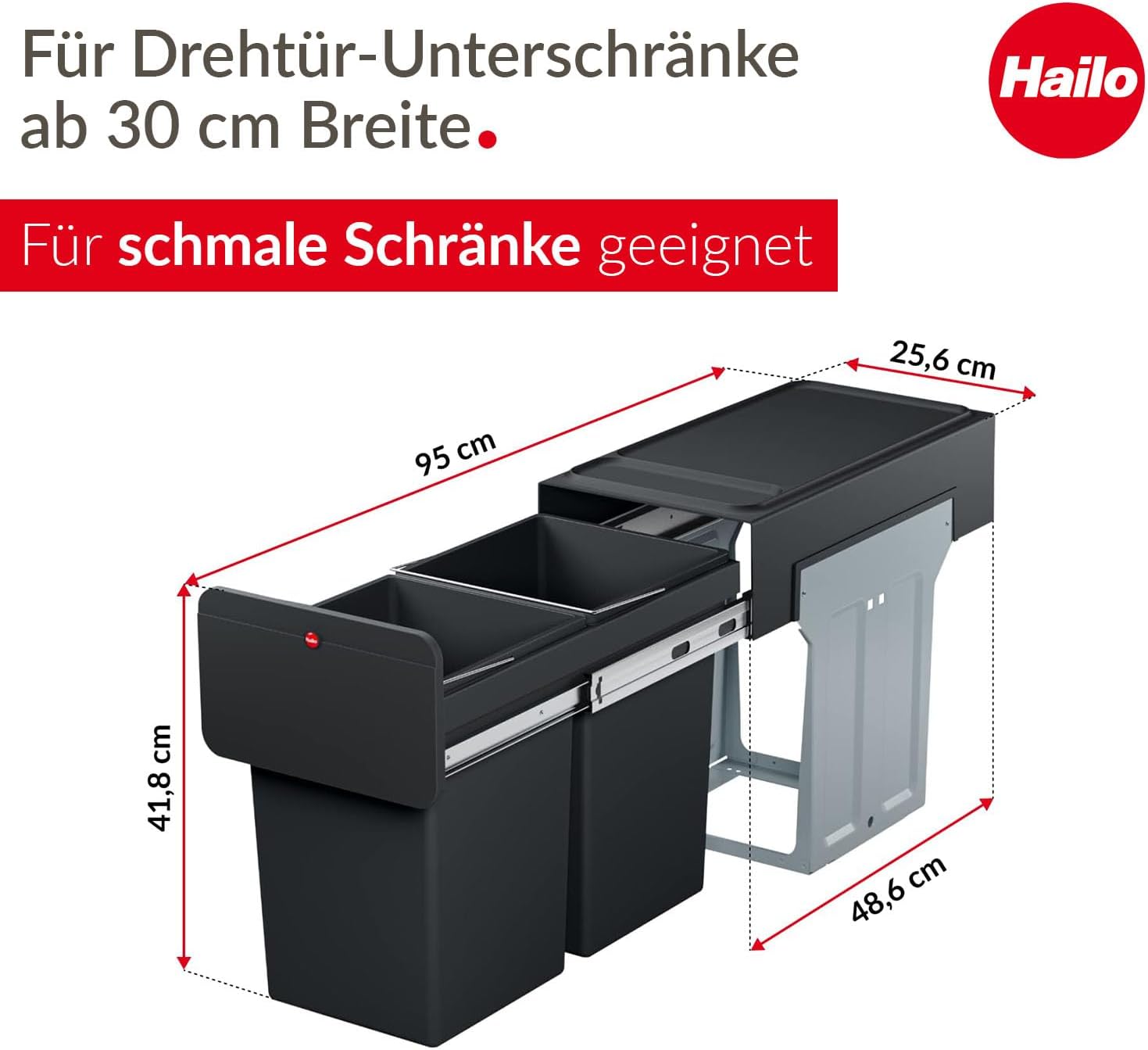

Figure 2: Product Dimensions. A detailed technical drawing providing the overall dimensions of the Hailo Ecoline Design L system, including width, depth, and height.
Figure 3: Minimum Cabinet Clearance. This diagram illustrates the minimum required internal cabinet dimensions (width and height) to ensure proper fit and clearance, particularly when installed under a sink.
5. Setup and Installation
The Hailo Ecoline Design L system is designed for straightforward installation. Follow these steps to mount the unit securely in your cabinet:
- Prepare the Cabinet: Ensure the cabinet interior is clean and clear of obstructions. The system fits cabinets 12 inches or wider.
- Position the Frame: Place the metal frame with the pull-out slides on the base of your cabinet. You can mount it on the left, right, or center, depending on your preference and cabinet layout.
- Mark Screw Holes: Use a pencil to mark the positions for the four mounting screws through the pre-drilled holes in the frame.
- Secure the Frame: Using the provided screws, firmly attach the frame to the cabinet base. Ensure it is level and stable.
- Attach the Lid: The lid mechanism slides onto the back of the frame and clips into place.
- Insert Bins: Place the two 14-liter bins into the installed frame.
Figure 4: Mounting Points. This image highlights the four designated screw points for securely mounting the waste separation system to the base of a kitchen cabinet.
Figure 5: Telescopic Rails. This diagram shows the waste separation system's full-extension telescopic rails, which allow the bins to slide out completely for convenient access.
Installation Video
Video 1: EcoLine Duo Product Presentation. This official video from Hailo USA Inc. provides a comprehensive presentation of the EcoLine Duo product, showcasing its design, functionality, and ease of installation within a kitchen cabinet.
6. Operating Instructions
Using your Hailo Ecoline Design L system is simple and efficient:
- Accessing Bins: Open your cabinet door and gently pull the front of the waste separation system. The full-extension ball-bearing slides will allow the bins to glide out smoothly.
- Disposing Waste: The system features two separate 14-liter bins. Use one for general waste and the other for recycling to maintain an organized kitchen.
- Removing Bins: Each bin has an integrated carrying handle. Simply lift the bin by its handle to remove it for emptying or cleaning.
- Closing the System: Push the system back into the cabinet until it is fully retracted and the cabinet door can close securely.
Figure 6: In-Use Demonstration. A woman is shown using the Hailo Ecoline Design L system in a kitchen, demonstrating how the pull-out feature allows for easy disposal of food waste directly into the bins.
Figure 7: Removable Bins. A view of the Hailo Ecoline Design L system with one of the 14-liter bins lifted out, highlighting the integrated carrying handle for easy removal and emptying.
7. Maintenance and Care
To ensure the longevity and hygiene of your Hailo Ecoline Design L system, follow these maintenance guidelines:
- Cleaning Bins: The inner bins are removable for easy cleaning. Wash them with a damp cloth and normal detergents.
- Cleaning Lid and Frame: Wipe the removable lid and the metal frame with a damp cloth and mild detergents.
- Avoid Harsh Cleaners: Do not use aggressive or abrasive detergents, as these can damage the surfaces.
- Regular Inspection: Periodically check the pull-out slides for smooth operation and ensure all mounting screws remain tight.
Figure 8: Removable Lid. A visual representation of the system's removable lid, which can be lifted to reveal integrated storage trays, useful for small items or liners.
8. Troubleshooting
If you encounter any issues with your waste separation system, refer to the following common solutions:
- System not sliding smoothly: Check the pull-out slides for any obstructions (e.g., debris, loose items). Ensure the slides are clean and free from dirt. Verify that the mounting screws are securely tightened and the frame is not warped.
- Bins not fitting correctly: Ensure the bins are inserted into the frame in the correct orientation. Check for any foreign objects at the bottom of the frame preventing proper seating.
- Lid not closing properly: Inspect the lid mechanism for any damage or misalignment. Ensure the bins are fully seated within the frame, allowing the lid to rest correctly.
- Unpleasant odors: Regularly empty and clean the bins as per the maintenance instructions. Consider using bin liners and odor-absorbing products if odors persist.
9. Warranty and Support
The Hailo Ecoline Design L Built-in Pull-Out Waste Separation System comes with a 5-year warranty, reflecting Hailo's commitment to quality and durability.
For further assistance, technical support, or warranty claims, please contact Hailo customer service through their official website or the retailer where the product was purchased. Please have your model number (0310-100) and proof of purchase available.
