1. Product Overview
The atomberg Studio 150mm BLDC Exhaust Fan is designed to provide efficient and silent ventilation for your home, particularly suitable for bathrooms, AC cabins, and conference rooms. Its sleek and stylish design, combined with advanced BLDC motor technology, ensures both aesthetic appeal and high performance.
Image: Front view of the atomberg Studio 150mm BLDC Exhaust Fan.
Key Features:
- Sleek and Stylish Design: Constructed with durable ABS material and a stainless steel finish.
- Energy Efficient BLDC Motor: Saves up to 65% in electricity consumption compared to conventional motors.
- Silent Operation: Engineered for quiet performance while delivering high air volume.
- High Air Delivery: Provides 245 CMM (Cubic Meters per Minute) airflow at 2000 RPM.
- Easy to Clean: Features an easily detachable front fascia for convenient maintenance.
- Back Flap Construction: Designed to prevent insects from entering the house.
Image: Visual representation of key features including energy efficiency, silent operation, and easy cleaning.
2. Product Components
The product package includes the following items:
- Exhaust Fan Unit
- Extended Warranty Card
- User Manual (this document)
3. Setup and Installation
The atomberg Studio Exhaust Fan is designed for easy installation. Please follow these general guidelines:
- Choose Location: Select an appropriate location for installation, typically a wall opening in a bathroom or kitchen. Ensure the opening size is compatible with the fan's dimensions.
- Mounting: Securely mount the exhaust fan unit into the prepared opening. The fan is designed for wall mounting.
- Wiring: Connect the fan to a 220-240V power supply. It operates on corded electric power. Professional electrical installation is recommended to ensure safety and proper function.
- Final Check: After installation, ensure all connections are secure and the fan is properly seated.

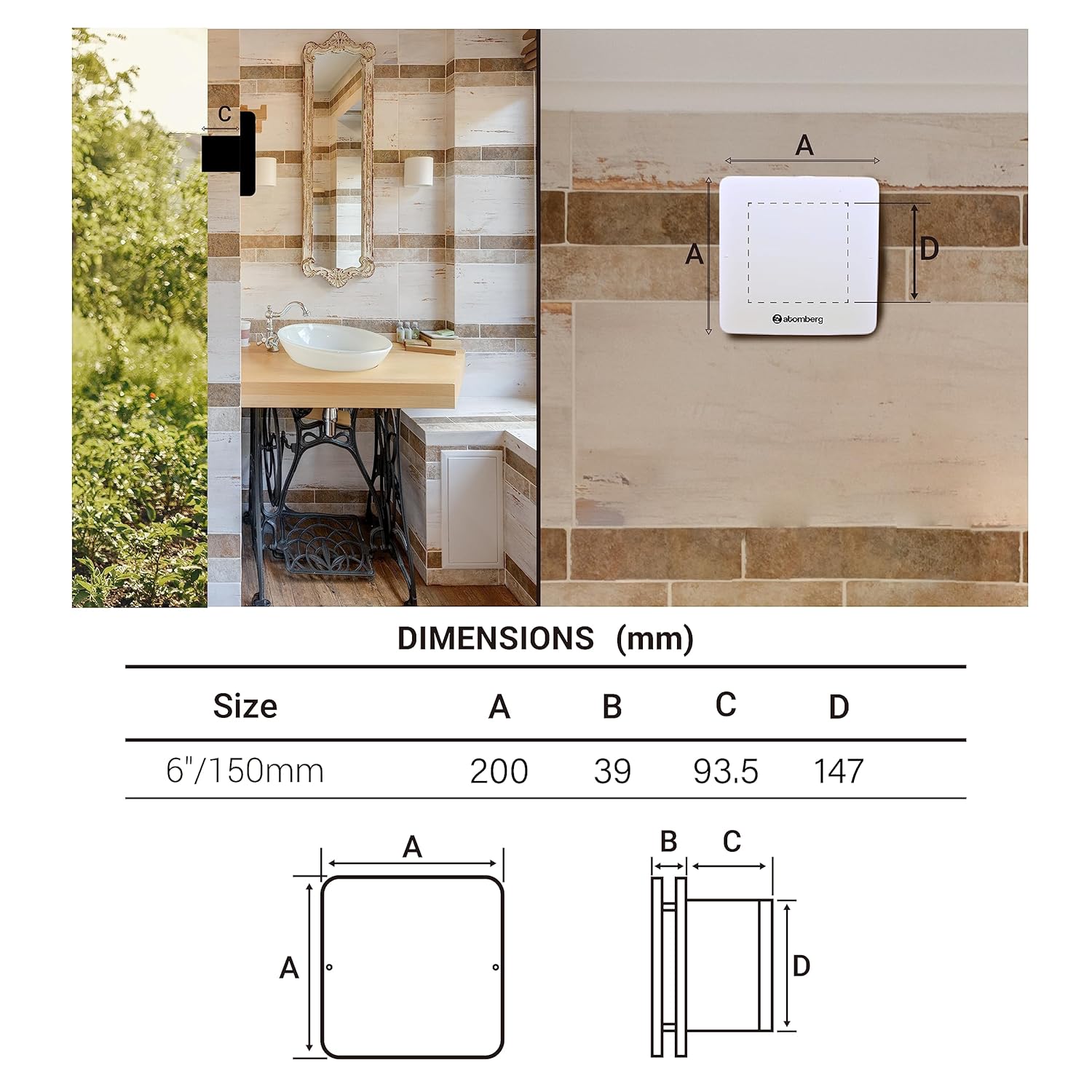

Image: Diagram showing the dimensions of the atomberg Studio Exhaust Fan (Size 6"/150mm: A=200mm, B=39mm, C=93.5mm, D=147mm).
For professional installation assistance, atomberg offers services. Refer to the warranty and support section for contact details.
Image: Information on atomberg's hassle-free installation services.
4. Operating Instructions
The atomberg Studio Exhaust Fan features simple push-button controls for operation.
- Power On/Off: Use the integrated push button to turn the fan on or off.
- Airflow: The fan operates at a single speed, providing consistent airflow of 245 CMM at 2000 RPM.
5. Maintenance
Regular cleaning ensures optimal performance and longevity of your exhaust fan.
- Disconnect Power: Always ensure the fan is switched off and disconnected from the power supply before cleaning.
- Clean Front Fascia: The front fascia is designed to be easily detachable. Gently remove it and clean with a soft, damp cloth. Avoid abrasive cleaners.
- Clean Blades: If accessible, carefully wipe the fan blades to remove dust and debris.
- Reassemble: Once clean and dry, reattach the front fascia securely.
6. Troubleshooting
If you encounter any issues with your atomberg Studio Exhaust Fan, refer to the following common troubleshooting steps:
- Fan Not Turning On:
- Check if the power supply is connected and the switch is on.
- Ensure there are no loose wires or tripped circuit breakers.
- Low Airflow:
- Clean the front fascia and blades as described in the Maintenance section. Dust buildup can restrict airflow.
- Ensure the back flaps are opening correctly when the fan is operating.
- Unusual Noise:
- Check for any obstructions near the fan blades.
- Ensure the fan is securely mounted and not vibrating against the wall.
If the issue persists after attempting these steps, please contact customer support for assistance.
7. Specifications
| Specification | Detail |
|---|---|
| Brand | atomberg |
| Model Name | Atomberg Studio 150mm BLDC motor Energy Saving Exhaust Fan |
| Electric Fan Design | Exhaust Fan |
| Size | 150mm |
| Colour | Grey (Stainless Steel Finish) |
| Power Source | Corded Electric |
| Wattage | 6.50 W |
| Operating Voltage | 220-240 V |
| Number of Blades | 7 |
| Air Flow Capacity | 245 Cubic Meters Per Hour (CMM) |
| Speed | 2000 RPM |
| Product Dimensions | 21.6D x 14.8W x 21.2H Centimeters |
| Item Weight | 1 Kilogram |
| Room Type | Bathroom |
| Special Feature | Portable, Waterproof |
| Mounting Type | Wall Mount |
| Control Method | Push Button |
| Efficiency | High Efficiency |
| Country of Origin | China |
| Certification | CE |
8. Warranty and Support
The atomberg Studio Exhaust Fan comes with a comprehensive warranty and dedicated customer support.
Warranty Information:
- The product includes a 2-year warranty.
- An additional 1 year of extended warranty is available upon product registration. This makes for a 1+1 year warranty coverage.
- Please refer to the 'Extended Warranty Card' included in the box for full terms and conditions.
Image: Details on atomberg's PAN India Service Network and warranty registration process.
How to Register for Warranty:
To avail warranty service, it is essential to register your product barcode. You can register by:
- Logging on to the official Atomberg Website.
- Sending an e-mail to support@atomberg.com.
- Calling customer care at 844 844 9442.
Customer Support:
For any queries, service requests, or technical assistance, please contact:
- Email: support@atomberg.com
- Phone: 08448449442
