1. Product Overview
The JJC HGX100VF Solid Metal Hand Grip is designed to enhance the handling and stability of your Fujifilm X100V or X100F camera. Constructed from premium aluminum alloy with a microfiber leather grip, it provides a comfortable and secure hold, especially during extended use. This grip also integrates an Arca-Swiss type quick release plate for easy tripod mounting and offers convenient access to the camera's battery and memory card compartments without removal.
Image 1.1: JJC HGX100VF Hand Grip mounted on a Fujifilm X100V camera.
2. Key Features
- Premium Construction: Made from durable aluminum alloy for strength and longevity.
- Enhanced Grip: Features anti-slip microfiber leather on the grip area for improved comfort and security.
- Arca-Swiss Compatibility: Integrated dovetail quick release plate allows direct mounting to Arca-Swiss type tripods.
- Tripod Mount: Includes an additional 1/4"-20 screw hole for universal tripod plates.
- Unobstructed Access: Designed with cutouts for full access to the battery compartment, memory card slot, and camera interfaces without removing the grip.
- Fold-Out Screen Friendly: Does not interfere with the operation of the camera's fold-out screen.
- Hand Strap Attachment: An extra hole on the right side of the baseplate allows for the attachment of a hand strap.
- Lightweight Design: Adds minimal weight to the camera while providing significant ergonomic benefits.
Image 2.1: Key components and materials of the hand grip.
Video Overview
Video 2.1: This video demonstrates the features and installation of the JJC HGX100VF Solid Metal Hand Grip, including its aluminum alloy construction, microfiber leather, lightweight design, and unhindered access to camera functions.
3. Installation Guide
- Prepare Camera: Ensure your Fujifilm X100V or X100F camera is powered off.
- Align Grip: Position the JJC HGX100VF hand grip against the bottom of your camera, aligning the 1/4"-20 mounting screw on the grip with the tripod socket on your camera.
- Secure Grip: Use the integrated 1/4"-20 screw to firmly attach the grip to the camera. Turn the screw clockwise until it is snug. Do not overtighten.
- Verify Stability: Gently check that the grip is securely attached to the camera and does not wobble.
Image 3.1: Attaching the hand grip to the camera's tripod socket.
4. Usage Instructions
4.1 Battery and Memory Card Access
The hand grip is designed with a precise cutout that allows you to open the battery and memory card compartment door without needing to remove the grip from the camera. This ensures quick and easy battery changes or memory card swaps.

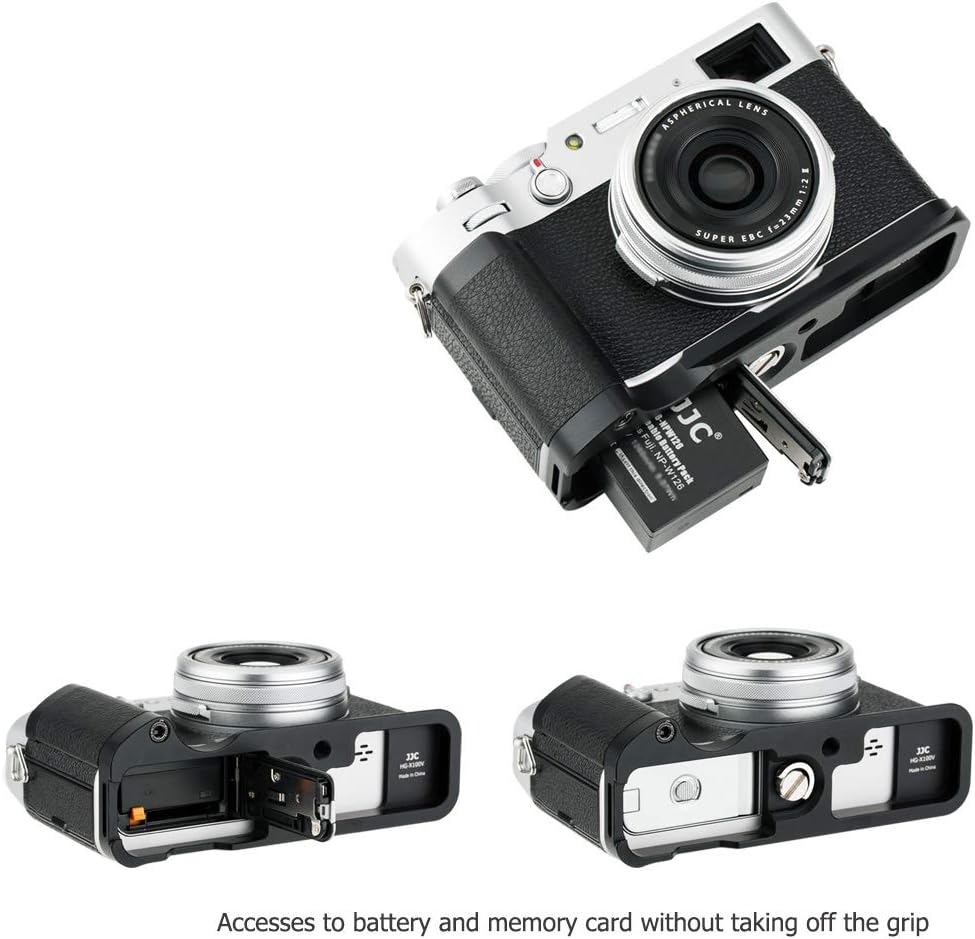

Image 4.1: Accessing the battery and memory card with the grip installed.
4.2 Fold-Out Screen and Interfaces
The design of the HGX100VF hand grip ensures that it does not obstruct the movement or functionality of your camera's fold-out screen. All side interfaces and ports remain fully accessible.
Image 4.2: Unobstructed fold-out screen and interface access.
4.3 Tripod Mounting
The base of the hand grip features an Arca-Swiss type dovetail plate, allowing for direct and secure mounting onto compatible Arca-Swiss tripod heads. Additionally, a standard 1/4"-20 screw hole is provided for mounting to other universal tripod plates or accessories.
Image 4.3: Tripod mounting options with the hand grip.
4.4 Hand Strap Attachment
An integrated slot on the right side of the grip allows for the attachment of a hand strap (sold separately), providing an additional layer of security and comfort while carrying your camera.
Image 4.4: Hand strap attachment point on the grip.
5. Specifications
| Feature | Detail |
|---|---|
| Model Number | HGX100VF |
| Compatible Cameras | Fujifilm X100V, Fujifilm X100F (Not compatible with X100VI, X100T, X100S, X100) |
| Material | Aluminum Alloy, Microfiber Leather |
| Color | Black |
| Product Dimensions (L x W x H) | 129 x 61.3 x 46.1 mm (5.08 x 2.41 x 1.81 inches) |
| Item Weight | 69 grams (2.43 oz) |
| Tripod Mount | Arca-Swiss Type Quick Release Plate, 1/4"-20 Screw Hole |
Image 5.1: Dimensions of the hand grip.
6. Care and Maintenance
- Cleaning: Wipe the aluminum alloy surfaces with a soft, dry cloth. For the microfiber leather, use a slightly damp cloth if necessary, and allow it to air dry completely. Avoid harsh chemicals or abrasive cleaners.
- Storage: Store the hand grip in a dry, cool place away from direct sunlight and extreme temperatures when not in use.
- Inspection: Periodically check the mounting screw for tightness to ensure the grip remains securely attached to your camera.
7. Troubleshooting
- Grip feels loose: Ensure the 1/4"-20 mounting screw is fully tightened. If the issue persists, remove the grip, inspect the camera's tripod socket and the grip's screw for any obstructions or damage, then reattach.
- Difficulty accessing battery/memory card: Confirm the grip is correctly aligned and fully seated against the camera body. The cutout should perfectly match the camera's compartment door.
- Grip not fitting camera: Verify that your camera model is either a Fujifilm X100V or X100F. This grip is not compatible with other X100 series models (e.g., X100VI, X100T, X100S, X100).
8. Warranty Information
This JJC product is covered by a 1-year limited warranty from the date of purchase. The warranty covers manufacturing defects in materials and workmanship. It does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear. Please retain your proof of purchase for warranty claims.
9. Contact and Support
For further assistance, technical support, or warranty inquiries, please contact your retailer or the manufacturer directly. Refer to the product packaging or the official JJC website for the most current contact information.
