LEONLITE Dusk to Dawn Outdoor Wall Light Instruction Manual
Model: R3-ZH3WLL-14W30BLK-T02
1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your LEONLITE Dusk to Dawn Outdoor Wall Light. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and adherence to these instructions will ensure safe and efficient operation of the product.
2. Safety Information
- WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installing or servicing.
- All electrical connections must be in accordance with local codes and ordinances, National Electrical Code (NEC), and ANSI/NFPA 70-1999.
- Consult a qualified electrician if you are unsure about proper installation.
- Do not install near combustible materials.
- Ensure the fixture is securely mounted to a structurally sound surface.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
- This fixture is designed for outdoor, wet location use.
3. Package Contents
Verify that all components are present before beginning installation:
- LEONLITE Dusk to Dawn Outdoor Wall Light Fixture (1)
- Mounting Hardware (Screws, Wire Nuts)
- Instruction Manual (This document)
4. Product Features
The LEONLITE Dusk to Dawn Outdoor Wall Light is designed for efficient and reliable outdoor illumination. Key features include:
- Integrated LED: 14W LED light source providing 1219 lumens of 3000K Warm White light.
- Dusk to Dawn Sensor: Built-in photocell automatically turns the light on at dusk and off at dawn, eliminating the need for manual control.
- Durable Construction: Made from rugged die-cast aluminum with a high-strength glass lens, ensuring longevity and resistance to outdoor elements.
- Weather Resistant: Designed for wet locations, offering strong weatherability.
- Energy Efficient: ETL and Energy Star certified for high efficiency and energy savings.
- Long Lifespan: Integrated LED has a lifespan of up to 50,000 hours.
Image: Key specifications of the LEONLITE outdoor wall light, highlighting its brightness, lifespan, wattage, and color temperature.
Image: The outdoor wall light installed on a residential building, emphasizing its suitability for wet locations and its durable construction materials.
Video: An overview of the LEONLITE 14W LED Outdoor Wall Lantern Fixture, showcasing its design, features like integrated LEDs, durable construction, and dusk-to-dawn functionality.
5. Setup and Installation
Before You Begin: Ensure power is disconnected at the circuit breaker. Read all safety warnings.
- Prepare the Mounting Surface: Ensure the electrical junction box is properly installed and secured.
- Attach the Base Plate: Attach the mounting base plate to the junction box using the screws provided. Ensure it is firmly secured.
- Make Wiring Connections: Connect the electrical wires according to standard wiring practices:
- Connect the black wire from the fixture to the black (hot) wire from the junction box.
- Connect the white wire from the fixture to the white (neutral) wire from the junction box.
- Connect the green or bare copper ground wire from the fixture to the ground wire from the junction box.
- Mount the Fixture: Carefully align the lamp body with the base plate and secure it using the M4 x 10 screws. Ensure no wires are pinched during this step.
- Restore Power: Once the fixture is securely installed and all connections are checked, restore power at the circuit breaker.
Image: Step-by-step installation diagram illustrating how to attach the mounting plate, connect wiring, and secure the light fixture.
6. Operating Instructions
The LEONLITE Dusk to Dawn Outdoor Wall Light features an integrated photocell sensor for automatic operation.
- Automatic Operation: Once installed and power is supplied, the light will automatically turn on when ambient light levels drop (at dusk) and turn off when ambient light levels rise (at dawn).
- Sensor Location: The photocell sensor is located on the top of the fixture. Ensure it is not obstructed by any objects, as this may interfere with its proper function.
Image: Visual representation of the light's automatic operation, showing it off during the day and illuminated at night due to its integrated photocell sensor.
Image: The LEONLITE outdoor wall light in an installed setting, demonstrating its aesthetic and functional presence on an exterior wall.
7. Maintenance
The LEONLITE Dusk to Dawn Outdoor Wall Light requires minimal maintenance.
- Cleaning: Periodically clean the exterior of the fixture with a soft, damp cloth to remove dirt and debris. Do not use abrasive cleaners or solvents, as these may damage the finish or glass.
- Inspection: Regularly inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
- Waterproof Integrity: The fixture is designed to be waterproof. Avoid directing high-pressure water jets directly at the fixture, which could compromise its seals.
Image: The light fixture being splashed with water, demonstrating its waterproof capabilities and robust design for outdoor use.
8. Troubleshooting
If you experience issues with your LEONLITE Outdoor Wall Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | No power to the fixture. Photocell sensor obstructed or faulty. Ambient light too high. | Check circuit breaker and wiring connections. Ensure photocell is clear of obstructions. Test by covering the sensor completely. Relocate the fixture if it's in an area with excessive ambient light at night. |
| Light stays on during the day. | Photocell sensor obstructed or faulty. Insufficient light reaching the sensor. | Ensure photocell is clear of obstructions. Clean the sensor if dirty. Verify the sensor is exposed to sufficient daylight. |
| Light flickers or dims. | Loose wiring connection. Voltage fluctuations. | Disconnect power and check all wiring connections. Tighten if loose. Consult an electrician to check household voltage. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | R3-ZH3WLL-14W30BLK-T02 |
| Power Consumption | 14 Watts |
| Brightness | 1219 Lumens |
| Color Temperature | 3000K Warm White |
| Voltage | 120 Volts |
| Lifespan | Up to 50,000 Hours |
| Material | Die-casting Aluminum & Glass |
| Product Dimensions | 7.28"L x 7.28"W x 11.57"H |
| Item Weight | 4.93 Pounds |
| Water Resistance Level | Water Resistant (Wet Location Rated) |
| Certifications | ETL, Energy Star |
| Special Features | Dusk to Dawn Photocell, Integrated LED |

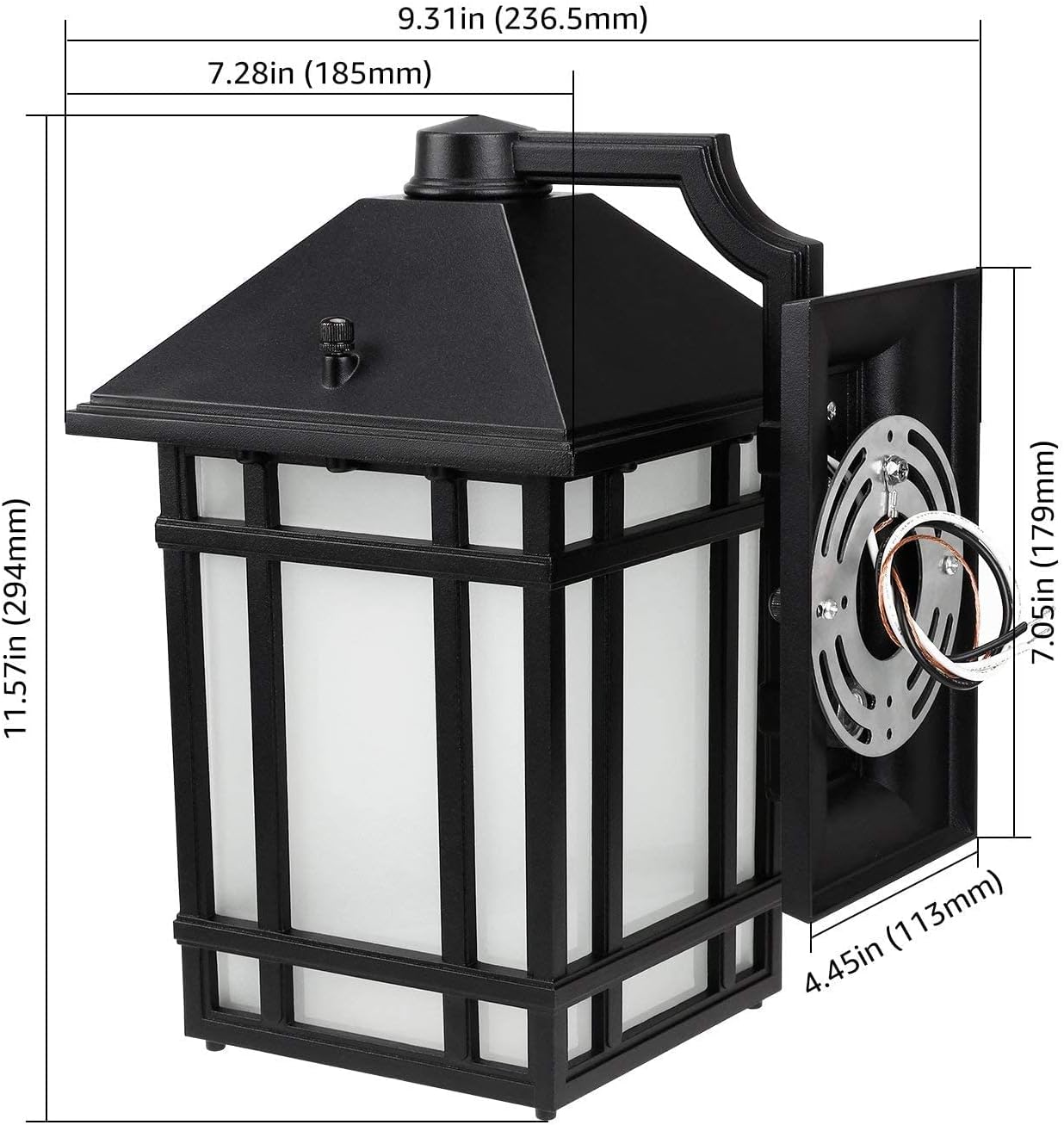

Image: Detailed dimensional drawing of the light fixture, providing length, width, and height measurements.
10. Warranty and Support
LEONLITE provides a 3-year warranty for this outdoor LED porch light from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact LEONLITE customer service. Please have your model number (R3-ZH3WLL-14W30BLK-T02) and proof of purchase available when contacting support.
Contact Information: Refer to the LEONLITE official website or your purchase documentation for the most current contact details.
