Introduction
The Evenflo Gold SensorSafe SecureMax Smart Infant Car Seat is designed to provide advanced protection for infants. This car seat incorporates security features and rigorous testing standards to ensure peace of mind for caregivers. It is suitable for infants weighing 4 to 35 pounds and with a height between 17 and 32 inches, always installed in a rear-facing orientation.
Front view of the Evenflo Gold SensorSafe SecureMax Smart Infant Car Seat in Opal/Purple. The car seat features a canopy, a five-point harness, and comfortable padding.
Setup and Installation
Proper installation is crucial for the safety of your child. The Evenflo Gold SensorSafe SecureMax Smart Infant Car Seat can be installed using either the LATCH system or the vehicle's seat belt. Always refer to your vehicle's owner's manual for specific instructions regarding car seat installation points.
Harness Adjustment
The car seat features an easy-to-adjust, no-rethread harness system. To adjust the harness height, simply pull up on the headrest. Ensure the harness straps are at or below your child's shoulders when rear-facing.

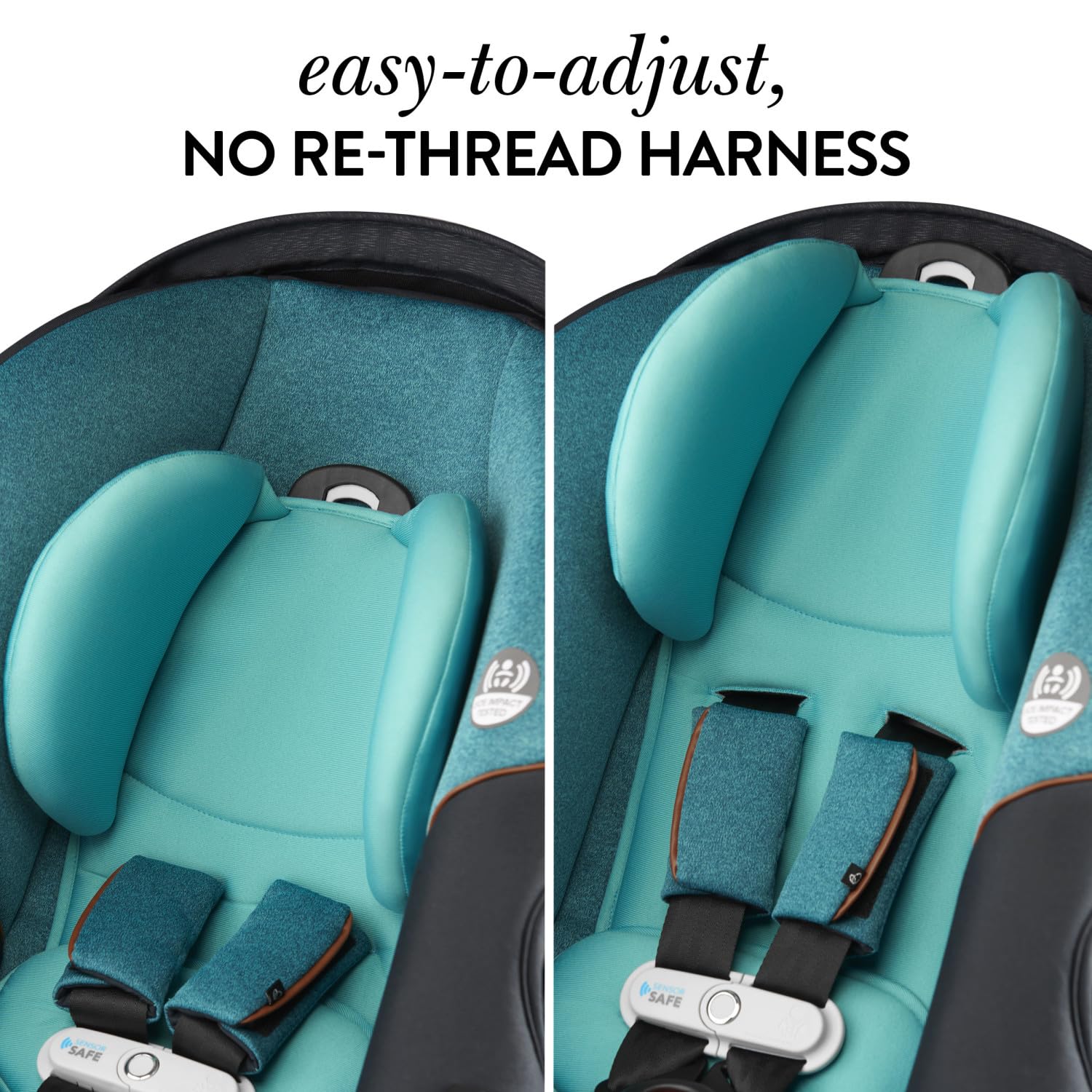

Close-up view of the car seat's headrest and harness, illustrating the easy-to-adjust, no-rethread harness system.
SafeZone Load Leg Technology
The car seat base includes SafeZone Load Leg Technology for enhanced stability. This load leg extends to the vehicle floor, reducing rotation in the event of a frontal collision. Ensure the load leg is properly extended and locked into position according to the indicators on the base.
Side view of the Evenflo Gold SensorSafe SecureMax Smart Infant Car Seat, showing the extended SafeZone load leg from the base to the vehicle floor.
Detailed illustration highlighting the SafeZone load leg technology, designed to provide superior stabilization for the car seat.
Operating the SensorSafe Smart Chest Clip
The SensorSafe smart chest clip and wireless receiver connect to an app on your phone, providing real-time updates on your child's comfort and well-being. This system is designed to alert you to potential safety concerns.
SensorSafe Alerts
- Unbuckled Alert: Notifies you if your child unbuckles themselves from the car seat.
- Temperature Alert: Alerts you if the car seat environment becomes too warm.
- Movement Alert: Informs you if your child has spent too much time without movement in the car seat.
Ensure the SensorSafe app is installed on your smartphone and properly paired with the car seat's receiver for these features to function.

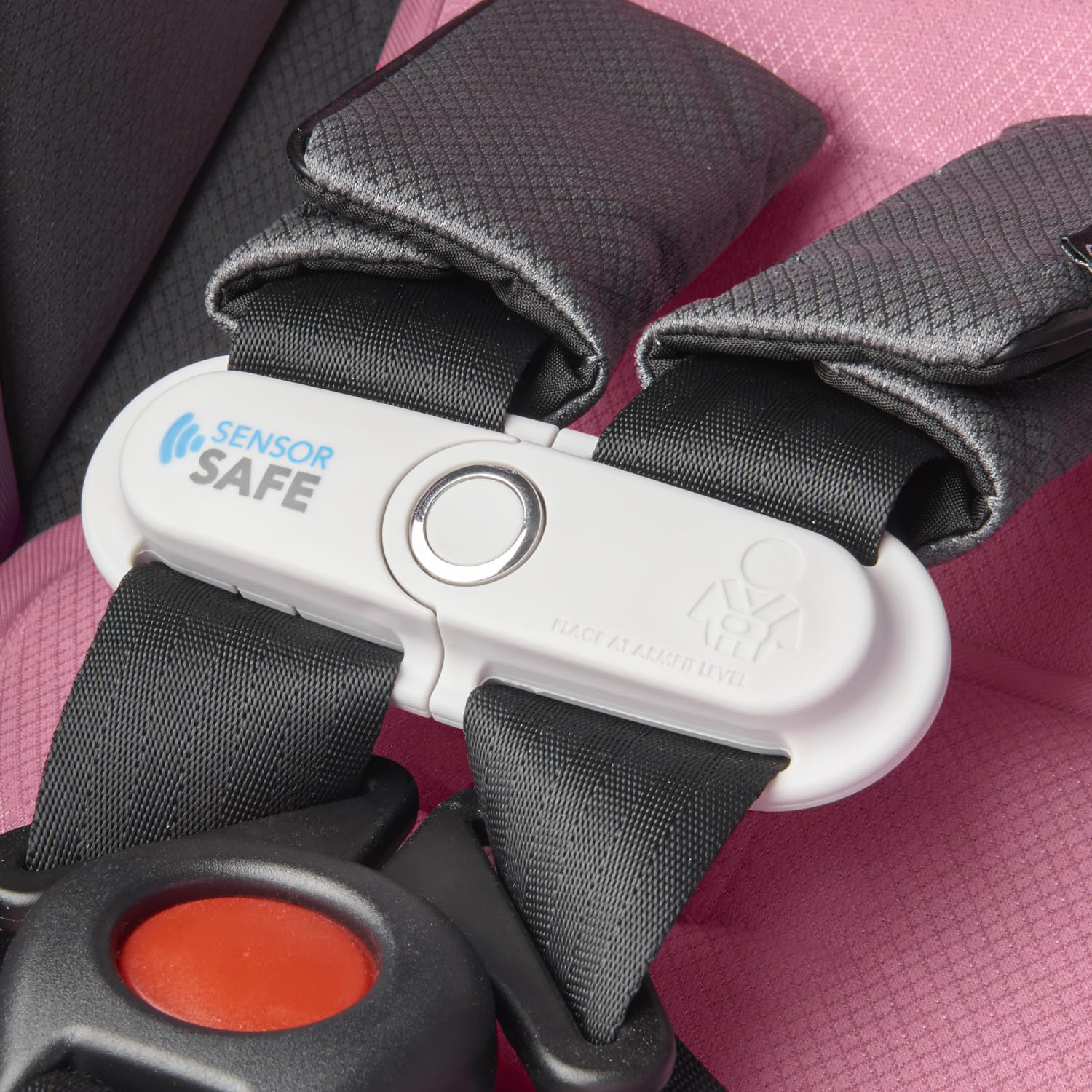

Close-up view of the SensorSafe smart chest clip, which provides real-time safety alerts to your smartphone.
Detailed view of the SensorSafe chest clip, showing its design and the integrated sensor.
Maintenance
Regular cleaning and maintenance will help prolong the life of your car seat. Refer to the care labels on the fabric for specific washing instructions. Typically, fabric covers can be machine washed on a gentle cycle with cold water and mild detergent, then air-dried. Plastic and metal parts can be wiped clean with a damp cloth and mild soap. Do not use abrasive cleaners or solvents.
Removable Inserts
The car seat includes removable inserts for custom comfort and fit, especially for newborns. These inserts can be removed as your child grows. Follow the same cleaning instructions for the inserts as for the main fabric cover.
The car seat interior, showing the removable inserts that provide custom comfort and support for infants.
Troubleshooting
If you encounter issues with your Evenflo Gold SensorSafe SecureMax Smart Infant Car Seat, please review the following common troubleshooting tips:
- SensorSafe App Not Connecting: Ensure your smartphone's Bluetooth is enabled and the SensorSafe receiver is properly plugged into your vehicle's OBD2 port. Restart the app and try re-pairing.
- Harness Difficulty: If the harness is difficult to tighten or loosen, check for any twists in the straps or obstructions in the harness path. Ensure the chest clip is positioned at armpit level.
- Car Seat Wobbles After Installation: Recheck the installation method (LATCH or seat belt) to ensure it is tight and secure. The car seat should not move more than one inch side-to-side or front-to-back at the belt path. Ensure the load leg is fully extended and locked.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 30412337 |
| Minimum Weight Recommendation | 4 Pounds |
| Maximum Weight Recommendation | 35 Pounds |
| Minimum Height Recommendation | 17 Inches |
| Maximum Height Recommended | 32 Inches |
| Orientation | Rear Facing |
| Harness Type | 5-Point |
| Number of Height Positions | 4 |
| Installation Type | LATCH or Seat Belt |
| Material Type | Polyester |
| Color | Opal/Purple |
| Item Dimensions (D x W x H) | 26"D x 17"W x 24"H |
| Item Weight | 28 Pounds |
| Included Components | 1 Car Seat |
Diagram illustrating the dimensions of the Evenflo Gold SensorSafe SecureMax Smart Infant Car Seat: 26 inches deep, 17 inches wide, and 24 inches high.
Warranty
The Evenflo Gold SensorSafe SecureMax Smart Infant Car Seat comes with a lifetime manufacturer's warranty. This warranty is redeemed directly through Evenflo. Please retain your proof of purchase for warranty claims.
Support
For additional assistance or questions regarding your car seat, Evenflo offers several support options:
- Live Video Installation Support: Schedule an appointment to receive guidance from a Certified Car Seat Safety Technician for proper vehicle installation.
- Online Chat: Connect with ParentLink customer service experts in real-time for immediate assistance.
Visit the official Evenflo website for contact information and to access these support services.
