1. Product Overview
The Speed Queen TR3003WN is a 26-inch top load washer designed for durability and effective cleaning. It features a 3.2 cubic feet capacity stainless steel tub, capable of achieving maximum cleanliness with full tub wash and rinse options. This model incorporates the Perfect Wash system and a solid mount suspension system for reliable performance.
- Dimensions: Width: 25.62" x Height: 42.75" x Depth: 28"
- Capacity: 3.2 cu. ft.
- Max Spin Speed: 840 RPM
- Control Type: Knob Control
- Tub Material: Stainless Steel
- Voltage: 120 Volts
- Weight: 126.00 lbs
Figure 1: Front view of the Speed Queen TR3003WN Top Load Washer.
2. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your Speed Queen washer. It is recommended that installation be performed by a qualified technician.
2.1 Unpacking
- Carefully remove all packaging materials, including the shipping base and internal packing.
- Inspect the washer for any shipping damage. Report any damage immediately to your dealer.
2.2 Location Requirements
- Install the washer on a firm, level floor.
- Ensure adequate space for water supply hoses, drain hose, and power cord.
- Maintain proper clearances for air circulation and service access.
2.3 Water and Drain Connections
- Connect the hot and cold water supply hoses to the corresponding inlets on the back of the washer. Ensure connections are tight to prevent leaks.
- Securely attach the drain hose to the drain standpipe or laundry tub.
2.4 Electrical Connection
- Plug the washer into a grounded 120-volt, 60 Hz, 15-amp electrical outlet.
- Do not use extension cords.
2.5 Leveling the Washer
- Use a level to ensure the washer is perfectly balanced.
- Adjust the leveling legs by turning them clockwise or counter-clockwise until the washer is stable and level.
Figure 2: Dimensions of the Speed Queen TR3003WN Top Load Washer.
3. Operating Instructions
Familiarize yourself with the control panel to effectively operate your Speed Queen washer.

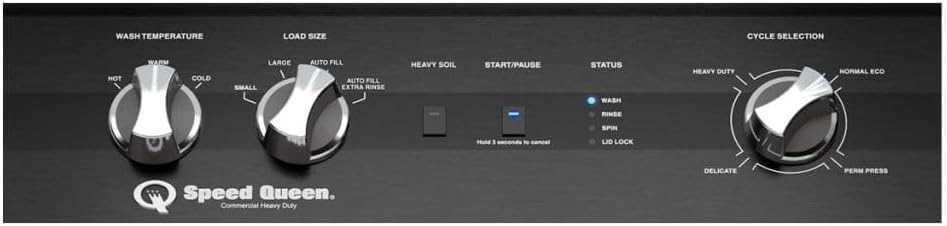

Figure 3: Control panel of the Speed Queen TR3003WN Top Load Washer.
3.1 Loading the Washer
- Sort laundry by fabric type, color, and soil level.
- Load items loosely around the agitator, ensuring not to overload the tub. Overloading can reduce cleaning efficiency.
3.2 Adding Detergent and Additives
- Add the recommended amount of detergent directly into the wash tub before loading clothes, or follow detergent manufacturer instructions.
- For fabric softener or bleach, use the designated dispenser if available, or add manually during the appropriate cycle phase.
3.3 Selecting Wash Settings
Use the control knobs to select your desired settings:
- Wash Temperature: Turn the left knob to select HOT, WARM, COOL, or COLD water temperature.
- Load Size: Turn the middle knob to select SMALL, MEDIUM, LARGE, or AUTO FILL. The AUTO FILL option automatically senses the load size.
- Extra Rinse: Toggle the switch to ON for an additional rinse cycle.
- Cycle Selection: Turn the right knob to choose from various wash cycles such as HEAVY DUTY, NORMAL ECO, PERM PRESS, DELICATE, or HANDWASH.
3.4 Starting a Cycle
- Close the washer lid.
- Press the START/PAUSE button to begin the wash cycle.
- To pause a cycle, press the START/PAUSE button again. To cancel, hold for 3 seconds.
- The STATUS indicators will illuminate to show the current phase of the wash cycle (Wash, Rinse, Spin, Lid Lock).
4. Maintenance
Regular maintenance helps ensure the longevity and efficiency of your washer.
4.1 Cleaning the Washer Tub
- Periodically run a clean cycle using a washer cleaner or a mixture of white vinegar and baking soda.
- Follow the instructions for your chosen cleaning product.
4.2 Cleaning the Exterior
- Wipe down the exterior surfaces with a soft, damp cloth and mild detergent.
- Avoid abrasive cleaners that can scratch the finish.
4.3 Water Inlet Hoses
- Inspect water inlet hoses for cracks, bulges, or leaks every few months.
- Replace hoses every five years, or sooner if signs of wear are present.
5. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Washer does not start | Lid not closed, power cord unplugged, circuit breaker tripped. | Ensure lid is fully closed. Check power connection. Reset circuit breaker. |
| Washer not filling with water | Water supply turned off, inlet hoses kinked, water pressure too low. | Check water faucets. Straighten hoses. Verify household water pressure. |
| Excessive vibration/noise | Washer not level, load unbalanced, shipping materials not removed. | Level the washer. Redistribute laundry. Ensure all shipping materials are removed. |
| Water not draining | Drain hose kinked or clogged, pump filter clogged. | Check and clear drain hose. Clean pump filter if accessible (refer to full manual). |
If the issue persists after attempting these solutions, please contact customer support.
6. Specifications
- Brand Name: Speed Queen
- Model Number: TR3003WN
- Product Dimensions: 28"D x 25.62"W x 42.75"H
- Item Weight: 126 Pounds
- Capacity: 3.2 Cubic Feet
- Max Spin Speed: 840 RPM
- Installation Type: Freestanding
- Special Feature: Stainless steel tub
- Color: White
- Control Console: Knob
- Standard Cycles: 8
- Access Location: Top Load
- Voltage: 120 Volts
- Fuel Type: Electric
- Material: Stainless Steel
7. Warranty and Support
7.1 Warranty Information
The Speed Queen TR3003WN Top Load Washer comes with a 3 Year Parts and Labor Warranty. Please retain your proof of purchase for warranty claims.
7.2 Customer Support
For technical assistance, service requests, or further information, please contact Speed Queen customer support. Refer to the official Speed Queen website or your purchase documentation for current contact details.
