LeTkingok MTC Winding Machine Magnetic Tensioner MT-600 User Manual

1. Introduction

The LeTkingok MTC Winding Machine Magnetic Tensioner MT-600 is a precision instrument designed to provide stable and consistent tension during coil winding operations. This device utilizes a magnetic force mechanism to control wire tension, minimizing mechanical friction and ensuring high accuracy in the winding process. Its design helps prevent common issues such as wire damage and tension fluctuations often associated with traditional mechanical tensioners.

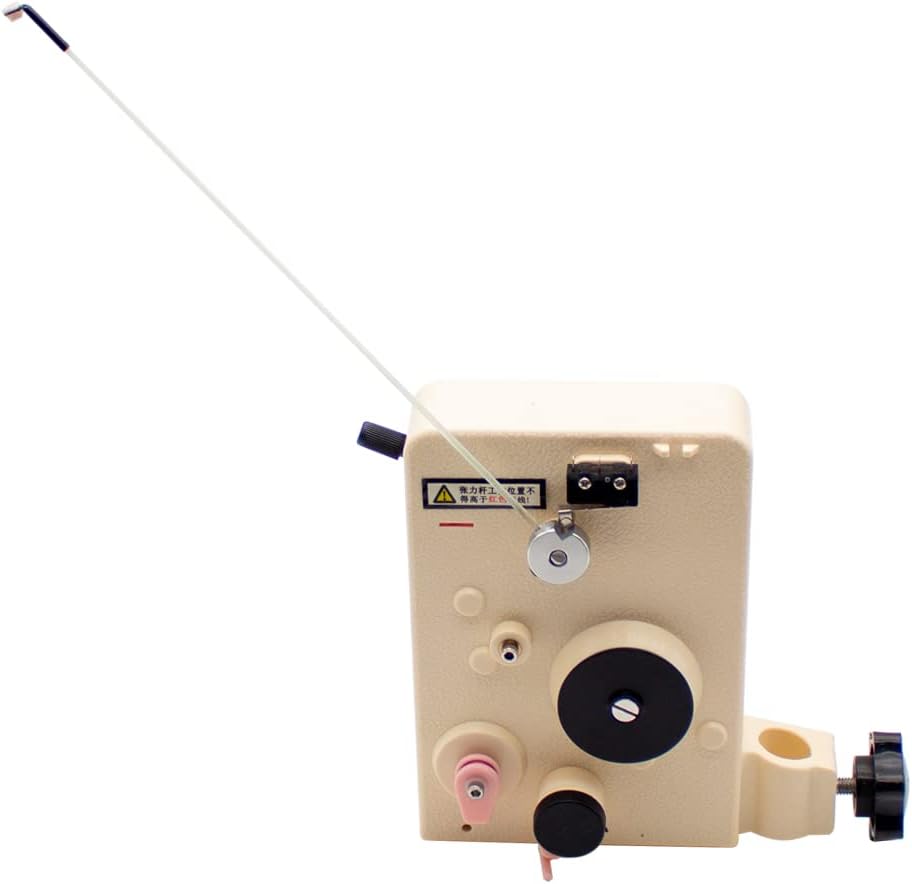

Figure 1: Front view of the LeTkingok MTC Winding Machine Magnetic Tensioner MT-600. This image displays the main body of the tensioner, including the wire path components and the mounting bracket.

2. Setup and Installation

Proper installation of the magnetic tensioner is crucial for optimal performance. Follow these steps for setup:

1. Mounting: Securely attach the tensioner to your coil winding machine using the integrated mounting bracket. Ensure the tensioner is stable and aligned with the wire path.
2. Wire Threading: Carefully thread the wire through the tensioner's designated path. Refer to Figure 2 for the correct wire routing. Ensure the wire passes smoothly through all guides and the tension rod.
3. Tension Rod Position: During operation, ensure the tension rod's position does not exceed the red mark indicated on the device. This prevents over-tensioning and potential damage to the wire or the tensioner.

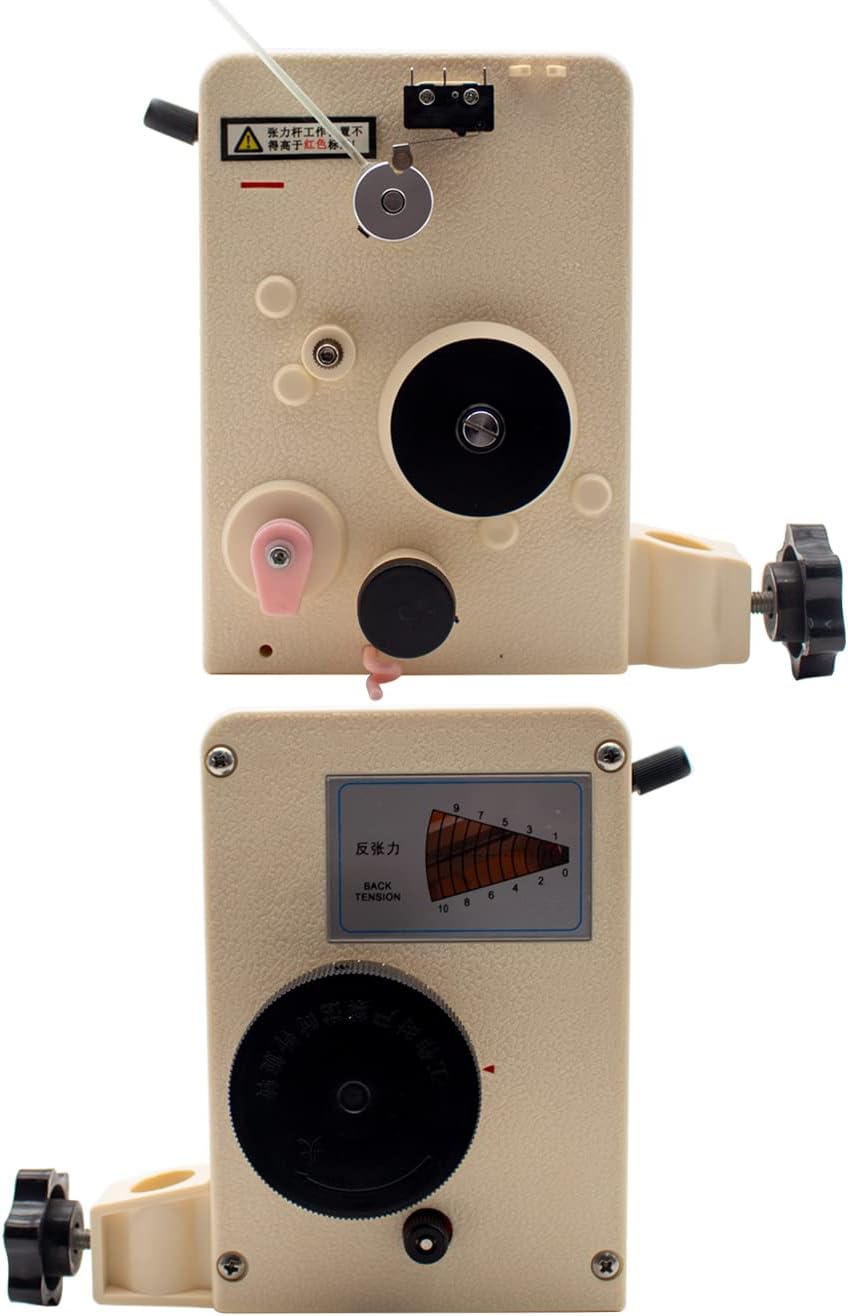

Figure 2: Top-down view illustrating the wire path through the tensioner and the tension rod mechanism. Note the warning label regarding the tension rod's operational limit.

3. Operation

The magnetic tensioner provides precise control over wire tension. Follow these instructions for operation:

1. Tension Adjustment: The tension is adjusted by rotating the large black knob on the side of the unit. Turning the knob clockwise generally increases tension, while counter-clockwise decreases it. The tension meter (labeled "BACK TENSION") provides a visual indication of the current tension setting.
2. Monitoring Tension: Continuously monitor the tension meter during winding to ensure the desired tension is maintained. The magnetic system ensures stable tension without mechanical friction, leading to consistent winding quality.
3. Wire Diameter and Tension Range: Refer to the specifications table in Section 6 for recommended wire diameters and corresponding tension ranges for various MTC models. For the MT-600, the recommended wire diameter is Φ0.12–Φ0.35 mm, with a tension range of 80-600 g.

Figure 3: Close-up view of the tension adjustment knob and the "BACK TENSION" meter. This allows for precise control and monitoring of the winding tension.

4. Maintenance

The LeTkingok MTC Magnetic Tensioner is designed for low maintenance due to its magnetic operating principle, which minimizes mechanical friction. Regular maintenance helps ensure longevity and consistent performance.

• Cleaning: Periodically clean the exterior of the tensioner with a soft, dry cloth to remove dust and debris. Ensure no foreign particles interfere with the wire path or moving parts.
• Bearing Inspection: While the system has minimal friction, the internal bearings are critical. Inspect them periodically for smooth operation. If any resistance or unusual noise is detected, professional servicing may be required.
• Wire Path Check: Regularly inspect the wire guides and pulleys for wear or damage. Replace any worn components to prevent wire abrasion or inconsistent tension.

5. Troubleshooting

This section addresses common issues you might encounter with the magnetic tensioner.

• Inconsistent Tension:
  • Ensure the tensioner is securely mounted and not vibrating.
  • Verify the wire is correctly threaded through all guides and the tension rod is operating within its specified range (below the red mark).
  • Check for any obstructions or debris in the wire path.
  • Confirm the tension adjustment knob is set correctly and has not shifted.
• Wire Damage/Abrasion:
  • Inspect all wire guides and pulleys for sharp edges or wear. Replace if necessary.
  • Ensure the wire diameter is within the recommended range for the MT-600 model.
  • Verify the tension setting is appropriate for the wire material and diameter.
• Tension Rod Exceeds Red Mark:
  • This indicates excessive tension. Reduce the tension using the adjustment knob.
  • Check if the wire is snagged or if there's unusual resistance elsewhere in the winding setup.

6. Specifications

Key specifications for the LeTkingok MTC Winding Machine Magnetic Tensioner MT-600:

• Brand: LeTkingok
• Model: MT-600
• Power Source: Hand-powered (refers to the winding machine it attaches to, the tensioner itself is passive)
• Included Components: 1 x MTC Winding Machine Magnetic Tensioner
• Manufacturer: LeTkingok
• First Available Date: March 20, 2020

Model-Specific Tension and Wire Diameter

Figure 4: Table detailing recommended wire diameters and tension ranges for various MTC Magnetic Tensioner models.
