Introduction
Thank you for choosing the Carisma ARC-2 Brushed Crawler ESC (Electronic Speed Controller) with the included MPG-1 Programming Box. This manual provides essential information for the proper setup, operation, and maintenance of your ARC-2 ESC, ensuring optimal performance and longevity. The ARC-2 is designed for both on-road and off-road applications, excelling particularly in rock crawling and scale rigs due to its advanced features like Dedicated Descent Control.
Please read this manual thoroughly before using your ESC to familiarize yourself with its capabilities and safety guidelines.
What's in the Box
Upon opening the package, please verify that all components are present and in good condition.

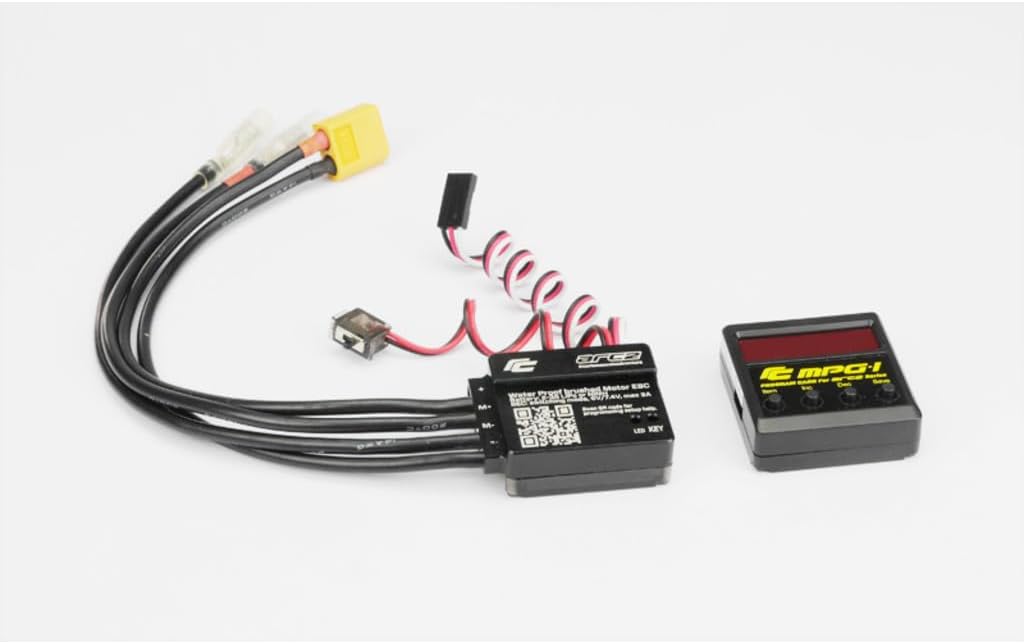

- 1 x Carisma ARC-2 Brushed Crawler ESC
- 1 x MPG-1 Programming Box
- Instruction Manual (this document)
Key Features
The Carisma ARC-2 ESC is engineered with several features to enhance your RC experience:
- Dedicated Descent Control (ESC Mode 4): This unique feature mimics electronic systems found in modern 4x4 vehicles. It intelligently balances braking force against throttle RPM, allowing for controlled descents on steep inclines with minimal throttle input. It acts as a 'Gravity Assist', providing precise control.
- Crawler Mode with Instant Reverse: In Crawler Mode, Descent Control is active by default. The ESC also retains instant reverse capability, crucial for rock crawling to prevent backward toppling on steep climbs.
- Ease of Programming: The included MPG-1 Programming Box allows for quick and easy adjustment of parameters and modes, even while on the trails or at the track.
- Built-in Protections: Features integrated voltage, motor stall, and thermal protection to safeguard your ESC and motor.
- Versatile Application: Suitable for both on-road and off-road RC vehicles, making it a versatile upgrade or component for custom builds.
Setup
Follow these steps to properly set up your Carisma ARC-2 ESC:
- Mounting the ESC: Securely mount the ARC-2 ESC in your vehicle using double-sided tape or zip ties. Ensure it is in a location with adequate airflow for cooling and away from excessive vibration or moisture.
- Motor Connection: Connect the motor wires to the ESC's motor output terminals (typically labeled M+ and M-). Ensure correct polarity for brushed motors.
- Battery Connection: Connect your battery pack to the ESC's battery input connector. Ensure the battery voltage is within the ESC's specified operating range.
- Receiver Connection: Plug the ESC's receiver lead into the throttle channel (CH2) of your RC receiver.
- Radio Calibration: Before first use, calibrate the ESC to your radio transmitter's throttle range. Refer to the detailed instructions in the full manual (if available online) or the quick start guide for your specific radio system. This typically involves holding the throttle at neutral, full forward, and full reverse during the ESC's power-up sequence.
- Programming with MPG-1 (Optional): If you need to adjust parameters or select specific modes (like Crawler Mode or Descent Control), connect the MPG-1 Programming Box to the ESC's programming port. Follow the instructions provided with the MPG-1 for navigation and parameter adjustment.
Operating Instructions
Once the ESC is properly installed and calibrated, you can begin operation.
Basic Operation
- Power On: Ensure your transmitter is turned on first, then connect the battery to the ESC. The ESC will emit a series of beeps indicating it has powered on and detected the battery cells.
- Throttle Control: Use your transmitter's throttle stick to control the motor speed. Pushing forward will accelerate, and pulling back will apply brakes or reverse.
- Power Off: Always disconnect the battery from the ESC first, then turn off your transmitter.
Using Descent Control (ESC Mode 4)
Descent Control is a key feature for crawler and scale rig enthusiasts.
- Activation: Ensure ESC Mode 4 (Descent Control) is selected using the MPG-1 Programming Box. In Crawler Mode, Descent Control is active as standard.
- Controlled Descent: When descending a steep incline, reduce throttle input. The ESC will automatically apply braking force to maintain a slow, controlled descent, mimicking real-world electronic hill descent systems.
- Gravity Assist: The system balances braking against RPM, allowing the rig to use its own weight for a smooth, controlled descent.
- Ascent Assistance: When ascending, at zero throttle, the ARC-2 holds the rig in position with full brake, acting like a handbrake. As throttle increases for climbing, the brake effect lessens.
- Instant Reverse in Crawler Mode: This allows for quick adjustments during crawling, preventing the rig from toppling backward on very steep climbs.
Maintenance
Proper maintenance will extend the life and performance of your ESC.
- Keep Clean: Regularly clean the ESC to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid using liquids.
- Check Connections: Periodically inspect all wire connections for looseness, corrosion, or damage. Ensure plugs are securely seated.
- Temperature Monitoring: While the ESC has thermal protection, avoid prolonged operation at excessively high temperatures. Ensure adequate ventilation.
- Storage: When not in use, store the ESC in a dry, cool place, away from direct sunlight and extreme temperatures. Disconnect from the battery.
Troubleshooting
If you encounter issues with your ARC-2 ESC, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| ESC does not power on. | Battery not connected, battery discharged, faulty connection, ESC damaged. | Check battery connection and charge. Inspect all wires and connectors. |
| Motor not responding to throttle. | Incorrect radio calibration, receiver not connected, motor wires loose/incorrect. | Recalibrate ESC to radio. Ensure receiver lead is in CH2. Check motor wire connections. |
| ESC overheats. | Insufficient airflow, motor too large/gearing too high, prolonged heavy load. | Ensure proper ventilation. Check motor/gearing compatibility. Reduce continuous heavy load. |
| Erratic motor behavior. | Interference, loose connections, damaged motor/ESC. | Check for sources of interference. Inspect all connections. Test with a different motor if possible. |
If problems persist, please contact Carisma customer support for further assistance.
Specifications
Key specifications for the Carisma ARC-2 Brushed Crawler ESC:
- Model: ARC-2
- Type: Brushed Electronic Speed Controller
- Application: Crawler, On-Road, Off-Road RC Vehicles
- Dimensions (Package): 4 x 3 x 2 inches
- Weight (Item): 4 ounces
- Country of Origin: USA
- Manufacturer: Carisma
- Recommended Age: 14 months and up (Note: This age recommendation seems unusual for an RC component, typically it's 14+ years for hobby-grade RC. Following provided data.)
Warranty and Support
Carisma products are manufactured to high standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Carisma website.
For technical support, troubleshooting assistance, or spare parts inquiries, please contact Carisma customer service through their official website or authorized distributors.
