1. Introduction
This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of your UpStart Components 954-0637A Drive Belt Replacement. This belt is designed for use with Troy-Bilt 12A-466A711 (2004) Lawn Mowers and is compatible with OEM part numbers 754-0637A, 754-04101, 754-0637, 954-0637, and 954-0637A. Please read this manual thoroughly before attempting any installation or maintenance procedures.
Image 1.1: Two UpStart Components 954-0637A drive belts, as supplied in a 2-pack.
2. Safety Information
Always prioritize safety when working with machinery. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Disconnect Power: Before beginning any work on the lawn mower, ensure the engine is off, the spark plug wire is disconnected, and the battery (if applicable) is disconnected to prevent accidental starting.
- Wear Protective Gear: Always wear appropriate personal protective equipment, including work gloves to protect your hands, and safety glasses to protect your eyes.
- Allow Cooling: If the mower has been recently operated, allow sufficient time for the engine and any hot components to cool down before handling.
- Secure the Mower: Ensure the lawn mower is on a flat, stable surface and cannot roll or tip over during maintenance.
- Read Mower Manual: Refer to your specific Troy-Bilt lawn mower's owner's manual for detailed safety precautions and belt replacement procedures specific to your model.
3. Installation (Setup)
This section outlines the general steps for replacing the drive belt. Specific steps may vary slightly depending on your lawn mower model. Always consult your mower's owner's manual for precise instructions.
- Prepare the Mower:
- Ensure the mower is turned off, cooled down, and the spark plug wire is disconnected.
- Position the mower on a stable, level surface. You may need to raise the front or rear of the mower for better access, using appropriate jack stands or ramps.
- Locate the Drive Belt:
- Identify the location of the existing drive belt. This typically involves removing a deck cover or accessing the underside of the mower.
- Remove the Old Belt:
- Carefully release any tensioners or idler pulleys that hold the belt in place.
- Note the routing of the old belt around all pulleys before removal. Taking a photo can be helpful.
- Remove the worn or broken belt from the pulleys.
- Install the New Belt:
- Route the new UpStart Components 954-0637A drive belt around the pulleys, following the exact path of the old belt.
- Ensure the belt is seated correctly in all pulley grooves.
- Re-engage any tensioners or idler pulleys to apply proper tension to the new belt.
- Verify Installation:
- Manually rotate the blade or drive wheels to ensure the belt moves freely and does not bind.
- Double-check that all covers and guards are reinstalled securely.
Image 3.1: A single UpStart Components 954-0637A drive belt, ready for installation.
4. Operation (Post-Installation Check)
After installing the new drive belt, perform the following checks before resuming normal operation:
- Reconnect Power: Reconnect the spark plug wire and battery (if applicable).
- Initial Start-up: Start the lawn mower in a safe, open area.
- Test Engagement: Engage the drive system (if applicable) at a low speed to ensure the belt is functioning correctly and smoothly. Listen for any unusual noises or vibrations.
- Visual Inspection: Observe the belt's movement during operation to confirm it stays on the pulleys and does not slip or fray.
- Full Operation: If all checks are satisfactory, the mower can be returned to normal use.
5. Maintenance
Regular inspection and maintenance will extend the life of your drive belt and ensure optimal performance of your lawn mower.
- Regular Inspection: Periodically inspect the drive belt for signs of wear, cracks, fraying, glazing, or stretching. Replace the belt if any damage is observed.
- Cleanliness: Keep the belt and pulleys free from dirt, grass clippings, oil, and other debris that can cause premature wear or slippage.
- Proper Tension: Ensure the belt maintains proper tension as specified in your mower's manual. Over-tensioning can damage the belt and pulleys, while under-tensioning can cause slippage.
- Storage: When not in use for extended periods, store the lawn mower in a dry, cool place to protect the belt from environmental degradation.

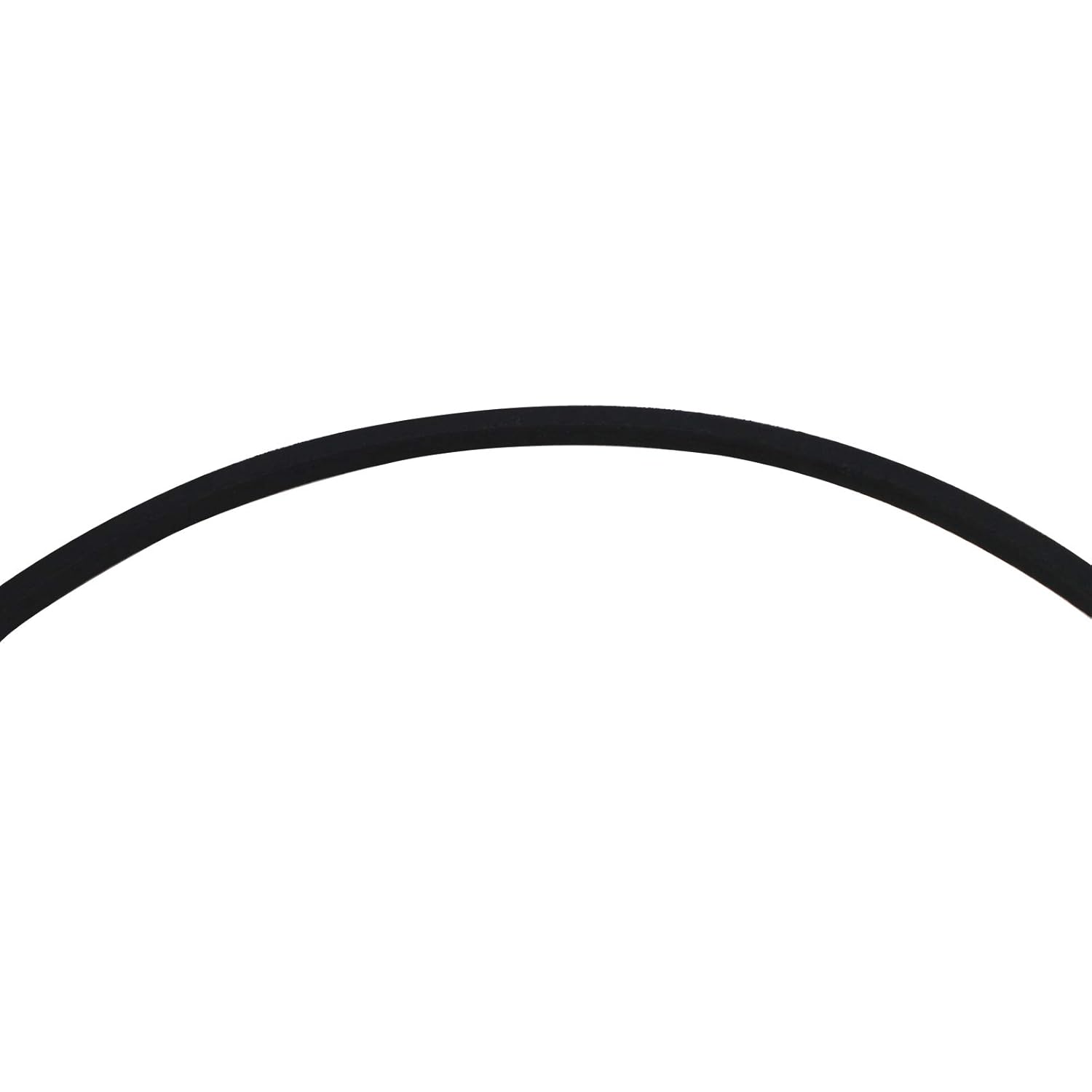

Image 5.1: Close-up of the V-belt material, showing its construction.
6. Troubleshooting
If you encounter issues after installing the new drive belt, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt slips or squeals | Incorrect tension, worn pulleys, oil/grease on belt, incorrect belt size. | Adjust tension, clean belt/pulleys, inspect pulleys for wear, verify correct belt size. |
| Belt breaks prematurely | Over-tensioning, misaligned pulleys, foreign object interference, worn pulleys, incorrect belt type. | Check tension, inspect pulley alignment, remove obstructions, replace worn pulleys, ensure correct V-belt type. |
| Mower drive not engaging | Belt dislodged, broken belt, tensioner issue, control linkage problem. | Inspect belt routing, replace broken belt, check tensioner operation, consult mower manual for linkage. |
If troubleshooting steps do not resolve the issue, consult your lawn mower's service manual or contact a qualified service technician.
7. Specifications
Key specifications for the UpStart Components 954-0637A Drive Belt Replacement:
- Part Number: 954-0637A (UpStart Components Replacement)
- Compatible OEM Part Numbers: 754-04101, 754-0637A, 754-0637, 954-0637, 954-0637A
- Belt Style: V-Belt
- Dimensions: Approximately 3/8" (width) x 31-1/4" (length)
- Quantity: 2-Pack
- Compatible Mower Model: Troy-Bilt 12A-466A711 (2004) Lawn Mower
- Manufacturer: UpStart Components
8. Warranty Information
This UpStart Components replacement part is not an OEM product. All mentions of brand names or model descriptions are made strictly to illustrate compatibility. All brand names and logos are registered trademarks of their respective owners. This product is not affiliated with any brands and is not covered under any warranties offered by the original manufacturers. Any warranties for this product are offered solely by UpStart Components.
For specific warranty details regarding this UpStart Components product, please refer to the packaging or contact UpStart Components directly.
9. Support
For further assistance, technical support, or inquiries regarding your UpStart Components 954-0637A Drive Belt Replacement, please contact UpStart Components customer service. When contacting support, please have your product model number (LM-954-0637A-2PK-DL83) and purchase information readily available.
Note: For issues related to your Troy-Bilt lawn mower itself, please consult your mower's owner's manual or contact Troy-Bilt customer support.
