1. Safety Information
Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Always close the umbrella during strong winds, heavy rain, or other severe weather conditions to prevent damage.
- Ensure the umbrella base is sufficiently weighted and stable to prevent tipping. A heavy base is crucial for this large umbrella.
- Do not use the umbrella near open flames or heat sources.
- Keep children and pets away from the umbrella during operation to avoid accidents.
- Inspect all components regularly for wear and tear. Replace damaged parts immediately.
- Do not attempt to modify the umbrella's structure or components.
2. Parts List
Verify all parts are present before beginning assembly.
- Umbrella Canopy (1)
- Main Pole (1)
- Crank Handle Assembly (1)
- Umbrella Ribs (Included with canopy)
- Ventilation Caps (2, integrated into canopy)
- Securing Strap (1)
Figure 2.1: Exploded view of umbrella components.
3. Setup Instructions
Follow these steps to properly set up your Outsunny Double-Sided Patio Umbrella.
- Choose a Location: Select a flat, stable surface for the umbrella. Ensure there is adequate clearance for the umbrella to open fully without obstruction.
- Install the Base: Place a suitable, heavy umbrella base (not included) in the desired location. The base must be heavy enough to support the large umbrella, especially in windy conditions.
- Insert the Main Pole: Carefully insert the main pole of the umbrella into the opening of the umbrella base. Tighten any securing screws or knobs on the base to hold the pole firmly in place.
- Unfurl the Canopy: Gently untie the securing strap around the closed canopy.
- Open the Umbrella: Locate the crank handle on the main pole. Turn the crank handle clockwise to slowly open the umbrella canopy. Continue cranking until the canopy is fully extended and taut. Do not over-crank.

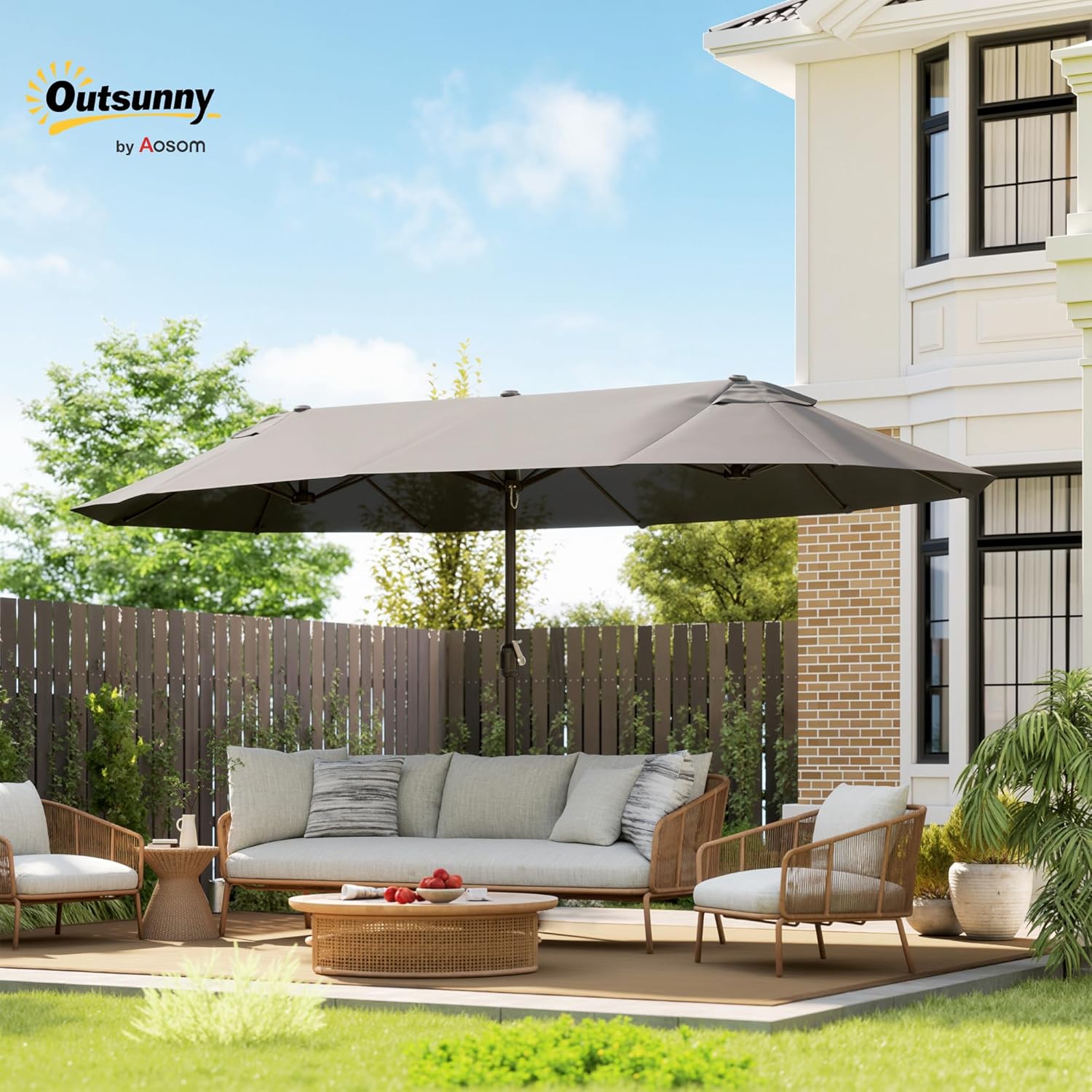

Figure 3.1: Fully assembled umbrella providing shade.
Figure 3.2: Overhead view demonstrating the large coverage area.
4. Operating Instructions
This section details how to operate your umbrella for optimal use.
4.1 Opening the Umbrella
- Ensure the securing strap is untied.
- Turn the crank handle clockwise until the canopy is fully open.
- Do not force the crank if resistance is met.
4.2 Closing the Umbrella
- Turn the crank handle counter-clockwise to retract the canopy.
- Once fully closed, wrap the securing strap around the canopy to keep it compact and prevent accidental opening.
Figure 4.1: The crank lift system for smooth opening and closing.
Video 4.1: Demonstration of the Outsunny Double-Sided Umbrella's opening and closing mechanism. This video shows the smooth operation of the crank handle and the full extension of the canopy.
5. Maintenance
Proper maintenance will extend the life of your umbrella.
- Cleaning the Canopy: Wipe the canopy with a dry cloth to remove dust and light debris. For heavier dirt, use a mild soap solution and a soft brush, then rinse thoroughly with water. Allow the canopy to dry completely before closing or storing.
- Frame Care: Regularly inspect the metal frame for any signs of rust or damage. Clean the frame with a damp cloth and mild soap. Dry thoroughly.
- Lubrication: Periodically apply a silicone-based lubricant to the crank mechanism to ensure smooth operation.
- Storage: When not in use for extended periods or during inclement weather, close the umbrella and secure it with the strap. Consider using a protective cover (not included) to shield it from the elements. Store in a dry, sheltered area.
Figure 5.1: The 180 GSM polyester canopy is designed for durability and easy cleaning.
6. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Umbrella will not open/close smoothly. | Crank mechanism is stiff or jammed. | Apply silicone lubricant to the crank mechanism. Check for any obstructions in the ribs or canopy. |
| Umbrella wobbles or tips over. | Insufficiently weighted base or loose pole. | Ensure the base is filled with sand/water or is heavy enough for the umbrella size. Tighten all securing screws on the base. Close umbrella in windy conditions. |
| Canopy appears dirty or stained. | Accumulation of dirt, dust, or mildew. | Clean with a mild soap solution and soft brush, then rinse and air dry. |
| Canopy is torn or damaged. | Wear and tear or weather damage. | Contact customer support for replacement parts or repair options. |
7. Specifications
- Model: 84D-030V01GY
- Brand: Outsunny
- Overall Dimensions (W x H): 179.25" x 93.75"
- Canopy Diameter: 15 ft (Double-Sided)
- Material: Alloy Steel (Frame), Polyester (Canopy)
- Canopy Fabric: 180 GSM Polyester
- Color: Gray
- Item Weight: 28 Pounds
- Opening Mechanism: Crank Lift
- Special Features: Rust Resistant, Water Resistant
- Care Instructions: Wipe With Dry Cloth
Figure 7.1: Detailed dimensions of the umbrella.
8. Warranty and Support
For warranty information, replacement parts, or technical support, please contact Outsunny customer service. Refer to your purchase documentation for specific warranty terms and contact details.
Manufacturer: Aosom LLC
