Caliber RMD402DAB-BT Car Radio User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Caliber RMD402DAB-BT car radio. The RMD402DAB-BT is a 1-DIN car radio featuring DAB+ digital radio reception, Bluetooth connectivity for audio streaming and hands-free calls, and multiple media playback options including USB, SD card, and auxiliary input.

2. Safety Information

• Read all instructions carefully before installation and operation.
• Ensure proper wiring and connections to prevent damage to the unit or vehicle. Consult a professional if unsure about installation.
• Do not operate the unit in a manner that distracts you from driving. Always prioritize road safety.
• Avoid exposing the unit to moisture or extreme temperatures.
• Only use accessories specified by the manufacturer.

3. Package Contents

The Caliber RMD402DAB-BT package includes the car radio unit and its original packaging. Please verify all components are present upon unboxing.

4. Setup and Installation

The RMD402DAB-BT is designed for standard 1-DIN installation slots, allowing for straightforward replacement of existing car radios. Proper electrical connections are crucial for optimal performance and safety.

4.1. Wiring Connections

Connect the power, ground, speaker, and antenna cables according to your vehicle's wiring diagram and the unit's instructions. Ensure all connections are secure to prevent intermittent operation or damage.

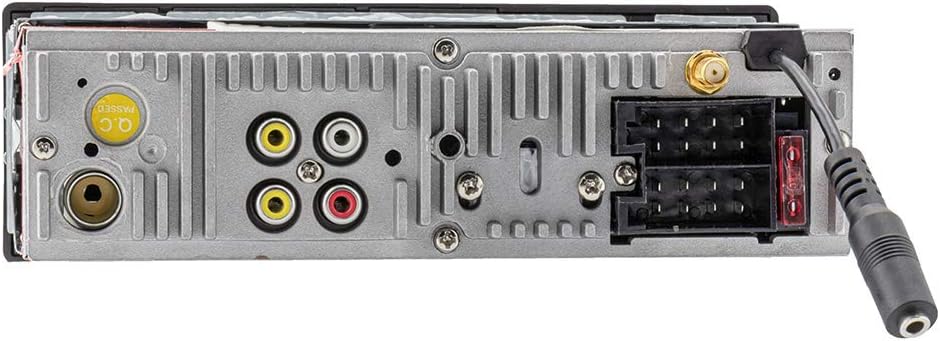

Figure 4.1: Rear Connections. This image displays the rear panel of the car radio, highlighting the antenna input, RCA outputs, and wiring harness connectors for power and speakers.

Figure 4.2: Front Panel Connections. An angled view of the front panel, illustrating the accessible USB ports (one for charging, one for audio), SD card slot, and auxiliary input jack.

4.2. External Microphone Installation

Connect the included external microphone to the designated input on the unit. Position the microphone in a location that ensures clear voice pickup for hands-free calling, typically near the driver's sun visor or steering column.

Figure 4.3: External Microphone and Media Connections. This image shows the car radio with the external microphone connected, alongside a USB stick and SD card, demonstrating the various media input options.

5. Operating Instructions

5.1. Power On/Off

Press the POWER/MUTE button to turn the unit on or off. A short press will mute/unmute the audio.

5.2. Radio Operation (DAB+/FM)

Switch between DAB+ and FM modes using the BAND button. In DAB+ mode, the unit provides high-quality digital radio reception. The RDS EON function displays useful information such as program titles and station names, and can provide traffic announcements.

Figure 5.1: DAB+ Radio Display. The unit's display showing active DAB+ radio reception, including station frequency and program information.

5.3. Bluetooth Connectivity

Pair your mobile device with the RMD402DAB-BT via Bluetooth for wireless audio streaming and hands-free calling. The unit supports A2DP and AVRCP profiles for clear audio transmission. During music playback, ID3-Tag information (artist, track title) will be displayed on the screen.

• Pairing: Activate Bluetooth on your mobile device and search for "Caliber RMD402DAB-BT". Select to pair.
• Hands-Free Calls: Use the external microphone for clear communication during calls. Answer and end calls using the unit's controls.

5.4. Media Playback (USB, SD, AUX)

• USB: Insert a USB drive into the designated USB port for music playback. One USB port also functions as a charging port for smartphones.
• SD Card: Insert an SD card (up to 32GB) into the SD card slot for audio playback.
• AUX Input: Connect external audio devices using a 3.5mm auxiliary cable to the AUX input jack.

5.5. Sound and Display Settings

• Bassboost: Activate the Bassboost function for enhanced low-frequency audio output.
• Color Themes: Customize the button and display illumination with 7 different color themes to match your vehicle's interior or personal preference.

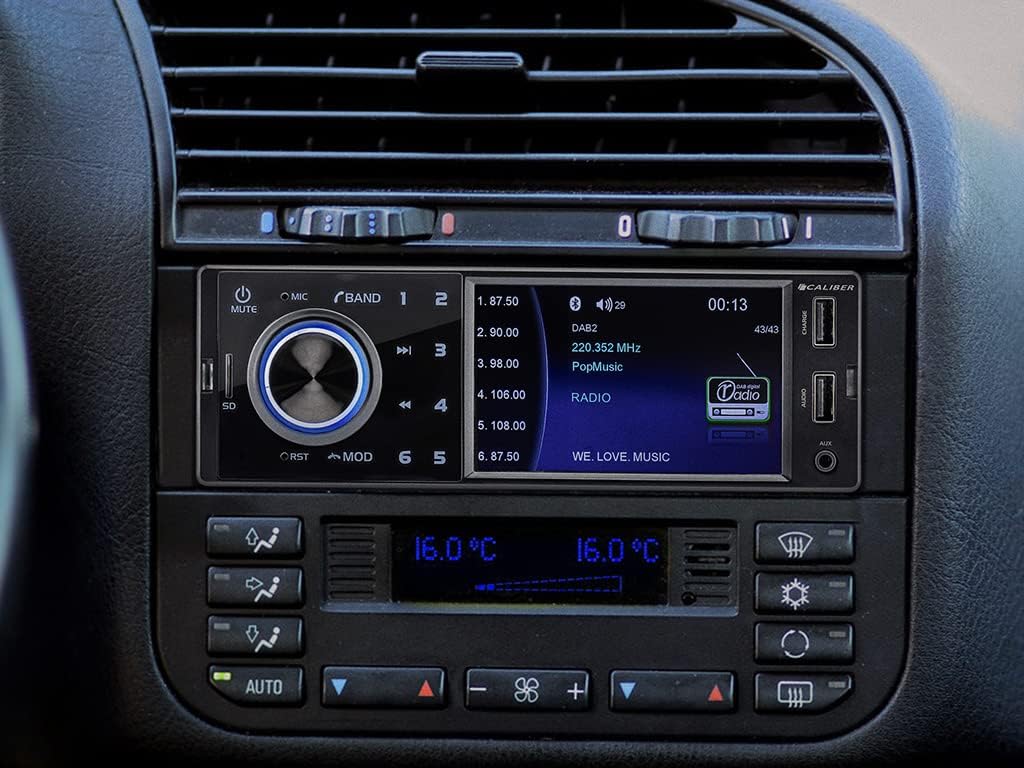

Figure 5.2: Unit Installed in Dashboard. This image shows the Caliber RMD402DAB-BT car radio seamlessly integrated into a vehicle's dashboard, displaying radio information.

Figure 5.3: Reverse Camera Display. The car radio's screen displaying a live feed from a connected reverse camera, indicating its compatibility with parking assistance systems.

6. Maintenance

• Cleaning: Use a soft, dry cloth to clean the unit's display and buttons. Avoid abrasive cleaners or solvents.
• Dust: Regularly remove dust from the unit's vents to ensure proper cooling.
• Connections: Periodically check all wiring connections for tightness and corrosion.

7. Troubleshooting

If you encounter issues with your Caliber RMD402DAB-BT, refer to the following common troubleshooting steps:

• No Power: Check all power connections, including the fuse. Ensure the vehicle's ignition is on if wired to an accessory circuit.
• No Sound: Verify speaker connections are correct and secure. Check volume levels and ensure the unit is not muted.
• Poor Radio Reception (DAB+/FM): Ensure the antenna is properly connected and undamaged. For DAB+, ensure you are in an area with sufficient digital radio coverage.
• Bluetooth Pairing Issues: Ensure Bluetooth is enabled on both the car radio and your mobile device. Delete previous pairings and attempt to re-pair.
• USB/SD Playback Errors: Check that the media format is supported. Ensure the USB drive or SD card is not corrupted and has sufficient power (for USB).
• Unit Freezes or Reboots: Disconnect power for a few minutes, then reconnect. If the issue persists, consult a professional installer.

8. Specifications

9. Warranty and Support

The Caliber RMD402DAB-BT comes with a 2-year manufacturer's warranty. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Caliber website. Caliber products are designed to meet required certifications and EU electrical product standards.
