1. Introduction
Thank you for choosing the AEG Automotive KK 28 Liter Thermo-Electric Cooler. This manual provides essential information for the safe and efficient use of your cooler. Please read it thoroughly before operating the device and keep it for future reference.
This thermo-electric cooler is designed for versatile use, offering reliable cooling for your food and beverages. It features dual ventilation for efficient cooling distribution and operates on both 12V (car) and 230V (home) power sources, making it ideal for various applications such as car travel, camping, office use, and picnics.

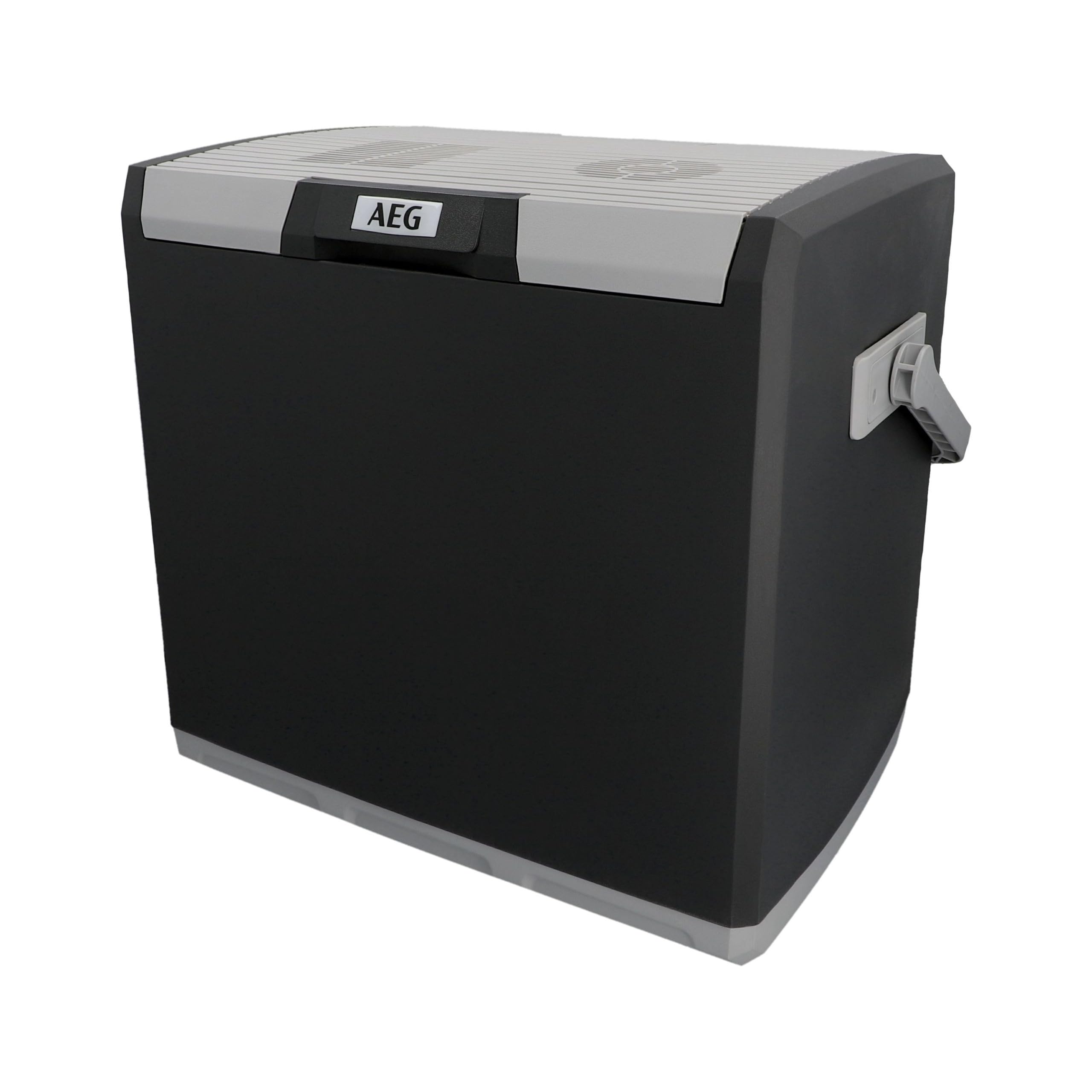

Figure 1: AEG Automotive KK 28 Liter Thermo-Electric Cooler, main view.
2. Safety Instructions
Please observe the following safety guidelines to prevent injury or damage to the device:
- Ensure the power supply matches the cooler's requirements (12V DC or 230V AC).
- Do not immerse the cooler in water or expose it to excessive moisture.
- Keep ventilation openings clear to prevent overheating.
- Do not use ice packs or loose ice inside the cooler. Meltwater can damage the unit.
- Wipe away condensation immediately. After prolonged cooling, moisture may condense into water droplets inside the cooler. This is normal and not a defect.
- Always disconnect the power supply before cleaning or maintenance.
- Keep the cooler away from direct sunlight and heat sources.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Product Overview
The AEG Automotive KK 28 Liter Thermo-Electric Cooler is designed for convenience and performance. Key features include:
- Thermo-electric Cooling: Achieves cooling up to 20°C below ambient temperature.
- Dual Ventilation: Ensures faster and more uniform cold distribution.
- Integrated Cable Compartment: Convenient storage for power cables in the lid.
- Versatile Power Options: Operates on 12V DC for vehicles and 230V AC for household outlets.
- Capacity: 28 liters, suitable for two standing 2-liter bottles.
- CFC-Free: Environmentally friendly design.
Figure 2: Side view of the cooler, showing the integrated carrying handle.
Figure 3: Rear view of the cooler, highlighting the power input panel.
Figure 4: Product dimensions: 47 cm (W) x 47 cm (H) x 32 cm (D).
Video Overview
Video 1: A Closer Look at the AEG Thermo-Electric Cooler. This video provides a detailed visual inspection of the cooler's features and design.
4. Setup
Before first use, ensure all packaging materials are removed. Place the cooler on a stable, level surface, ensuring adequate ventilation around the unit.
Connecting to Power
The cooler can be powered by two different sources:
- 12V DC (Car): Connect the 12V car adapter cable to the cooler's 12V DC input and then to your vehicle's cigarette lighter socket.
- 230V AC (Home/Mains): Connect the 230V AC power cable to the cooler's 230V AC input and then to a standard household electrical outlet.
Ensure the correct cable is used for the respective power source. The integrated cable compartment in the lid allows for easy storage of connections when not in use.
Figure 5: Connecting the cooler to a 12V car power outlet.
Figure 6: Connecting the cooler to a 230V household power outlet.
5. Operating Instructions
Once connected to a power source, the cooler is ready for operation. The control panel on the lid allows you to manage its functions.
Cooling Function
To activate cooling, switch the cooler to the 'COLD' setting. The cooler will begin to cool its contents to approximately 20°C below the ambient temperature. For optimal cooling performance, pre-chill items before placing them in the cooler.
Warming Function (if applicable)
Some models may feature a warming function. If available, switch the cooler to the 'HOT' setting. This will warm the contents to a certain temperature, typically around 65°C. Refer to the specific model's controls for details.
Temperature Control
The cooler may feature an electronic 7-step thermostat with LED indicator lights to adjust the cooling/warming intensity. Consult the specific controls on your unit to set the desired temperature level.

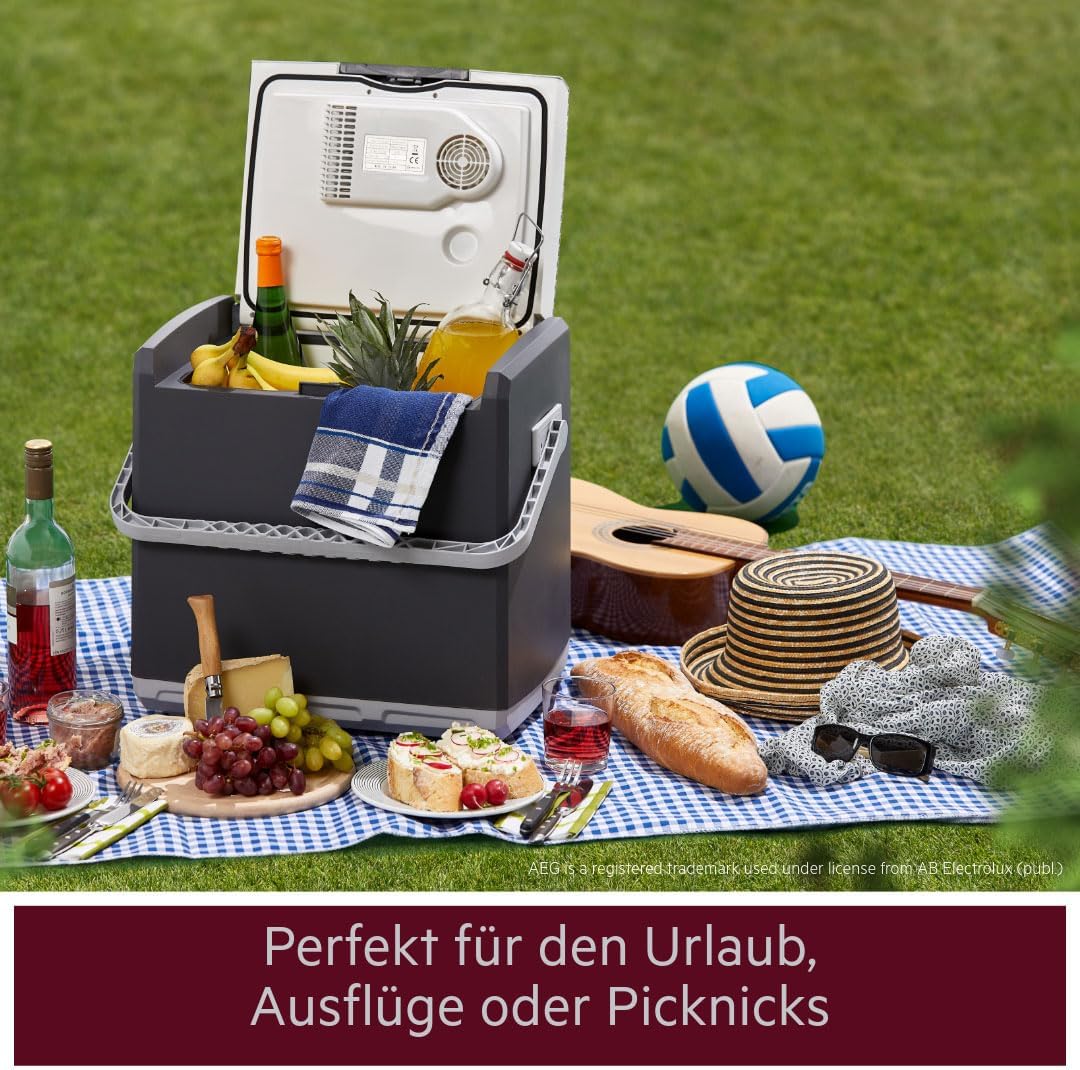

Figure 7: The cooler in use during a picnic, demonstrating its portability and capacity.

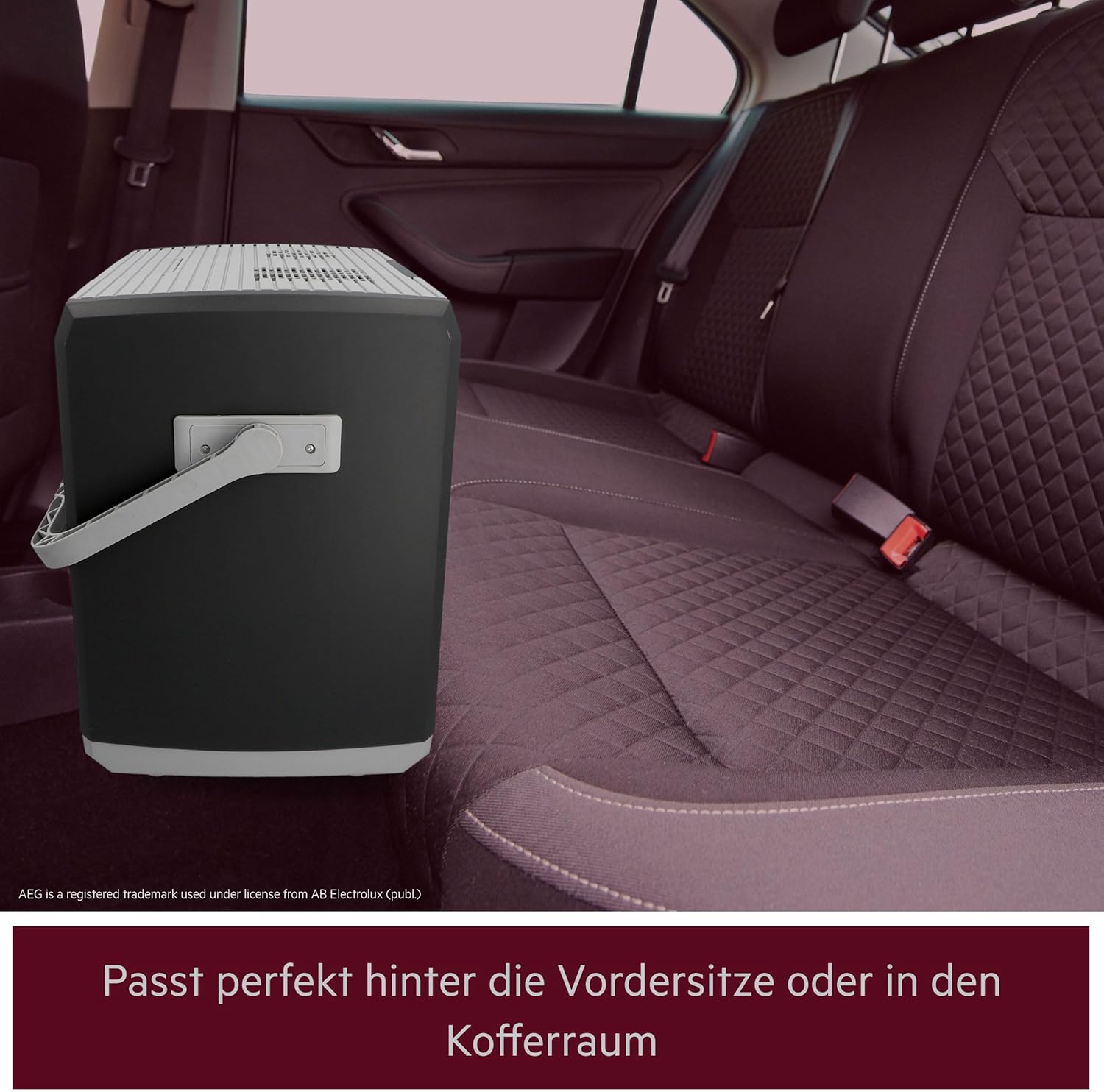

Figure 8: The cooler fits conveniently behind car seats or in the trunk.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your cooler.
- Cleaning: Clean the interior and exterior of the cooler with a damp cloth and mild detergent. Do not use abrasive cleaners or solvents.
- Condensation: After extended use, condensation may form inside the cooler. This is normal. Wipe away any water droplets immediately to prevent damage. Do not use ice packs or loose ice inside the cooler, as meltwater can cause damage.
- Ventilation: Periodically check that the ventilation grilles are free from dust and debris to ensure proper airflow and prevent overheating.
- Storage: When not in use, ensure the cooler is clean and dry. Store it in a cool, dry place with the lid slightly ajar to prevent odors and mildew.
Figure 9: Important note: Do not use ice packs or loose ice inside the cooler to prevent damage from meltwater.
7. Troubleshooting
If you encounter issues with your cooler, refer to the following common problems and solutions:
- Cooler not turning on:
- Check if the power cable is securely connected to both the cooler and the power source.
- Verify that the power outlet (12V or 230V) is functional.
- Ensure the ON/OFF switch on the cooler is in the 'ON' position.
- Insufficient cooling:
- Ensure the cooler is set to the 'COLD' mode.
- Check that the ventilation grilles are not blocked.
- The cooling performance depends on the ambient temperature. In very hot environments, the maximum cooling capacity (20°C below ambient) may still result in a higher internal temperature.
- Pre-chill items before placing them in the cooler for best results.
- Excessive noise:
- Ensure the cooler is placed on a stable, flat surface.
- Check for any obstructions in the fan area.
- A slight fan noise is normal during operation.
If the problem persists after checking these points, please contact customer support.
8. Specifications
| Brand | AEG |
| Model Name | Thermoelektrische Kü̈hlbox KK 28 Liter |
| Model Number | 10697 |
| Capacity | 28 Liters |
| Product Dimensions | 33 x 47 x 43 cm (13 x 18.5 x 17 inches) |
| Item Weight | 6 Kilograms (13.2 lbs) |
| Voltage | 12V DC, 230V AC |
| Material | Plastic |
| Color | Black |
| Special Features | Portable, Dual Ventilation, Integrated Cable Compartment |
| Cooling Performance | Up to 20°C below ambient temperature |
9. Warranty and Support
This product comes with a standard manufacturer's warranty. For specific warranty details, including duration and coverage, please refer to the warranty card included with your purchase or contact AEG Automotive customer service.
For technical support, spare parts, or any questions not covered in this manual, please contact your retailer or the official AEG Automotive support channels. Keep your proof of purchase for warranty claims.
