1. Introduction
Thank you for purchasing the Vonyx CVB215 Active Speaker. This powerful 1600W speaker features dual 15-inch woofers, Bluetooth connectivity, and MP3 playback capabilities, making it ideal for various audio applications including music playback, parties, and public announcements. This manual provides essential information for safe operation, setup, and maintenance of your speaker. Please read it thoroughly before use and retain it for future reference.
2. Safety Instructions
- Power Supply: Ensure the speaker is connected to a power outlet with the correct voltage (230V AC / 50Hz).
- Moisture: Do not expose the speaker to rain or moisture to prevent electric shock.
- Ventilation: Ensure adequate ventilation around the speaker. Do not block ventilation openings.
- Heat Sources: Keep the speaker away from heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
- Cleaning: Disconnect from power before cleaning. Use a dry cloth.
- Servicing: Do not attempt to service the speaker yourself. Refer all servicing to qualified service personnel.
- Placement: Place the speaker on a stable, flat surface to prevent it from falling.
3. Product Overview
The Vonyx CVB215 is a robust active speaker designed for high-quality audio output. It features a durable enclosure with a metal grille protecting the dual 15-inch woofers and tweeters. Integrated handles allow for easier transport.

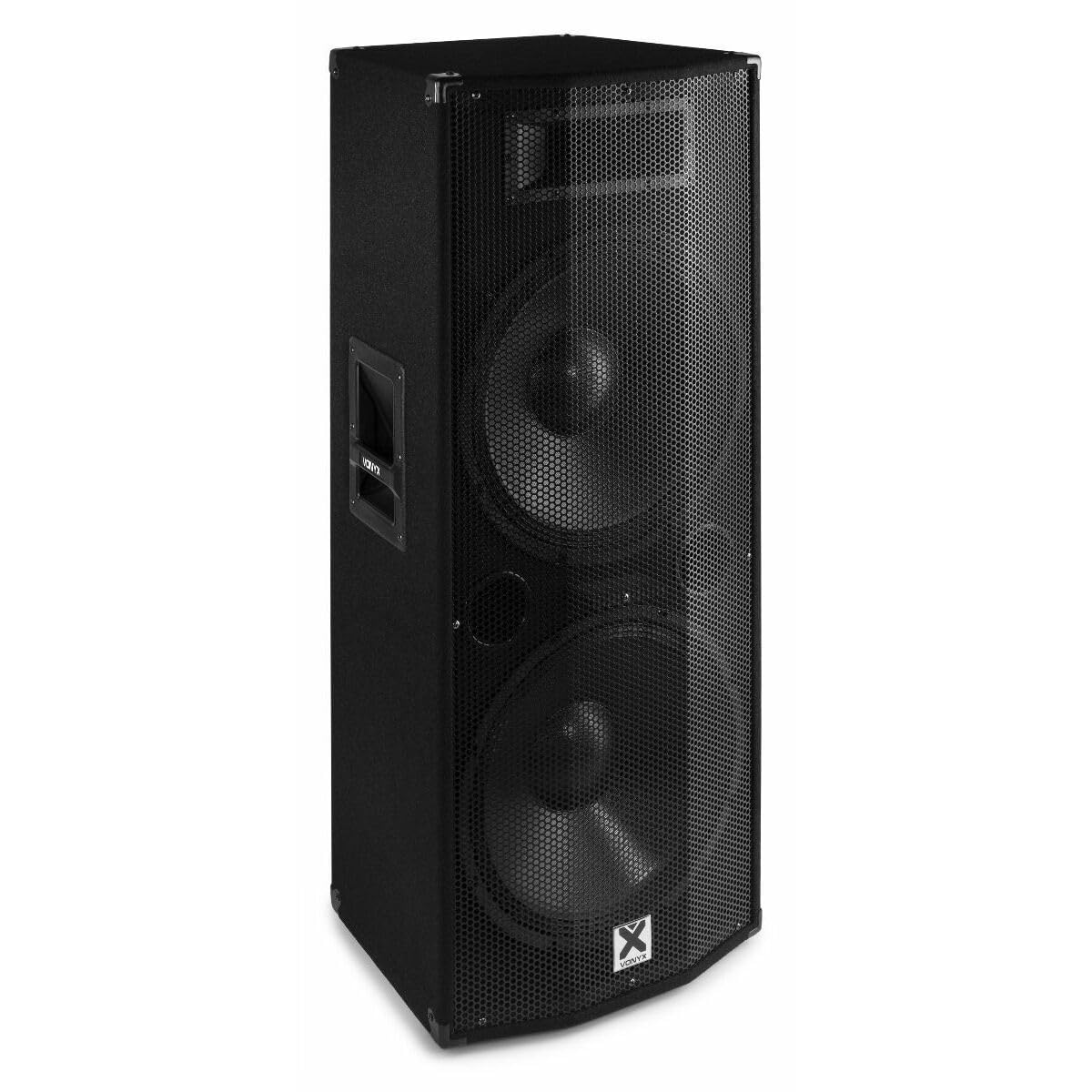

Image 3.1: Front view of the Vonyx CVB215 active speaker. This image displays the speaker's front, highlighting the protective metal grille and the Vonyx logo.

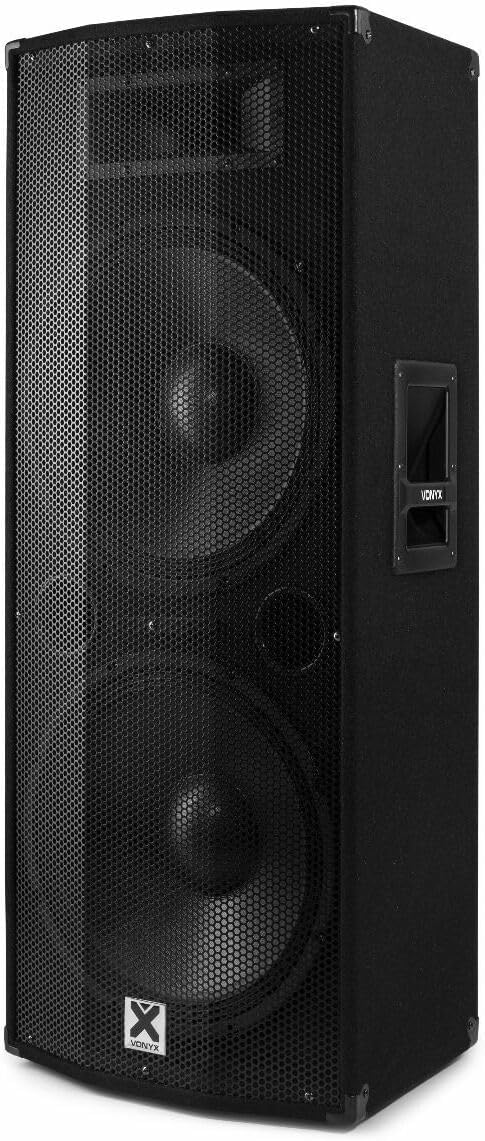

Image 3.2: Angled view of the Vonyx CVB215 active speaker. This perspective shows the speaker's side with an integrated handle, designed for portability.
Rear Panel Controls and Connections
The rear panel houses all input/output connections and control knobs for audio adjustment.
Image 3.3: Rear panel of the Vonyx CVB215 active speaker. This image provides an overview of all connections and controls located on the back of the unit.

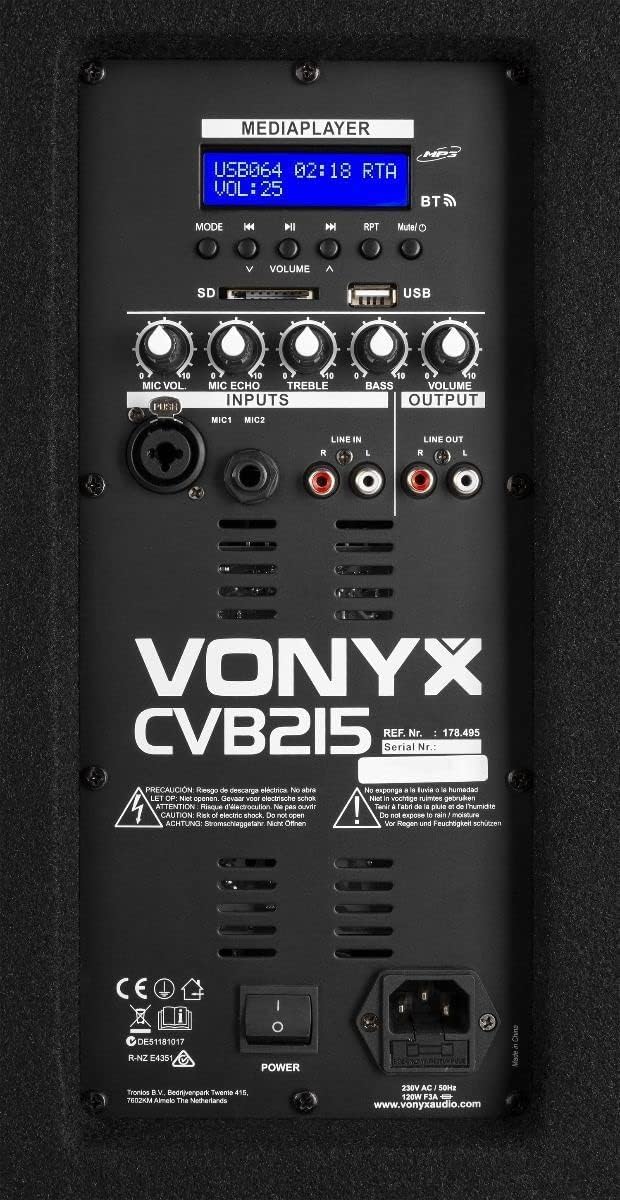

Image 3.4: Detailed view of the Vonyx CVB215 rear panel controls. This close-up highlights the media player interface, USB and SD card slots, microphone inputs (MIC1, MIC2), Line In (RCA), Line Out (RCA), and various adjustment knobs.
- MEDIAPLAYER Display: Shows current mode, track information, and volume level.
- USB/SD Card Slots: For MP3 playback from USB drives or SD cards.
- MODE Button: Switches between Bluetooth, USB, SD, and Line-in modes.
- VOLUME Knobs: Adjusts overall volume, microphone volume (MIC VOL), microphone echo (MIC ECHO), treble, and bass.
- MIC1/MIC2 Inputs: 6.3mm jack inputs for microphones.
- LINE IN (RCA): Stereo RCA inputs for connecting external audio sources (e.g., mixer, CD player).
- LINE OUT (RCA): Stereo RCA outputs for connecting to another active speaker or amplifier.
- POWER Switch: Turns the speaker on/off.
- AC IN: Power cable connection.
Remote Control
The speaker comes with a remote control for convenient operation of the media player functions.
Image 3.5: Remote control for the Vonyx CVB215 speaker. This image displays the layout of the remote control, including buttons for media playback, volume adjustment, and mode selection.
4. Setup
- Unpacking: Carefully remove the speaker from its packaging. Retain the packaging for future transport or storage.
- Placement: Place the speaker on a stable, level floor. Ensure there is sufficient space around the speaker for proper ventilation. The speaker is designed for floorstanding use.
- Power Connection: Connect the supplied power cable to the AC IN socket on the rear panel of the speaker and then to a suitable power outlet.
- Initial Power On: Ensure all volume controls are set to minimum before turning on the speaker using the POWER switch.
5. Operating
5.1. Bluetooth Connection
- Turn on the speaker.
- Press the MODE button on the rear panel or remote control until "BT" (Bluetooth) appears on the MEDIAPLAYER display. The speaker will enter pairing mode.
- On your Bluetooth-enabled device (smartphone, tablet, laptop), search for available Bluetooth devices.
- Select "Vonyx" or a similar name from the list.
- Once paired, you will hear a confirmation sound, and the display will indicate a successful connection.
- You can now play audio from your device through the speaker. The Bluetooth range is approximately 10 meters (33 feet).
5.2. MP3 Playback (USB/SD)
- Insert a USB flash drive or SD card (containing MP3 files) into the corresponding slot on the rear panel.
- The speaker will automatically switch to USB or SD mode and begin playing the first track. If not, press the MODE button to select USB or SD mode.
- Use the playback controls (Play/Pause, Previous, Next) on the rear panel or remote control to manage your music.
- Adjust the VOLUME knob to control the playback level.
5.3. Line-in Connection (RCA)
- Connect your external audio source (e.g., mixer, CD player, TV) to the LINE IN (RCA) inputs on the rear panel using appropriate RCA cables.
- Press the MODE button until "LINE" or "AUX" appears on the display.
- Play audio from your connected device and adjust the main VOLUME knob on the speaker.
5.4. Microphone Usage
- Connect your microphone(s) to the MIC1 or MIC2 6.3mm jack inputs.
- Adjust the MIC VOL knob to control the microphone volume.
- Use the MIC ECHO knob to add an echo effect to the microphone signal, if desired.
5.5. Tone Control
- Use the TREBLE knob to adjust the high frequencies of the audio.
- Use the BASS knob to adjust the low frequencies of the audio.
6. Maintenance
- Cleaning: Disconnect the speaker from the power supply before cleaning. Use a soft, dry cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
- Storage: If not in use for an extended period, store the speaker in a dry, dust-free environment. It is recommended to use the original packaging for protection.
- Inspection: Periodically check the power cable for any signs of damage. If damaged, replace it immediately with an approved cable.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Power cable not connected; Power switch off; Outlet fault | Check power cable connection; Turn power switch on; Test outlet with another device |
| No sound output | Volume too low; Incorrect input mode selected; Audio source issue; Cables not connected properly | Increase master volume; Select correct input mode (Bluetooth, USB, Line); Check audio source; Ensure all cables are securely connected |
| Bluetooth not connecting | Speaker not in pairing mode; Device too far; Bluetooth off on source device | Ensure speaker is in BT mode; Move device closer (within 10m); Enable Bluetooth on your device and re-scan |
| Distorted audio | Volume too high (clipping); Poor audio source quality; Damaged cables | Reduce volume on speaker and source; Use high-quality audio files; Replace damaged cables |
| MP3 playback issues | Unsupported file format; Corrupt USB/SD card; Incorrect mode | Ensure files are MP3 format; Try a different USB/SD card; Select USB/SD mode |
8. Specifications
Image 8.1: Dimensions of the Vonyx CVB215 active speaker. This diagram illustrates the height, width, and depth of the speaker for placement planning.
- Brand: Vonyx
- Model Number: 178.495
- Maximum Output Power: 1600 Watt
- Speaker Type: Multimedia, Active, Floorstanding
- Woofer Diameter: 2 x 15 Inch
- Audio Output Mode: Stereo
- Connectivity Technology: Bluetooth, RCA, USB
- Bluetooth Range: 10 Meters
- Total USB 2.0 Ports: 1
- Compatible Devices: Laptop, MP3-player, Smartphone, Tablet, Television
- Control Method: Remote Control
- Power Source: Corded Electric (230V AC / 50Hz)
- Product Dimensions (L x W x H): 46.5 x 40 x 112.5 cm
- Included Components: Handles, metal grille, remote control
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
