Mazda Roof Rails DGH9-V3-830 Installation and User Manual

Introduction

This manual provides comprehensive instructions for the safe and proper installation, operation, and maintenance of your Mazda Roof Rails, model DGH9-V3-830. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

Safety Information

• Always ensure roof rails are securely fastened before driving.
• Do not exceed the maximum load capacity specified for your vehicle's roof and the roof rails. Refer to your vehicle's owner's manual for specific load limits.
• Distribute cargo evenly across the roof rails.
• Regularly check all mounting hardware for tightness, especially after initial installation and before long trips.
• Avoid sudden braking, acceleration, or sharp turns when carrying cargo on the roof rails.
• Be aware of increased vehicle height when roof rails are installed, especially when entering garages or low-clearance areas.

Package Contents

Verify that all components are present and undamaged before beginning installation.

• Mazda Roof Rails (Model DGH9-V3-830)
• All necessary mounting hardware (bolts, washers, gaskets, etc.)
• Installation instructions (this manual)

Image: Label confirming Mazda Genuine Accessories Part Number DGH9-V3-830.

Setup and Installation

Installation of the Mazda Roof Rails DGH9-V3-830 typically involves mounting the rails to existing attachment points on your vehicle's roof. It is recommended to have two people for installation to prevent scratching the vehicle's paint or damaging components.

1. Prepare the Vehicle: Ensure the vehicle's roof is clean and dry. Locate the designated mounting points on the roof, usually covered by plastic caps or trim pieces.
2. Remove Covers: Carefully remove any existing covers or trim pieces that conceal the mounting points. Refer to your vehicle's owner's manual for specific instructions on removing these covers.
3. Position the Rails: Place the roof rails onto the vehicle's roof, aligning them with the exposed mounting points. Ensure the front and rear rails are correctly oriented according to the design.
4. Secure the Rails: Using the provided hardware, attach the roof rails to the mounting points. Start by hand-tightening all bolts to ensure proper alignment.
5. Final Tightening: Once all bolts are in place and aligned, progressively tighten them using the appropriate tools. Do not overtighten. Refer to the torque specifications in your vehicle's service manual if available.
6. Inspect Installation: After tightening, gently shake each roof rail to confirm it is securely mounted and does not wobble.

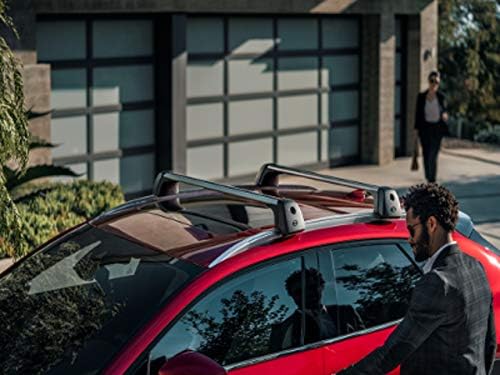

Image: Mazda Roof Rails DGH9-V3-830 installed on a vehicle, demonstrating proper fitment.

Operating Instructions

The Mazda Roof Rails DGH9-V3-830 are designed to provide a secure platform for carrying additional cargo on your vehicle's roof. They are compatible with various roof rack accessories (sold separately) such as crossbars, bike carriers, ski carriers, and cargo boxes.

• Load Capacity: Always adhere to the maximum load capacity specified for your vehicle and the roof rails. Overloading can compromise vehicle stability and safety.
• Cargo Distribution: Distribute the weight of your cargo as evenly as possible across the roof rails. Place heavier items lower and closer to the center of the vehicle.
• Secure Cargo: Use appropriate straps, nets, or other securing devices to firmly attach all cargo to the roof rails or attached accessories. Ensure there is no movement of cargo during transit.
• Aerodynamics: Large or irregularly shaped cargo can affect vehicle aerodynamics and fuel efficiency. Consider removing roof rail accessories when not in use.
• Driving Adjustments: When carrying cargo on the roof, adjust your driving style. Allow for increased braking distances, reduce speed, and take turns more gradually.

Maintenance

Regular maintenance ensures the longevity and safe operation of your Mazda Roof Rails.

• Periodic Inspection: Inspect all mounting bolts and hardware regularly, especially after long trips or carrying heavy loads. Tighten any loose fasteners.
• Cleaning: Clean the roof rails with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Corrosion Prevention: If operating in harsh environments (e.g., coastal areas with salt air, areas with road salt), rinse the rails frequently to prevent corrosion.
• Storage: If removing the roof rails for extended periods, store them in a clean, dry place away from direct sunlight.

Troubleshooting

If you encounter issues not listed here or require further assistance, please contact Mazda customer support.

Specifications

• Model Number: DGH9-V3-830
• Brand: Mazda
• Material: Metal
• Color: Silver
• Item Weight: Approximately 7.58 pounds (3.44 kg)
• Package Dimensions: Approximately 63 x 10.6 x 6.6 inches (160 x 27 x 16.8 cm)
• Mounting Type: Rails, Roof
• Compatibility: Designed for specific Mazda vehicles with compatible roof rail mounting points.
• Note: Maximum load capacity is determined by your vehicle's manufacturer. Always consult your vehicle's owner's manual.

Warranty and Support

These Mazda Roof Rails are genuine Mazda accessories. For warranty information specific to your region, please refer to the documentation provided with your purchase or contact your authorized Mazda dealer.

Important Note for International Buyers: Warranties for this product are typically valid only within the USA. International buyers are responsible for paying duties, taxes, and applicable customs brokerage fees separate from the merchandise cost. These additional charges are beyond our control. We recommend researching your country's import fees prior to purchase. Items made for USA vehicles may not be compatible with vehicles manufactured outside of the USA.

For technical support or further inquiries, please contact your local authorized Mazda service center or visit the official Mazda website.
