Introduction
This user manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your TOPWAY 3/4" NPT 110V Hot Water 3-Speed Circulation Recirculating Pump. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of the product.
Safety Information
Always adhere to local codes and regulations when installing and operating this pump. Failure to do so may result in property damage, injury, or death.
- Ensure the power supply is disconnected before any installation, maintenance, or repair work.
- This pump is designed for hot water circulation. Do not use it for flammable, corrosive, or hazardous liquids.
- Ensure proper grounding to prevent electrical shock.
- Do not run the pump dry. This can cause severe damage to the unit.
- Protect the pump from freezing temperatures.
- Installation should be performed by a qualified professional if you are unsure about any steps.
Product Overview
The TOPWAY 3/4" NPT 110V Hot Water 3-Speed Circulation Recirculating Pump is designed for efficient hot water circulation in various systems, including water heater systems, floor heating, and solar water heaters. It features a durable cast iron body, aluminum pump housing, and a copper motor wire for reliable performance.
Figure 1: TOPWAY Hot Water Circulation Pump with included fittings.
Figure 2: Close-up of pump components highlighting cast iron material, three-speed control, and brass connectors.

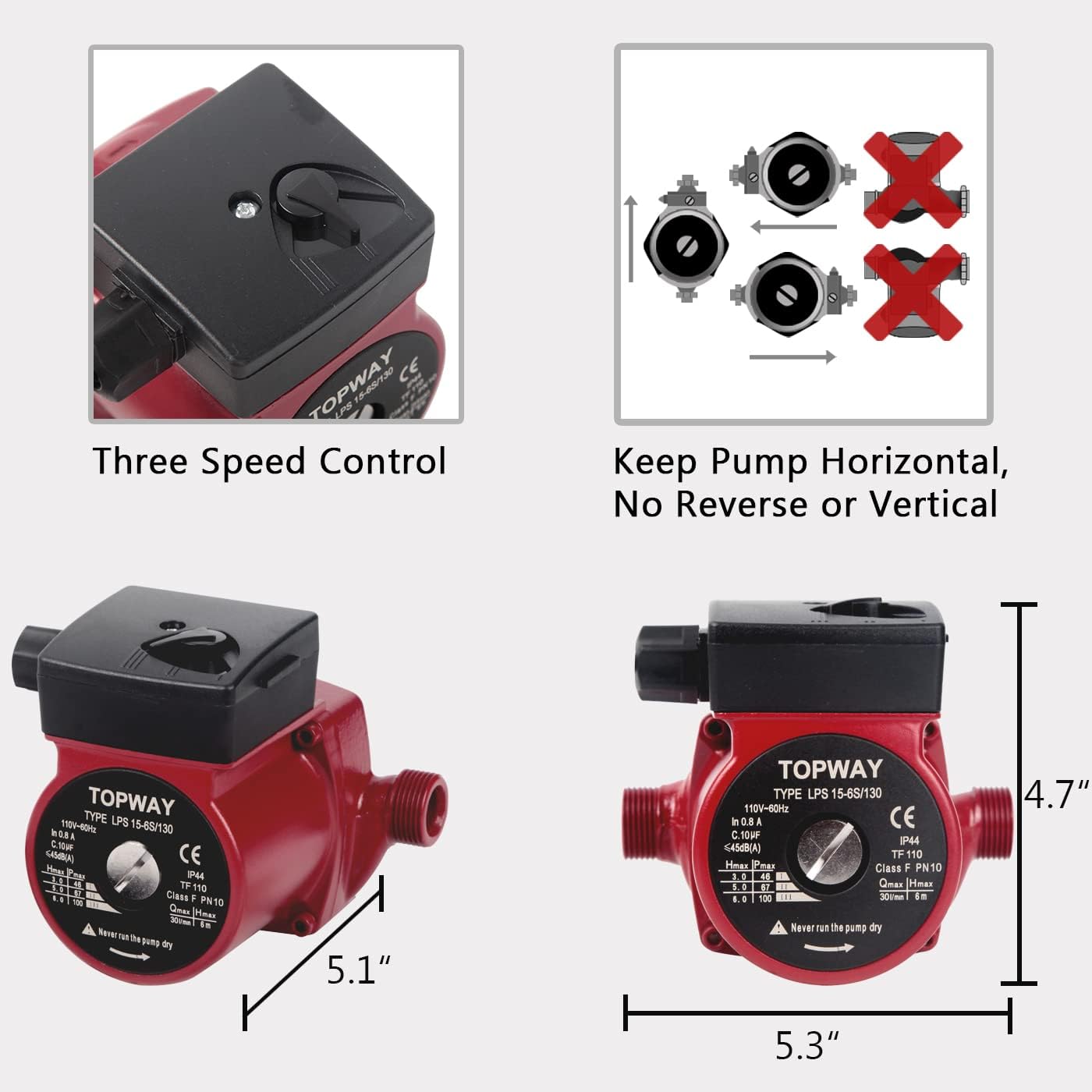

Figure 3: Illustration of the three-speed control switch and important note to keep the pump horizontal, avoiding reverse or vertical installation.
Figure 4: The TOPWAY pump is suitable for a variety of hot water circulation applications.
Specifications
Refer to the table below for detailed technical specifications of the TOPWAY Circulation Pump.
| Feature | Specification |
|---|---|
| Pump Outlet | 3/4" NPT |
| Max Head | 6.0m (19.7 ft) |
| Max Flow | 30L/min (7.92 GPM) |
| Liquid Temperature Range | 0°F to +212°F (-17.8°C to +100°C) |
| Rated Power (3-Speed) | 100W / 67W / 46W |
| Voltage/Frequency | 110-120V / 60Hz |
| Pump Body Material | Cast Iron |
| Pump Housing Material | Aluminium |
| Impeller Material | PP |
| Motor Wire Material | Copper |
| Shaft Material | Ceramic |
| Bearing Material | China |
| Product Dimensions | 5.3"L x 5.1"W x 4.7"H |
| Item Weight | 5.3 Pounds |
| Country of Origin | China |

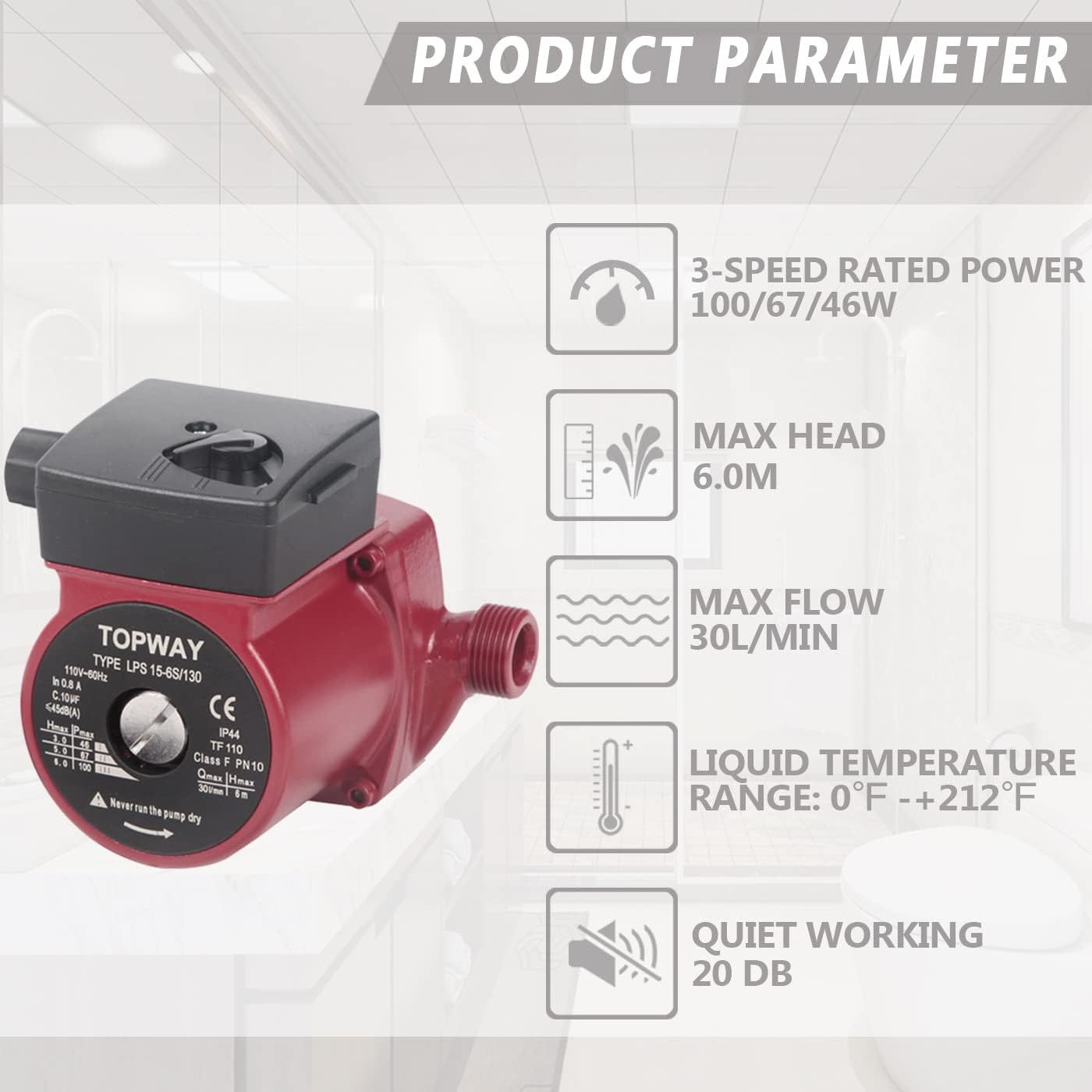

Figure 5: Visual representation of key product parameters.
Setup and Installation
Proper installation is crucial for the pump's performance and longevity. Follow these general guidelines:
- Preparation:
- Ensure all necessary tools and fittings are available.
- Turn off the main water supply and drain the system if replacing an existing pump or installing in a new system.
- Verify the pump's electrical specifications match your power supply (110-120V/60Hz).
- Mounting the Pump:
- Mount the pump horizontally with the motor shaft in a horizontal position. Refer to Figure 3 for correct orientation. Incorrect orientation can lead to premature wear or failure.
- Ensure the pump is installed in a location that is easily accessible for maintenance and protected from freezing.
- Piping Connections:
- Connect the pump to your plumbing system using the appropriate 3/4" NPT fittings. Ensure all connections are sealed properly to prevent leaks.
- Use pipe thread sealant (e.g., PTFE tape or pipe dope) on all threaded connections.
- Electrical Connection:
- Connect the pump to a grounded 110-120V/60Hz power supply.
- All electrical wiring should comply with local electrical codes and be performed by a qualified electrician if you are not experienced.
- Ensure the junction box is securely closed after wiring.
- System Filling and Venting:
- Once all connections are secure, slowly refill the system with water.
- Vent any air from the pump and system by opening the exhaust screw (refer to product diagrams if available) or by running the pump briefly until water flows smoothly without air bubbles.
Figure 6: Example system diagrams for floor heating and water heater recirculation.
Operating Instructions
The TOPWAY pump features a 3-speed control for adjusting flow and power consumption.
- Power On: Once installed and the system is filled, turn on the power supply to the pump.
- Speed Selection:
- Locate the speed selector switch on the top of the pump's motor housing.
- The pump offers three speed settings:
- Setting I (46W): Lowest power, lowest flow. Ideal for continuous, energy-saving operation.
- Setting II (67W): Medium power, medium flow. Balanced performance.
- Setting III (100W): Highest power, highest flow. For maximum circulation needs.
- Rotate the switch to select the desired speed setting. The pump will adjust its operation accordingly.
- Monitoring: Observe the system for proper circulation and ensure there are no leaks. The pump is designed for quiet operation (approx. 20 dB).
Figure 7: The pump operates at approximately 20 dB, which is very quiet.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your pump.
- Annual Inspection: Annually inspect the pump for any signs of wear, corrosion, or leaks.
- Cleaning: Keep the exterior of the pump clean and free from dust and debris.
- System Water Quality: Ensure the water circulating through the system is clean and free of excessive sediment or corrosive agents. Poor water quality can affect pump performance and durability.
- Winterization: In cold climates, if the system is not in continuous use, ensure the pump and associated piping are drained to prevent freezing and damage.
- Bearing Check: While the bearings are designed for long life, listen for any unusual noises that might indicate bearing wear.
Troubleshooting
This section provides solutions to common issues you might encounter with your TOPWAY circulation pump.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power supply; Motor seized; Incorrect wiring. | Check power connection and circuit breaker. Ensure correct voltage. If motor is seized, contact support. Verify wiring against diagram. |
| Pump runs but no flow or low flow | Air in the system; Clogged impeller; Incorrect speed setting; Closed valves. | Vent air from the pump/system. Check for obstructions in the impeller (disconnect power first). Increase speed setting. Ensure all necessary valves are open. |
| Pump is noisy | Air in the system; Cavitation; Loose mounting; Foreign object in pump. | Vent air. Ensure adequate water pressure. Tighten mounting bolts. Disconnect power and inspect impeller for foreign objects. |
| Water leakage | Loose connections; Damaged seals/gaskets. | Tighten all pipe connections. Inspect and replace any damaged seals or gaskets. |
| Pump overheats | Running dry; Insufficient flow; Motor ventilation blocked. | Ensure pump is always submerged in liquid. Check for blockages in the system. Clear any obstructions around the motor for proper ventilation. |
Warranty and Support
For warranty information and technical support, please refer to the documentation included with your purchase or contact TOPWAY customer service directly. Details regarding warranty periods and claims procedures are typically provided on the product packaging or the manufacturer's official website.
Manufacturer: TOPWAY
For further assistance, visit the official TOPWAY store on Amazon: TOPWAY Store
