1. Introduction
This manual provides instructions for the safe and efficient use of your EBL 9010+ 8-Slot Fast Charger and the included EBL 2800mAh AA rechargeable batteries. Please read this manual thoroughly before use and retain it for future reference.
2. Important Safety Instructions
Failure to follow these safety instructions may result in fire, electric shock, or injury.
- Use only a 5V 2A USB adapter (not included) to power the charger. Do not use a 1.0A adapter.
- Charge only Ni-MH or Ni-CD rechargeable batteries. Do not attempt to charge alkaline, carbon-zinc, or any other non-rechargeable battery types.
- Do not disassemble, modify, or short-circuit the charger or batteries.
- Keep the charger and batteries away from water, moisture, and high temperatures.
- Do not expose the charger to direct sunlight or heat sources.
- Ensure proper battery polarity (+/-) when inserting batteries into the charger slots.
- Unplug the charger from the power source when not in use or before cleaning.
- Keep out of reach of children.
- If any abnormal conditions occur (e.g., smoke, unusual smell, excessive heat), immediately unplug the charger and discontinue use.
3. Package Contents
- 1 x EBL 9010+ 8-Slot Fast Battery Charger
- 8 x EBL 2800mAh AA Ni-MH Rechargeable Batteries
- 1 x USB Charging Cable (Note: 5V 2A USB power adapter is not included)
- 2 x Battery Storage Cases
4. Product Features
- 8 Independent Charging Slots: Allows charging of 1 to 8 AA or AAA Ni-MH/Ni-CD batteries simultaneously or individually.
- USB Input: Conveniently powered via any 5V 2A USB power source (e.g., power bank, adapter, computer USB port).
- iQuick Fast Charging Technology: Provides efficient and rapid charging for your batteries.

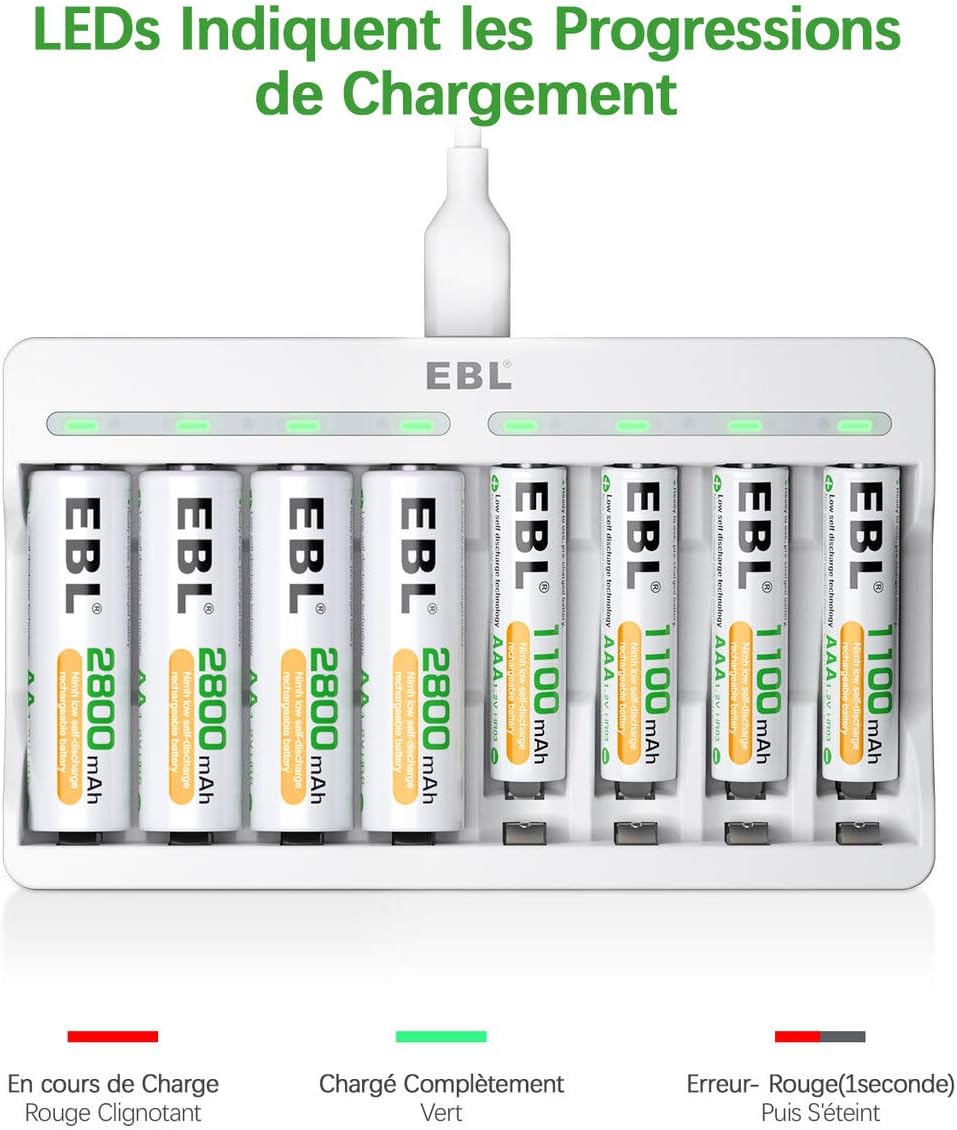

- Intelligent LED Indicators: Each slot has a dedicated LED to show charging status (Red for charging, Green for fully charged, Red (1s) then off for error).
- Advanced Safety Protections: Built-in MCU control with -∆V detection, over-heat, over-current, short-circuit, over-voltage, and over-charge protection. Detects non-rechargeable or defective batteries.
- EBL PROCYCO Technology: Ensures maximum cycling performance and extended lifespan for EBL batteries.
- Low Self-Discharge Batteries: EBL AA 2800mAh batteries retain charge for longer periods when not in use.
- Pre-Charged Batteries: Included batteries are pre-charged to 15-20% capacity using solar energy, ready for immediate use.
- Compact Design: Portable and easy to carry.
5. Setup
- Connect the Charger: Insert the USB charging cable into the charger's USB input port.
- Power Source: Connect the other end of the USB cable to a 5V 2A USB power adapter (not included). Ensure the adapter provides 2A output for optimal charging speed.
- Initial Power-On: Once connected, the LED indicators on the charger will briefly light up, indicating it is ready for use.
6. Operating Instructions
- Insert Batteries: Place 1 to 8 AA or AAA Ni-MH/Ni-CD rechargeable batteries into the charging slots. Ensure correct polarity (+ and -) as indicated on the charger.
- Charging Process:
- When batteries are correctly inserted, the corresponding LED indicator will light up RED, indicating that charging is in progress.
- Once a battery is fully charged, its LED indicator will turn GREEN.
- Error Detection: If a non-rechargeable or defective battery is inserted, or if there is a short-circuit, the LED will flash RED for 1 second and then turn off. Remove the problematic battery immediately.
- Remove Batteries: Once charging is complete (LED is green), carefully remove the batteries from the charger.
7. Maintenance
- Cleaning: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the charger. Do not use liquid cleaners or solvents.
- Storage: Store the charger and batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
- Battery Storage: Use the provided battery storage cases to protect batteries when not in use.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED does not light up when charger is plugged in. | No power or faulty connection. | Check USB cable connection and power adapter. Ensure the power adapter is 5V 2A. Try a different USB port or adapter. |
| LED flashes RED for 1 second then turns off. | Non-rechargeable or defective battery inserted, or incorrect polarity. | Remove the battery. Ensure you are using Ni-MH/Ni-CD rechargeable batteries and that they are inserted with correct polarity. If the issue persists, the battery may be defective. |
| Batteries are not charging or charging slowly. | Insufficient power supply or poor contact. | Ensure the power adapter is 5V 2A. Clean battery contacts and charger terminals. Re-insert batteries firmly. |
| Charger or batteries become excessively hot during charging. | Overheating protection activated or faulty battery. | Immediately unplug the charger and remove batteries. Allow to cool. If a specific battery causes this, it may be defective. Ensure proper ventilation around the charger. |
9. Specifications
- Brand: EBL
- Model: 9010+ (EB-690181122-FR)
- Color: White
- Input: DC 5V 2A
- Output: DC 1.4V (Variable current based on number of batteries)
- Compatible Battery Types: AA/AAA Ni-MH/Ni-CD rechargeable batteries
- Number of Slots: 8 independent slots
- Included Batteries: 8 x EBL 2800mAh AA Ni-MH Rechargeable Batteries
- Certifications: CE
10. Warranty and Support
The EBL 9010+ charger comes with a 1-year manufacturer's warranty against factory defects. For warranty claims or technical support, please contact EBL customer service through the retailer where the product was purchased or visit the official EBL website.
