Introduction
This manual provides essential information for the safe and efficient use of your Markslojd House 1 Light Indoor Table Lamp. Please read these instructions carefully before installation and operation, and retain them for future reference.
Safety Instructions
- Ensure the power supply is disconnected before installation, cleaning, or replacing the bulb.
- This lamp is designed for indoor use only (IP20 rating). Do not expose to moisture or extreme temperatures.
- Use only E27 bulbs with a maximum wattage of 40W. Exceeding the maximum wattage can cause overheating and damage.
- Do not modify the lamp or its components. Any modifications may void the warranty and pose a safety risk.
- Keep the lamp away from flammable materials.
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
Package Contents
Verify that all components are present before beginning installation:
- Markslojd House Table Lamp Base
- Lamp Shade (integrated)
- Power Cable with In-line Switch
- Instruction Manual (this document)
Note: Light bulb is not included and must be purchased separately.
Setup and Installation
- Unpack: Carefully remove all components from the packaging.
- Positioning: Place the lamp base on a stable, flat surface. Ensure the power cable can reach a wall outlet without being stretched or obstructed.
- Install Bulb: Screw an E27 bulb (max 40W) into the lamp holder. Do not overtighten.
- Connect Power: Plug the power cable into a standard wall outlet.

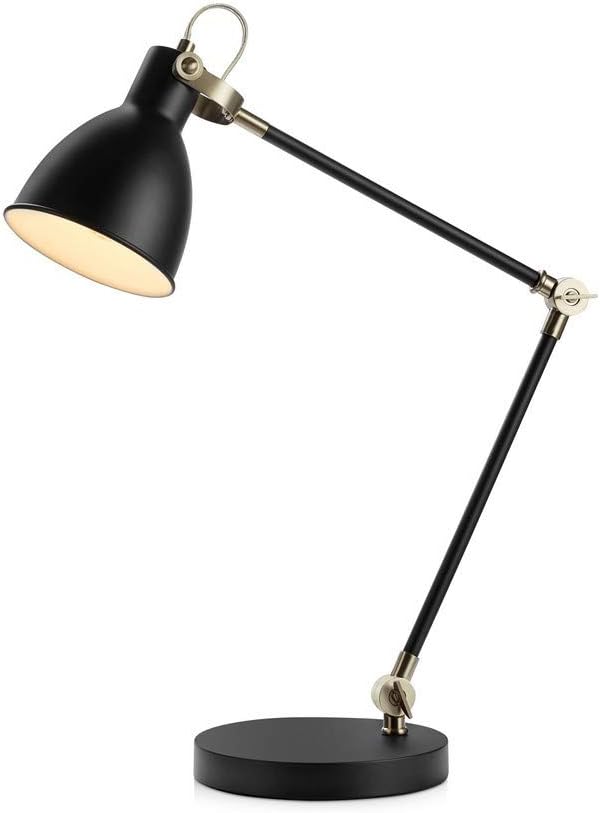

Image 1: Front view of the Markslojd House Table Lamp, showcasing its black finish and adjustable arm.
Image 2: Side view of the Markslojd House Table Lamp, illustrating the articulation points on the arm for flexible positioning.
Operating Instructions
The Markslojd House Table Lamp is operated via an in-line switch located on the power cable.
- To turn the lamp ON, locate the switch on the power cable and press the 'ON' side.
- To turn the lamp OFF, press the 'OFF' side of the switch.
- The lamp's arm and shade can be adjusted to direct light as needed. Gently move the arm and shade to the desired position.
Maintenance
- Cleaning: Disconnect the lamp from the power supply before cleaning. Wipe the lamp with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Bulb Replacement: Ensure the lamp is unplugged and the bulb has cooled down completely before attempting to replace it. Unscrew the old E27 bulb and screw in a new E27 bulb (max 40W).
- Storage: If storing the lamp, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on. | No power to the outlet. Bulb is faulty or loose. Switch is off. | Check the wall outlet with another device. Ensure the bulb is screwed in tightly. Replace the bulb if necessary. Ensure the in-line switch is in the 'ON' position. |
| Bulb flickers. | Loose bulb. Faulty bulb. Incompatible bulb type. | Tighten the bulb. Replace the bulb. Ensure you are using an E27 bulb within the specified wattage. |
| Lamp feels hot. | Bulb wattage too high. | Ensure the bulb wattage does not exceed 40W. Replace with a lower wattage bulb if necessary. |
Specifications
- Model: 1
- ASIN: B085BYQZ95
- Finish: Black
- Material: Metal
- Height: 62 cm
- Width: 18 cm
- Depth: 40 cm (approx. base/overall footprint)
- Lamp Type: E27
- Number of Lights: 1
- IP Rating: IP20 (Indoor Use)
- Switch Type: In-line switch on cable
- Max Wattage: 40W
- Weight: 1.90 kg
- Cable Length: 200 cm
Warranty and Support
For information regarding warranty, returns, or technical support, please refer to the retailer's policy where the product was purchased or visit the official Markslöjd website. Keep your proof of purchase for any warranty claims.
Markslöjd Official Website: www.markslojd.com
