Xiaomi Mijia Robot 2 in 1 Sweeping and Wet Mopping Robot Vacuum Cleaner

1. Product Overview

The Xiaomi Mijia Robot is a versatile 2-in-1 device designed for both sweeping and wet mopping. It features an LDS laser navigation system for precise mapping and efficient cleaning paths. With intelligent electric control, it ensures even water distribution for mopping, protecting various floor types.

Key Features:

• LDS laser navigation system for faster speed, higher precision, and more accurate mapping.
• Supports 3 cleaning modes: sweeping and mopping, sweeping only, and mopping only.
• Simulates artificial mopping with two-way repeated wiping for thorough cleaning.
• Intelligent electric control water tank ensures even water distribution, suitable for wooden floors.
• Equipped with 12 sets of high-precision sensors for assisted navigation and environmental sensing.
• APP control and support for Xiaoai voice interaction.
• Features scheduled cleaning, fixed cleaning, zone cleaning, and automatic recharge.
• Supports room partition, allowing merging, splitting, and naming of areas.
• Software allows setting virtual walls and forbidden sweep areas.
• Battery capacity: 3200mAh.

2. Package Contents

Verify that all items are present in the package:

• 1 x Sweeping Mopping Robot
• 1 x Chinese Manual (Note: This manual provides English instructions)
• 1 x 2-in-1 Water Tank
• 2 x Side Brush
• 1 x Charging Stand
• 1 x Power Adapter
• 1 x Mop Bracket
• 2 x Wiper

3. Product Components and Diagram

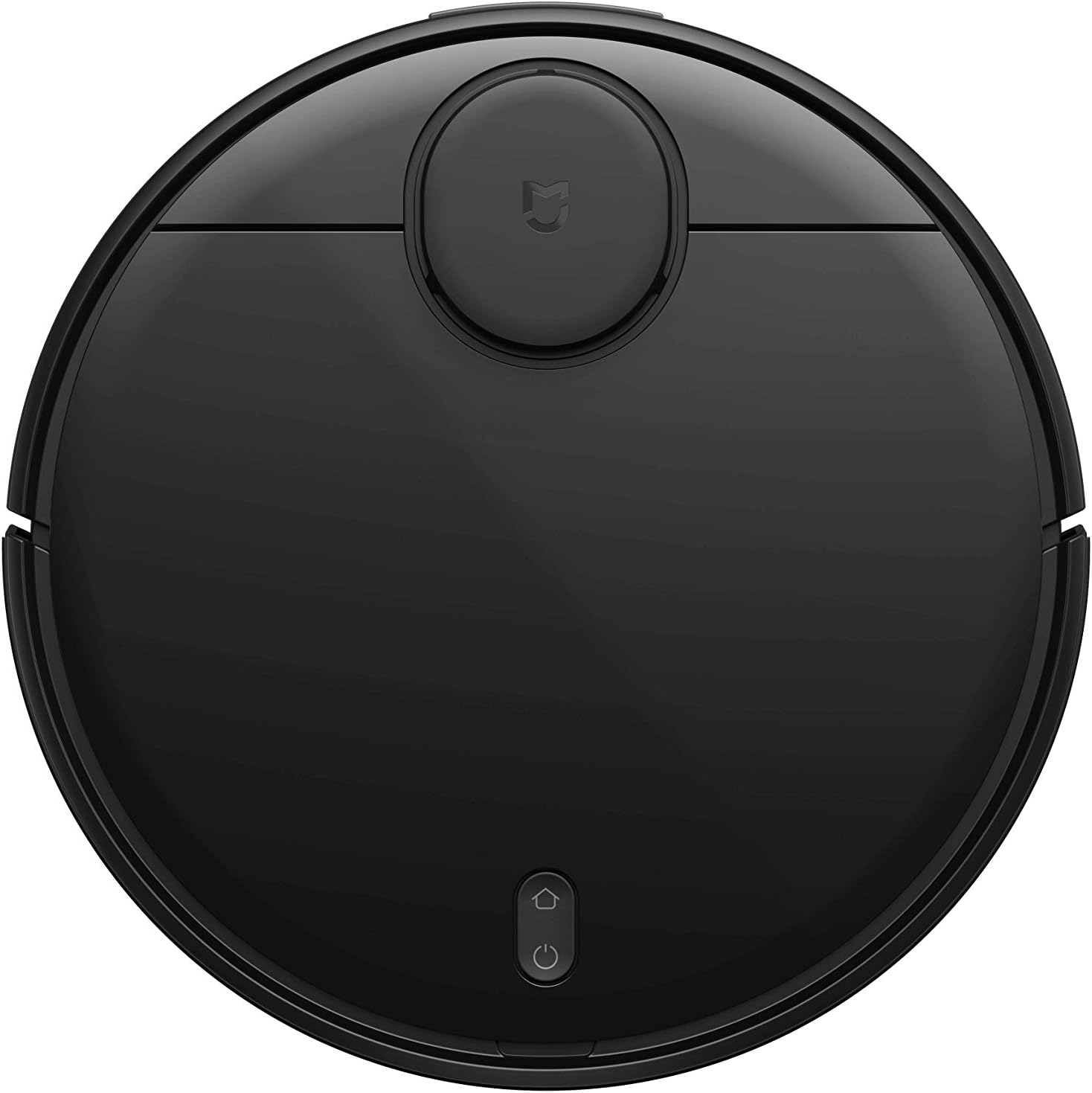

Figure 3.1: Top View of Robot Vacuum

This image displays the top surface of the robot vacuum, highlighting the LDS laser navigation sensor on top and the power/home buttons.

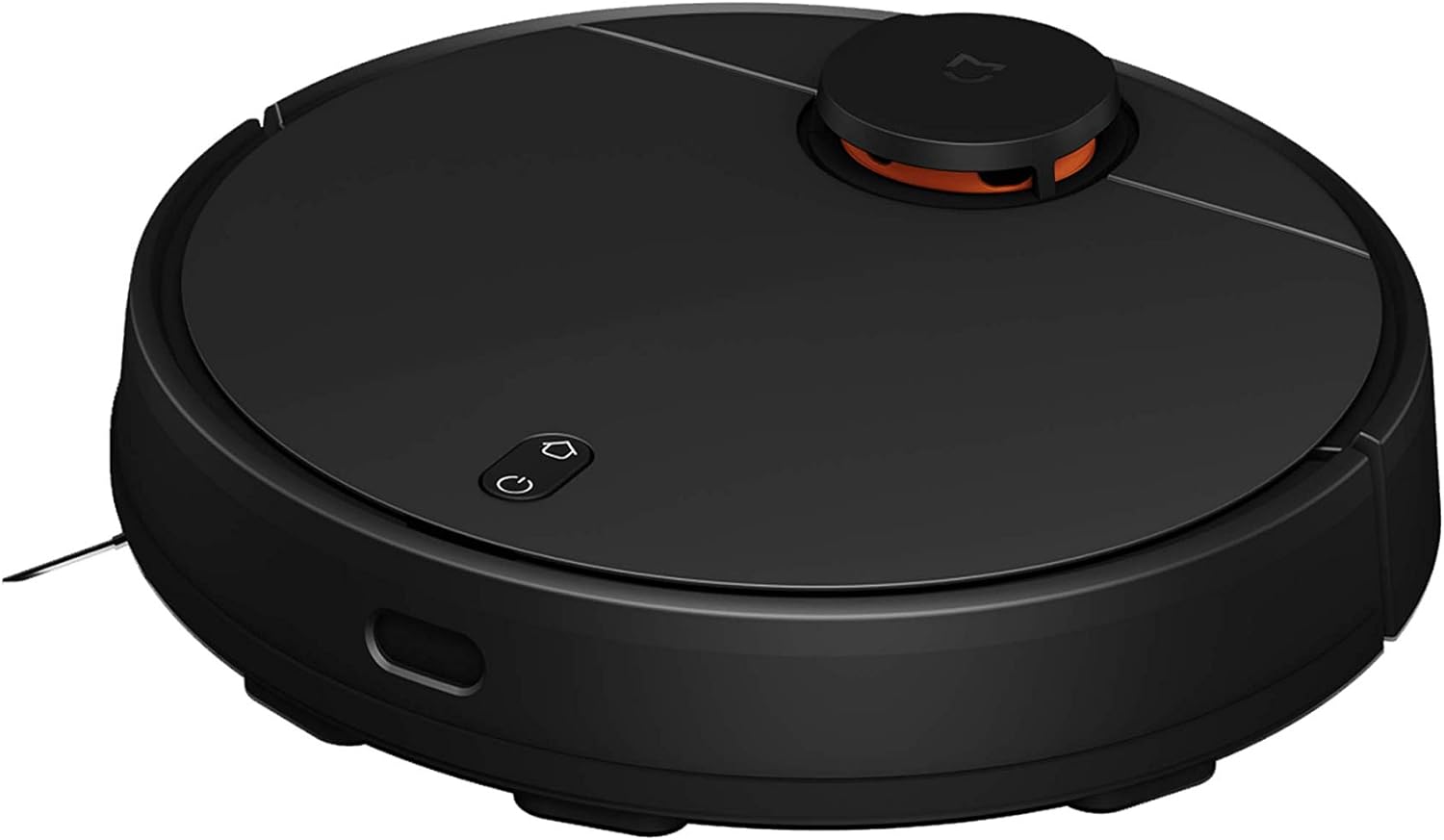

Figure 3.2: Side View of Robot Vacuum

This image shows the side profile of the robot vacuum, illustrating its compact design and the placement of the side brushes.

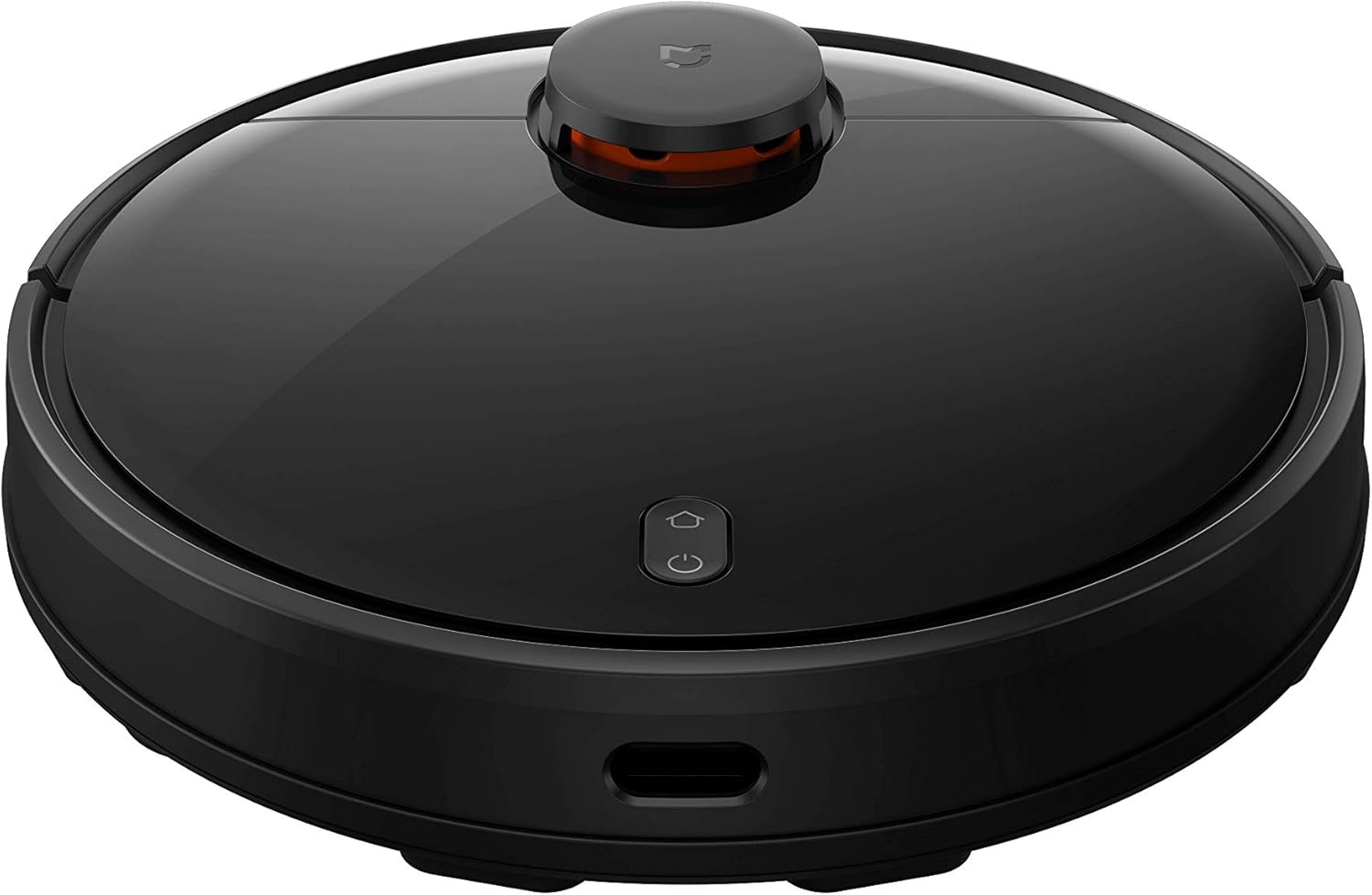

Figure 3.3: Front-Top View of Robot Vacuum

This image provides a view from the front and top, highlighting the charging contacts and the protective front bumper.

Figure 3.4: Laser Navigation System in Operation

This image illustrates the robot vacuum's laser navigation system actively scanning a room, depicted by blue grid lines extending from the device.

Figure 3.5: Optimized Cleaning Path

This image demonstrates the robot vacuum's efficient cleaning path, indicated by orange arrows on the floor, showcasing its systematic movement.

Figure 3.6: Laser Navigation Dome Internal View

This close-up image provides a detailed view of the laser navigation dome, revealing its internal components and mechanism.

4. Setup Guide

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Charging Stand Placement: Place the charging stand against a wall on a hard, level surface. Ensure there are no obstacles within 0.5 meters to either side and 1.5 meters in front of the stand. Connect the power adapter to the charging stand and plug it into a power outlet.
3. Initial Charge: Place the robot vacuum on the charging stand. Ensure the charging contacts on the robot align with those on the stand. The indicator light will show charging status. For first use, fully charge the robot (approximately 4-5 hours).
4. Install Side Brushes: Snap the side brushes into their designated slots on the bottom of the robot until they click into place.
5. Install Water Tank (for Mopping): If using the mopping function, fill the 2-in-1 water tank with clean water. Attach the mop bracket and wiper to the tank. Slide the assembled water tank into the back of the robot until it locks securely.
6. Download Mi Home App: Scan the QR code in the included Chinese manual or search for "Mi Home" in your app store (Google Play Store or Apple App Store). Install the app on your smartphone.
7. Connect to Wi-Fi: Open the Mi Home app and follow the on-screen instructions to add your Xiaomi Mijia Robot. You may need to reset the robot's Wi-Fi by pressing and holding the power and home buttons simultaneously for 3 seconds until you hear a voice prompt. Connect the robot to your home Wi-Fi network (2.4GHz recommended).

5. Operating Instructions

5.1 First Use and Mapping

Before the first cleaning, ensure the robot is fully charged. It is recommended to allow the robot to complete a full cleaning cycle to create an accurate map of your home. This map is crucial for advanced features like zone cleaning and virtual walls.

1. Start Cleaning: Press the power button on the robot or use the Mi Home app to start a cleaning cycle. The robot will begin mapping and cleaning your home.
2. Mapping: During the first few runs, the robot will build a detailed map. Ensure doors to all areas you want cleaned are open. Avoid interrupting the robot during its initial mapping process.
3. Room Partitioning: Once the map is complete, use the Mi Home app to partition rooms, merge or split areas, and name them for customized cleaning.

5.2 Cleaning Modes

• Sweeping and Mopping: The default mode. The robot will vacuum and mop simultaneously. Ensure the water tank is installed.
• Sweeping Only: The robot will only vacuum. Remove the water tank for this mode.
• Mopping Only: The robot will only mop. Ensure the water tank is installed and the dustbin is empty.

5.3 App Control Features

The Mi Home app provides extensive control over your robot vacuum:

• Scheduled Cleaning: Set specific times for the robot to clean automatically.
• Zone Cleaning: Define specific areas on the map for the robot to clean.
• Fixed Cleaning: Send the robot to a specific spot on the map to clean a small area.
• Virtual Walls/Forbidden Areas: Draw virtual lines or boxes on the map to prevent the robot from entering certain areas.
• Suction Power Adjustment: Adjust the vacuum's suction power (e.g., Silent, Standard, Strong, Turbo).
• Water Flow Adjustment: Control the water output for mopping.
• Real-time Monitoring: View the robot's cleaning progress and current location on the map.
• Voice Control: Integrate with Xiaoai voice assistant for hands-free control.

5.4 Automatic Recharge

When the battery is low, the robot will automatically return to its charging stand. After recharging, it will resume cleaning from where it left off (if the cleaning cycle was not completed).

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your robot vacuum.

6.1 Dustbin and Filter

• Empty Dustbin: Empty the dustbin after each cleaning cycle or when full. Press the release button to remove the dustbin, open it, and discard debris.
• Clean Filter: Tap the filter to remove loose dirt. For a deeper clean, rinse the filter under running water. Ensure the filter is completely dry before reinserting it into the dustbin (allow 24 hours to air dry). Replace the filter every 3-6 months, depending on usage.

6.2 Main Brush and Side Brushes

• Clean Main Brush: Remove the main brush cover and lift out the brush. Use the cleaning tool (if provided) to remove hair and debris tangled around the brush. Reinstall the brush and cover. Clean weekly.
• Clean Side Brushes: Remove the side brushes by pulling them up. Remove any tangled hair or debris. If brushes are worn or damaged, replace them. Clean monthly.

6.3 Water Tank and Mop Pad

• Empty Water Tank: After each mopping session, empty any remaining water from the tank to prevent mold or odors.
• Clean Mop Pad: Remove the mop pad from the bracket. Hand wash or machine wash the mop pad with mild detergent. Air dry completely before reattaching. Clean after each mopping session.

6.4 Sensors and Charging Contacts

• Wipe Sensors: Use a clean, dry cloth to gently wipe all sensors (cliff sensors, wall sensors, LDS sensor window) on the robot to ensure proper navigation. Clean monthly.
• Clean Charging Contacts: Wipe the charging contacts on both the robot and the charging stand with a dry cloth to ensure a good connection. Clean monthly.

7. Troubleshooting

8. Specifications

• Brand: Xiaomi
• Model: 26199
• Color: Black
• Product Dimensions (L x W x H): 35.00 x 35.00 x 9.45 cm (13.78 x 13.78 x 3.72 inches)
• Product Weight: 3.60 kg (7.92 lbs)
• Battery Capacity: 3200mAh
• Power (W): 33W
• Climb Capability: 2cm
• Control Method: App
• Filter Type: Cartridge
• Floor Types: Carpet, Ceramic Tile, Marble Floor, Shag Carpet, Tile Floor
• Special Feature: Bagless

9. Official Product Videos

10. Warranty and Support

For warranty information and customer support, please refer to the official Xiaomi website or contact your local authorized dealer. Keep your purchase receipt as proof of purchase.
