ANRAN 8-Channel 5MP HD Home Security Camera System

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your ANRAN 8-Channel 5MP HD Home Security Camera System. This system is designed to provide reliable surveillance with high-definition video recording, infrared night vision, motion detection, and remote access capabilities. Please read this manual thoroughly before setup to ensure proper functionality and safety.

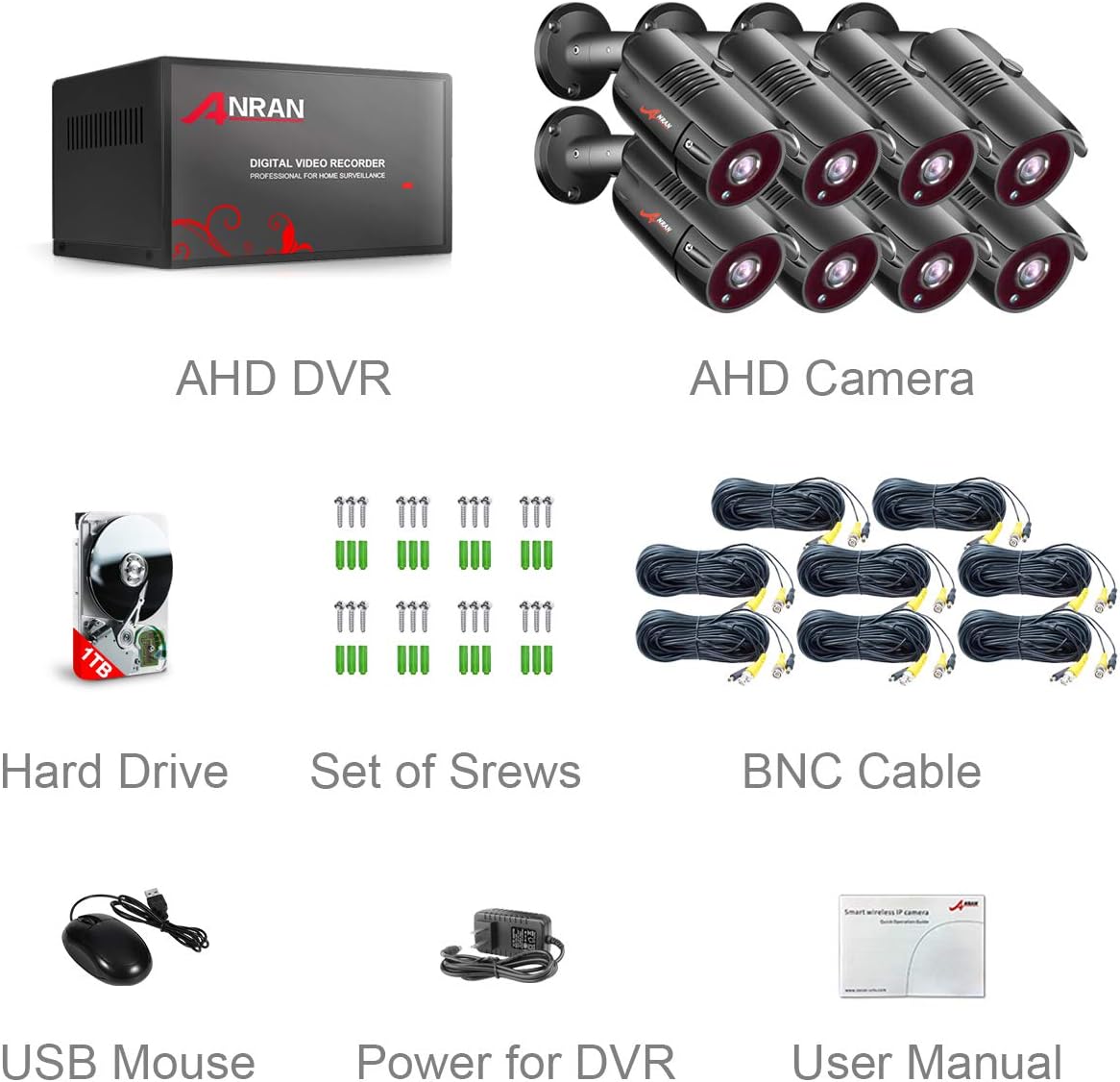

Image: ANRAN 8-Channel 5MP HD Home Security Camera System components including the DVR, 8 bullet cameras, and a 1TB hard drive.

2. Package Contents

Verify that all items are present in your package:

• 1 x 8-Channel 5MP HD DVR (Digital Video Recorder)
• 8 x 5MP HD Bullet Cameras
• 1 x 1TB Hard Drive (pre-installed in DVR)
• 8 x BNC Cables (for camera connection)
• 1 x USB Mouse
• 1 x DVR Power Adapter
• Mounting Screws and Hardware
• User Manual (this document)

Image: A visual representation of all included components in the ANRAN security camera system package.

3. System Setup

3.1 DVR Connections

Follow these steps to connect your DVR:

1. Connect the DVR power adapter to the DVR's DC12V input and then to a power outlet.
2. Connect an HDMI or VGA cable from the DVR's corresponding output port to your monitor or TV.
3. Connect the USB mouse to one of the DVR's USB ports.
4. For remote access, connect an Ethernet cable from the DVR's LAN port to your router.

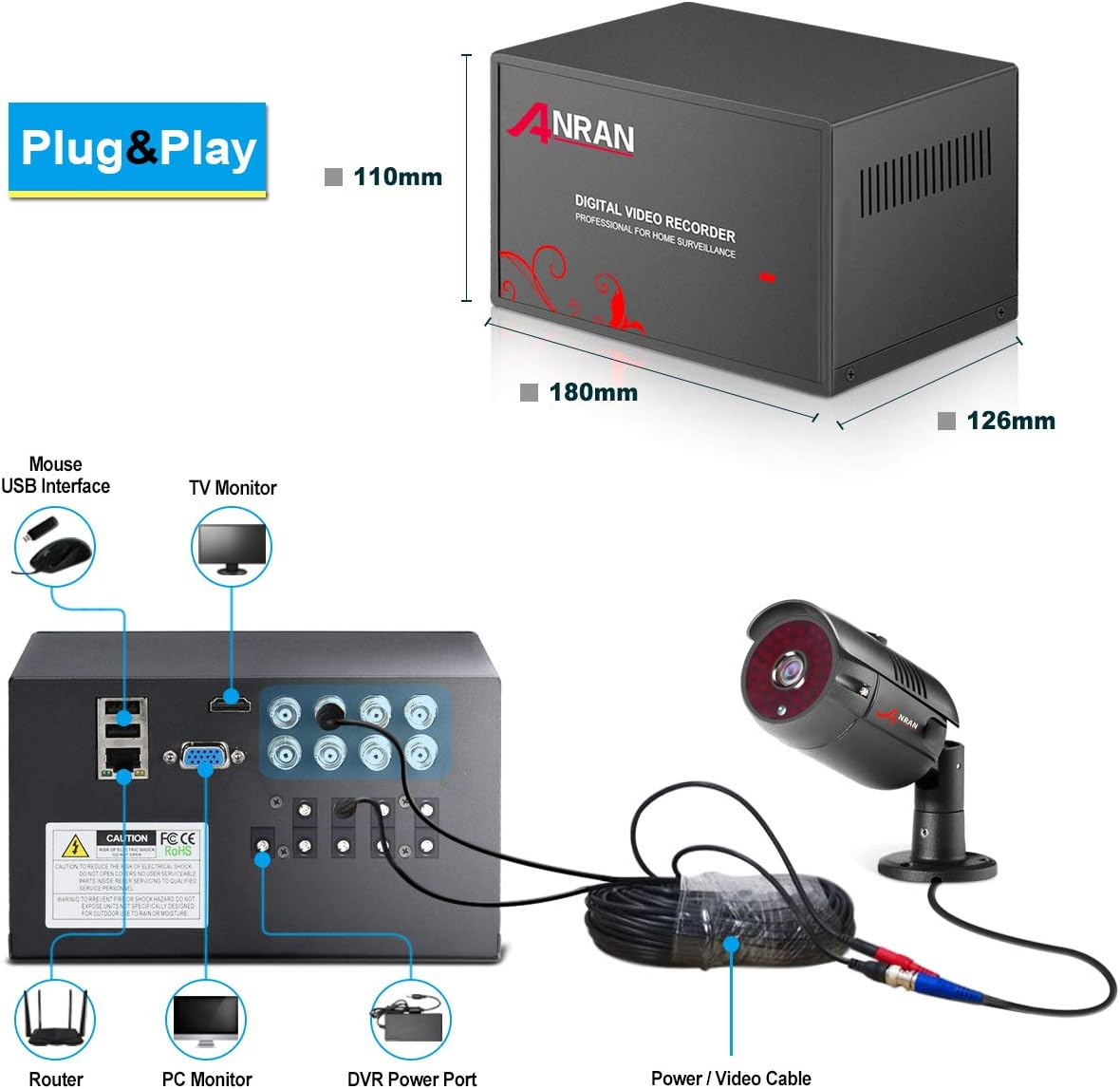

Image: Detailed diagram illustrating the various connection ports on the back of the DVR unit.

3.2 Camera Installation

Each camera features a 3-axis mounting bracket for flexible positioning. Ensure the mounting surface is stable and secure.

1. Choose a suitable location for each camera, considering the desired viewing angle and cable length.
2. Use the provided screws to securely mount the camera bracket.
3. Connect the BNC cable from each camera to the corresponding BNC input on the DVR.
4. Connect the camera power cable to the DVR's DC output for cameras.
5. Adjust the camera's angle and orientation using the 3-axis bracket. Loosen the hex screws, position the camera, then tighten the screws to secure it.

Image: Close-up view of an ANRAN bullet camera highlighting its features and connection points.

Image: Examples of camera mounting positions and the flexibility of the 3-axis bracket.

3.3 Setup Video Guide

Watch this video for a visual guide on connecting your camera system:

4. Operating the System

4.1 Remote Access via Mobile App

Access your security system remotely using the Danale mobile application. Ensure your DVR is connected to your router via an Ethernet cable.

1. Download the 'Danale' app from your device's app store (available for iOS and Android).
2. Open the app and follow the on-screen instructions to add your device. You will typically scan a QR code displayed on your monitor from the DVR's network settings.
3. Once added, you can view live feeds, playback recordings, and receive alerts directly on your smartphone or tablet.

Image: Multiple devices displaying live camera feeds, illustrating the remote access feature.

Image: Visual steps for configuring mobile remote access, including app download links for Android and iPhone.

Download the Danale app here: Android App | iOS App

4.2 Night Vision

The ANRAN security cameras are equipped with infrared (IR) LEDs and an IR-CUT filter, allowing them to automatically switch to night vision mode in low-light conditions. This ensures clear surveillance footage even in complete darkness.

Image: Illustrates 24/7 recording capability and performance in various conditions, including night vision.

4.3 Motion Detection and Alerts

Configure motion detection zones and sensitivity settings through the DVR interface. When motion is detected, the system can trigger recording and send push notifications to your mobile device via the Danale app.

5. Maintenance

Regular maintenance ensures optimal performance of your security system:

• Lens Cleaning: Periodically clean camera lenses with a soft, damp cloth to remove dust and smudges that may affect image clarity.
• Cable Inspection: Check all cables for wear, damage, or loose connections, especially those exposed to outdoor elements.
• Software Updates: Check the manufacturer's website for any available firmware or software updates for your DVR to ensure you have the latest features and security patches.
• Hard Drive Management: The 1TB hard drive provides ample storage. The system typically overwrites the oldest footage when the drive is full. Regularly back up important footage to an external device if needed.

6. Troubleshooting

If you encounter issues, refer to the following common solutions:

• No Video Signal: Ensure all camera BNC and power connections are secure. Check the DVR's video output (HDMI/VGA) connection to the monitor.
• Remote Access Issues: Verify the DVR is connected to the internet via Ethernet. Ensure the Danale app is correctly configured and the QR code for the device ID has been scanned. Check your router settings for any firewall restrictions.
• Poor Night Vision: Ensure the camera lens is clean and free from obstructions. Verify that the IR LEDs are functioning (they may emit a faint red glow in the dark).
• Motion Detection False Alarms/Missed Events: Adjust the motion detection sensitivity and detection zones in the DVR settings to minimize false alarms from environmental factors (e.g., moving branches, shadows) or to ensure all desired events are captured.
• No Audio: This system does not support audio recording.
• Camera Recording Stops: Check the hard drive status in the DVR settings. If the hard drive is damaged or full, it may affect recording.

7. Specifications

8. Warranty and Support

For warranty information, technical support, or any product-related inquiries, please contact ANRAN customer service. Refer to the contact details provided in your product packaging or on the official ANRAN website.
