PowaKaddy FX3 Golf Trolley User Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your PowaKaddy FX3 Golf Trolley. Please read this manual thoroughly before using your trolley to ensure optimal performance and longevity.

The PowaKaddy FX3 electric golf trolley offers exceptional performance and reliability. It features a powerful and quiet motor, and its compact design allows it to fold down by 20% for easy storage and transport.

Safety Information

Always observe the following safety precautions to prevent injury or damage to the product:

• Ensure the trolley is fully assembled and all locking mechanisms are engaged before use.
• Do not operate the trolley on excessively steep slopes or uneven terrain where stability may be compromised.
• Keep hands and clothing clear of moving parts, especially the wheels and folding mechanisms.
• Always engage the brake when parking the trolley, especially on inclines.
• Do not overload the trolley beyond its recommended capacity.
• Store the battery in a cool, dry place and follow all charging instructions carefully.
• Keep the trolley away from water and extreme temperatures.
• The trolley features a tamper control system to prevent accidental activation. Always ensure it is disengaged before attempting to operate.

Package Contents

Please check that all items are present in your package:

• PowaKaddy FX3 Golf Trolley Frame
• PowaKaddy Plug'n'Play 30V High-Performance Lithium Battery (1 included)
• Battery Charger
• Front Wheel Assembly
• Rear Wheels (2)
• User Manual (this document)

Setup

Unfolding the Trolley

The PowaKaddy FX3 features a simple 1-click folding system. To unfold:

1. Place the trolley on a flat, stable surface.
2. Locate the main folding hinge.
3. Press the release button/lever and gently lift the handle until the frame locks into its fully extended position. You should hear a click.

Image: The PowaKaddy FX3 Golf Trolley in its fully unfolded position, ready for use.

Image: The PowaKaddy FX3 Golf Trolley in its compact folded state, ideal for transport and storage.

Attaching the Wheels

The sporty low-profile metallic wheels are easily detachable for cleaning or replacement.

1. Align the rear wheels with the axle.
2. Push the wheel onto the axle until it clicks securely into place. Ensure the wheel is fully engaged and cannot be pulled off easily.
3. The front wheel is typically pre-attached but can be adjusted for straight-line correction (see Maintenance section).

Image: Close-up view of the PowaKaddy FX3's sporty low-profile metallic wheel.

Battery Installation and Charging

The FX3 uses a high-performance 30V Plug'n'Play lithium battery, known for being powerful, slim, and lightweight.

1. Ensure the trolley is switched off before installing or removing the battery.
2. Locate the battery compartment on the trolley frame.
3. Slide the Plug'n'Play battery into the compartment until it clicks into place. Ensure the power button on the battery is accessible.
4. To charge, connect the charger to the battery's charging port and then plug the charger into a suitable power outlet. The battery level indicator on the display will show charging status.
5. Always fully charge the battery before first use.

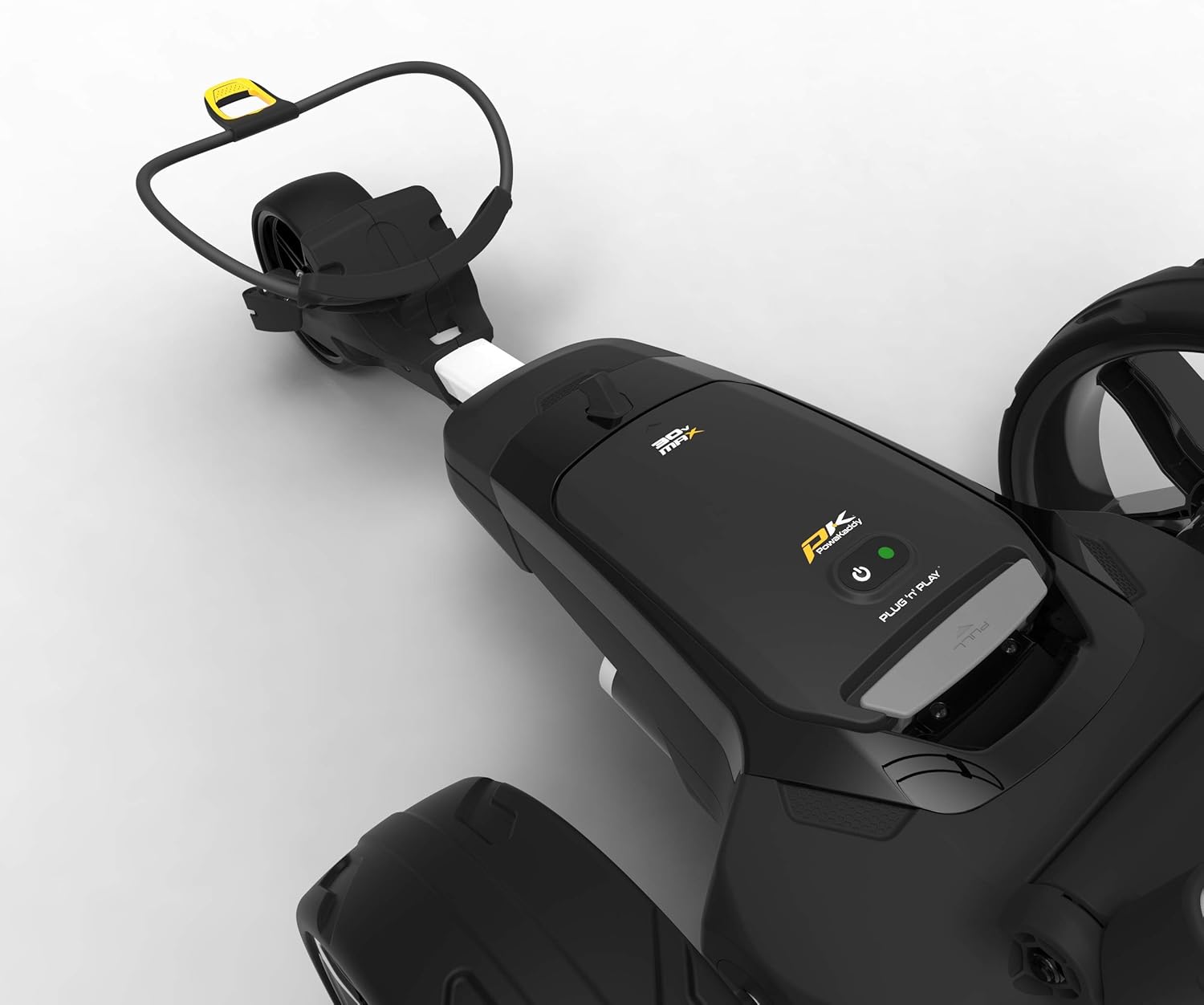

Image: View of the PowaKaddy FX3's battery compartment, designed for the Plug'n'Play lithium battery.

Operating Instructions

Controls and Display

The PowaKaddy FX3 features an ultra-clear 2.3-inch widescreen color display and a high-performance 30-volt speed control system.

Image: Close-up of the PowaKaddy FX3's handle and the 2.3-inch widescreen color display.

Image: Top-down view of the PowaKaddy FX3's control panel and handle.

• Power On/Off: Press the power button (usually located near the display) to turn the trolley on or off. An LED display indicates the power status.
• Speed Control: Use the rotary dial or buttons on the handle to adjust the trolley's speed.
• Start/Pause/Resume Function: Press the designated button to start the trolley, pause its movement, or resume at the same speed.
• Battery Level Indicator: The display shows the current battery capacity, allowing you to quickly monitor power levels.
• Display Backlight System: The backlight automatically turns off after 20 minutes of inactivity when the energy-saving mode is activated.

Adjusting the Handle

The handle is soft and height-adjustable, adapting to the user's preference for comfortable operation. Locate the handle adjustment mechanism and set it to your desired height, ensuring it locks securely.

Securing Your Golf Bag

The PowaKaddy Key-lock bag system prevents your golf bag from twisting on the trolley. Use the elastic straps with integrated anti-slip handles to securely hold your bag in place.

Maintenance

Cleaning

The Powaframe chassis with its low profile and optimal performance is easy to clean. Regularly wipe down the trolley frame and wheels with a damp cloth to remove dirt and debris. Avoid using abrasive cleaners or solvents.

The sporty low-profile metallic wheels are easily removable for thorough cleaning.

Front Wheel Adjustment

If the trolley does not track in a straight line, the front wheel can be adjusted to correct its alignment.

1. Locate the front wheel adjustment mechanism (typically a screw or lever near the front wheel).
2. Make small adjustments and test the trolley's tracking. Repeat until the trolley moves in a straight line.

Image: Close-up of the PowaKaddy FX3's front wheel, showing the adjustment mechanism for straight-line correction.

Battery Care

• Always charge the battery in a well-ventilated area.
• Do not expose the battery to extreme temperatures or direct sunlight.
• If storing the trolley for an extended period, ensure the battery is partially charged (around 50%) and stored in a cool, dry place.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the official PowaKaddy website or contact your local authorized dealer. Keep your proof of purchase for warranty claims.

The manufacturer's reference for this product is part_B085634YR3.

For further assistance, please visit the PowaKaddy support page or contact their customer service directly.
