Important Safety Information
Please read all instructions carefully before using your Hauz AFP131 Mini Food Processor. Retain this manual for future reference.
- Always unplug the appliance from the power outlet before assembling, disassembling, or cleaning.
- Keep hands and utensils away from moving blades during operation to prevent personal injury.
- Do not process hot liquids.
- Ensure the lid is securely locked in place before operating the food processor.
- This appliance is not intended for use by children. Close supervision is necessary when any appliance is used near children.
- Do not immerse the motor base in water or other liquids. Wipe clean with a damp cloth.
- Avoid contact with moving parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
Product Overview
The Hauz AFP131 Mini Food Processor is a compact and versatile kitchen appliance designed to simplify your food preparation tasks, including chopping, slicing, shredding, and mixing.
Components
- Motor Base: The main unit containing the motor and control buttons.
- Work Bowl: A 1.5-cup capacity transparent bowl for processing ingredients.
- Lid with Food Pusher: Secures the work bowl and allows for safe addition of ingredients during operation.
- S-Blade: Durable stainless steel blade for chopping and mixing.
- Reversible Disc: Stainless steel disc for slicing and shredding.
Features
- Capacity: 1.5 Cups, ideal for small to medium food preparation tasks.
- Durable Stainless Steel Blades: Includes a reversible disc for slicing/shredding and a multi-use S-blade for chopping.
- One-Touch Pulse: Allows for precise control over processing, ensuring desired consistency.
- Food Pusher: Assists in guiding food through the funnel for even processing.
- Safety Lock: Ensures the blade remains stationary until the cover is correctly placed and locked, enhancing user safety.
- Dishwasher Safe Parts: Detachable parts are designed for easy cleaning.

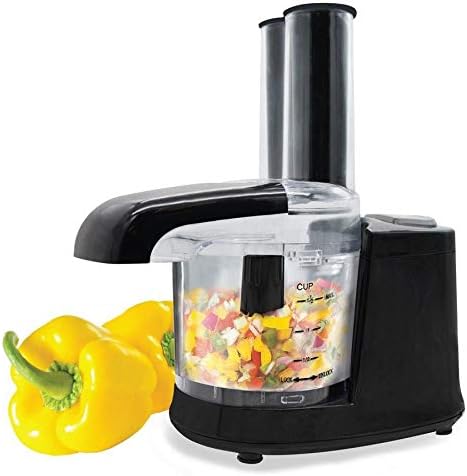

Image: Hauz AFP131 Mini Food Processor in operation, demonstrating its compact design and ability to process vegetables.

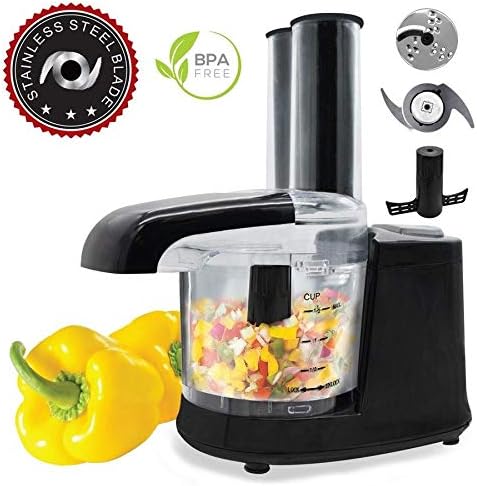

Image: Hauz AFP131 Mini Food Processor showcasing its stainless steel blades, reversible disc, and BPA-free components.
Setup
Follow these steps to set up your food processor for first-time use or after cleaning:
- Unpack: Carefully remove all components from the packaging.
- Wash Parts: Wash the work bowl, lid, S-blade, and reversible disc in warm, soapy water or place them in the dishwasher. Rinse thoroughly and dry.
- Assemble Work Bowl: Place the work bowl onto the motor base, ensuring it is securely seated and locked into position.
- Attach Blade/Disc: Carefully place the desired blade (S-blade for chopping/mixing or reversible disc for slicing/shredding) onto the center post of the work bowl.
- Secure Lid: Place the lid onto the work bowl and twist clockwise until it locks into place. The safety lock mechanism will prevent operation if the lid is not properly secured.
- Plug In: Connect the power cord to a standard electrical outlet.
Operating Instructions
General Operation
Before operating, ensure the food processor is correctly assembled and the lid is securely locked. The safety lock prevents the motor from starting if components are not properly aligned.
Chopping (using S-Blade)
- Place the S-blade onto the center post of the work bowl.
- Add ingredients to the work bowl. Do not overfill beyond the maximum fill line.
- Secure the lid and ensure it is locked.
- Press and hold the 'Pulse' button for short bursts until desired consistency is achieved. For continuous operation, press the 'On' button.
- Once processing is complete, release the button, unplug the unit, and carefully remove the lid and S-blade before emptying the work bowl.
Slicing and Shredding (using Reversible Disc)
- Place the reversible disc onto the center post of the work bowl, ensuring the desired side (slicing or shredding) is facing up.
- Secure the lid and ensure it is locked.
- Turn on the food processor.
- Place ingredients into the feed chute and use the food pusher to guide them through the disc. Apply gentle, even pressure.
- Once processing is complete, turn off the unit, unplug, and carefully remove the lid and disc before emptying the work bowl.
Mixing (using S-Blade)
- Place the S-blade onto the center post of the work bowl.
- Add ingredients to the work bowl.
- Secure the lid and ensure it is locked.
- Use the 'Pulse' button for quick mixing or the 'On' button for continuous blending until ingredients are thoroughly combined.
- Once mixing is complete, release the button, unplug the unit, and carefully remove the lid and S-blade before emptying the work bowl.
Maintenance and Cleaning
Proper cleaning and maintenance will ensure the longevity and optimal performance of your food processor.
- Always Unplug: Before cleaning, always ensure the food processor is unplugged from the power outlet.
- Dishwasher Safe Parts: The work bowl, lid, S-blade, and reversible disc are dishwasher safe (top rack recommended).
- Hand Washing: If hand washing, use warm, soapy water. Handle blades with extreme care as they are very sharp.
- Motor Base: Wipe the motor base with a damp cloth. Do not immerse the motor base in water or any other liquid.
- Storage: Store the food processor in a dry place, ensuring all parts are clean and dry before storage.
Troubleshooting
If you encounter issues with your food processor, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Lid not properly secured or safety lock not engaged. | Ensure the work bowl and lid are correctly assembled and locked into place. |
| Food not processing evenly. | Too much food in the bowl or ingredients are too large. | Process smaller batches. Cut large ingredients into smaller, uniform pieces. Use the pulse function for better control. |
| Motor sounds strained. | Overloading the motor. | Reduce the amount of food in the work bowl. Ensure ingredients are not too hard or dense for the appliance. |
Specifications
- Brand: Hauz
- Model: AFP131
- Capacity: 1.5 Cups
- Power/Wattage: 100 Watts
- Voltage: 120 Volts, 60 Hz
- Material: Stainless Steel blades, BPA-free plastic components
- Special Features: Safety Lock, Reversible Disc, Multi-use S-Blade
- Product Care: Dishwasher Safe (removable parts)
- Item Weight: Approximately 1 kg
Warranty and Support
For detailed warranty information, product registration, or technical support, please visit the official Hauz website or contact their customer service department. Please retain your purchase receipt as proof of purchase for any warranty claims.
