Introduction
This manual provides detailed instructions for the safe assembly, operation, and maintenance of your Sunnyglade 10x10ft Cantilever Patio Umbrella. Please read all instructions carefully before use and retain this manual for future reference.
Image: The Sunnyglade 10x10ft Cantilever Patio Umbrella in blue, shown fully open in an outdoor setting.
Safety Information
- Umbrella Base Not Included: This umbrella requires a heavy-duty base for stability. The umbrella cannot stand alone. Ensure you use an appropriate weighted base (e.g., water/sand filled base or paving stones) to prevent tipping.
- Wind Conditions: Always close the canopy when windy or during adverse weather conditions to prevent damage to the umbrella and potential injury.
- Assembly: While assembly is generally straightforward, it is recommended to have a second person assist with lifting and securing the umbrella to the base due to its size and weight.
- Placement: Position the umbrella on a flat, stable surface.
Components
Before assembly, ensure all components are present and undamaged. Refer to the diagram below for identification.

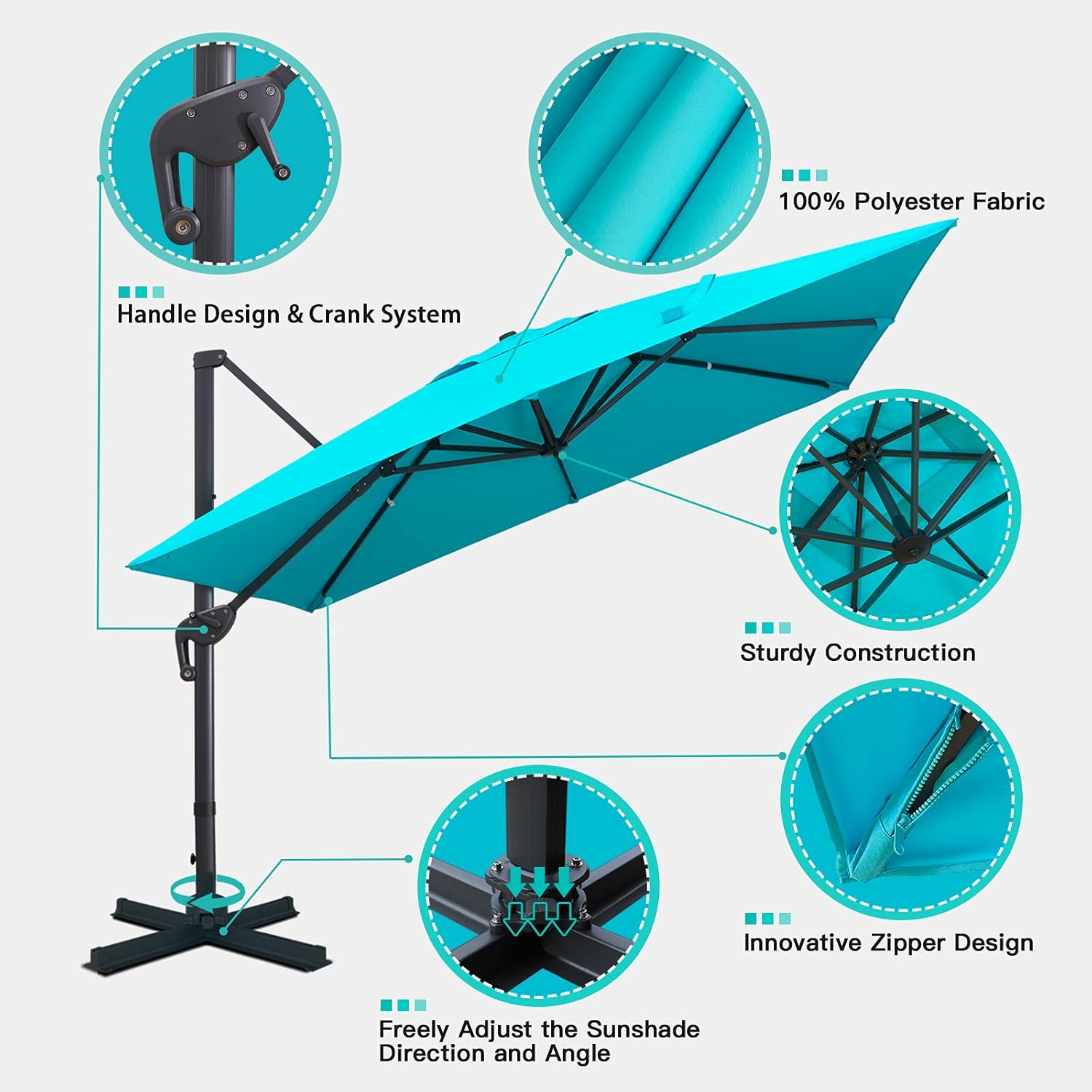

Image: Exploded view highlighting key features: handle and crank system, 100% polyester fabric, sturdy ribs, innovative zipper design, and the ability to adjust sunshade direction and angle.
- Canopy: Made of 250/gsm polyester fabric with PA coating, fade and sun resistant, waterproof. Features an innovative long zipper design on the four corners.
- Main Pole: Heavy-duty aluminum pole.
- Ribs: 8 aluminum ribs for stronger support.
- Crank System: For easy opening and closing of the canopy.
- Handle Design: Integrated with the crank system for operation.
- Cross Base: Welded metal, powder-coated for rust and corrosion resistance. (Note: Requires additional weights, not included).
- Triangular Structure: Upgraded design for enhanced stability.
Assembly Instructions
Assembly typically takes a few minutes with the provided tools. A second person is recommended for certain steps.
- Prepare the Base: Place the cross base in your desired location. Ensure the surface is level and stable. Fill your separate umbrella base weights (not included) with sand or water and secure them to the cross base. This is crucial for stability.
- Attach the Main Pole: Carefully lift the main pole and insert it into the designated slot on the weighted base. Secure it using the provided bolts or locking mechanism. Assistance from another person is highly recommended for this step due to the weight of the pole and umbrella.
- Attach the Canopy Arm: Connect the cantilever arm, which holds the canopy, to the main pole. Ensure all connections are tight and secure.
- Open the Canopy: Use the crank system to slowly extend and open the umbrella canopy.
Image: Visual guide demonstrating the 4 adjustable height levels of the umbrella.
Image: Diagram showing the 360-degree rotation capability of the umbrella.
Operating Instructions
- Opening and Closing: Use the integrated crank system on the main pole to smoothly open and close the umbrella canopy. Turn the crank handle clockwise to open and counter-clockwise to close.
- 360° Rotation: To rotate the umbrella horizontally, step on the foot pedal located at the base of the main pole. While holding the pedal down, gently twist the pole to the desired direction. Release the pedal to lock the umbrella in place.
- Adjustable Tilt: The umbrella features a 4-level adjustable tilt operation system. Use the handle or lever on the main pole to adjust the angle of the canopy, allowing you to maximize shade as the sun moves throughout the day.
Video: Demonstrates the features of the Sunnyglade Cantilever Offset Patio Umbrella, including its sturdy construction, fabric, crank design, 360-degree rotation, and 4 adjustable height levels.
Maintenance
- Cleaning the Canopy: Clean the polyester canopy with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Avoid harsh chemicals.
- Frame Care: Wipe the aluminum frame with a damp cloth. The powder-coated finish helps resist rust and corrosion.
- Storage: For prolonged periods of non-use or during severe weather, it is recommended to close the umbrella and use a protective cover. Store in a dry, sheltered area during winter months to preserve its condition.
- Inspections: Periodically check all bolts and connections to ensure they remain tight and secure.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Umbrella is unstable or tips over easily. | Insufficient weight on the base. | Ensure the cross base is adequately weighted with sand or water-filled base weights (not included). This umbrella requires a substantial base to prevent tipping. |
| Canopy does not open or close smoothly. | Crank mechanism obstruction or damage. | Check for any debris or obstructions in the crank mechanism. Apply a silicone-based lubricant if necessary. If damaged, contact customer support. |
| Canopy sways excessively in light breeze. | Loose connections or inadequate base weight. | Verify all assembly bolts are tightened. Re-evaluate the weight of your umbrella base. Consider adding more weight if needed. Always close the umbrella in windy conditions. |
Specifications
- Brand: Sunnyglade
- Model: 10x10Ft Cantilever Patio Umbrella
- Product Dimensions: 120 x 0.01 x 105.6 inches (10 x 10 ft canopy)
- Item Weight: 56.4 pounds (without weighted base)
- Canopy Material: 250/gsm Polyester fabric with PA coating
- Frame Material: Aluminum (Shaft, Handle, Frame)
- Color: Blue (as per current variant)
- Special Features: 360° Rotation, 4-level Adjustable Tilt, Crank System, Multifunctional Vent Design
- Recommended Use: Patio, Garden, Deck, Poolside
Image: Detailed dimensions of the 10x10ft umbrella, including canopy size and overall height.
Warranty and Support
For warranty information, technical support, or to inquire about replacement parts, please contact Sunnyglade customer service. Refer to your purchase documentation for specific warranty terms and contact details.
You may also visit the official Sunnyglade store on Amazon for additional product information and support: Sunnyglade Store
