Introduction
This instruction manual provides important information for the safe and effective use of your Intex Comfort Plush Mid-Rise Single Airbed. Please read it thoroughly before setup and operation, and retain it for future reference.
This airbed is ideal for new living situations or unexpected guests. It features a comfortable texture and excellent durability.
Safety Warnings
- Infants: Do not let infants sleep on the airbed. There is a risk of suffocation.
- Individuals with Disabilities: Individuals with physical disabilities should not use this product. Compared to a regular bed, it is unstable and there is a risk of injury.
- Obstacles: Do not place obstacles around the airbed. There is a risk of injury if you fall off the bed.
- Floor Surface: Please check that there are no foreign objects on the floor where the bed is placed. Sharp objects may cause scratches or damage.
- Pets: Do not use in rooms with pets. Pet claws may cause scratches.
- Overinflation: Do not overinflate the airbed.
- Rough Use: Do not forcefully get on or jump on the airbed.
Package Contents
- Airbed x1
- Carry bag x1
- Repair patch (included with Japanese instruction manual)
Specifications
| Model | 67765JC |
| Color | Gray |
| Size (Inflated) | Single (TWIN) - Width 99 cm x Length 191 cm x Thickness 33 cm |
| Product Dimensions | 191 x 99 x 33 cm |
| Weight | 5.8 kg |
| Load Capacity | Approximately 136 kg |
| Material | Polyester, Polyvinyl chloride (PVC) for main body; ABS, PP, Steel for pump |
| Inflation Time (AC Power) | Approximately 2 minutes |
| Country of Origin | China |
Setup
Follow these steps to set up your Intex Comfort Plush Mid-Rise Single Airbed:
- Unpack: Remove the airbed from its carry bag and unroll it on a clean, flat surface free of sharp objects.
- Positioning: Ensure the airbed is positioned where you intend to use it, allowing enough space around it for safety.
- Connect Power: Locate the integrated electric pump. Plug the AC power cord into a standard electrical outlet.
- Inflate: Slide the pump switch to the 'Inflate' position (usually indicated by an 'air in' symbol or an arrow pointing towards the bed). The airbed will begin to inflate automatically.
Image: Intex Comfort Plush Mid-Rise Single Airbed fully inflated with a person lying on it, demonstrating its use.
Image: Intex Comfort Plush Mid-Rise Single Airbed fully inflated with a person sitting on the edge, showing its height and stability.

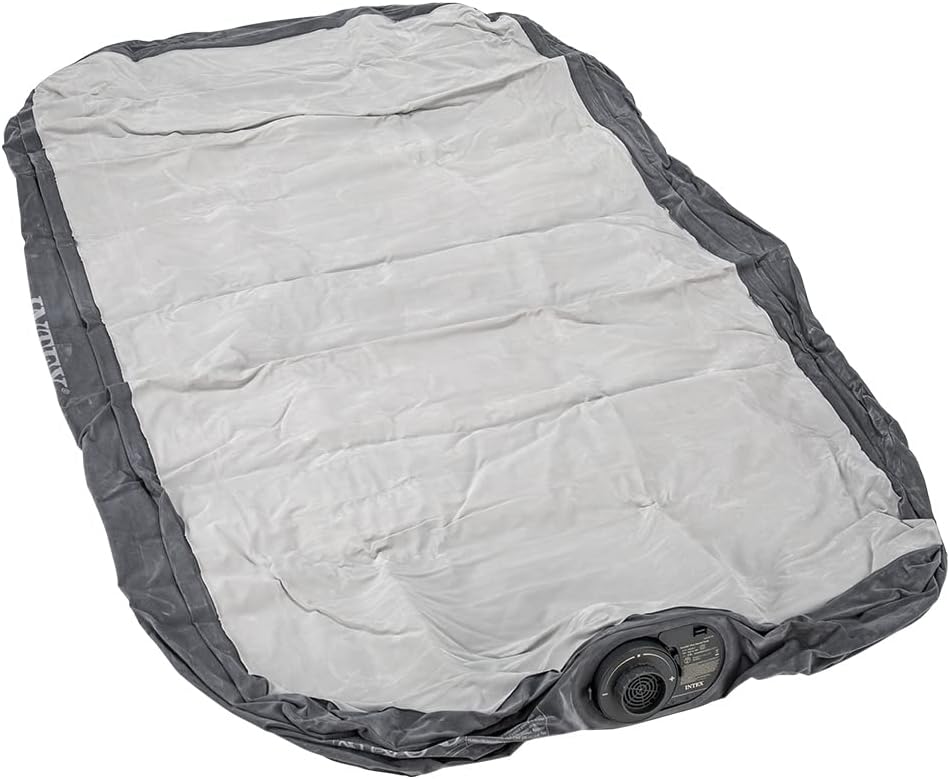

Image: Underside view of the Intex airbed, highlighting the integrated electric pump and valve system for inflation and deflation.
Operating Instructions
Inflation
The airbed features an integrated electric pump for quick and easy inflation. The AC power inflation time is approximately 2 minutes for a single size.
- Ensure the airbed is laid flat and connected to power.
- Locate the pump control dial/switch.
- Slide the switch to the left (towards the 'air in' symbol) to begin inflation.
- Once the desired firmness is reached, slide the switch to the 'OFF' position to stop the pump.

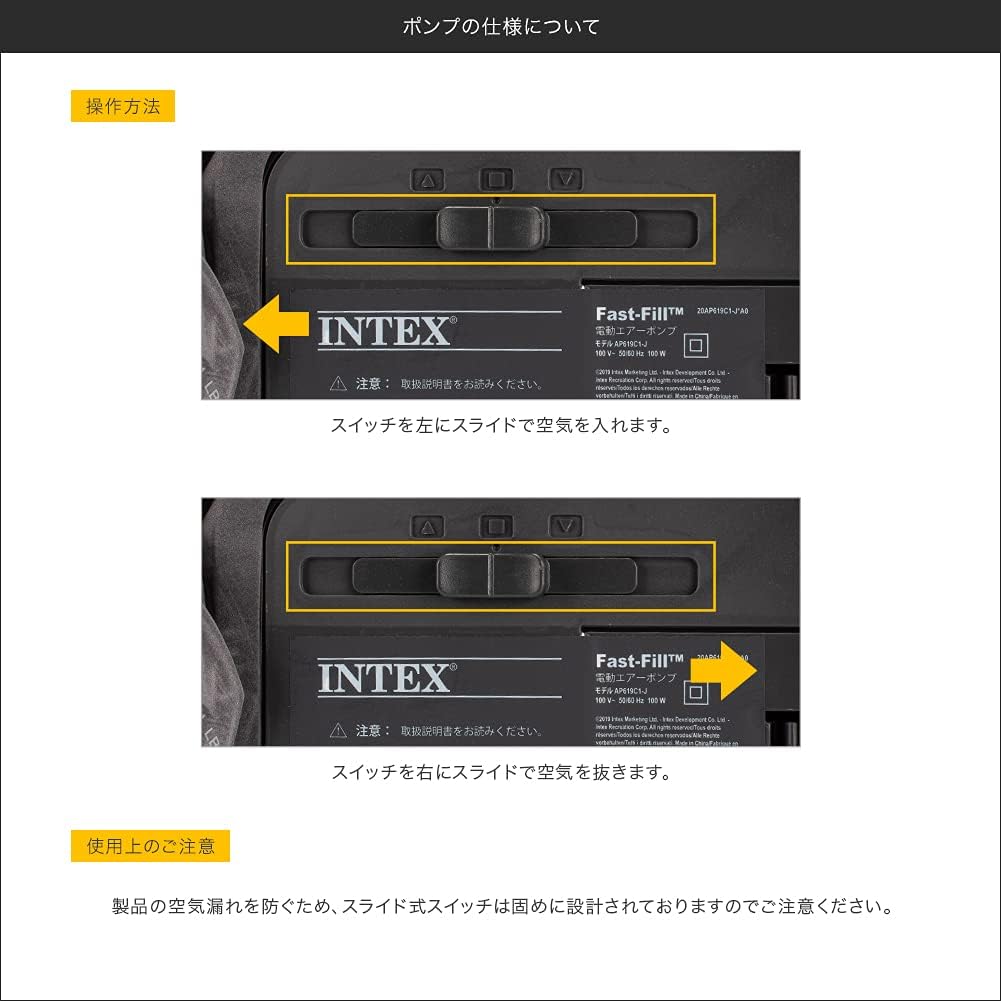

Image: Close-up of the Intex airbed's integrated pump control, illustrating how to slide the switch to the left for inflation.
Deflation
To deflate the airbed for storage or adjustment:
- Ensure the airbed is connected to power.
- Locate the pump control dial/switch.
- Slide the switch to the right (towards the 'air out' symbol) to begin deflation. The pump will actively remove air from the mattress.
- Once fully deflated, slide the switch to the 'OFF' position and unplug the power cord.
Image: Close-up of the Intex airbed's integrated pump control, illustrating how to slide the switch to the right for deflation.
Adjusting Firmness
You can adjust the firmness of the airbed by controlling the inflation time. For a softer feel, stop the pump earlier. For a firmer feel, allow the pump to run longer until the desired firmness is achieved. Always ensure not to overinflate.
Maintenance
Proper maintenance will extend the life of your airbed:
- Cleaning: Clean the airbed surface with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Ensure the airbed is completely dry before storing.
- Repairs: In case of small punctures, use the included repair patch. Clean the area around the puncture, apply the patch firmly, and allow it to cure for several hours before reinflating.
Image: Close-up of a repair patch, demonstrating how to use it for minor repairs on the airbed.
Storage
To store your airbed:
- Deflate Completely: Ensure the airbed is fully deflated using the integrated pump.
- Fold: Fold the airbed neatly to remove any remaining air and to make it compact.
- Store in Carry Bag: Place the folded airbed into the provided carry bag. Store in a cool, dry place away from direct sunlight and extreme temperatures.
Image: The Intex airbed folded and rolled up, illustrating its compact form for storage.
Image: A person carrying the Intex airbed in its dedicated carry bag, demonstrating its portability.
Troubleshooting
If you encounter issues with your Intex airbed, consider the following:
- Air Leakage: Check for punctures or loose valve caps. Use the provided repair patch for small holes. Ensure the pump switch is in the 'OFF' position when not inflating or deflating.
- Pump Not Working: Verify the power cord is securely plugged into both the airbed and a working electrical outlet. Check for any obstructions in the pump's air intake/exhaust.
- Uneven Inflation: Ensure the airbed is laid flat on an even surface during inflation. Adjust firmness as needed by adding or releasing small amounts of air.
Warranty and Support
This Intex airbed comes with a 90-day warranty from a domestic authorized distributor. For warranty claims or further support, please contact the authorized distributor or refer to the contact information provided with your product packaging.
