1. Introduction
Thank you for choosing the Cartrend 10687 COB Mini LED Extendable Camping Lantern. This compact and versatile lantern is designed to provide reliable illumination for various outdoor activities such as camping, hiking, or as an emergency light during power outages. Its extendable design and powerful COB LED ensure optimal brightness and portability.
2. Safety Instructions
- Do not look directly into the LED light source to avoid eye injury.
- Keep the lantern away from water and moisture unless specified as waterproof. This model is rated as waterproof.
- Do not attempt to disassemble or modify the lantern beyond battery replacement.
- Use only the specified battery type (AAA) and ensure correct polarity during installation.
- Remove batteries if the lantern will not be used for an extended period to prevent leakage.
- Keep out of reach of children.
3. Package Contents
Please check the package for the following items:
- 1 x Cartrend 10687 COB Mini LED Extendable Camping Lantern
- 3 x AAA Batteries (pre-installed or included separately)
4. Product Overview

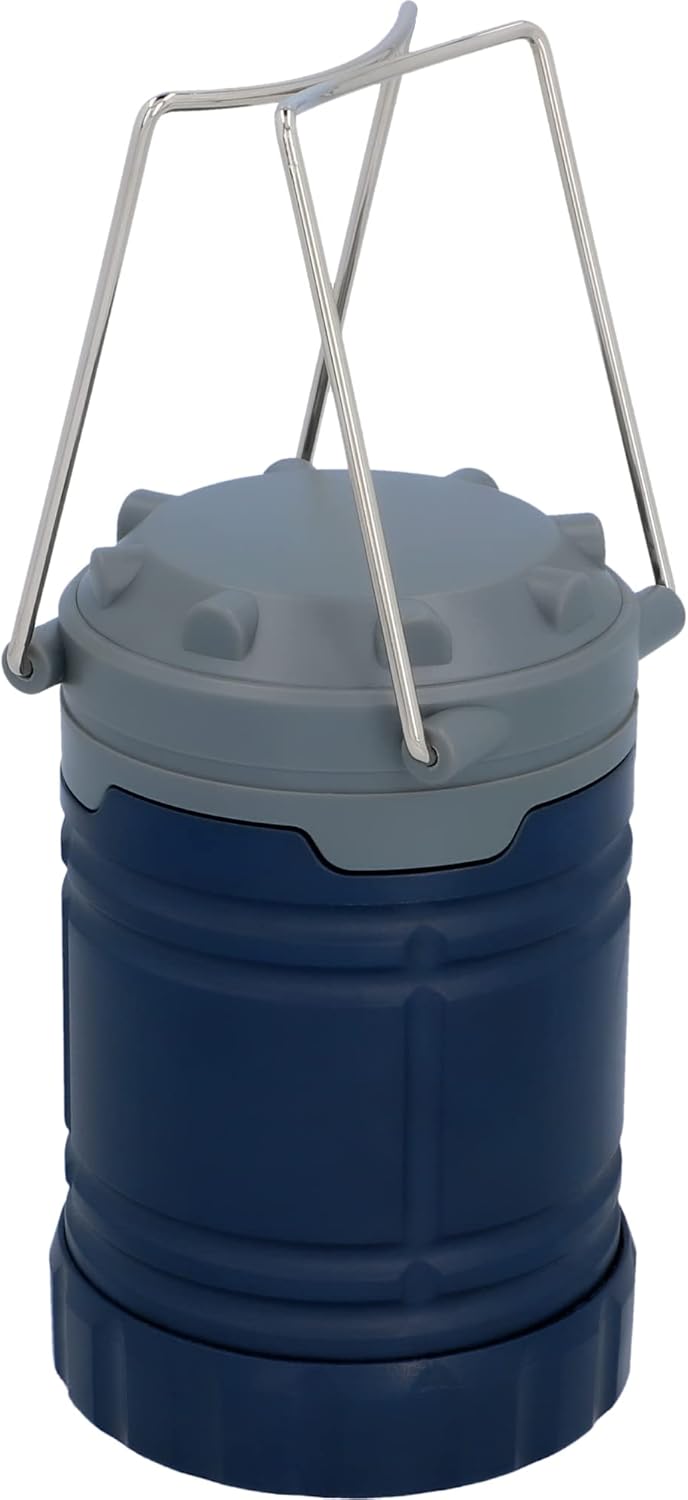

The Cartrend 10687 lantern features a compact, extendable design with a powerful COB LED for bright, uniform illumination. It includes a practical carrying handle for easy transport and hanging.
5. Setup
5.1 Battery Installation
- Ensure the lantern is in its collapsed (off) position.
- Locate the battery compartment cover at the bottom of the lantern.
- Twist the cover counter-clockwise to unlock and remove it.
- Insert 3 AAA batteries, ensuring the correct positive (+) and negative (-) polarity as indicated inside the compartment.
- Replace the battery compartment cover and twist clockwise to secure it.
6. Operating Instructions
6.1 Turning On/Off
- To turn on the lantern, gently pull the top section upwards from the base. The COB LED light will automatically illuminate as the lantern extends.
- To turn off the lantern, push the top section back down into the base until it is fully collapsed. The light will automatically turn off.
6.2 Using the Carrying Handle
- The metal handle can be used to carry the lantern or to hang it from a hook, branch, or tent ceiling for overhead lighting.
- When not in use, the handle can be folded down for compact storage.
7. Maintenance
- Cleaning: Wipe the exterior of the lantern with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Battery Care: Replace all three AAA batteries simultaneously when the light dims. Do not mix old and new batteries or different battery types.
- Storage: Store the lantern in a cool, dry place. If storing for an extended period, remove the batteries to prevent corrosion.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lantern does not turn on. | Batteries are dead or incorrectly installed. | Replace batteries with new ones, ensuring correct polarity. |
| Light is dim. | Batteries are low. | Replace batteries with new ones. |
| Lantern does not extend/retract smoothly. | Dirt or debris in the mechanism. | Gently clean the sliding parts. Do not force the mechanism. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Cartrend |
| Model Number | 10687 |
| Light Source Type | COB LED (Light Emitting Diode) |
| Brightness | 100 Lumens |
| Wattage | 3 Watts |
| Voltage | 4.5 Volts |
| Power Source | Battery Powered |
| Batteries Required | Yes |
| Batteries Included | Yes (3 x AAA Alkaline) |
| Battery Life | Approximately 4 hours |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Color | Blue |
| Finish Type | Brute |
| Product Dimensions (L x W x H) | 11 x 7.5 x 7.5 cm (collapsed) |
| Item Weight | 170 grams |
| Water Resistance Level | Waterproof |
10. Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact Cartrend customer service directly. Keep your proof of purchase for any warranty claims.
