Dorman 976-926 Rear Drive Shaft Instruction Manual

1. Product Overview

The Dorman 976-926 Rear Drive Shaft is a complete assembly designed for direct replacement in specified Ford Transit vehicles. This unit is manufactured from high-precision, drawn over mandrel (DOM) seamless steel tubing, offering superior concentricity, uniform wall thickness, and enhanced torsional strength and dent resistance compared to standard welded steel shafts. It includes new yokes, CV joints, and U-joints, ensuring a complete and reliable replacement solution.

This drive shaft is compatible with the following vehicles:

• Ford Transit-150: 2015, 2016, 2017, 2018, 2019
• Ford Transit-250: 2015, 2016, 2017, 2018, 2019
• Ford Transit-350 HD: 2015, 2016, 2017, 2018, 2019
• Ford Transit-350: 2015, 2016, 2017, 2018, 2019

Figure 1: Overview of Dorman Drive Shaft components.

2. Setup and Installation

This Dorman drive shaft assembly is delivered fully assembled and dynamically pre-balanced, ready for installation. Professional installation is recommended due to the complexity and safety critical nature of drive shaft replacement.

2.1 Pre-Installation Checks

• Vehicle Fitment: Before beginning installation, confirm that this drive shaft (model 976-926) is the correct part for your specific vehicle year, make, and model. Refer to the compatibility list in Section 1.
• Inspect Packaging: The assembly ships in protective foam-in-place packaging. Inspect the packaging and the drive shaft for any signs of shipping damage before installation.
• Required Tools: Ensure you have all necessary tools for safe removal of the old drive shaft and installation of the new one, including appropriate wrenches, sockets, and lifting equipment.

2.2 Installation Steps (General Guidelines)

1. Safely lift and support the vehicle on a level surface.
2. Mark the orientation of the original drive shaft to the differential and transmission flanges (if applicable) to aid in proper alignment during reassembly.
3. Remove the bolts securing the old drive shaft to the differential and transmission flanges.
4. Carefully remove the old drive shaft from the vehicle.
5. Clean the mating surfaces on the differential and transmission flanges.
6. Align the new Dorman 976-926 drive shaft with the differential and transmission flanges. Ensure proper seating of the yokes and splines.
7. Install new bolts (if provided, or use appropriate hardware) and torque them to the vehicle manufacturer's specifications.
8. Lower the vehicle and perform a test drive to check for proper operation and absence of vibrations or unusual noises.

Figure 2: Drive shaft yoke and associated mounting hardware.

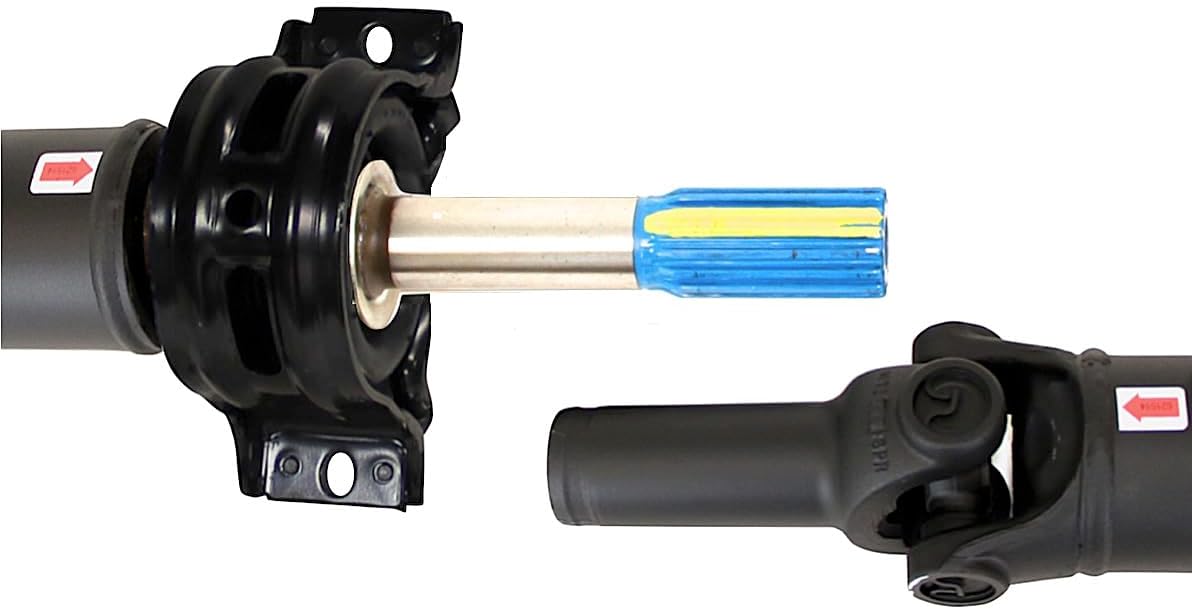

Figure 3: Detailed view of the drive shaft spline connection.

3. Operating Principles

The drive shaft is a critical component of your vehicle's drivetrain, responsible for transmitting torque from the transmission to the differential, which then powers the wheels. The Dorman 976-926 drive shaft is designed to operate smoothly and efficiently under various driving conditions, ensuring consistent power delivery and vehicle stability. Its balanced construction minimizes vibrations during operation.

Figure 4: End view of the Dorman drive shaft.

4. Maintenance

The Dorman 976-926 Rear Drive Shaft is designed for long-term, maintenance-free operation. However, periodic inspection of the drive shaft and its components is recommended as part of your vehicle's routine maintenance schedule.

4.1 Inspection Points

• U-Joints and CV Joints: Check for any signs of wear, looseness, or excessive play. Look for damaged or missing dust boots, which can lead to contamination and premature failure.
• Center Support Bearing: If applicable to your vehicle's configuration, inspect the center support bearing for cracks in the rubber insulator or excessive play.
• Shaft Tubing: Examine the drive shaft tubing for dents, bends, or corrosion.
• Mounting Hardware: Ensure all bolts securing the drive shaft are tight and free from corrosion.

Any signs of damage or excessive wear should be addressed promptly by a qualified technician.

Figure 5: Drive shaft with center support bearing assembly.

Figure 6: Example of a U-joint, a key component for inspection.

5. Troubleshooting Common Issues

If you experience issues after drive shaft replacement, consider the following common problems and potential causes:

• Vibration:
  • Cause: Improper installation, loose mounting bolts, incorrect drive shaft angle, or damage during installation.
  • Solution: Re-check all mounting bolts for proper torque. Verify drive shaft alignment and angles. Inspect for any new damage.
• Clunking or Clicking Noises:
  • Cause: Loose U-joints or CV joints, worn splines, or loose mounting hardware.
  • Solution: Inspect U-joints and CV joints for play. Ensure all fasteners are tight.
• Squeaking or Chirping Noises:
  • Cause: Dry or worn U-joints (less likely with new assembly but possible if boots are damaged).
  • Solution: Inspect U-joint boots for damage and ensure proper lubrication if applicable.

If troubleshooting steps do not resolve the issue, consult a certified automotive technician.

6. Specifications

7. Warranty Information

The Dorman 976-926 Rear Drive Shaft is balance-checked and backed by a limited lifetime warranty. For specific terms, conditions, and claim procedures, please refer to the official Dorman warranty documentation available on the manufacturer's website or contact Dorman customer support directly.
