1. Introduction
The Marmitek View ME is an indoor Wi-Fi camera designed for remote monitoring of your home. It offers Full HD 1080p video, motion detection, two-way audio communication, and infrared night vision. This camera integrates seamlessly with the Smart me application, allowing you to control and monitor your home from your smartphone or tablet.
2. Package Contents
Verify that all items are present in the package:
- Marmitek View ME Indoor Wi-Fi Camera
- Power Adapter
- USB Cable
- Mounting Accessories (if applicable, not explicitly listed but common)
- Instruction Manual (this document)
Image: The Marmitek View ME product box, showing the camera and branding.
3. Product Overview
Familiarize yourself with the different parts of your Marmitek View ME camera.
Front View

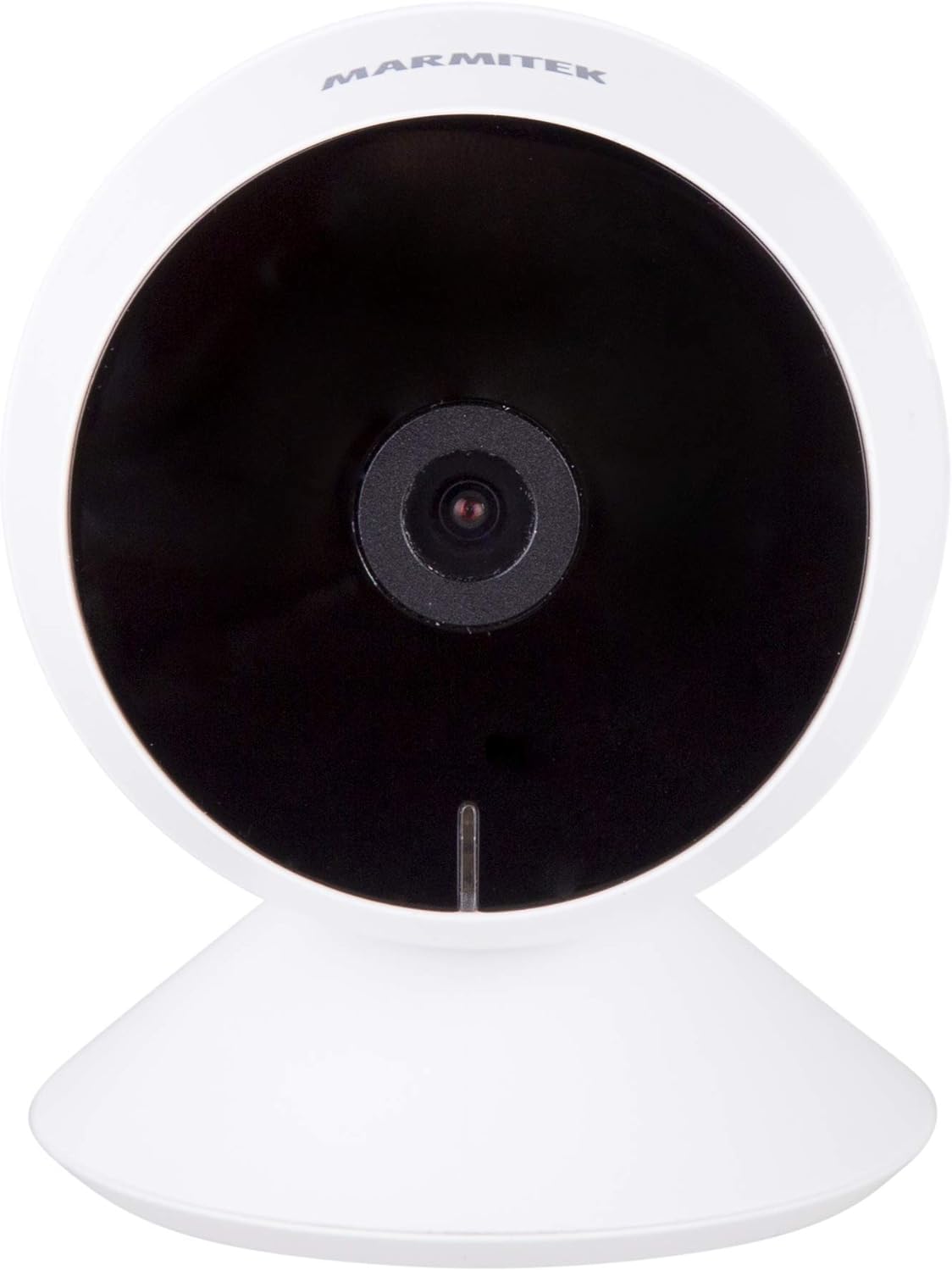

Image: Front view of the Marmitek View ME camera, showing the lens and indicator light.
Side View
Image: Side view of the Marmitek View ME camera, highlighting its compact design.
Rear View
Image: Rear view of the Marmitek View ME camera, showing the micro-USB port, speaker, and reset button.
4. Setup
4.1 Placement
Position the camera in a central location within the area you wish to monitor. Ensure it has a clear line of sight and is within range of your Wi-Fi network. The camera is designed for indoor use and can be placed on a desk, shelf, or mounted on a wall or ceiling.
Image: The Marmitek View ME camera discreetly placed on a shelf in a living room environment.
4.2 Power Connection
- Connect the USB cable to the micro-USB port on the back of the camera.
- Plug the other end of the USB cable into the provided power adapter.
- Insert the power adapter into a standard electrical outlet.
- The camera will power on, and an indicator light will illuminate.
Image: The Marmitek View ME camera connected to its power adapter via a USB cable.
4.3 App Installation and Account Creation
The Marmitek View ME camera operates with the Smart me application. No gateway or additional software is required.
- Download the Smart me app from the App Store (iOS) or Google Play Store (Android).
- Open the app and follow the on-screen instructions to create a new account or log in if you already have one.
Image: The Smart me application logo, featuring a Wi-Fi symbol.
4.4 Connecting to Wi-Fi
- Ensure your smartphone is connected to a 2.4 GHz Wi-Fi network. The camera does not support 5 GHz networks.
- In the Smart me app, tap the "+" icon to add a new device.
- Select "Camera" or the specific model if listed.
- Follow the in-app instructions to put the camera into pairing mode (usually indicated by a flashing light). You may need to press the reset button on the camera.
- Enter your Wi-Fi network password when prompted.
- The app will generate a QR code. Hold your phone with the QR code in front of the camera lens at a distance of 15-20 cm until you hear a confirmation sound from the camera.
- Once connected, the camera's indicator light will change, and you will see the camera added to your Smart me app.
4.5 SD Card Installation (Optional)
The camera supports local storage via an SD card (not included) for recording videos.
- Locate the SD card slot on the camera (refer to the product overview images).
- Gently insert a compatible microSD card (Class 10 or higher, up to 128GB recommended) into the slot with the contacts facing down until it clicks into place.
- In the Smart me app, navigate to the camera settings to format the SD card before first use.
5. Operating Instructions
5.1 Live View
Open the Smart me app and select your View ME camera from the device list to access the live video feed. You can view real-time footage from anywhere with an internet connection.
Image: A person interacting with the Smart me application on a smartphone, demonstrating remote access.
5.2 Two-Way Audio
The camera features an integrated speaker and microphone for two-way communication. While in live view, tap the microphone icon in the app to speak through the camera, and listen to audio from the camera's surroundings.
5.3 Motion Detection & Notifications
The integrated motion detector can alert you to activity. Configure motion detection settings and notification preferences within the Smart me app. You will receive push notifications on your smartphone when motion is detected.
5.4 Recording & Playback
If an SD card is installed, the camera can record video footage. You can set the camera to record continuously, on motion detection, or manually. Access recorded videos through the playback function in the Smart me app.
5.5 Night Vision
The camera is equipped with infrared night vision, providing clear video footage up to 10 meters in low-light or dark conditions. This feature activates automatically when ambient light is insufficient.
5.6 Smart Home Integration
The Marmitek View ME camera is part of the Smart me ecosystem. You can link it with other Smart me products to create automated scenarios. For example, configure a rule to turn on a connected light bulb when the camera detects motion.
Image: A diagram illustrating the interconnectedness of various Smart me devices, including the camera, within a smart home setup.
6. Maintenance
6.1 Cleaning
To clean the camera, gently wipe the lens and exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners, as these can damage the device.
6.2 Firmware Updates
Periodically check the Smart me app for available firmware updates. Keeping your camera's firmware up-to-date ensures optimal performance and security.
6.3 SD Card Management
If using an SD card for storage, regularly check its status in the app. Format the card periodically to maintain performance and free up space, or replace it if it becomes corrupted or full.
7. Troubleshooting
- Camera not connecting to Wi-Fi: Ensure your Wi-Fi network is 2.4 GHz. Check Wi-Fi password. Move the camera closer to the router. Try resetting the camera by pressing the reset button for 5 seconds.
- No live view: Check your internet connection and the camera's power supply. Ensure the camera is online in the Smart me app.
- Motion detection not working: Verify that motion detection is enabled in the app settings. Adjust sensitivity levels. Ensure the camera's view is not obstructed.
- Two-way audio issues: Check your phone's microphone and speaker permissions for the Smart me app. Ensure the camera's microphone and speaker are not obstructed.
- SD card not recording: Ensure the SD card is correctly inserted and formatted within the app. Check if the card is full or corrupted.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | 08528 |
| Dimensions (L x W x H) | 7.8 x 6 x 6 cm |
| Weight | 240 grams |
| Video Resolution | Full HD 1080p |
| Connectivity | Wi-Fi (2.4 GHz only) |
| Night Vision Range | Up to 10 meters (Infrared) |
| Audio | Two-way (Built-in microphone and speaker) |
| Storage | MicroSD card (up to 128GB, not included) |
| Power Source | AC/DC (230 Volts, 2.5 Watts) |
| Indoor/Outdoor Use | Indoor |
| IP Rating | IP54 |
| Compatible Devices | Smartphone, Tablet (iOS, Android) |
9. Safety Information
- Use only the provided power adapter and cable.
- Do not expose the camera to water or moisture.
- Avoid placing the camera near heat sources or in direct sunlight for extended periods.
- Do not attempt to disassemble or repair the camera yourself. Contact support for assistance.
- Keep the camera out of reach of children and pets.
10. Warranty and Support
Marmitek products are manufactured to high quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Marmitek website. For technical support, troubleshooting assistance, or further inquiries, please contact Marmitek customer service through their official channels.
