Introduction
The Streamlight TLR-9 Flex is a low-profile, rail-mounted tactical light designed for full-frame weapons. It features a powerful LED, ambidextrous rear switches, and a durable aluminum construction. This manual provides essential information for the safe and effective use of your TLR-9 Flex.
Image: Front angled view of the Streamlight TLR-9 Flex Tactical Light, showcasing its compact design and integrated rail mount.
Setup
1. Battery Installation
- Ensure the light is in the "Safe off" position by unscrewing the bezel until you feel it stop. This prevents accidental activation and conserves battery life.
- Insert two CR123A lithium batteries into the battery compartment, observing the correct polarity as indicated inside the light.
- Securely screw the bezel back into place.
Note: Only use CR123A lithium batteries. Always dispose of used batteries responsibly.
2. Rail Mounting
The TLR-9 Flex features a rail clamp designed for rapid attachment and detachment from full-frame weapons. A key kit is included to ensure proper fitment on various rail types.
- Select the appropriate key from the included kit that matches your weapon's rail system.
- Loosen the rail clamp screw on the TLR-9 Flex.
- Align the light with the rail and slide it into position. Ensure the selected key engages with the rail slot.
- Tighten the rail clamp screw firmly to secure the light. Do not overtighten.
Image: The Streamlight TLR-9 Flex Tactical Light securely mounted on the rail of a firearm, demonstrating its low-profile integration.
3. Switch Installation (High/Low Options)
The TLR-9 Flex comes with interchangeable high and low ambidextrous rear switches to customize the ergonomic feel based on your shooting style.
- Identify the currently installed switch type (High or Low).
- To change, carefully remove the existing switch by following the instructions provided in the detailed diagram (if available) or by gently prying it off.
- Align the desired High or Low switch with the contact points and press firmly until it clicks into place.
Image: The High Switch component, offering a more pronounced activation surface.
Image: The Low Switch component, providing a more recessed activation surface.

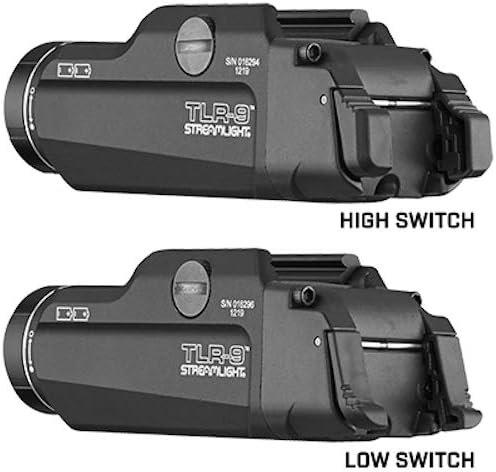

Image: The TLR-9 Flex with the High Switch installed, showing its extended profile.
Image: The TLR-9 Flex with the Low Switch installed, showing its more compact profile.
Operating Instructions
1. Basic Operation
The TLR-9 Flex features ambidextrous rear switches for momentary or constant-on operation.
- Momentary On: Press and hold either rear switch. The light will remain on as long as the switch is held. Release to turn off.
- Constant On: Press and quickly release either rear switch. The light will remain on until the switch is pressed and released again.
2. Strobe Function
The TLR-9 Flex includes a user-enabled strobe function.
- To activate the strobe, rapidly press either rear switch twice (double-tap).
- To deactivate the strobe and return to constant-on mode, press and release either switch once.
The white LED produces 1,000 lumens with 10,000 candela, providing a 200-meter beam distance. Runtime is approximately 1.5 hours in constant-on mode and 3 hours in strobe mode.
Maintenance
1. Battery Replacement
When the light output diminishes, it is time to replace the batteries. Follow the battery installation steps outlined in the Setup section.
2. Cleaning
Regular cleaning will help maintain the performance and longevity of your TLR-9 Flex.
- Wipe the exterior of the light with a soft, damp cloth.
- Clean the lens with a lens cleaning cloth or cotton swab to remove dirt and smudges. Avoid abrasive materials.
- Ensure the O-rings are free of debris and lightly lubricated to maintain water resistance.
3. Storage
When storing the TLR-9 Flex for extended periods, remove the batteries to prevent potential leakage and damage to the device.
Troubleshooting
- Light not turning on: Check battery polarity. Ensure batteries are fresh. Confirm the bezel is fully tightened (out of "Safe off" mode).
- Dim light output: Replace batteries with fresh ones. Clean the lens.
- Intermittent operation: Ensure rail clamp is securely tightened. Check battery contacts for corrosion.
If issues persist, contact Streamlight customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 69464 |
| Light Output (White LED) | 1000 Lumens |
| Candela | 10,000 |
| Beam Distance | 200 meters |
| Runtime (Constant On) | 1.5 hours |
| Runtime (Strobe) | 3 hours |
| Power Source | 2 x CR123A Lithium Batteries (included) |
| Material | 6000 Series Machined Aircraft Aluminum |
| Finish | Black Anodized |
| Dimensions (L x W x H) | 3.87" x 1.18" x 1.27" (9.82 cm x 2.98 cm x 3.22 cm) |
| Item Weight | 4.3 ounces (121.9 grams) |
| Water Resistance Level | Waterproof |
| Included Components | Light, Key Kit, High Switch (Mounted), Low Switch, Batteries |
Image: A diagram illustrating the key dimensions and performance specifications of the Streamlight TLR-9 Flex Tactical Light.
Warranty Information
The Streamlight TLR-9 Flex is covered by a Limited Lifetime Warranty. For specific terms and conditions, please refer to the official Streamlight warranty documentation or their website.
Support
For technical assistance, replacement parts, or warranty claims, please contact Streamlight customer service directly. Visit the official Streamlight website for contact information and additional resources.
