ETA 849645132 Bagless Vacuum Cleaner User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your ETA 849645132 bagless vacuum cleaner. Please read this manual thoroughly before first use and keep it for future reference.

Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Read all instructions before using the appliance.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not vacuum hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not use without dust container and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Store your appliance indoors in a cool, dry area.

Package Contents

Verify that all components are present in the packaging:

• ETA 849645132 Vacuum Cleaner Unit
• Flexible Hose
• Telescopic Tube
• Floor Nozzle
• Accessory Kit (includes crevice tool)
• Power Adapter
• User Manual (this document)

Product Overview

Familiarize yourself with the main parts of your vacuum cleaner.

Figure 1: Main assembly of the ETA 849645132 vacuum cleaner, showing the motor unit, flexible hose, telescopic tube, and floor nozzle.

Figure 2: Side view highlighting the compact design, large wheels for mobility, and the transparent dust container.

Figure 3: Front view displaying the dust container with "OPEN" latch and indicators for HEPA Filter 12 and action radius.

Figure 4: Rear view showing the power cord entry point and the exhaust filter compartment.

Figure 5: Top view illustrating the integrated carrying handle and control buttons (e.g., power, cord rewind).

Setup Instructions

1. Unpack: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
2. Attach Hose: Insert the flexible hose into the suction inlet on the main unit until it clicks securely into place.
3. Assemble Telescopic Tube: Connect the telescopic tube to the handle end of the flexible hose. Adjust the length of the telescopic tube by pressing the release button and sliding it to the desired height.
4. Attach Floor Nozzle: Connect the floor nozzle to the end of the telescopic tube. Ensure it is firmly attached.
5. Power Connection: Extend the power cord from the rear of the unit and plug it into a suitable 220V electrical outlet.

Operating Instructions

1. Power On: Press the power button located on the top of the main unit to start the vacuum cleaner.
2. Adjust Suction (if applicable): If your model features suction control, adjust it according to the surface being cleaned.
3. Vacuuming: Guide the floor nozzle over the surface to be cleaned. For hard floors, ensure the brush is retracted. For carpets, extend the brush (if applicable).
4. Using Accessories: For specific tasks, detach the floor nozzle and attach the crevice tool or other accessories from the kit directly to the telescopic tube or hose handle.
5. Power Off: After use, press the power button to turn off the vacuum cleaner.
6. Cord Rewind: Press the cord rewind button (if available) to automatically retract the power cord. Guide the cord to prevent whipping.

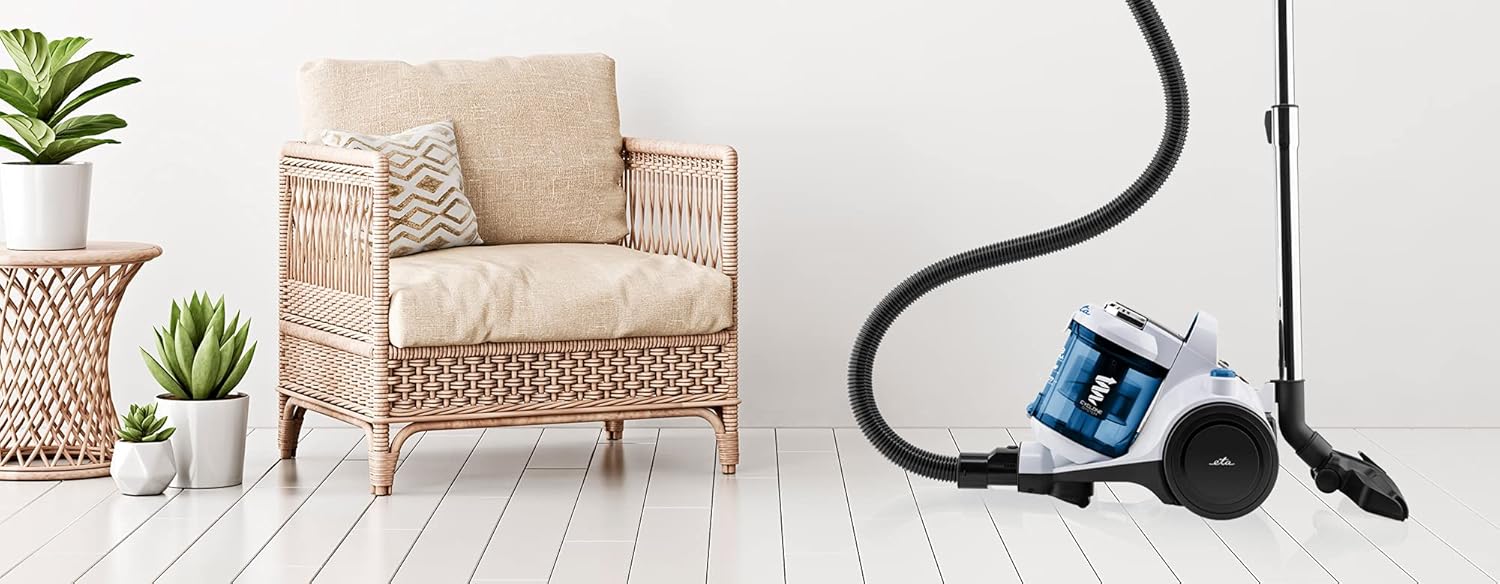

Figure 6: The vacuum cleaner positioned for use on a hard floor, demonstrating its maneuverability.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

Emptying the Dust Container

1. Disconnect Power: Always unplug the vacuum cleaner from the power outlet before performing any maintenance.
2. Remove Dust Container: Locate the "OPEN" latch on the dust container (refer to Figure 3). Press the latch and carefully lift the dust container from the main unit.
3. Empty Contents: Position the dust container over a waste bin. Open the bottom lid of the container (if applicable) or twist to separate sections and empty the collected dust and debris.
4. Clean Container: If necessary, wipe the inside of the dust container with a damp cloth. Ensure it is completely dry before reassembling.
5. Reattach Container: Place the empty dust container back onto the main unit, ensuring it clicks securely into place.

Figure 7: Detailed view of the transparent dust container, showing its capacity markings and filter components.

Cleaning/Replacing Filters

Your ETA 849645132 vacuum cleaner is equipped with a HEPA Filter 12 and other filters. Regular cleaning is crucial for maintaining suction power and air quality.

1. Access Filters: After removing the dust container, locate the pre-motor filter(s) and the HEPA filter. The exhaust filter is typically located at the rear of the unit (refer to Figure 4).
2. Clean Pre-Motor Filters: Remove the pre-motor filters. Tap them gently over a waste bin to remove loose dust. If washable, rinse under cold running water. Allow to air dry completely for at least 24 hours before reinserting. Do not use a brush or abrasive cleaners.
3. Clean/Replace HEPA Filter: The HEPA Filter 12 should be checked regularly. Depending on usage, it may need to be cleaned or replaced. Follow manufacturer guidelines for cleaning (some HEPA filters are not washable). If cleaning is permitted, tap gently or rinse as instructed. Replace the HEPA filter annually or if visibly damaged/clogged.
4. Clean Exhaust Filter: Access the exhaust filter compartment (refer to Figure 4). Remove the filter and clean it by tapping or rinsing if washable. Ensure it is completely dry before reinserting.
5. Reassemble: Once all filters are clean and dry, reinsert them into their respective compartments and reassemble the vacuum cleaner.

Troubleshooting

Before contacting customer support, refer to the following common issues and solutions:

Technical Specifications

Warranty and Customer Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact your local ETA service center. Keep your purchase receipt as proof of purchase.
