Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your WENKO Adjustable Clothes Rack Duo. Please read these instructions carefully before installation and use to ensure proper function and safety.
The WENKO Adjustable Clothes Rack is a telescopic garment rack system designed for efficient closet organization. It features a robust design with a matte black finish, offering versatile storage for clothing and accessories. This system is adaptable for various spaces such as hallways, wardrobes, and bedrooms, providing an expandable solution for your storage needs.
Product Components and Features
The WENKO Adjustable Clothes Rack Duo includes the following main components:
- 2 x Vertical Support Rails (telescopic)
- 3 x Clothes Rails (adjustable width)
- 2 x Storage Baskets (adjustable height)
- 1 x Coat Hook
- High-quality plastic connectors
Key features of this system include:
- Adjustable Height: The support rails can be extended from 65 inches (165 cm) to 118.1 inches (300 cm).
- Adjustable Width: The clothes rails can be adjusted in width from 65 inches (165 cm) to 84.6 inches (215 cm).
- Tool-Free Assembly: Designed for easy installation without the need for drilling or specialized tools.
- Secure Clamping Mechanism: The system is securely clamped between the floor and ceiling.
- Heavy-Duty Construction: Made from black, powder-coated metal rods for durability.
- Load Capacity: Each crossbar supports up to 44 lbs (20 kg). Each storage basket supports up to 33 lbs (15 kg).
Image: Overview of the WENKO Adjustable Clothes Rack components, illustrating the two vertical support rails, three horizontal clothes rods, and two wire baskets. Inset circles highlight the load capacity of 44 lbs per crossbar and 33 lbs per basket, and the presence of three clothes rods.
Setup and Assembly
The WENKO Adjustable Clothes Rack is designed for straightforward assembly without drilling. Follow these steps for proper installation:
- Unpack Components: Carefully remove all parts from the packaging. Verify that all listed components are present.
- Choose Location: Select a suitable location for the clothes rack. Ensure the floor and ceiling surfaces are stable and capable of supporting the clamped system. The system can be installed in a straight line or around corners.
- Assemble Vertical Support Rails: Connect the sections of the two vertical support rails.
- Adjust Height: Extend the vertical support rails to the desired height, ensuring they fit snugly between the floor and ceiling. The adjustable range is 65 to 118.1 inches.
- Secure Support Rails: Firmly clamp the support rails into position. No drilling is required; the system uses a tension mechanism. Ensure the rails are vertical and stable.
- Attach Clothes Rails: Mount the three clothes rails onto the vertical support rails at your preferred heights. Adjust their width between 65 and 84.6 inches as needed. Secure them firmly.
- Install Storage Baskets: Attach the two wire storage baskets to the vertical support rails at desired heights. Ensure they are level and securely fastened.
- Final Check: Before loading, gently test the stability of the entire rack system. Ensure all connections are tight and the clamping mechanism is secure.
Image: The WENKO Adjustable Clothes Rack installed in a room corner, demonstrating its extendable width and height, and the key installation benefits of no drilling and simple clamping between the floor and ceiling.
Image: A diagram illustrating the adjustable dimensions of the clothes rack, showing a height range of 65 to 118 inches and a width range of 64.6 to 84.6 inches.
Operation and Usage
Once assembled, your WENKO Adjustable Clothes Rack is ready for use. Follow these guidelines for optimal operation:
- Loading Clothes Rails: Hang garments evenly across the three clothes rails. Do not exceed the maximum load capacity of 44 lbs (20 kg) per crossbar.
- Using Storage Baskets: Place folded clothing, accessories, or other items in the two wire baskets. Each basket has a maximum load capacity of 33 lbs (15 kg).
- Adjusting Components: The height of the clothes rails and baskets can be adjusted after initial setup. Loosen the connectors, reposition the component, and then securely tighten the connectors.
- Utilizing the Coat Hook: Use the included coat hook to easily reach higher-hanging garments or to temporarily hold items during organization.

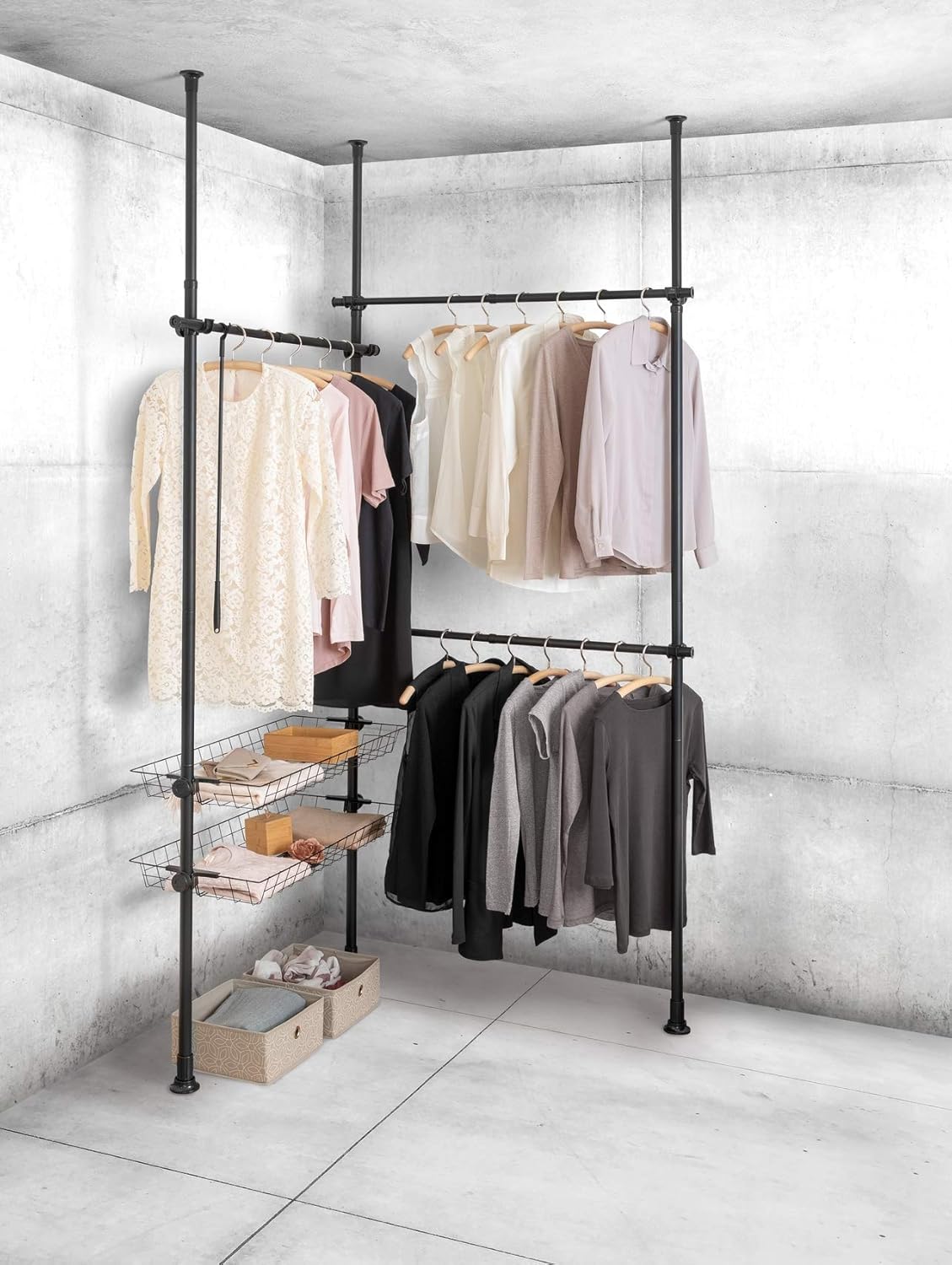

Image: The WENKO Adjustable Clothes Rack fully utilized, displaying various hanging garments on the rods and folded items in the wire baskets, demonstrating its storage capabilities.
Image: A close-up view of the WENKO Clothes Rack, showing the secure attachment mechanism for the clothes rods and wire baskets to the vertical support rails.
Maintenance
To ensure the longevity and continued performance of your WENKO Adjustable Clothes Rack, follow these simple maintenance steps:
- Cleaning: Wipe down the metal rods and plastic connectors with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Regular Checks: Periodically inspect all connections and clamping mechanisms to ensure they remain tight and secure. Re-tighten if necessary.
- Weight Distribution: Always distribute weight evenly across the clothes rails and within the baskets to prevent strain on the structure.
Troubleshooting
If you encounter any issues with your WENKO Adjustable Clothes Rack, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Rack feels unstable or wobbly. | Vertical support rails not securely clamped; connections are loose; uneven floor/ceiling surface. | Ensure the vertical support rails are fully extended and firmly clamped between the floor and ceiling. Check and tighten all plastic connectors for clothes rails and baskets. Verify the floor and ceiling surfaces are flat and provide adequate grip. |
| Difficulty adjusting height or width. | Connectors are too tight; mechanism is obstructed. | Loosen the relevant plastic connectors before attempting to adjust. Check for any debris or obstructions in the telescopic or adjustable mechanisms. |
| Clothes rails or baskets sag. | Exceeding load capacity; improper attachment. | Reduce the weight on the affected rail or basket. Ensure weight is distributed evenly. Verify that the clothes rails and baskets are correctly and securely attached to the vertical support rails. Adhere to the maximum load capacities (44 lbs per crossbar, 33 lbs per basket). |
Specifications
| Brand | WENKO |
| Model | Adjustable Clothes Rack Duo |
| Color | Black |
| Material | Alloy Steel (Frame), High-quality Plastic (Connectors) |
| Adjustable Height | 65 - 118.1 inches (165 - 300 cm) |
| Adjustable Width | 65 - 84.6 inches (165 - 215 cm) |
| Depth | 14.96 inches (38 cm) |
| Load Capacity (Crossbar) | 44 lbs (20 kg) per crossbar |
| Load Capacity (Basket) | 33 lbs (15 kg) per basket |
| Installation Type | Free Standing (Clamped between floor and ceiling) |
| Assembly | Required, tool-free |
| Included Components | 2 support rails, 3 clothes rails, 2 storage baskets, 1 coat hook |
Warranty and Support
For warranty information, please refer to the terms and conditions provided by your retailer at the time of purchase, or contact WENKO customer service directly.
If you require further assistance, have questions about assembly, or need to report a missing part, please contact WENKO customer support through their official website or the contact information provided with your purchase.
