1. Introduction
This manual provides essential instructions for the safe and effective use, setup, operation, and maintenance of your Yato YT-60373 Diamond Core Drill Bit. This high-quality core drill bit is designed for professional and domestic use, offering robust construction and diamond-incrusted turbo segments for fast, uniform, and clean drilling results.
The Yato YT-60373 is suitable for both wet and dry applications across a variety of materials, including concrete, reinforced concrete, refractory stone, masonry, brick, limestone, and screed.
Figure 1: Yato YT-60373 Diamond Core Drill Bit. This image shows the red cylindrical core drill bit with a hexagonal connection end and diamond segments at the cutting edge.
2. Setup
2.1 Safety Precautions
- Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves.
- Ensure the power tool used with the drill bit is in good working condition and has adequate power for the task.
- Disconnect the power tool from the power source before attaching or detaching the drill bit.
- Verify that the work area is clear of obstructions and that there are no hidden electrical wires or pipes in the drilling path.
2.2 Attaching the Drill Bit
- Ensure the spindle of your core drilling machine is clean and free of debris.
- Carefully thread the 1 1/4" connection of the Yato YT-60373 drill bit onto the spindle of your core drilling machine.
- Tighten the drill bit securely by hand, then use an appropriate wrench to ensure it is firmly seated. Do not overtighten.
- Confirm the drill bit is properly aligned and does not wobble.
2.3 Wet vs. Dry Operation
The Yato YT-60373 is designed for both wet and dry drilling. For optimal performance and extended tool life, especially in hard materials or for deep holes, wet drilling is recommended to cool the segments and flush out debris. Dry drilling is suitable for less demanding applications or when water cannot be used.

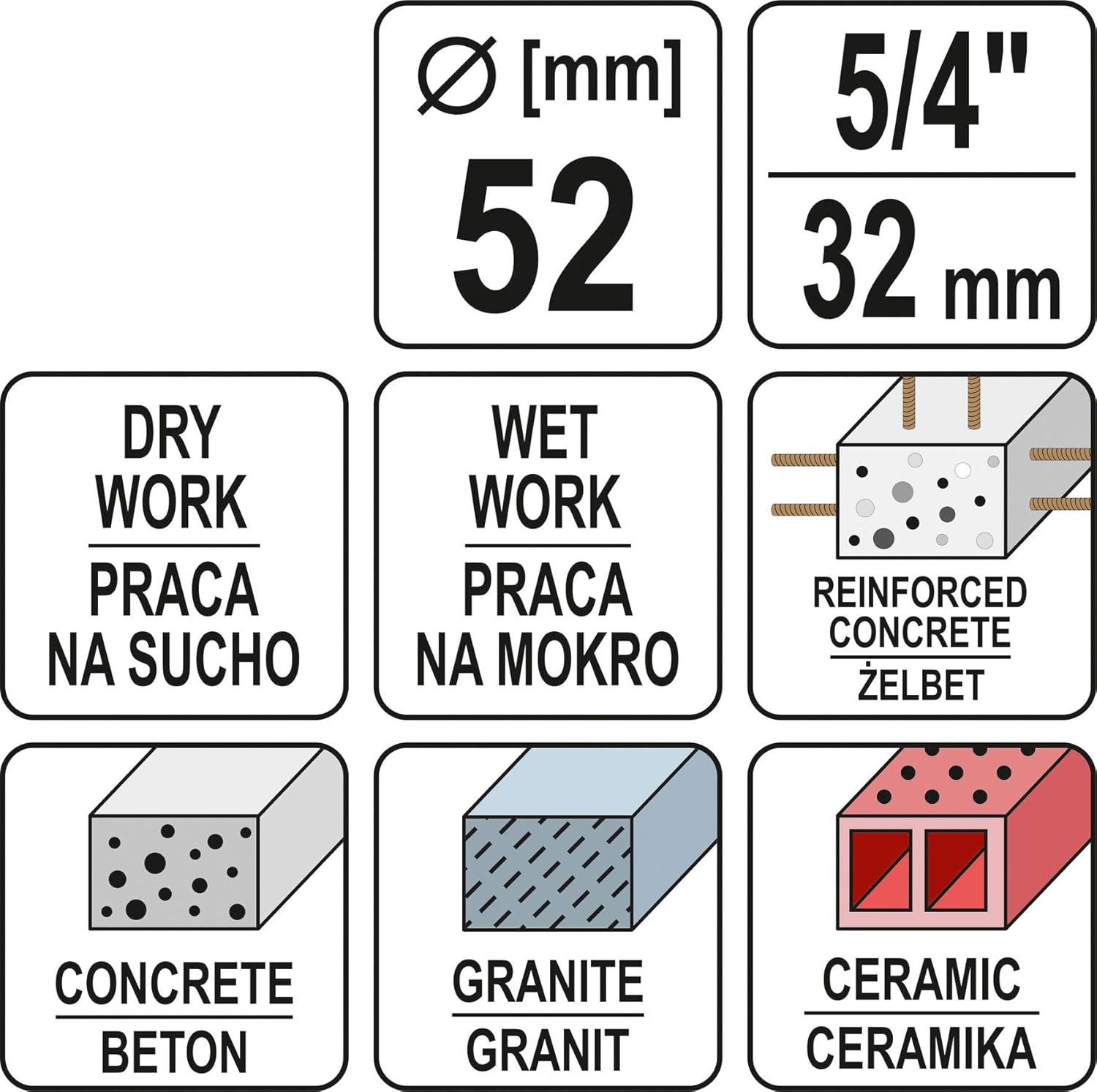

Figure 2: Usage specifications for the Yato YT-60373. This diagram illustrates the 52mm diameter, 5/4" (32mm) connection, suitability for dry and wet work, and compatible materials including reinforced concrete, concrete, granite, and ceramic.
3. Operating Instructions
3.1 Starting the Drill
- Mark the precise drilling location on the workpiece.
- Position the drill bit squarely against the marked spot. The high-quality segmentation helps prevent slipping at the start of drilling.
- Begin drilling at a low speed, gradually increasing to the recommended operating speed for your material.
3.2 Drilling Technique
- Apply steady, consistent pressure. Avoid excessive force, which can damage the drill bit or the material.
- For wet drilling, ensure a continuous flow of water to the cutting edge. This cools the diamond segments and removes slurry, improving cutting efficiency and extending bit life.
- For dry drilling, periodically withdraw the bit from the hole to allow air to cool the segments and clear dust.
- Maintain a straight drilling path to prevent binding or uneven wear on the segments.
3.3 Compatible Materials
The Yato YT-60373 is suitable for drilling in a wide range of construction materials, including:
- Concrete
- Reinforced Concrete
- Washed Concrete
- Aged Concrete
- Refractory Stone
- Masonry
- Brick
- Limestone
- Screed
- Clinker
4. Maintenance
4.1 Cleaning
- After each use, especially after wet drilling, thoroughly clean the drill bit to remove all slurry and debris.
- Use water and a brush to clean the diamond segments and the barrel of the bit.
- Ensure the connection thread is clean and free of any hardened material.
4.2 Inspection
- Regularly inspect the diamond segments for signs of wear, damage, or missing diamonds.
- Check the steel barrel for cracks, bends, or other damage.
- Inspect the connection thread for wear or damage that could affect secure attachment to the drilling machine.
4.3 Storage
- Store the drill bit in a dry place to prevent rust and corrosion.
- Keep the drill bit in its original packaging or a protective sleeve to prevent damage to the diamond segments.
- Store out of reach of children.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow drilling progress | Insufficient pressure, incorrect speed, worn segments, lack of water (wet drilling) | Increase pressure slightly, adjust speed, ensure water flow, inspect segments for wear. |
| Excessive vibration or wobble | Loose connection, bent drill bit, damaged spindle | Tighten connection, inspect drill bit for damage, check drilling machine spindle. |
| Overheating of drill bit | Insufficient cooling (wet drilling), excessive pressure (dry drilling), continuous dry drilling without clearing dust | Increase water flow, reduce pressure, periodically withdraw bit to cool and clear dust. |
| Uneven wear on segments | Angled drilling, inconsistent pressure | Maintain a straight drilling path, apply even pressure. |
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | YT-60373 |
| Brand | Yato |
| Cutting Diameter | 52 Millimeters |
| Connection Type | 1 1/4" |
| Working Length | Approximately 400 mm |
| Special Features | Diamond segments, Cobalt coating, Laser welded finish |
| Weight | 1.38 Kilograms |
| Dimensions (L x W x H) | 47 x 5.2 x 5.2 cm |
| Recommended Surface | Clinker, Stone, Concrete, Masonry |
| Usage | Wet and Dry |

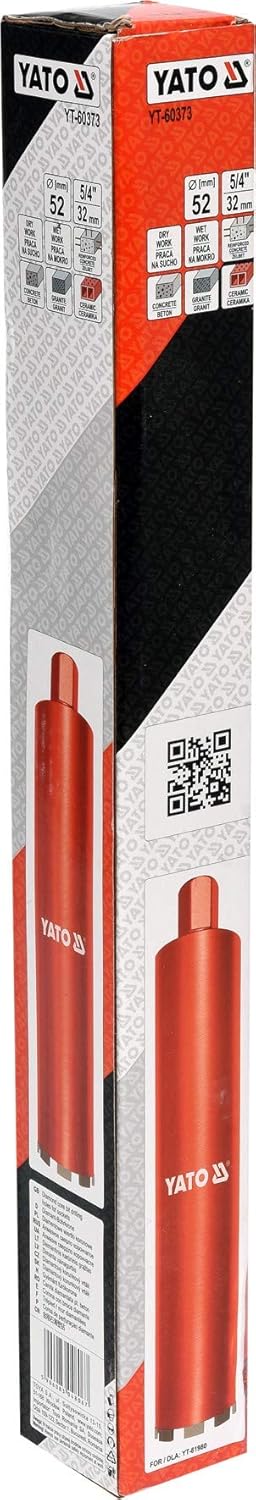

Figure 3: Yato YT-60373 Product Packaging. The packaging displays the model number, brand logo, and key specifications, including the 52mm diameter and suitability for various materials.
7. Warranty and Support
Warranty information for the Yato YT-60373 Diamond Core Drill Bit is typically provided at the point of purchase or included with the product packaging. Please refer to your purchase documentation for specific warranty terms and conditions.
For technical support, spare parts availability, or any questions regarding the use and maintenance of your Yato product, please contact your retailer or the official Yato customer service. You may also find additional information by scanning the QR code often found on product packaging or visiting the manufacturer's official website.
Additional product information may be available via this link: http://qr.yato.pl/YT-60373
