Introduction
Thank you for choosing the VYTRONIX NIBC22 Cordless Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read these instructions carefully before use and retain them for future reference.
The VYTRONIX NIBC22 is a versatile 3-in-1 cordless vacuum designed for convenient cleaning of various surfaces. Its lightweight design and powerful suction make it suitable for everyday household tasks.
Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, read all instructions before using this appliance.
- This appliance is for household use only. Do not use outdoors or on wet surfaces.
- Do not allow children to operate the vacuum cleaner. Close supervision is necessary when used near children.
- Do not pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without the dust cup and filter in place.
- Turn off the appliance before connecting or disconnecting the battery pack, or before performing any maintenance.
- Use only the charger supplied by the manufacturer to recharge.
- Store the appliance indoors in a cool, dry place.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
Product Overview and Components
Familiarize yourself with the parts of your VYTRONIX NIBC22 Cordless Vacuum Cleaner.
Image: The VYTRONIX NIBC22 Cordless Vacuum Cleaner shown in its full upright stick configuration and as a detached handheld unit with a brush attachment. This illustrates its 3-in-1 versatility.
Main Components:
- Main Unit: Contains the motor, dustbin, and battery.
- Extension Wand: Connects the main unit to the floor brush for upright cleaning.
- Motorised Floor Brush: Features LED lights and a rotating brush bar for effective cleaning on various floor types.
- 2-in-1 Crevice Tool: For narrow spaces and corners.
- Dusting Brush: For delicate surfaces and upholstery.
- Wall Mount: For convenient storage and charging.
- Charger: For recharging the Lithium-Ion battery.

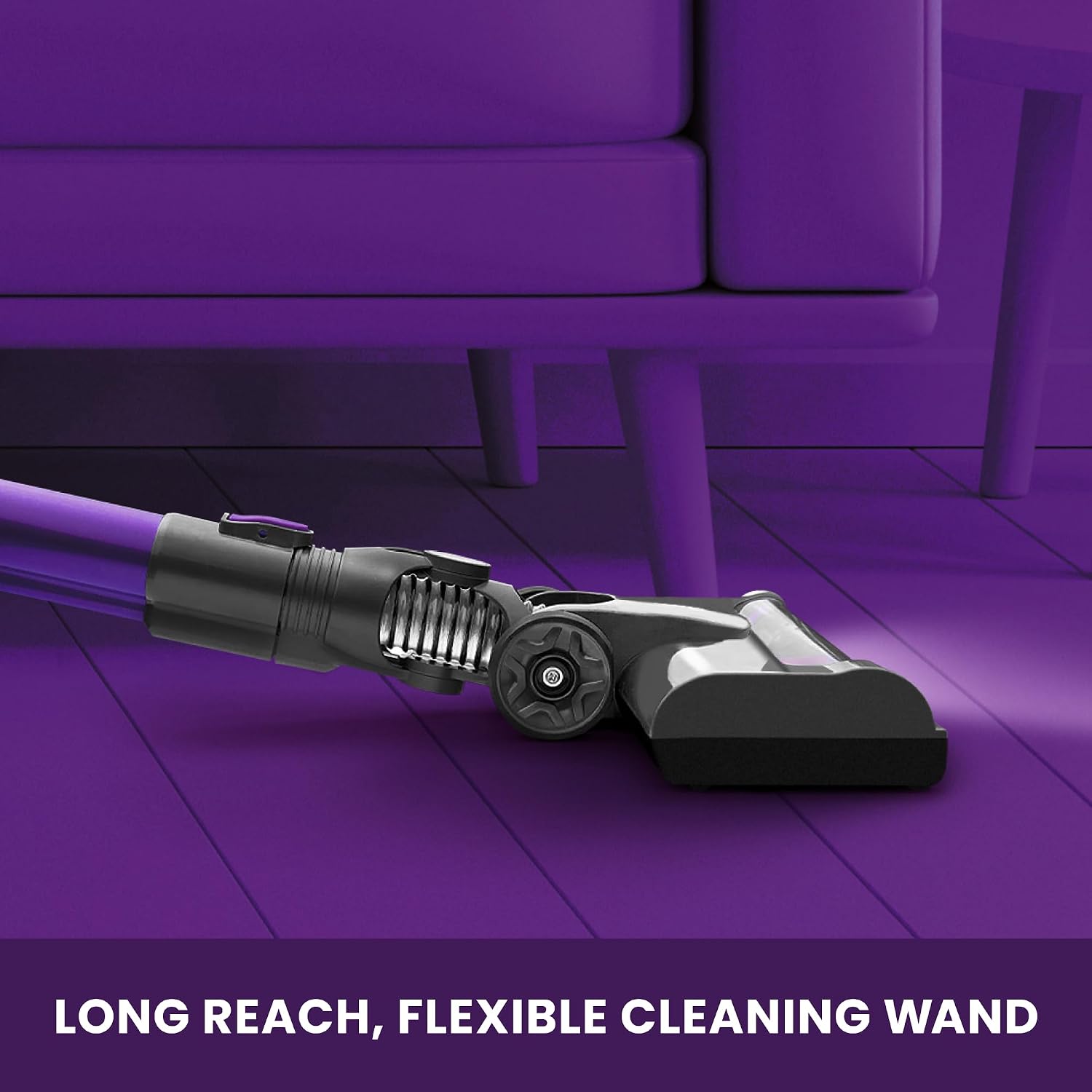

Image: A close-up of the long reach, flexible cleaning wand, demonstrating its ability to extend and bend for accessing difficult areas under furniture.
Setup and Initial Use
Assembly:
- Attach the Extension Wand: Insert the extension wand into the main unit until it clicks securely.
- Attach the Floor Brush: Connect the motorised floor brush to the other end of the extension wand, ensuring it clicks into place.
- Handheld Configuration: For handheld use, detach the extension wand and floor brush. Attach desired accessories (crevice tool or dusting brush) directly to the main unit.
Initial Charging:
- Before first use, fully charge the vacuum cleaner for approximately 3-4 hours.
- Connect the charger to the charging port on the main unit and plug it into a wall outlet.
- The battery level indicator lights will illuminate during charging and show full charge when complete.
Image: The VYTRONIX NIBC22 cordless vacuum cleaner is shown securely mounted on its wall bracket, indicating a convenient storage and charging solution.
Operating Instructions
Power On/Off and Mode Selection:
- Press the power button to turn the vacuum cleaner on. It will typically start in ECO mode.
- Press the mode selection button (often marked with +/- or ECO) to switch between ECO mode (up to 45 minutes run time) and High Power mode for increased suction.
- Press the power button again to turn the vacuum cleaner off.
Image: A detailed view of the vacuum's handle, highlighting the power button, mode selector, and the illuminated ECO indicator, along with battery level lights.
Using Attachments:
- Motorised Floor Brush: Ideal for carpets, hard floors, and tiles. The integrated LED lights illuminate the cleaning path.
- 2-in-1 Crevice Tool: Use for tight corners, edges, and between cushions.
- Dusting Brush: Suitable for cleaning delicate surfaces, curtains, and upholstery.
Image: A close-up of the motorised brush head with its LED lights illuminated, cleaning a floor surface and highlighting its effectiveness.
Image: The handheld configuration of the VYTRONIX NIBC22 vacuum cleaner being used to clean stairs, demonstrating its portability and ease of use in compact spaces.
Maintenance
Emptying the Dustbin:
- The dustbin has a 0.5 litre capacity. Empty it regularly to maintain optimal suction power.
- To empty, hold the main unit over a waste bin and press the 'one-click' release button to open the dustbin flap.
- Close the flap securely after emptying.
Image: A visual representation of the 'one-click' dustbin emptying mechanism, showing dirt falling out of the transparent dust container into a bin.
Cleaning the Filter:
- The HEPA filter should be cleaned regularly to ensure efficient operation.
- Twist and pull to remove the filter from the dustbin.
- Rinse the filter under cold running water until clean.
- Allow the filter to air dry completely for at least 24 hours before reinserting. Do not use the vacuum with a wet filter.
Cleaning the Brush Bar:
- Periodically check the motorised brush bar for tangled hair or debris.
- Turn off the vacuum and detach the floor brush.
- Use scissors or a brush to carefully remove any obstructions from the brush bar.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum does not turn on. | Battery is not charged. | Charge the battery fully (3-4 hours). |
| Reduced suction power. | Dustbin is full. Filter is clogged. Obstruction in nozzle/hose. | Empty the dustbin. Clean or replace the filter. Remove any obstructions. |
| Brush bar not rotating. | Obstruction in brush bar. | Turn off the vacuum and remove any tangled hair or debris from the brush bar. |
| Short run time. | Battery not fully charged. Operating in High Power mode. | Ensure battery is fully charged. Use ECO mode for longer run time. |
Specifications
| Feature | Detail |
|---|---|
| Model | NIBC22 |
| Brand | VYTRONIX |
| Battery Type | 22.2V Lithium-Ion |
| Run Time | Up to 45 minutes (ECO mode) |
| Charging Time | 3-4 hours |
| Dust Container Capacity | 0.5 litres |
| Filter Type | HEPA Filter |
| Weight | 2.3 kg |
| Dimensions (L x W x H) | 110 x 23.5 x 22 cm |
| Special Features | Bagless, Cordless, Eco Mode, Lightweight, Motorised Brush with LED Lights |
Warranty and Customer Support
Your VYTRONIX NIBC22 Cordless Vacuum Cleaner comes with a standard manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions.
For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact VYTRONIX customer support:
- Website: www.vytronix.com (Please check the official website for the most up-to-date contact information.)
- Email: Refer to your product packaging or official website.
- Phone: Refer to your product packaging or official website.
When contacting support, please have your model number (NIBC22) and purchase date available.
