Unknown Brand GH-101-A Stainless Steel Vertical Toggle Clamp User Manual

1. Product Overview

This compact vertical toggle clamp, model GH-101-A, is engineered for quick and efficient clamping of various materials, including sheet metal and circuit boards. Its robust stainless steel construction ensures durability, while the ergonomic plastic handle provides comfortable and safe operation. This clamp is commonly utilized in welding, jigging, and field repair applications, offering a reliable solution for securing workpieces.

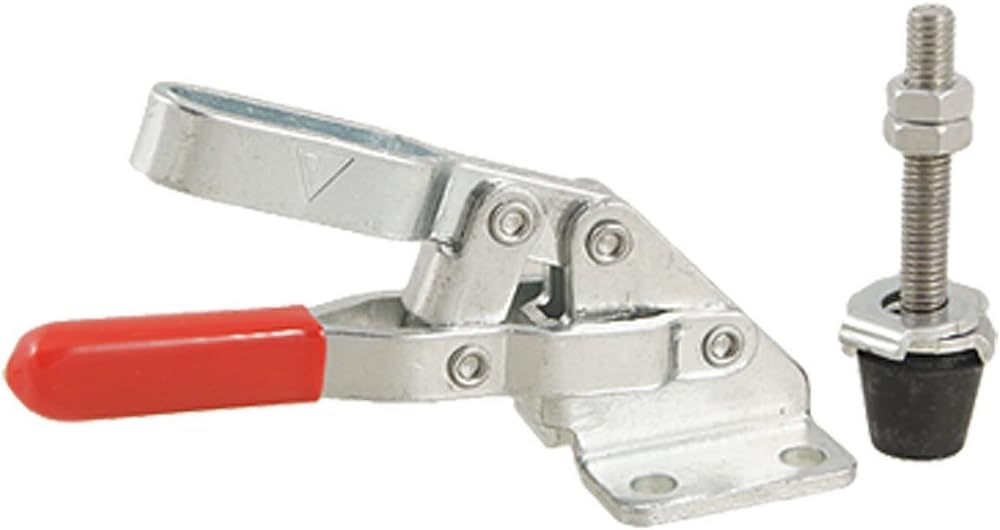

An overview of the GH-101-A vertical toggle clamp, featuring its stainless steel construction and ergonomic red plastic handle. The image also shows the included threaded spindle assembly, which can be adjusted for various clamping thicknesses.

2. Setup and Installation

The GH-101-A toggle clamp is designed for secure mounting to a stable surface. It features mounting dimensions of 24 mm (length) by 16 mm (width). To install, position the clamp on your desired surface and mark the locations for the mounting holes. Drill appropriate pilot holes if necessary, then securely fasten the clamp using suitable screws or bolts (not included) through the designated mounting points. Ensure the clamp is firmly attached before use to prevent movement during operation.

This image illustrates the compact size of the vertical toggle clamp, held in a hand for scale. Key dimensions are indicated, showing a height of approximately 2.9 inches (7 cm), which is useful for planning installation space.

3. Operating Instructions

1. Position Workpiece: Place the material or workpiece securely under the clamping arm of the toggle clamp.
2. Engage Clamp: Push the red plastic handle downwards. The handle has a rotation angle of 60 degrees, and the clamping bar swings through an angle of 100 degrees to engage the workpiece.
3. Verify Security: Ensure the workpiece is firmly held by the clamp before proceeding with any work. The clamp has a maximum holding capacity of 50 kg.
4. Release Clamp: To release the workpiece, lift the handle upwards until the clamping arm disengages.

4. Maintenance

To ensure optimal performance and extend the lifespan of your GH-101-A toggle clamp, regular maintenance is recommended:

• Cleaning: Keep the clamp clean and free from dust, debris, and welding spatter. Wipe down the surfaces with a clean cloth after each use.
• Lubrication: Periodically apply a light machine oil or grease to all pivot points and moving parts. This will ensure smooth operation and prevent corrosion.
• Inspection: Regularly inspect the clamp for any signs of wear, damage, or loose fasteners. Pay close attention to the clamping arm, handle, and mounting points.
• Storage: Store the clamp in a dry environment to prevent rust and corrosion, especially if it will not be used for an extended period.

5. Troubleshooting

• Clamp Not Holding Securely:
  • Ensure the workpiece is correctly positioned and the clamping arm is fully engaged.
  • Check if the threaded spindle assembly is adjusted to the correct height for the workpiece thickness.
  • Verify that the clamp is securely mounted to its base.
• Stiff Operation:
  • Apply lubricant to all pivot points and moving parts as described in the Maintenance section.
  • Check for any debris or foreign objects obstructing the mechanism.
• Visible Damage:
  • If any part of the clamp is bent, cracked, or severely worn, discontinue use immediately.
  • Damaged clamps should be replaced to ensure safety and proper function.

6. Specifications

7. Warranty and Support

Warranty and support information for the Unknown Brand GH-101-A Stainless Steel Vertical Toggle Clamp is not available in this document. For any inquiries regarding warranty, technical support, or replacement parts, please contact your original retailer or the product manufacturer directly.
