Introduction
Welcome to your iProtec Inspector Pen Light. This manual provides instructions for safe and effective use, maintenance, and troubleshooting. Please read it thoroughly before operating your device.
The iProtec Inspector Pen Light is a compact, high-performance flashlight designed for various applications. It features 180 lumens of output, multiple light modes, 3x adjustable zoom, and a durable, waterproof (IP67) and impact-resistant aluminum body.
Setup
Battery Installation
The iProtec Inspector Pen Light requires two AAA batteries.
- Unscrew the tail cap of the pen light by turning it counter-clockwise.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the battery compartment. The positive end typically faces the head of the flashlight.
- Screw the tail cap back on clockwise until it is securely tightened. Overtightening is not necessary.
Image: Close-up view of the iProtec Inspector Pen Light's tail cap, indicating the battery type (2x AAA) and polarity for correct insertion.
Operating Instructions
Power On/Off and Mode Selection
The pen light features a soft-touch button on the tail cap for operation.
- Momentary On: Lightly press and hold the tail cap button for momentary illumination. Release the button to turn off.
- Constant On/Off: Fully press the tail cap button until it clicks to turn the light on. Press again to turn it off.
- Mode Cycling: When the light is on, lightly press the button (without clicking) to cycle through the light modes: High, Low, Strobe.
Light Modes:
- High Mode: 180 lumens, 84 meter (275 feet) beam throw, approximately 2 hours runtime.
- Low Mode: 54 lumens, 46 meter (150 feet) beam throw, approximately 6 hours runtime.
- Strobe Mode: High beam strobe function, 84 meter beam, approximately 50 minutes runtime.
Adjustable Zoom
The iProtec Inspector Pen Light features a 3x adjustable zoom function.
- To adjust the beam from a spot light to a flood light, slide the head of the flashlight forward or backward.
- Extend the head for a focused spot beam.
- Retract the head for a wider flood beam.

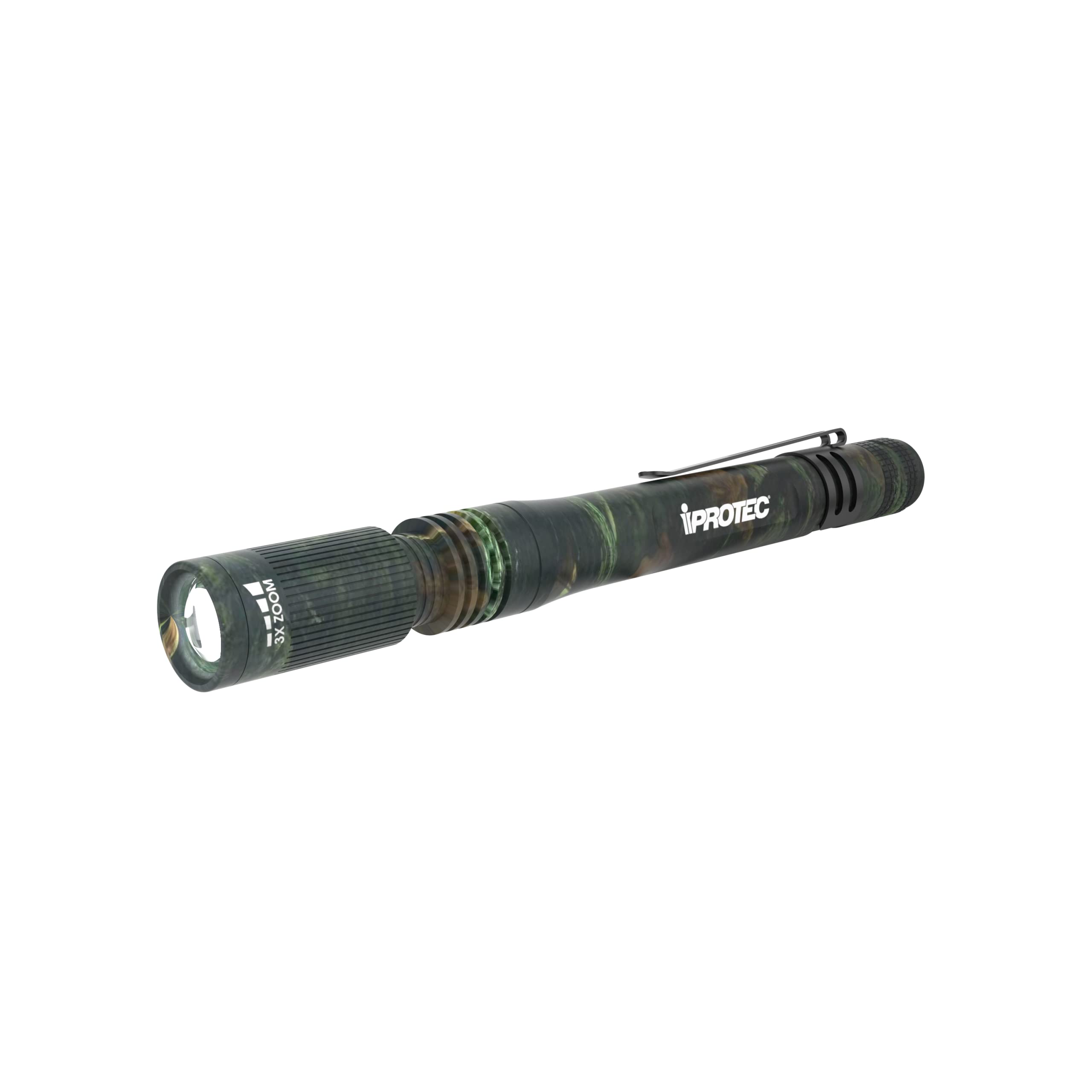

Image: The iProtec Inspector Pen Light with its head extended, demonstrating the 3x zoom capability for beam adjustment.
Maintenance
Cleaning
To clean the exterior of the pen light, use a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the anodized finish.
Battery Replacement
Replace batteries when the light output diminishes. Always use fresh AAA alkaline batteries. Remove batteries if the device will not be used for an extended period to prevent leakage.
O-Ring Inspection
Periodically inspect the O-rings for wear or damage to maintain the IP67 waterproof rating. Lubricate O-rings with silicone grease if necessary.
Image: The iProtec Inspector Pen Light being splashed with water, visually representing its IP67 water resistance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | Dead or incorrectly inserted batteries | Replace batteries, ensuring correct polarity. |
| Light is dim | Low battery power | Replace batteries. |
| Light flickers | Loose tail cap or dirty contacts | Tighten tail cap. Clean battery contacts with a clean cloth. |
| Zoom function is stiff | Dirt or debris in the mechanism | Clean the zoom mechanism gently. Avoid forcing. |
Specifications
- Light Output: 180 Lumens (High), 54 Lumens (Low)
- Beam Distance: 84 meters / 275 feet (High), 46 meters / 150 feet (Low)
- Runtime: 2 hours (High), 6 hours (Low), 50 minutes (Strobe)
- Zoom: 3x Adjustable
- Water Resistance: IP67 (Waterproof)
- Impact Resistance: Yes
- Material: Anodized Aircraft-Grade Aluminum
- Power Source: 2 x AAA Alkaline Batteries
- Dimensions (Compacted): 5.57 inches (Length) x 0.47 inches (Diameter)
- Weight: 3 Ounces (approx. 85g)
- Included Components: Pen Light, Belt / Pocket Clip, (2) AAA Batteries
Warranty and Support
For warranty information or technical support, please refer to the iProtec official website or contact their customer service directly. Keep your purchase receipt for warranty claims.
Note: Specific warranty terms may vary by region and retailer.
