VIPEK L-Shaped Desk with Hutch Instruction Manual

1. Important Safety Information

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

• Ensure the desk is properly assembled according to these instructions to support the recommended maximum weight.
• The main desk surface has a maximum weight capacity of 330 pounds (150 kg).
• Each hutch cube and shelf has a maximum weight capacity of 33 pounds (15 kg).
• Do not stand or sit on the desk.
• Place the desk on a level surface to prevent wobbling and ensure stability.
• Keep small parts away from children during assembly.

2. Product Overview

The VIPEK L-Shaped Desk with Hutch is designed to provide a spacious and organized workspace for home offices, studies, or gaming setups. It features an L-shaped design, a multi-tier hutch for storage, and an integrated side bookshelf.

Image 2.1: The VIPEK L-Shaped Desk with Hutch, showcasing its design and storage capabilities.

Key Features:

• L-Shape Design: Maximizes corner space for an efficient workstation.
• Integrated Hutch: Provides overhead storage with multiple compartments.
• Side Bookshelf: Two-tier shelving for books, CPU, or other items.
• Sturdy Construction: Features a heavy-duty metal frame and engineered wood panels.
• Adjustable Foot Pads: Ensures stability on uneven floors.

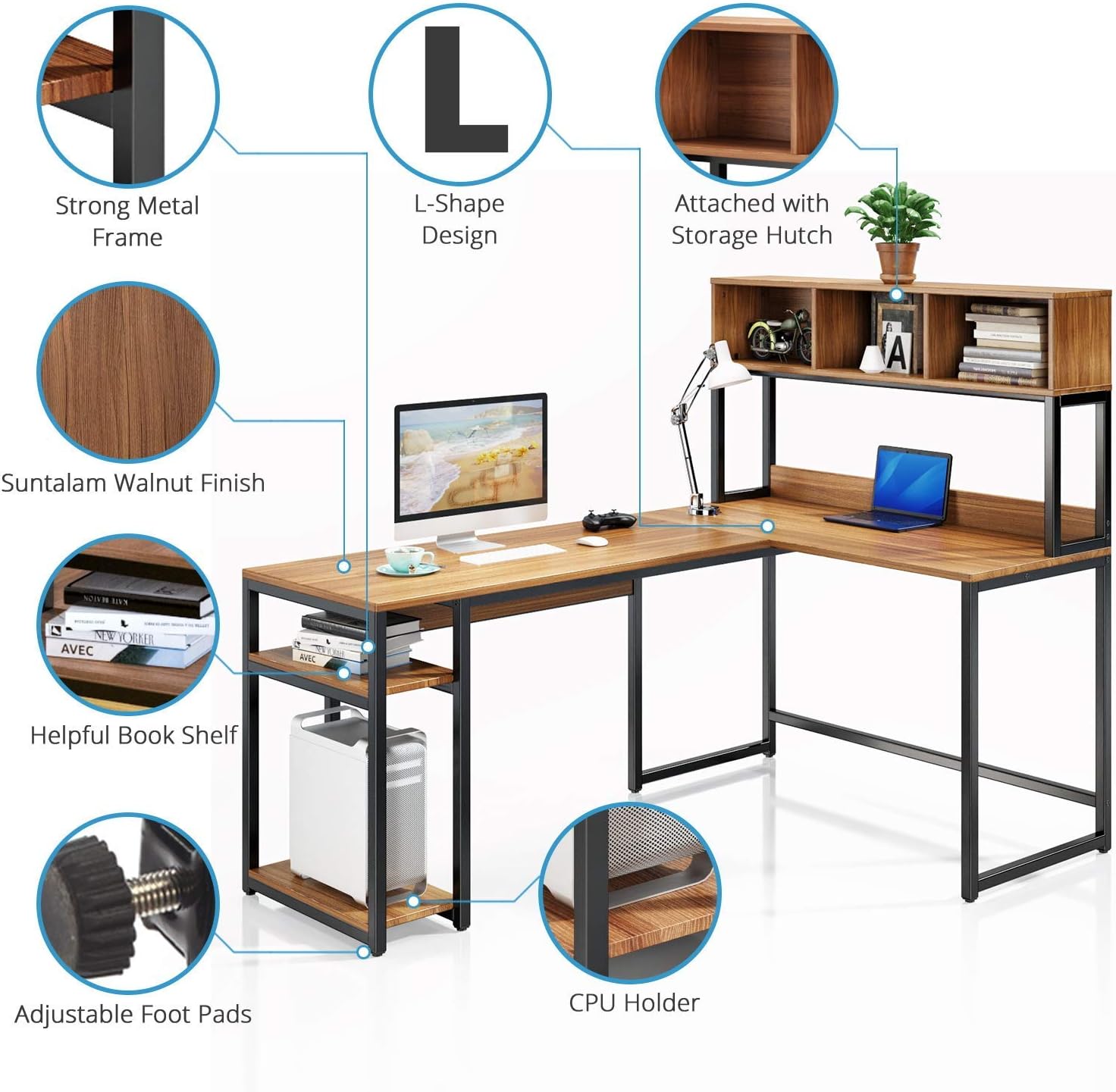

Image 2.2: Key features highlighted, including the strong metal frame, L-shape, storage hutch, helpful bookshelf, adjustable foot pads, and CPU holder area.

3. Package Contents

Before beginning assembly, please verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact VIPEK customer support.

• Main Desk Panels (L-shaped sections)
• Hutch Panels (Top and dividers)
• Side Bookshelf Panels
• Metal Frame Components (Legs, crossbars, supports)
• Assembly Hardware (Screws, bolts, nuts, L-wrench)
• Adjustable Foot Pads
• Instruction Manual

Note: Some small parts may be pre-attached to larger components.

4. Assembly Instructions

Assembly typically requires two people and a clear, spacious area. Please follow these steps carefully.

Tools Required:

• Included L-wrench
• Phillips head screwdriver (not included, recommended)

Step-by-Step Guide:

1. Unpack and Organize: Carefully unpack all components and hardware. Lay them out on a soft, clean surface to prevent scratches. Group similar parts together.
2. Assemble Main Desk Frames: Begin by connecting the metal frame components for the two main desk sections using the provided hardware. Ensure all connections are secure but do not fully tighten screws until all parts are aligned.
3. Attach Main Desk Panels: Place the large engineered wood panels onto the assembled metal frames. Secure them with the appropriate screws.
4. Assemble Side Bookshelf Unit: Construct the metal frame for the two-tier side bookshelf. Attach the bookshelf panels to this frame.
5. Connect Side Bookshelf to Main Desk: Securely attach the assembled side bookshelf unit to one of the main desk sections.
6. Assemble Hutch Frame and Panels: Build the metal frame that supports the hutch. Then, attach the hutch's engineered wood panels, including the top and internal dividers, to create the storage cubes.
7. Attach Hutch to Desk: Carefully place and secure the assembled hutch unit onto the designated main desk section.
8. Connect L-Shaped Sections: Join the two main desk sections together to form the L-shape. Ensure the connection points are aligned and secured.
9. Install Adjustable Foot Pads: Screw the adjustable foot pads into the bottom of all desk legs. Adjust them as needed to level the desk and prevent wobbling.
10. Final Tightening: Once all components are assembled and aligned, go back and fully tighten all screws and bolts. Do not overtighten.

Image 4.1: Detailed dimensions and weight limits for the desk and hutch components.

5. Usage and Operation

The VIPEK L-Shaped Desk is designed for versatile use in various settings.

Placement:

• Position the desk in a corner to maximize space efficiency.
• Ensure adequate clearance for movement and chair placement.

Weight Capacities:

• Main Desk Surface: Do not exceed 330 lbs (150 kg). This includes monitors, computers, and other equipment.
• Hutch Cubes & Side Shelves: Each individual compartment or shelf supports up to 33 lbs (15 kg). Distribute weight evenly.

Organization:

• Utilize the hutch for books, decorative items, or small office supplies.
• The lower side shelf is suitable for a CPU tower or larger books.
• Keep cables organized to maintain a tidy workspace.

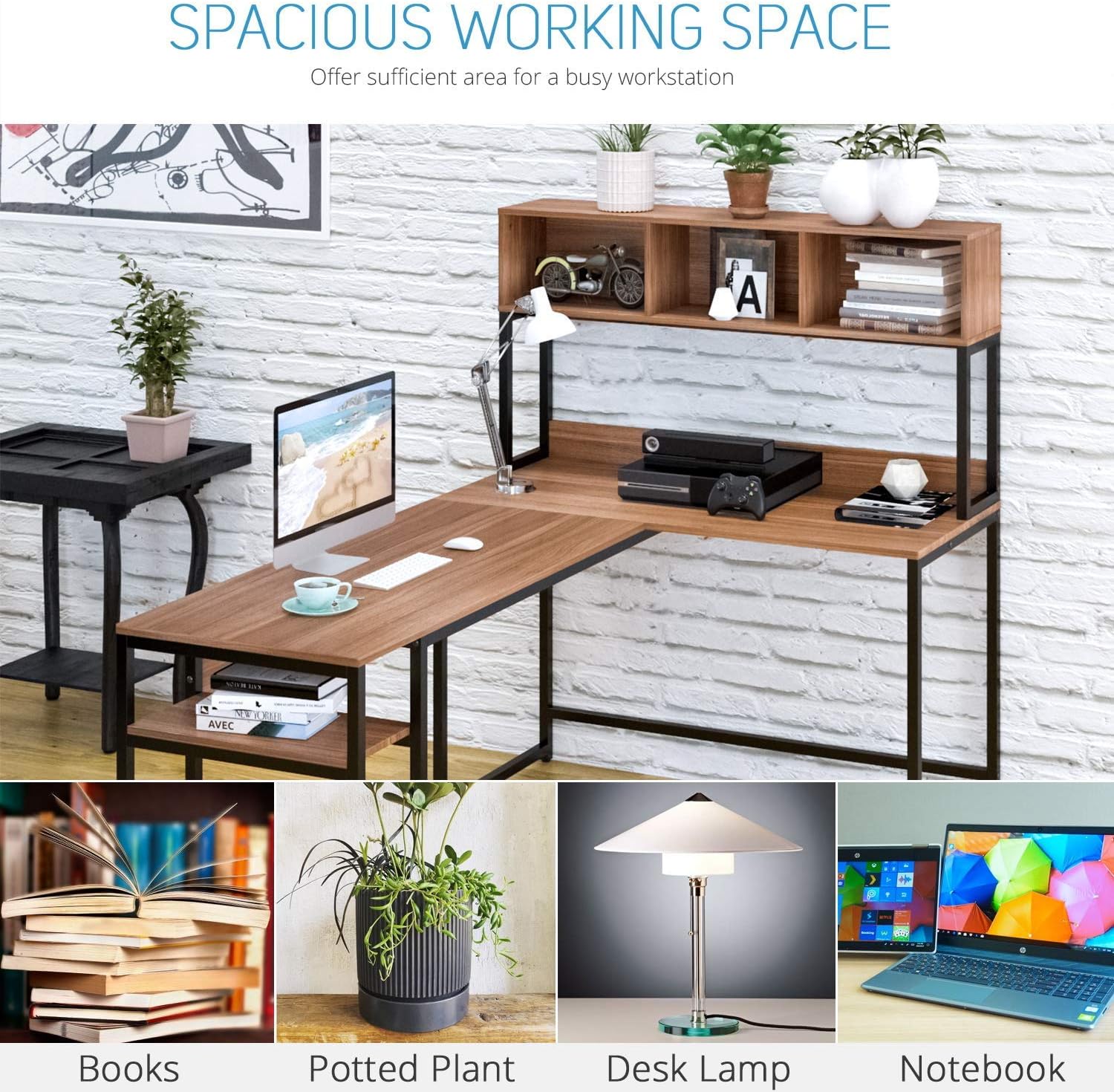

Image 5.1: The desk offers a spacious working area, suitable for multiple monitors, laptops, and other office essentials.

6. Maintenance and Care

Proper care will extend the life and appearance of your VIPEK desk.

• Cleaning: Wipe surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the finish.
• Regular Checks: Periodically check all screws and bolts to ensure they remain tight. Retighten as necessary to maintain stability.
• Avoid Moisture: Protect the desk from excessive moisture and direct sunlight to prevent warping or fading.
• Protect Surfaces: Use coasters for drinks and desk pads for heavy or sharp objects to prevent scratches and stains.

7. Troubleshooting

Desk is Wobbly:

• Ensure all assembly screws and bolts are fully tightened.
• Adjust the foot pads on the bottom of the legs to level the desk on uneven floors.
• Verify that the desk is placed on a flat, stable surface.

Missing Parts or Damaged Components:

• Carefully re-check all packaging materials to ensure no small parts were overlooked.
• Contact VIPEK customer support immediately for assistance with replacement parts.

8. Specifications

Note: Dimensions are approximate and may vary slightly.

9. Customer Support

For any questions, missing parts, or assistance with your VIPEK L-Shaped Desk, please contact VIPEK customer support through your retailer or the official VIPEK website.

Please have your model number (GRQX-0820278486) and purchase information ready when contacting support.
